Digital Manometer WERLEO Digital Air Pressure Meter and Differential Pressure Gauge HVAC Gas Pressure Tester Large LCD Display with Backlight - Battery Included

Highlights:

[ 11 Selectable Units&High Accurate ]: This gas pressure meter features 11 selectable units of measure.The device measures gauge and differential pressure in the range of ±2 psi, High resolution(0.001psi) gauge.

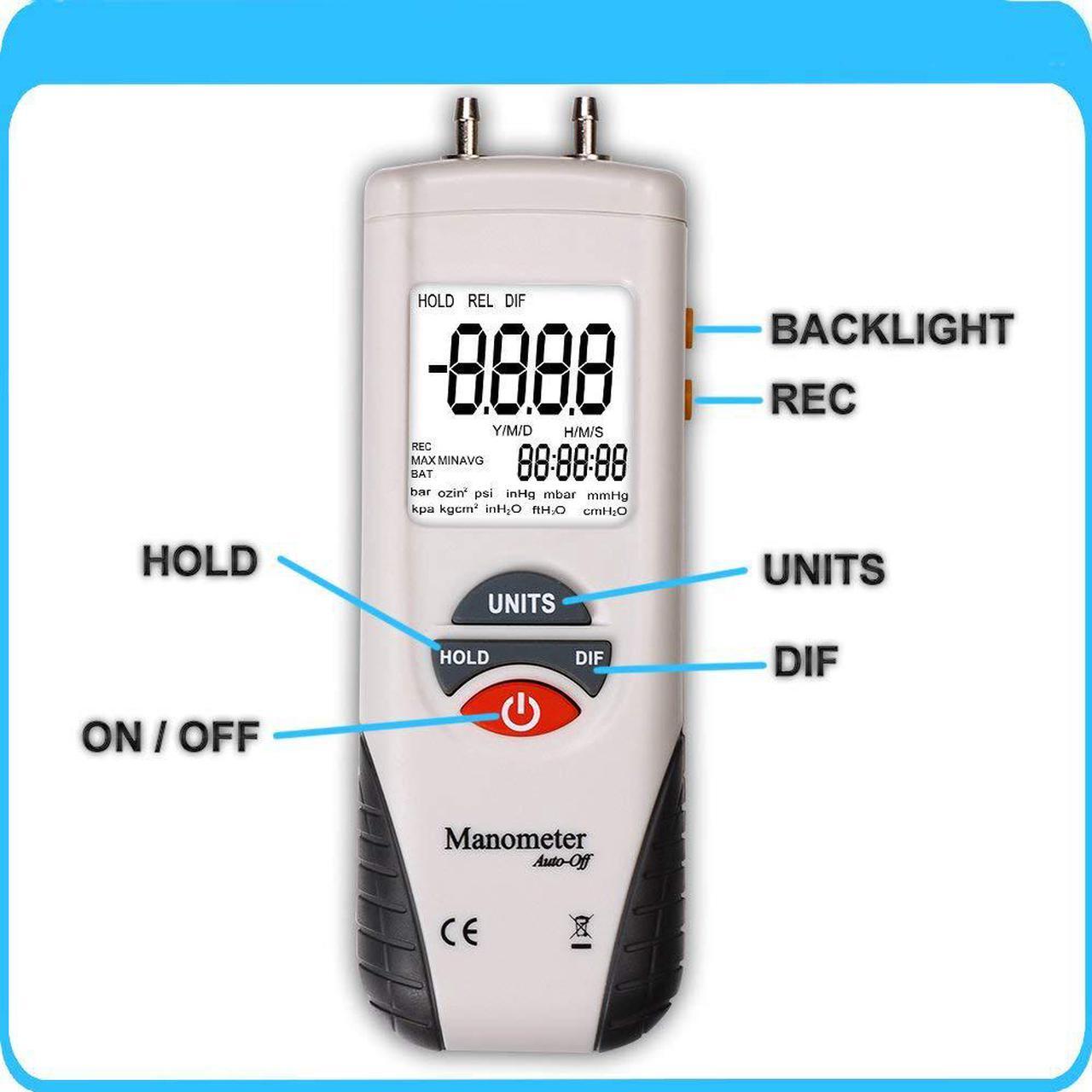

[ Date Hold & Max/Min/Avg Recording ]: Press the HOLD button momentarily to freeze the displayed reading. Zero function for offset correction or measurement.Press REC button to access the MIN/MAX/AVG recording mode.

[ Portable ] : The digital gas manometer dimensions:5.79" x 2.16" x1.26", Slim design and the easy button for one hand operation, free up a hand for other work.

[ Large LCD with Backlight and Auto Power Off ]: The gas pressure tester will automatically shut off after 20 minutes to extend battery life. Backlight function for easily read the display even in the dark.

?[ Multi-Application ] Specifically for use in HVAC, pneumatic controls, medical equipment, gas appliance repair and installation, laboratory testing, computer peripherals.




Introduction

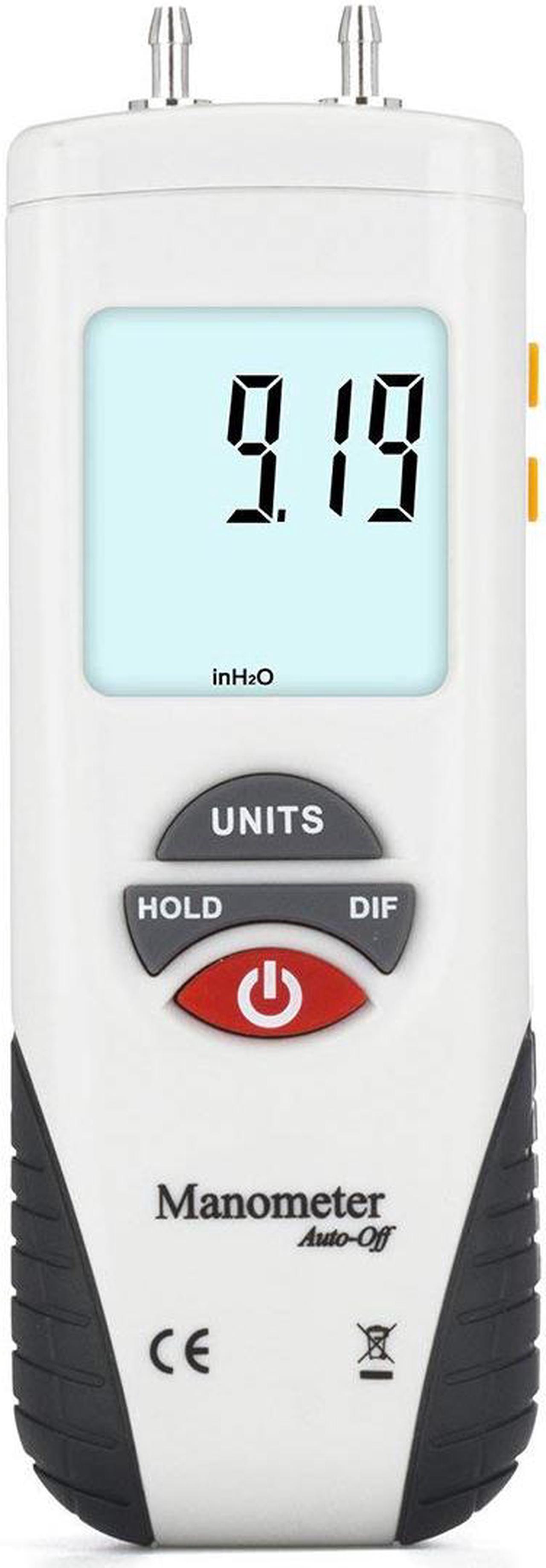

This HVAC Digital Manometer is a professional instrument to measure gauge. Offering 11 selectable units of measure, Differential Pressure Manometer can serve as a low range/ high-resolution Gauge or provide Differential Pressure up to 0 to 55.4 in. H2O (inches of water). Max/Min recording are useful features, Data Hold and Auto Power Off functions. The also features Zero function for offset correction or measurement. It is ideal for carrying out servicing and troubleshooting on air conditioning and refrigeration systems.



Features

Low Range/ High-Resolution Gauge or Differential Pressure.

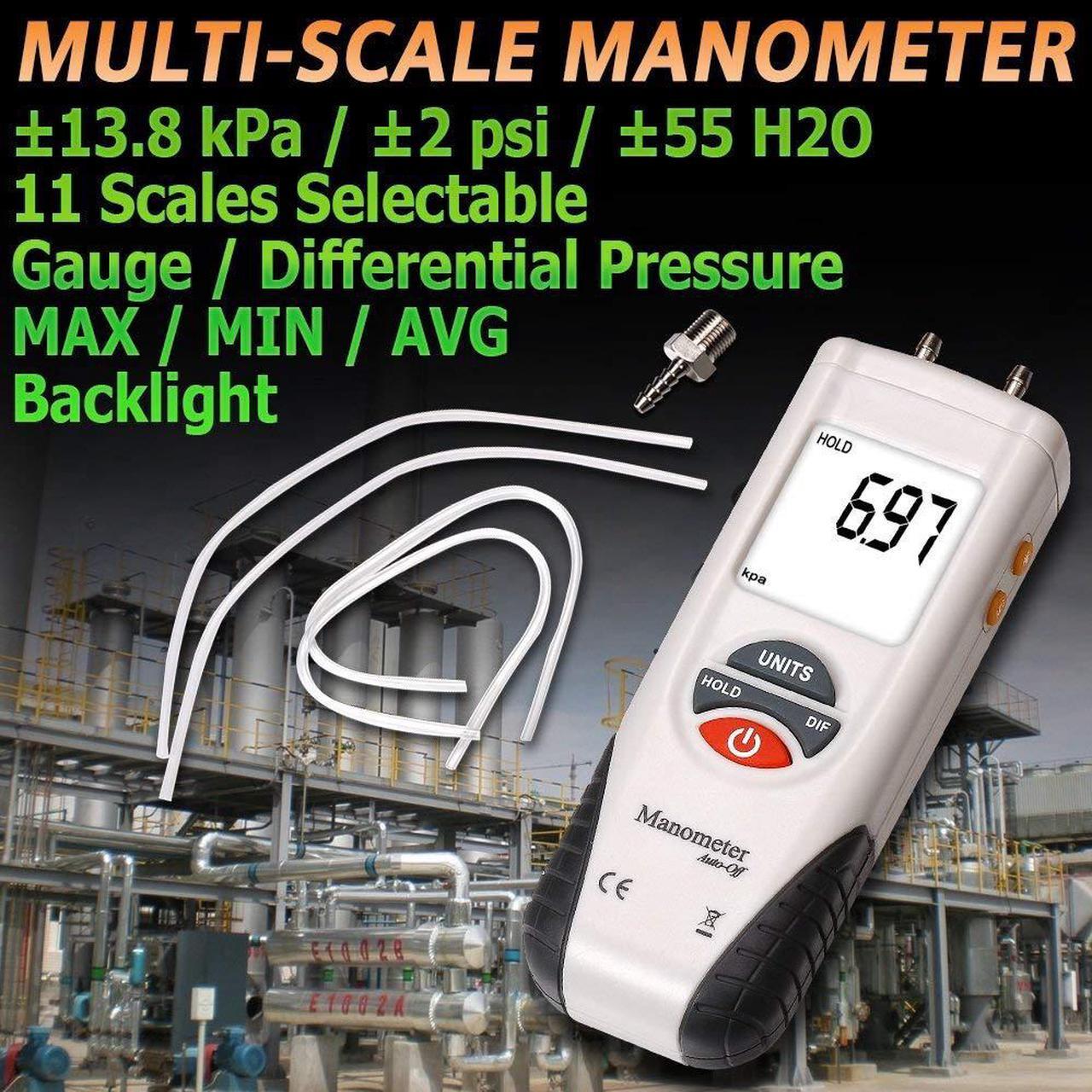

Measuring Ranges: ±13.79 kPa / ±2 psi / ±55.4 H2O.
High Accuracy: 0.001psi.
11 Selectable Units of measure: inH2O, psi, bar, mbar, kPa, inHg, mmHg, ozin2,FtH2O, cmH2O, kgcm2.
Large LCD with backlight.
MAX/MIN/AVG values and Zero function.
Data Hold and Auto Power Off functions.
Error Codes for out of range indication.
Low Battery Indication.
Two years warranty against manufacturing defects.

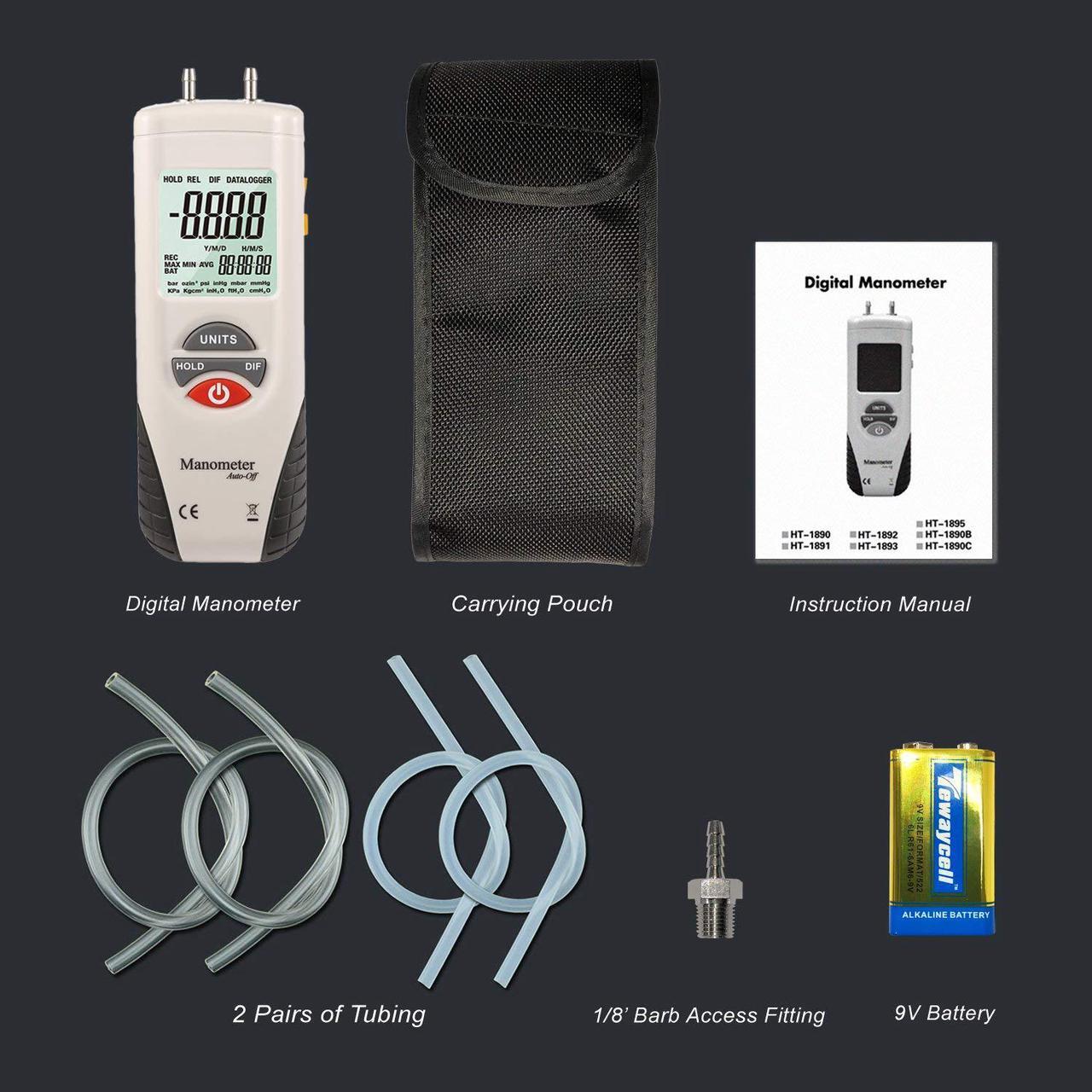

One set included

1x Manometer
2 Pairs of Tubing
1x 1/8" Barb Access Fitting

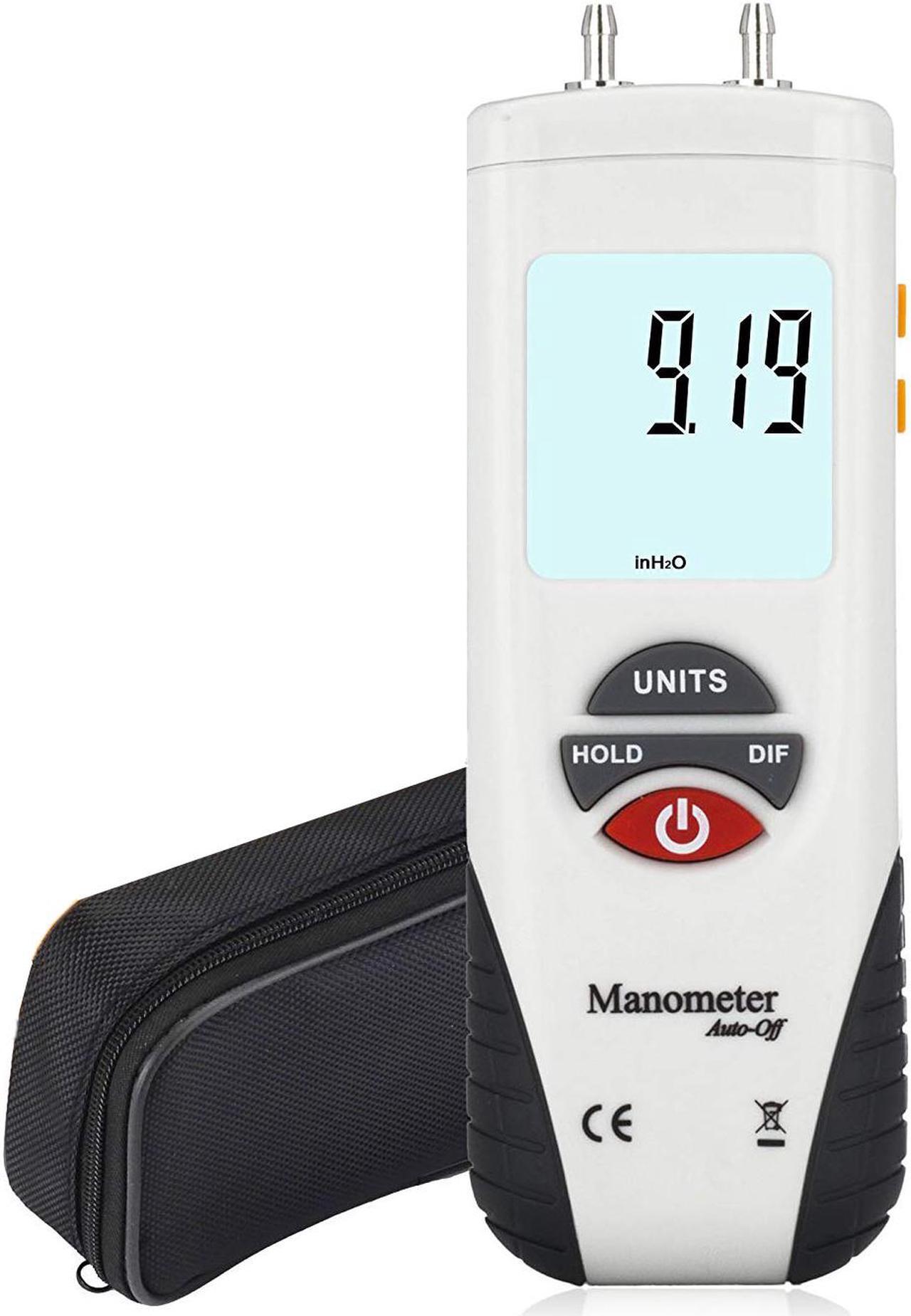

1x Carrying Pouch
1x Instruction Manual
1x 9V Battery (Included)



Warning

Pressure inputs of 10 psi or higher will damage the instrument. Do not apply pressure higher than the maximum pressure listed in the specification table
