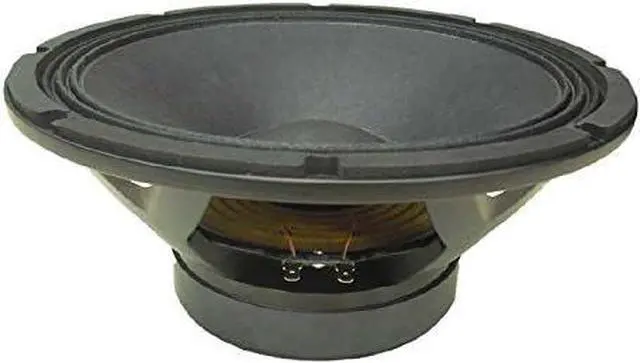

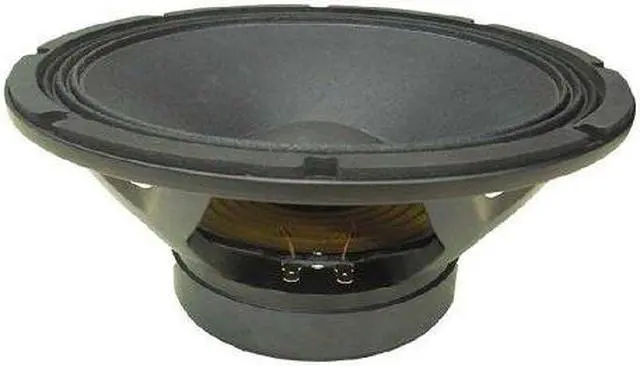

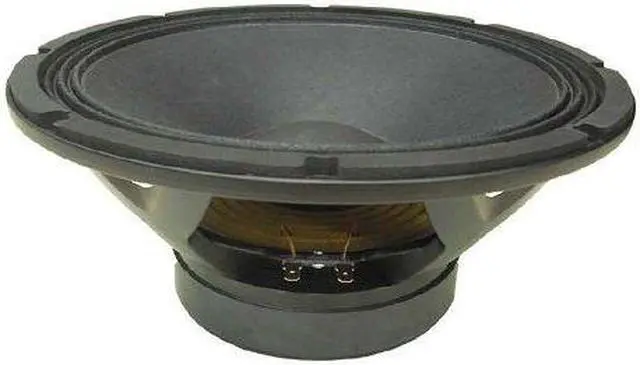

BEYMA 12" MID-BASS SPEAKER 500W/8OHMS

Be the first to review this product...
+
+
Overview
Specs
Reviews

BEYMA 12" MID-BASS SPEAKER 500W/8OHMS

  • Nominal diameter: 300 mm 12 in
  • Nominal impedance: 8 Ohms
  • Minimum impedance: 5.8 Ohms
  • Power capacity: 500 W AES
  • Program power: 1000 W
  • Sensitivity: 98 dB 1 W @ 1 m @ ZN
  • Frequency range: 60-5000 Hz
  • Recommended enclosure volume: 30 / 100 l 1.06 / 3.53 ft. Cubed
  • Voice coil diameter: 63.5 mm 2.5 in
  • BL factor: 17.2 N / A
  • Moving mass: 0.059 kg
  • Winding length: 19.5 mm
  • Air gap height: 10 mm
  • Xdamage pp: 40 mm
  • KEY FEATURES
  • Wave guide fulfillin requeriments for Line Array applications.
  • 3-in x 0.4 -in rectangular exit.
  • Neodimium magnetic circuit for hight efficiency.
  • Effective acoustical coupling up to 18 kHz
  • Extended frequency range 0.7 - 20 kHz
  • 1.75 -in voice coil for excelent power handing (410 W AES).
  • THIELE SMALL PARAMETERS
  • Fs: 57 Hz
  • Re: 5.5 Ohms
  • Qms: 8.58
  • Qes: 0.39
  • Qts: 0.38
  • Vas: 54.9 l
  • Cms: 128 um / N
  • Rms: 2.58 kg / s
  • Efficiency %: 2.53
  • Sd: 0.055 m Squared
  • Xmax: 8 mm
  • Le @1 kHz: 0.7 mH
  • CONSTRUCTIVE DETAILS
  • Net weight: 5.86 kg 12.92 lb
  • Magnet: Ferrite
  • TECHNOLOGIES MMSSMALT CROSS
