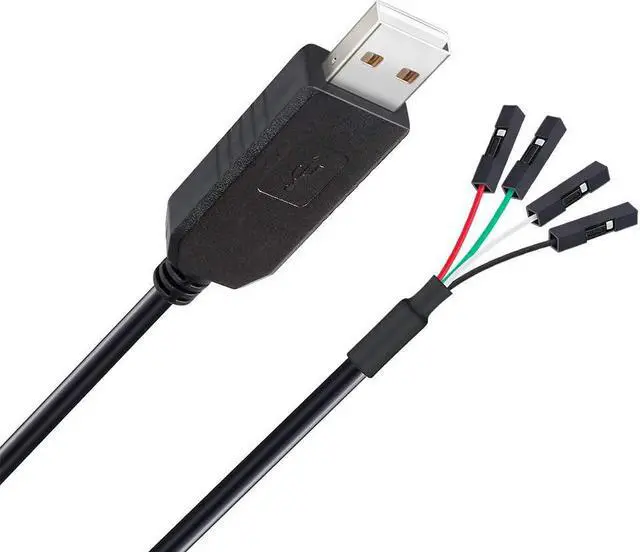

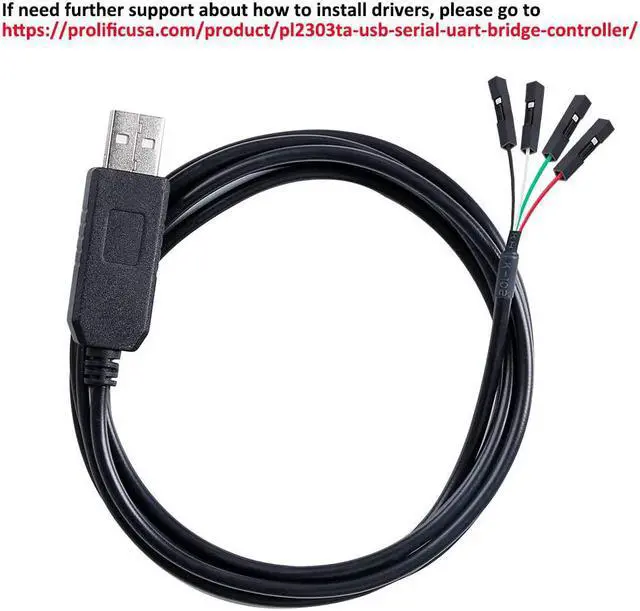

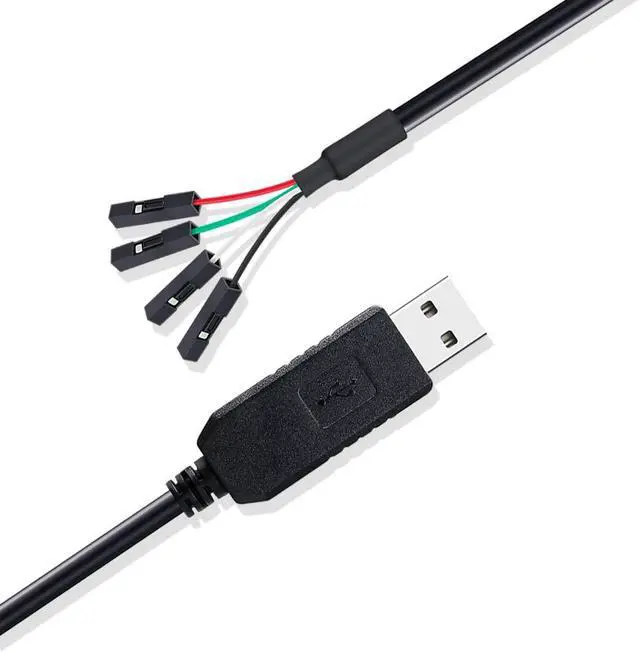

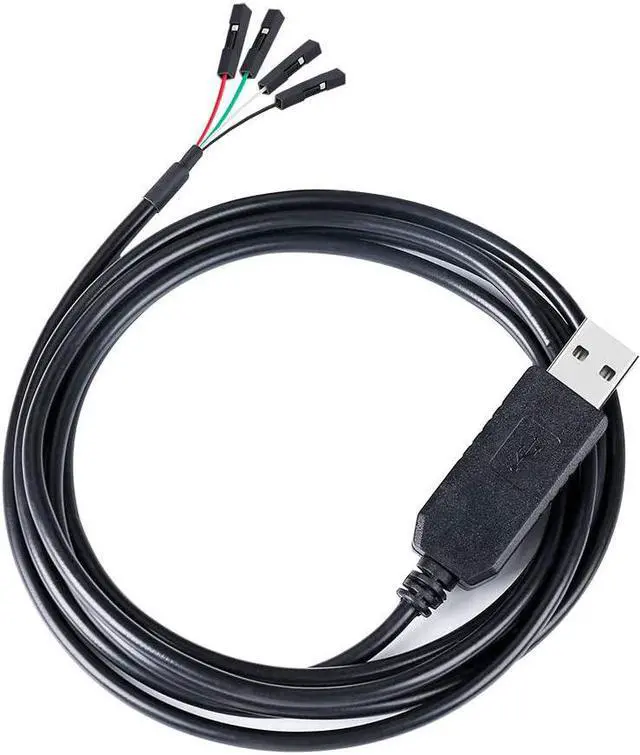

DTECH USB to TTL Serial Adapter 3.3V Debug Cable TX RX Signal 4 Pin Female Socket PL2303 Prolific Chip for Windows 10 8 7 XP Vista (3-Meter, Black)
- 6 ft USB to TTL serial adapter (with 4 pin 0.1” pitch female header socket) connects devices with 3.3 V logic level UART signals interface to a laptop via USB port.
- A genuine PL2303TA chip module is housed in USB 2.0 type A male terminal for wider compatibility and supports reliable data transfer rates
- 6 feet USB to TTL serial cable 3V3 (4 way output flying leads ) provides access to UART (transmit) Tx, (receive) Rx, VCC (5V) and GND
- PL2303 Prolific chipset on the PCB board has configurable internal EEPROM and UART signals can be individually inverted by configuring the EEPROM
- 4 pin 3.3V USB to TTL converter cord Compatible with Windows 10, 8, 8.1, 7 (32, 64-bit), 2008/XP/Vista/CE; ideal USB 2.0 debug cord for Vendor ID re-write, router, GPS, set top box, transmitter, flash firmware on hard drive, etc.
+
+
Overview
Specs
Reviews
6-Foot PL2303TA chip USB to TTL serial adapter cable for 3.3 V logic level serial communication (rx, tx, vcc and GND)
This USB TLL serial converter is built with Prolific PL2303 chip, FTDI’s royalty-free VCP allow for communication as a standard COM port; a great conversion data cord to meet with your needs of debugging, boot-loading, programming, etc.
NOTE: If any installation or usage issues, please email us or you may download a driver and usage guide on Prolific official website
The original PL2303 chip is embedded in the USB-A end; 4 way 0.1 ” header connector with GND (ground), VCC (5V), RX and TX at 3V3 logic level.
Applications:
Upgrading Legacy Peripherals to USB
Interface Microcontroller UART or I/O, FPGA / PLD to USB
Industrial Control
USB Software / Hardware Encryption Dongles
... Features
- The I/O pins of the wire are configured to operate at 3.3V logic level - Entire USB protocol handled by the electronics in the cable;
- UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity;
- Data transfer rates from 300 to 3M baud rate at TTL levels;
- Internal EEPROM with users writable area; - Supply voltage comes from USB bus, no external supply required;
- UHCI / OHCI / EHCI host controller compatible
Specific
Interface A: USB 2.0 type A Male Port
Interface B: 4 pin Female Socket flying leads
Chip: Prolific PL2303TA Supports Windows 2008, XP and XP 64-bit, Vista and XP 64-bit, CE 4.2, 5.0 and 6.0; Windows 7, 8, 8.1, 10 (32 and 64-bit);
Cable Colour: Black
Wire Length: 1.8 Meter
What’s Included
1 x USB to Serial TTL Level Converter Cable 6ft
1 X User Manual
This USB TLL serial converter is built with Prolific PL2303 chip, FTDI’s royalty-free VCP allow for communication as a standard COM port; a great conversion data cord to meet with your needs of debugging, boot-loading, programming, etc.
NOTE: If any installation or usage issues, please email us or you may download a driver and usage guide on Prolific official website
The original PL2303 chip is embedded in the USB-A end; 4 way 0.1 ” header connector with GND (ground), VCC (5V), RX and TX at 3V3 logic level.
Applications:
Upgrading Legacy Peripherals to USB
Interface Microcontroller UART or I/O, FPGA / PLD to USB
Industrial Control
USB Software / Hardware Encryption Dongles
... Features
- The I/O pins of the wire are configured to operate at 3.3V logic level - Entire USB protocol handled by the electronics in the cable;
- UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity;
- Data transfer rates from 300 to 3M baud rate at TTL levels;
- Internal EEPROM with users writable area; - Supply voltage comes from USB bus, no external supply required;
- UHCI / OHCI / EHCI host controller compatible
Specific
Interface A: USB 2.0 type A Male Port
Interface B: 4 pin Female Socket flying leads
Chip: Prolific PL2303TA Supports Windows 2008, XP and XP 64-bit, Vista and XP 64-bit, CE 4.2, 5.0 and 6.0; Windows 7, 8, 8.1, 10 (32 and 64-bit);
Cable Colour: Black
Wire Length: 1.8 Meter
What’s Included
1 x USB to Serial TTL Level Converter Cable 6ft
1 X User Manual
