Features
- The purpose is to connect a SAS (Serial Attached SCSI) drive to a (RAID or onboard) controller that uses a SATA connector.
- Allows you to connect a SAS hard drive to a SATA controller that supports SAS drives

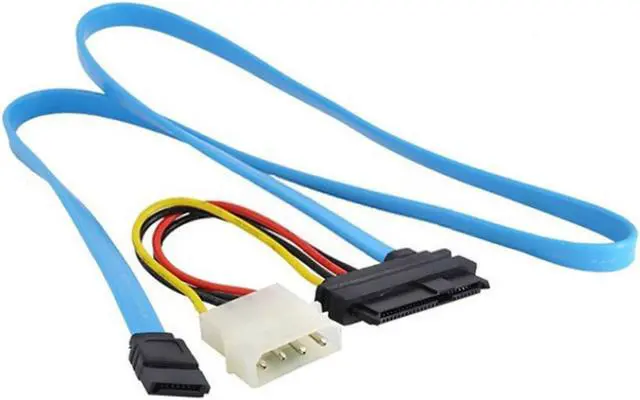

- The SFF-8482 to SATA Cable with LP4 Power is designed to connect one Serial Attached SCSI (SAS) hard disk drive to a SAS compatible Serial ATA (SATA) controller.
- Ideal for use with SAS external storage devices
- Cable can be used as a SATA data & power combo cable for SATA controller and SATA HDD

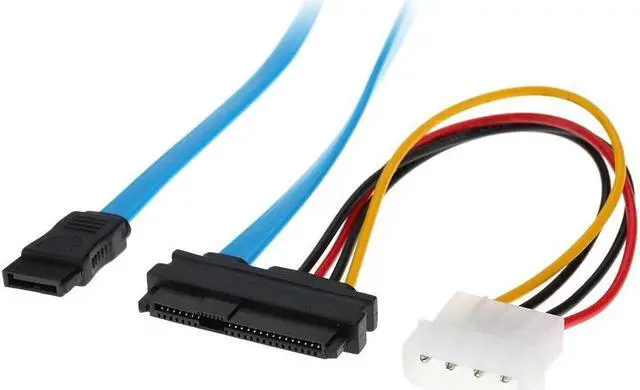

- Features one SAS SFF-8482 with LP4 power to one SATA connector
- Supports data transfer rates up to 6 Gb/s

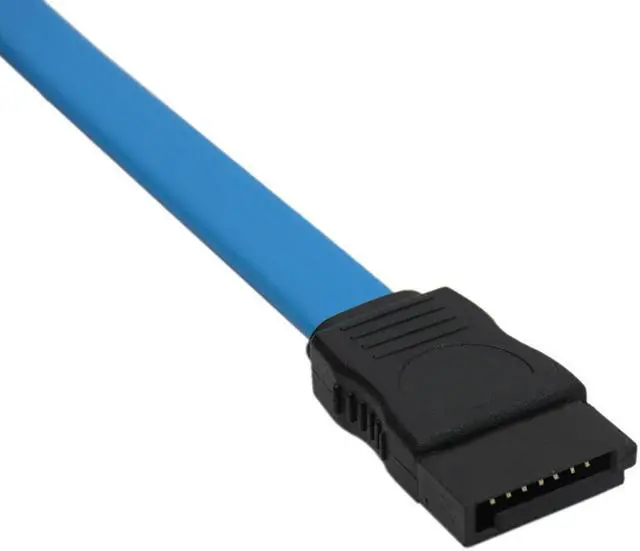

- SATA 7 Pin Header for Motherboard SATA Host Controller
- Data Transfer Speed Up to SATA 3.0 Spec of 6Gbps

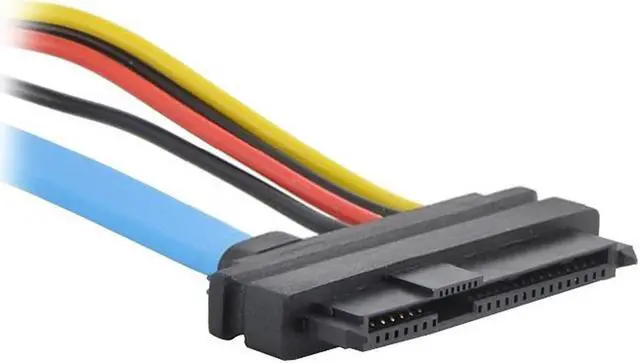

- SAS 8482 Header for SAS or SATA HDD
- Can be used as a SATA data & power combo cable for SATA controller and SATA HDD

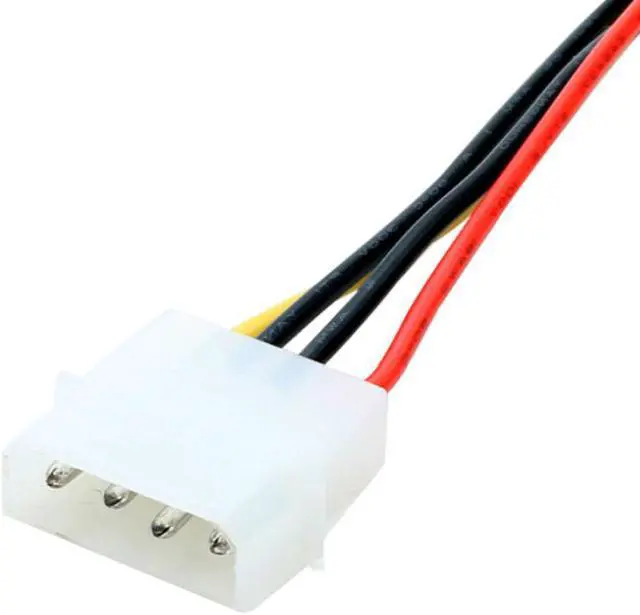

- Equipped Molex 4Pin Power Header for Device
Specification
| Type | SAS 8482 to SATA Cable |
|---|---|
| Host Connector | SATA 7Pin |
| Device Connector | SAS 8482 |
| Power Connector | Molex 4Pin |
| Data Transfer Speed | SATA III 6Gbps |
| SATA Cable Length | 2.3ft |
| Power Cable Length | 7 Inches |
| Color | Blue |
