H610 Computer Motherboard+SATA Cable+Baffle+Thermal Grease LGA1700 DDR4 Gigabit LAN for G6900 I3 12100 I5 12500 12Th CPU

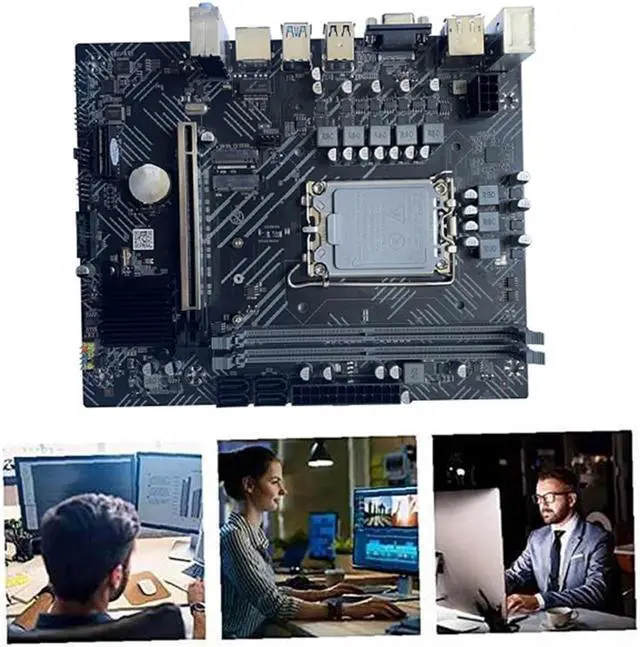

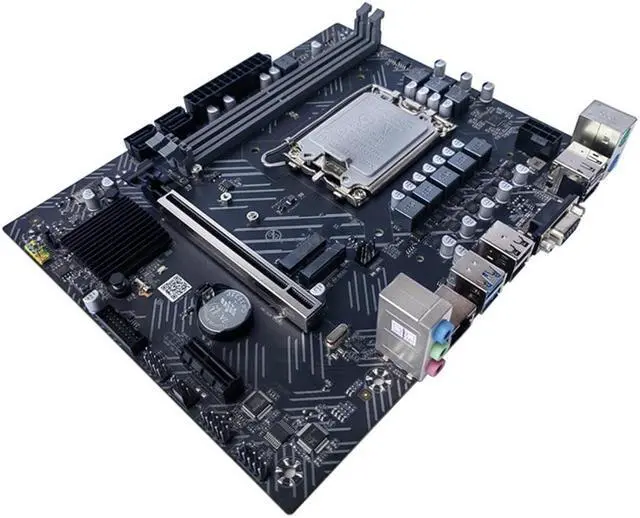

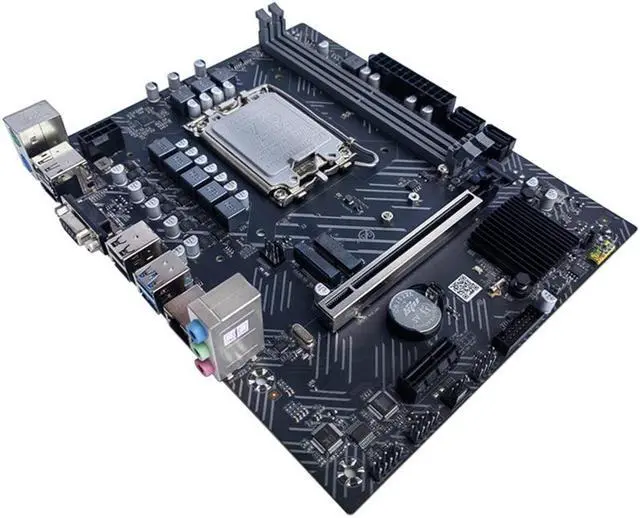

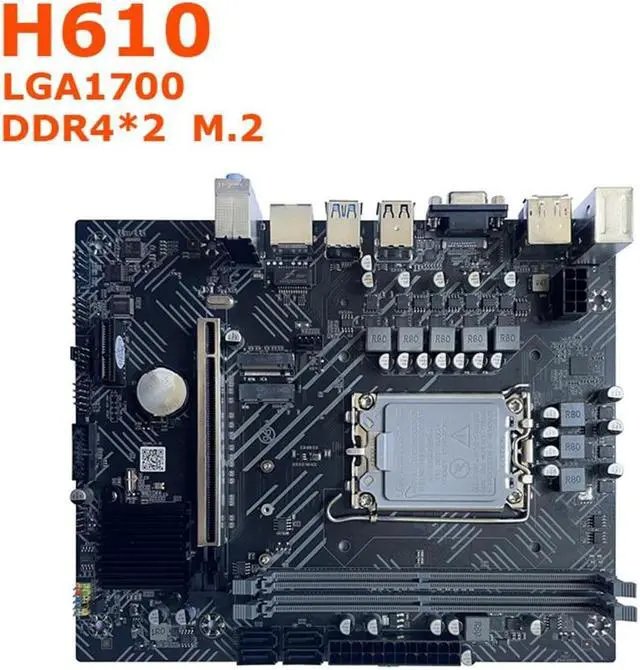

H610 motherboard is an embedded industrial motherboard with LGA1700-pin processor + H610 high-speed chipset, supports multiple display outputs, 2 DDR4 memory single supports up to 32GB, onboard 1 Gigabit network card, supports wake on LAN, PXE boot, provides 1 COM pin, adopts 1*PCIE_16X graphics card interface, and uses M. 2 for hard disk.
The H610 motherboard is suitable for office, media playback, games, various terminal markets and other industries due to its cheap price and rich expansion interfaces.
Onboard For Intel LGA1700 pin processor.
Using For Intel H610 chipset. Support 2 X DDR4 memory, single maximum support 32GB, frequency support
2133/2400/2800Mhz, support XMP memory overclocking.. Integrated 1*REALTEK 8111H Gigabit LAN.
Support 1*COM pin
Adopt 1*RealtelALC 6-channel high-fidelity audio.
Support 2 *USB 2.0 ports, 2 *USB 3.2 ports
hard disk:
4*SATA 3.0 interface
1*M. 2 interface
1*M. 2 WIFI/Bluetooth interface
Keyboard/Mouse:
Support 1*PS/2 keyboard and mouse interface
Audio:
Chip: RealtelALC 6-channel high-definition audio

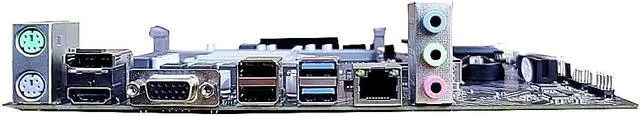

Display interface:
1*VGA 1*HDMI-compatible 1*DP
1*PCIE X16 graphics card display
1*PCIE X1
network:
Network chip: 1*REALTEK 8111H Gigabit network card, support LAN wake-up, PXE function
Built-in interface:
1*F_USB pin
1*USB 3.0 pin
1*F_AUDIO pin
1*J_SPK pin
1*JCMOS initial BIOS restore pin
1*CPU_FAN pin
1*CSYSFAN pin
Power Type:
24pinATXPWR
1*8pin_ATXCPU
Different batches, the appearance and color of the product, and the style of the bottom plate may be different, which does not affect the use, please understand, Thank you!
Colour: black
Material: PCB
Size: 180mm x 220 mm

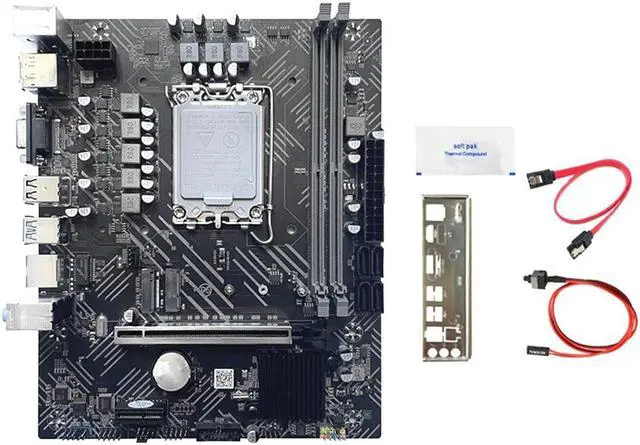

Package Contents:
1 x Motherboard
1 x SATA Cable(the appearance and color are random, don't accept the specified )
1 x Switch Cable(the appearance and color are random, don't accept the specified )(the appearance and color are random, don't accept the specified ) (Random color and appearance)
1 x Thermal Grease(the appearance and color are random, don't accept the specified )
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
