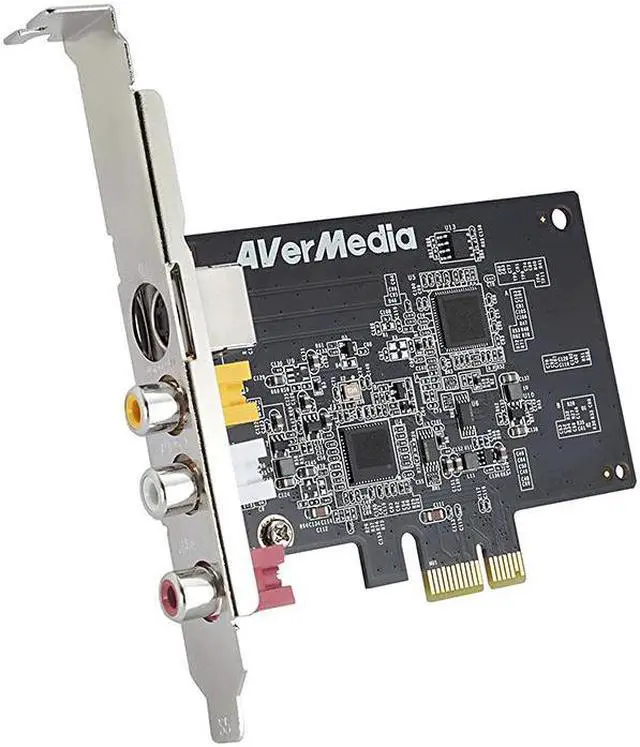

Video Capture Card AV PCI E DVR Card c725B

Video Capture Card AV PCI E DVR Card

Function

Features for video

Usage: It can change the PAL NTSC SECAM and so on Analog format digitization, Collect and save as AVI format

Video meeting

Medical image acquisition

Distance Education

Vintage tape transfer to digital format

Product testing

Features for picture

Collect static or continuous static video and save as BMP/JPG/AVI format

Support color change, 32bit real color

Full screen collect, max resolution is 720 x 576 (PAL), 720 x480 (NTSC)

Can capture both photos in static and dynamic

Support Single field, Single frame, Continuous field, Continuous frame collect way

Single field,
Single frame capture format: BMP and JPG

Continuous field,
Continuous frame capture format: BMP, JPG, AVI(PAL: 36FPS, NTSC: 30FPS), image buffer

SDK

Compatible with Visual, C++, and Visual Basic and so on develop language

Compatible software

For Adobe flash media live encoder

For Microsoft expression encoder

For Realproducer

For VLC media player

Specification


Interface

PCIe 1x

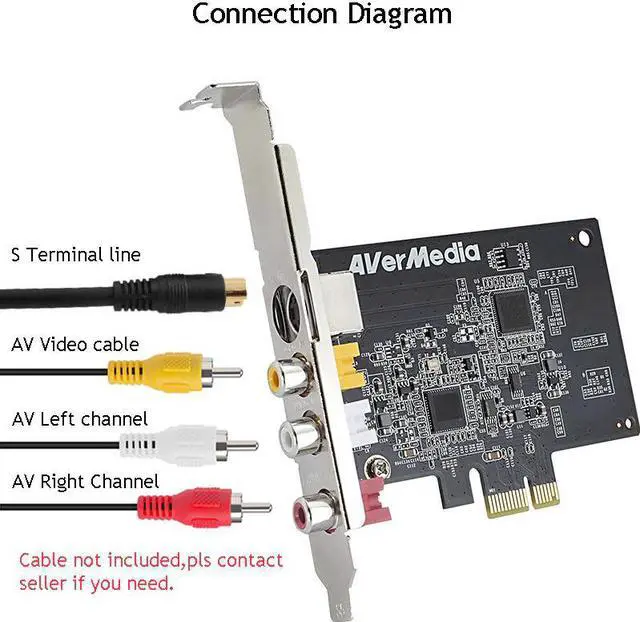

Video input

S terminal, RCA, L/R

Resolution

160 x 120, 176 x 144, 240 x 180, 240 x 176, 320 x 240, 352 x 240, 352 x 288 (PAL only), 640 x 240, 640 x 288, 640 x 480, 704 x 576 (PAL ONLY), 720 x 240, 720 x 288, 720 x 480, 720 x 576 (PAL only)

Adjustable

Lightness, contrast, color, saturation, tone, Sharpness

Support card

8 channel (MAX. )

Develop language

Visual Basic, Visual C++, Delphi, C#, vb. net

Structure

General DLL

Work temperature

0 to 65 degree

Work humidity

15 to 80% RHNC

Storage

-30 to 65 degree, 15 to 90% RHNC

Power require

3.3V max 400mA

Size

93.5 x 68.78 mm

RAM

512 MB RAM

Support graphics card

DirectX 9.0 c and above

Audio card

support

Operating OS

Windows 7/ 8.1 /10(32/64bits)
