4K HDMI Audio Extractor, HDMI to HDMI + Optical Toslink SPDIF + 3.5mm AUX Stereo Audio Out, HDMI Audio Converter Adapter Splitter Support 4K@60Hz Full HD 1080P 3D

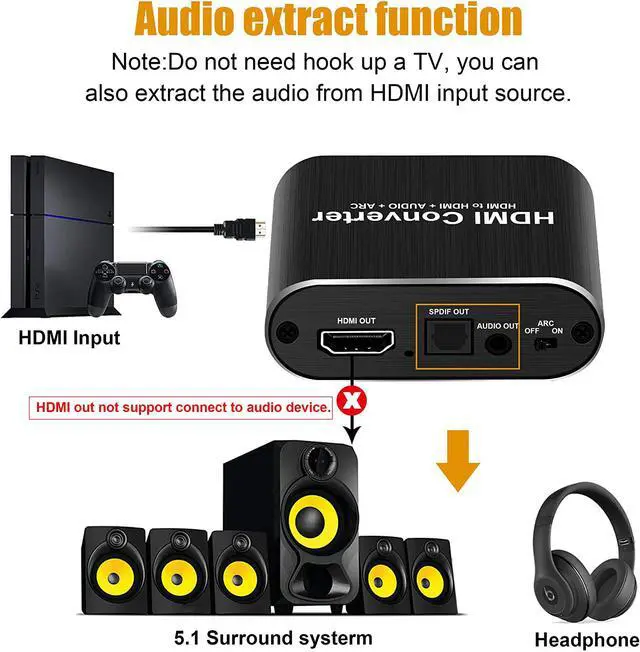

- HDMI Audio Extractor :One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)

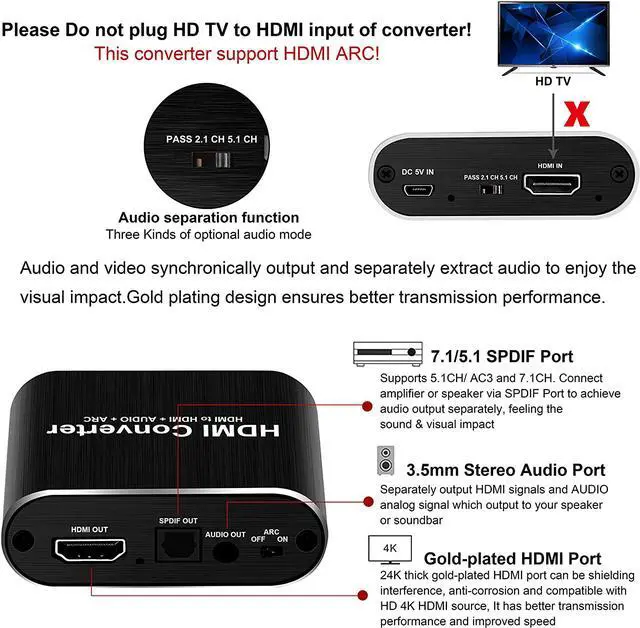

- Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD.
- 4K 60Hz High Resolution: HDMI Optical audio Extractor Support 4KX2K@60Hz/ 3D/1080p/1080i/720p/576i/480p/480i. Support video color format: 24bit/deep color 30bit,36bit with sync sound; HDMI v1.4; It also Support HDMI ARC (Audio Return Channel)
- Wide Compatible :Suitable for various HDMI source devices like Blu-ray/ DVD/ HD player, cable/satellite box, Amazon Fire TV, Apple TV, PS3/4, Xbox, PC/laptop, HD camera, HD DVR etc. Due to voltage supply each device can support is different and limited,For some dev
+
+
Overview
Specs
Reviews

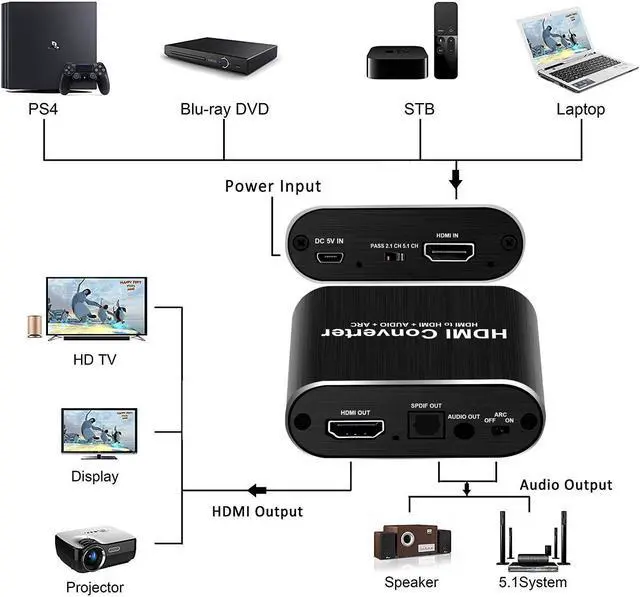

Overview: 4K x 2K HDMI audio extractor extracts the digital audio signal from the HDMI input and converts it to 2 channel analog stereo output or 5.1 channel Audio outputs. Simple solution for your amplifier / soundbar / 5.1 surround system / analog speaker that have no HDMI inputs, and compatible with various HDMI source devices that do not have dedicated audio output. How to use

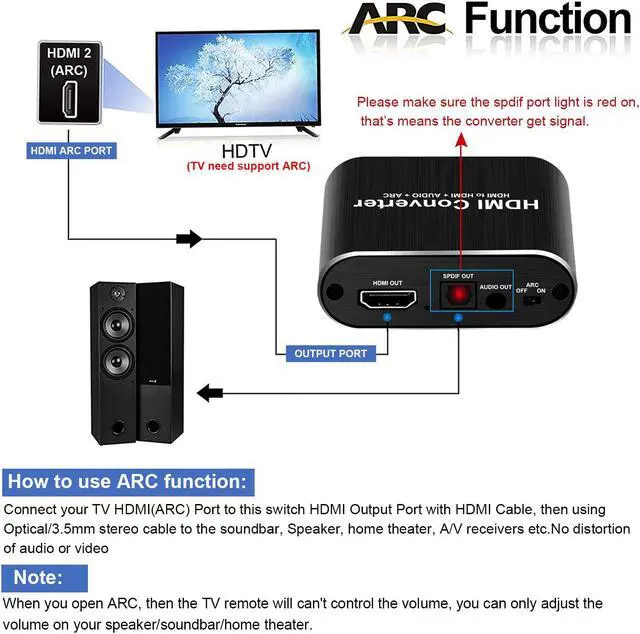

ARC function: Connect your TV HDMI (ARC) Port to our this switch HDMI Output Port with HDMI Cable, then using optical cable connect to the soundbar, Speaker, home theater, A/V receivers etc, No distortion of audio or video.
Features: Input

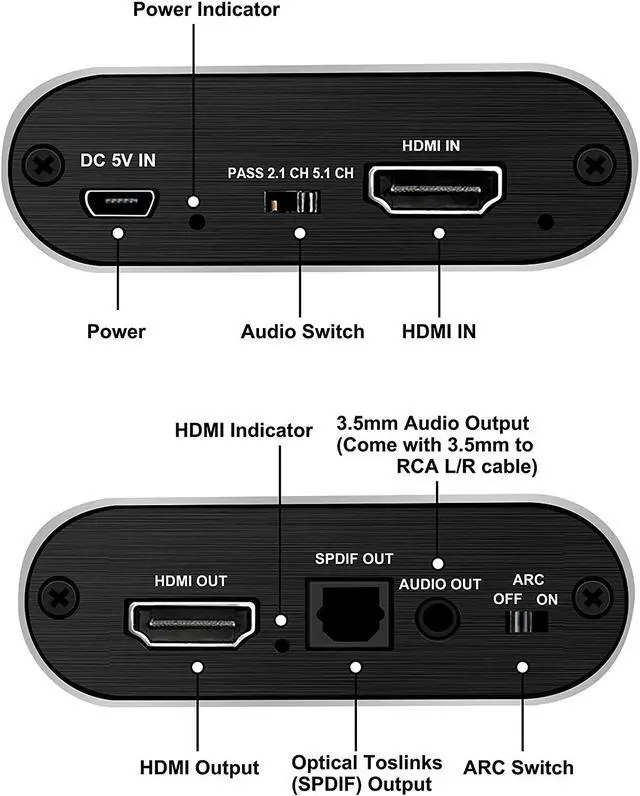

Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/ 5.1CH )
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5 mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit, 36bit
Max bandwidth: 340MHz
Max baud rate: 10.2G bps
Max working current: 350mA
Note: The maximum support is 4K@60Hz Mirroring Mode More convenient to enjoying and sharing high-definition movie and projection speech while duplicate signals to two monitors, which makes you amazing vision. Extended Mode You can do both of surfing & be watching a movie at the same time, which solves multitasking demand.
Package include: 1 X HDMI Audio Extractor 1 x HDMI cable 1 X 3.5 mm to RCA Stereo Audio Cable 1 x 5V/1A Power Adapter 1 X User Manual
ARC function: Connect your TV HDMI (ARC) Port to our this switch HDMI Output Port with HDMI Cable, then using optical cable connect to the soundbar, Speaker, home theater, A/V receivers etc, No distortion of audio or video.
Features: Input
Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/ 5.1CH )
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5 mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit, 36bit
Max bandwidth: 340MHz
Max baud rate: 10.2G bps
Max working current: 350mA
Note: The maximum support is 4K@60Hz Mirroring Mode More convenient to enjoying and sharing high-definition movie and projection speech while duplicate signals to two monitors, which makes you amazing vision. Extended Mode You can do both of surfing & be watching a movie at the same time, which solves multitasking demand.
Package include: 1 X HDMI Audio Extractor 1 x HDMI cable 1 X 3.5 mm to RCA Stereo Audio Cable 1 x 5V/1A Power Adapter 1 X User Manual
