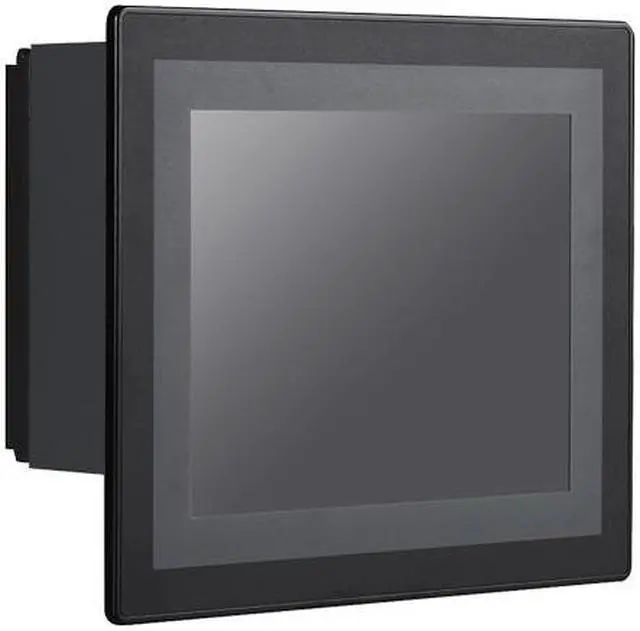

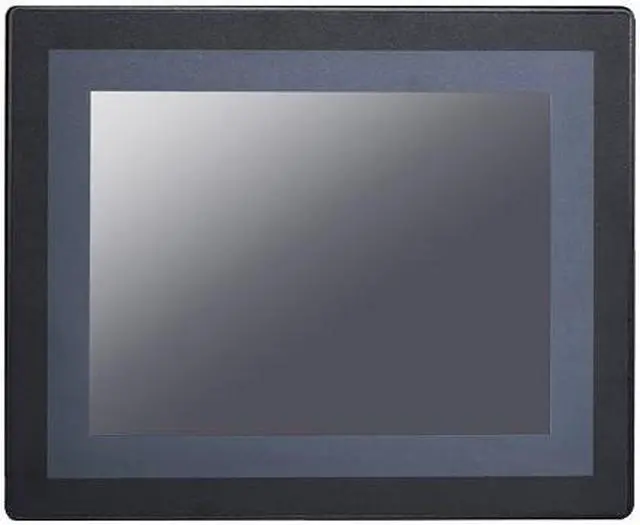

8 Inch LED Embedded Panel PC, Resistive Touch Screen, Front Panel IP65, J1900, HUNSN PW16, 1024 x 768, RS485/422, 2 x RS232, 9~28V, 2 x LAN, HDMI, Barebone, NO RAM, NO Storage, NO System
- 8 inch tft led screen industrial grade panel, front panel protection IP65, imported high temperature 5 wire resistive touch screen, typical 1024 x 768 resolution, powered by celeron quad core j1900 processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system

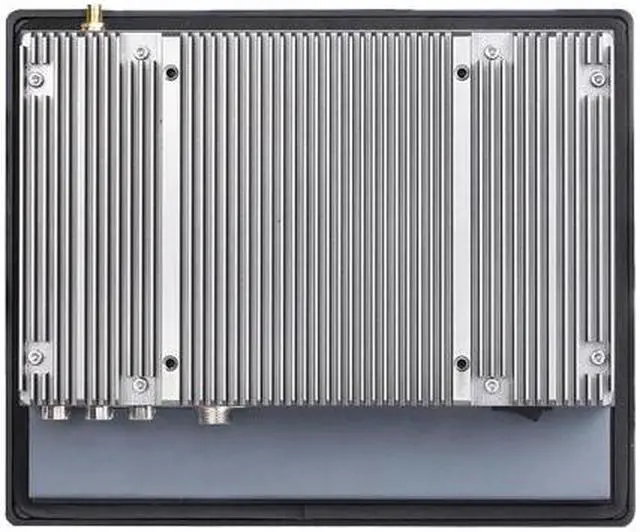

- Aluminum alloy fanless passive cooling design, silent solution thats ultra energy-efficient

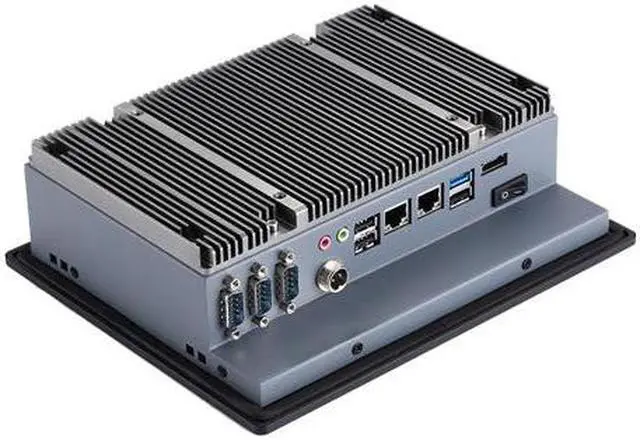

- HUNSN PW16 designed with designed with rs485/422, 2 x rs232, audio-in&out, dc_in 9~28v, 3 x usb2.0, usb 3.0, 2 x lan, hdmi, power_sw, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, with mounting embedded buckle kits
- Size at 225.8 x 185.8 x 66.2mm, 1.9kgs, 12v power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance, very powerful fanless all in one panel touch pc
+
+
Overview
Specs
Reviews
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN PW16
Panel: 8 Inch TFT LED screen industrial grade panel, front panel protection IP65
CPU: Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Memory: 1 x SODIMM DDR3L 1333, max. to 8GB RAM
Storage: 1 x mSATA SSD

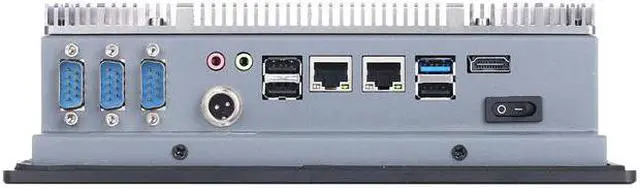

I/O: RS485/422, 2 x RS232, AUDIO-IN&OUT, DC_IN 9~28V, 3 x USB2.0, USB 3.0, 2 x LAN, HDMI, POWER_SW
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Cooling System: Aluminum alloy, fanless
Dimension: 225.8 x 185.8 x 66.2mm
Weight: 1.9kgs
Opening Hole: 208.4 x 166.4mm
Resolution: 1024 x 768
Perspective: 85 (left), 85 (right), 85 (up), 85 (down)
Brightness: 250cd/m2
Contrast: 800
Backlight Life: 15,000 hours (Min.)
Touch Screen: Imported high temperature 5 wire resistive touch screen
Durability (Touch Count): > 35 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20 ~ 60
Operating Humidity: 10% ~ 95% @ 40 without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW16 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
Model Number: HUNSN PW16
Panel: 8 Inch TFT LED screen industrial grade panel, front panel protection IP65
CPU: Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Memory: 1 x SODIMM DDR3L 1333, max. to 8GB RAM
Storage: 1 x mSATA SSD
I/O: RS485/422, 2 x RS232, AUDIO-IN&OUT, DC_IN 9~28V, 3 x USB2.0, USB 3.0, 2 x LAN, HDMI, POWER_SW
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Cooling System: Aluminum alloy, fanless
Dimension: 225.8 x 185.8 x 66.2mm
Weight: 1.9kgs
Opening Hole: 208.4 x 166.4mm
Resolution: 1024 x 768
Perspective: 85 (left), 85 (right), 85 (up), 85 (down)
Brightness: 250cd/m2
Contrast: 800
Backlight Life: 15,000 hours (Min.)
Touch Screen: Imported high temperature 5 wire resistive touch screen
Durability (Touch Count): > 35 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20 ~ 60
Operating Humidity: 10% ~ 95% @ 40 without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW16 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
