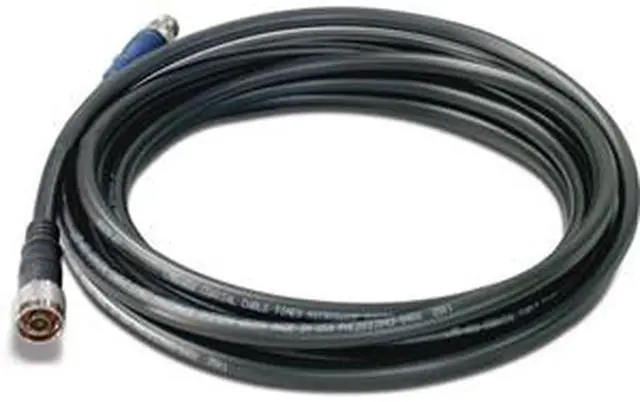

Learn more about the TRENDnet TEW-L406
Model| Brand | TRENDnet |
|---|
| Model | TEW-L406 |
|---|
Details| Type | N-Type |
|---|
| Color | Black |
|---|
| Length | 19.6 ft. |
|---|
| Connector Number | 2 |
|---|
| Specifications | Construction Inner Conductor (BCCAI) 0.108 in. (2.74 mm) Dielectric (Foam PE) 0.285 in. (7.24 mm) Outer Conductor (Aluminum Tape) 0.291 in. (7.39 mm) Over Braid (Tinned Copper ) 0.320 in. (8.13 mm) Jacket (PE) 0.405 in. (10.29mm) Mechanical Bend Radius: Installation 1.0 in. (25.4mm) Bend Radius: Repeated 4.0 in. (101.6 mm) Bending Moment 0.5 ft-lb (0.68 N-m) Weight 0.068 lb/ft (0.10 kg/m) Tensile Strength 160 lb (72.6 kg) Flat Plate Crush 40 lb/in. (0.71 kg/mm) Environment Temperature Operating: -40° C ~ 85°C (-40°F~185°F) Storage: -70° C ~ 85°C (-94°F~185°F) Electrical Cut-off Frequency 16.2 GHz Velocity of Propagation 85% Dielectric Constant 1.38 Time Delay 1.20 nS/ft (3.92 nS/m) Impedance 50 ohms Capacitance 23.9 pF/ft (78.4 pF/m) Inductance 0.060 uH/ft (0.20 uH/m) Shielding Effectiveness > 90 dB DC Resistance Inner Conductor Outer Conductor 1.39 ohms/1000ft (4.6 ohms/km) 1.65 ohms/1000ft (5.4 ohms/km) Voltage Withstand 2500 Volts DC Jacket Spark 8000 Volts RMS Peak Power 16 kW |
|---|
Features| Features | Wi-Fi Compliant with 2.4GHz 802.11 b/g & 5GHz 802.11a Devices for extending wireless networks N-Type Male to N-Type Female Connector. Optimal placement of your existing Wi-Fi Device permits you to maximize its wireless performance. Flexible outer conductor allows the tightest bend radius available for any cable of similar size and performance Provides flexible Low-loss communication for wireless antenna 50dB RF Shielding is 10 dB greater than typical single shielded coax (40 dB). Multi-ply bonded outer foil conductor is rated conservatively at > 90 dB. Weatherproof cable design for outdoors exposure with best materials for UV resistance Polyethylene jacketed cable designed for outdoor use Easy and quick deployment into a WLAN environment |
|---|
Additional Information| First Listed on Newegg | June 11, 2025 |
|---|
