Brand | Lenovo |
---|---|

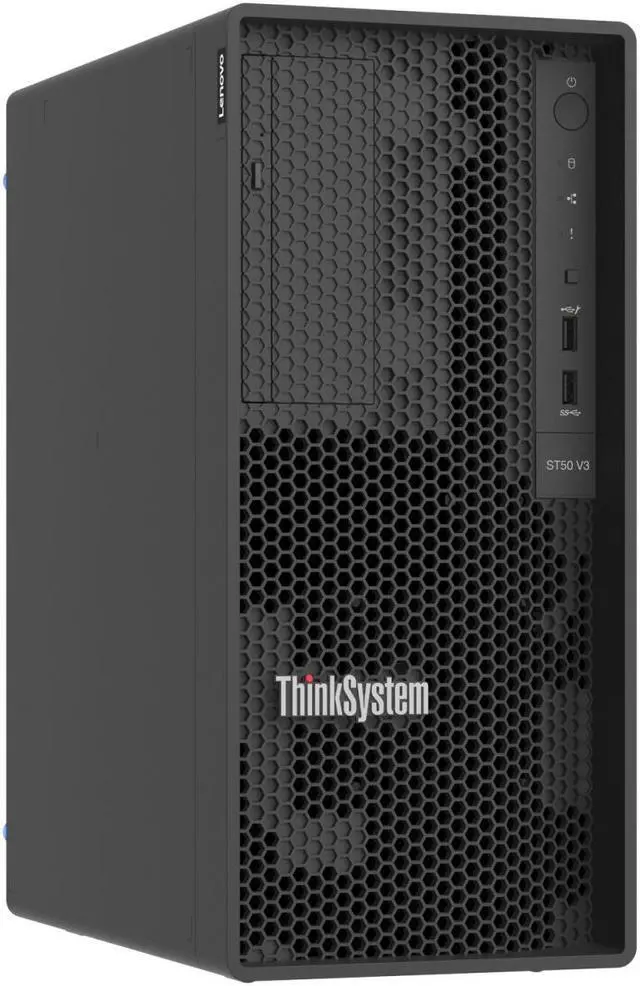

Model | ST50 V3 |
Part Number | 7DF3A00UNA |
Workload | General Purpose Server |
---|---|
Type | Entry Tower |
CPU Type | Intel Xeon E |
---|---|
CPU Speed | E-2488 (3.20 GHz) |
CPU Socket | LGA 1700 |
Number of CPU Cores | 8-Core Processor |
# of Processors Installed | 1 |
Chipset | Intel C266 |
Installed Memory Size | 16GB |
---|---|
Memory Type | DDR5 |
Max Memory Capacity | 128GB |
Memory Features | Four DIMM sockets supporting Lenovo TruDDR5 DIMMs at 4400 MHz (Xeon processors) or 4400 MHz (Pentium processors). Support ECC UDIMMs. |
Number of Memory Slots | 4 |
Hard Drive (Installed) | No Hard Drive |
---|---|
HDD Interface | SATA III |
SSD (Installed) | No |
Raid Level | RAID 0/1 |
LAN Ports | 2x 1GbE Onboard Ethernet ports (Broadcom BCM5720) Rear 1 port allows remote connectivity to the XCC2 management controller |
---|
Expansion Slots | Three PCIe slots (1x PCIe 5.0, 2x PCIe 4.0) as follows: Slot 1: PCIe G4 x4 (x4 slot, open-ended) 25W full-height half-length (FHHL) Slot 2: PCIe G5 x16 (x16 slot, closed-ended) 75W full-height half-length (FHHL) Slot 3: PCIe G4 x4 (x4 slot, open-ended) 25W full-height half-length (FHHL) |
---|---|
Expansion Bays | 3 x 3.5" SATA: Open bay HDD |
Other ports | Front: One USB 3.2 G1 (5 Gb/s) port One USB 2.0 port (also for XClarity Mobile connectivity for local systems management) Rear: Four USB 3.2 G1 (5 Gb/s) ports One VGA video One RJ-45 systems management Two RJ-45 GbE network ports One serial port |
Management Port | Dedicated Ethernet port for remote management |
Operating System | No |
---|
Power Characteristics | One fixed 300W Gold power supply |
---|
Dimensions | 12.4" x 6.7" x 14.6" w/o stand |
---|---|
Weight | 26.4 lbs. |
First Listed on Newegg | August 25, 2025 |
---|
