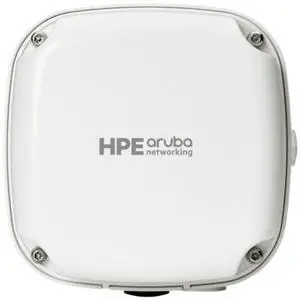

Frequency Band: Dual Radio for simultaneous dual-band operation
5 GHz 802.11ac 2x2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)
Standards: IEEE 802.11ac, 802.11n
Antenna: Two dual-band omni- directional antennas (4.7 dBi gain at 2.4 GHz, 4.2 dBi gain at 5 GHz)
LAN Ports: (1) uplink Gigabit Ethernet port, with POE-in support (802.3af)
Specifications: Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Parallel Port:
No
Digital Audio:
No
Digital Audio/Video:
No
Management Port:
No
Number of Network (RJ-45) Ports:
1
Number of SC Ports:
1
SC Port Type:
Duplex
Media & Performance
Media Type Supported:
Twisted Pair
Optical Fiber
Fiber Mode Supported:
Multi-mode
Fiber Optic Cable Wavelength:
0 mil
Maximum Distance Supported:
0.55 km
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
1000Base-SX/ LX
Power Description
Power Source:
AC Adapter
Input Voltage:
12 V DC
Power Consumption:
4 W
Plug/Connector Type:
Type M
Physical Characteristics
Color Family:
Black
Product C...
Specifications: Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
Device Interface:
1 x Gigabit data/power in port
1 x Gigabit data out port
1 x Power out port
LED indicators
Adjustable output power DIP switch (5 V, 7.5 V, 9 V, 12 V)
Data Transfer Rate:
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
Jumper Cable:
2.0 to 2.0 mm
2.0 to 2.5 mm
Power:
PoE network cable input: 48 V DC, 0.38 A
Output: 5 V (2 A), 7.5 V (2 A), 9 V (1.7 A), 12 V (1.2 A)
Consumption: 0.3 Watts (max.)
Type: 10/100 Mbps Multi Mode Fiber Media Converter ST 2km
Color: Black
Specifications: Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Parallel Port:
No
Digital Audio:
No
Digital Audio/Video:
No
Management Port:
No
Number of Network (RJ-45) Ports:
1
Number of ST Ports:
1
ST Port Type:
Duplex
Media & Performance
Media Type Supported:
Twisted Pair
Optical Fiber
Fiber Mode Supported:
Multi-mode
Fiber Optic Cable Wavelength:
0.1 mil
Maximum Distance Supported:
2 km
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
10/ 100Base-TX
100Base-FX
Power Description
Power Source:
AC Adapter
Input Voltage:
12 V DC
Power Consumption:
19.20 W
Plug/Connector Type:
Type M
Physical Characteri...
Specifications: Safety
IEC 60950-1, EN 60950-1, CB Certificate/Report, UL/CSA 60950-1
EMC
CC / ICES-003 Emission (USA/Canada)
CRISP 22 Emission (International)
EN61000-4-2 Electrostatic Discharge
EN61000-4-3 Radiated RFI Immunity
EN61000-4-4 Electrical Fast Transients level 4
EN61000-4-5 Electrical Surge Level
EN61000-4-6 RF Conducted
EN61000-4-8 Power Frequency Magnetic Fields
EN61000-4-11 Voltage Dips and Interruptions
EN61000-4-8 Power Frequency Magnetic Fields
EN61000-4-11 Voltage Dips and Interruptions
Specifications: Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Parallel Port:
No
Digital Audio:
No
Digital Audio/Video:
No
Management Port:
No
Number of LC Ports:
1
LC Port Type:
Duplex
Number of Network (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
Optical Fiber
Twisted Pair
Fiber Mode Supported:
Multi-mode
Fiber Optic Cable Wavelength:
0 mil
Maximum Distance Supported:
0.55 km
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-T
1000Base-SX/ LX
Power Description
Power Source:
AC Adapter
Input Voltage:
12 V DC
Power Consumption:
4 W
Plug/Connector Type:
Type M
Physical Characteristics
Color Family:
Black
Product Color...
Specifications: Standard: IEEE 802.3/3u/3ab, IEEE 802.3af Power over Ethernet
1 x 10/100/1000Mbps DATA-IN (Data only)
1 x 10/100/1000Mbps PWR+DATA OUT (Data + Power)
Network Media:
10Mbps: UTP/STP Cat. 5 and 5e up to 100 Meters
100Mbps: UTP/STP Cat. 5, and 5e up to 100 Meters
Gigabit: UTP/STP Cat 5e and 6 up to 100 meters
Data Lines:
Pair 1: Pin 1, 2
Pair 2: Pin 3, 6
Power:
Input: 100~240V, 50~60Hz, 0.4A max.
Output: 48V DC, 0.4A 18W max.
Power Consumption: 15.4 Watts (max.)
Dimensions (W x D x H): 70 x 45 x 25mm (2.75 x 1.8 x 1 in.)
Weight: 45 g (1.6 oz.)
Specifications: Industry Standards:
IEEE 802.3af PoE, IEEE 802.3at PoE+
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
Ports: 4
Maximum Cable Length: 328 ft [100 m]
Maximum Data Transfer Rate: 2 Gbps (Full-Duplex)
MTBF: 50,000 Hours
Power Output: 52V DC at 30.8W (PoE+)
Connector Type(s): 8 - RJ-45 Female
Enclosure Type: Steel
LED Indicators: 1-Power, 4-PoE In-Use
Center Tip Polarity: Positive
Input Current: 2-1 A
Input Voltage: 100 ~ 240 AC
Output Current: 2.31 A
Output Voltage: 52 DC
Plug Type: M
Power Consumption: 120 W Max
Power Source: AC Adapter Included
Included in Package:
1 - 4 Port Gigabit PoE+ Injector
1 - Universal Power Adapter
3 - Power Cords (NA/UK/EU)
1 - Instruction Manual
