Specifications: xDirect232 Single Port RS232 10/100 Device Server
Serial Connectors: Single-port: DB9F RS232 (DCE Pinned)
Ethernet Interface: 10/100M RJ-45
Serial Interface Baud Rate: 300bps to 921.6 Kbps
LED Indicators: Power/Status, Link, Activity, Serial RX Activity & TX Activity
CPU: Based on DSTni-EX Enhanced 16-bit x86 Architecture
Memory: 256 KB SRAM, 1 MB Flash
100-240 VAC International Power Supply with Regional Adapters.
Specifications: Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Parallel Port:
No
Digital Audio:
No
Digital Audio/Video:
No
Management Port:
No
Number of Network (RJ-45) Ports:
1
Number of SC Ports:
1
SC Port Type:
Duplex
Media & Performance
Media Type Supported:
Twisted Pair
Optical Fiber
Fiber Mode Supported:
Single-mode
Fiber Optic Cable Wavelength:
0.1 mil
Maximum Distance Supported:
40 km
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
1000Base-SX/ LX
Power Description
Power Source:
AC Adapter
Input Voltage:
12 V DC
Power Consumption:
4 W
Plug/Connector Type:
Type M
Physical Characteristics
Color Family:
Black
Produc...
Specifications: 10/100/1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASE-SX 850nm multimode (SC) [62.5/125 µm fiber: 220 m/722 ft.]
Link Budget: 7.0 dB [50/125 µm fiber: 550 m/1804 ft.]
Standards: IEEE 802.3
Max Frame Size: untagged: 1632 bytes / tagged: 1628 bytes
Status LEDs:
PWR (Power): (below RJ-45)
ON = Lit for normal operation
FX-Link/Act (Fiber Link/Activity):
(Upper Left on RJ-45)
ON = Link; Flashing = Activity
TX-Link/Act (Copper Link/Activity):
(Upper Right on RJ-45)
ON = Link; Flashing = Activity
Power
Consumption: 3.15 Watts
Sources: Unit accepts 5 VDC to 28 VDC
Wall Mount AC adapter: 12 VDC 400mA
Environment
Storage: -15 to +65 °C
Operating: 0°C to 50°C
Altitude: 0 – 10,000 feet
Humidity: 5% to 95% (non-condensing)
Compliance
Safety: Wall Mount Power Supply, UL Listed,
C-UL Listed (Canada)
FCC Class A, CISPR22/EN55022...

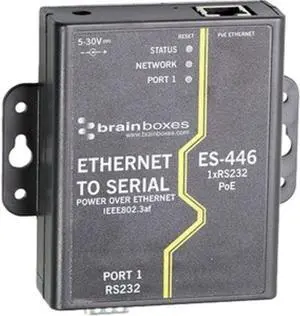

Specifications: Serial Port
Ports: 1
Protocol: RS232
Connector: DB9 Connector - 9 Pin Male
Tx FIFO Size: 256
Rx FIFO Size: 32
Operating Distance: EIA - RS232 Standard
Cable: No Cable; Integrated Connector
Serial Port Settings
Max Baud Rate: 1,000,000 (1 MegaBaud)
Data Bits: 5, 6, 7 or 8
Parity: Odd, Even, None, Mark or Space
Stop Bits: 1 or 2
Flow Control: RTS / CTS, DSR / DTR, XON / XOFF
Tx / Rx Modes: Point to Point
Power
Power Input: Power Over Ethernet OR 5 - 30V DC input, reverse polarity protected
Power Over Ethernet: IEEE 802.3af
Power Supply 1 Description: Optional Global Power Supply - PW-800
General
Mounting Accessories 1 Description: DIN-Rail Mounting Kit - MK-048
PCB Layers: 4
Operating System Compatibility
Operating Systems:
Communicate with Device over TCP from any OS
Microsoft Windows 10
Microsoft Windows 8 32 bit & 64 bit Editi...
Features: • Converts a non-PoE 2.5G port to a PoE++ 2.5G port
• Supplies PoE (15.4W), PoE+ (30W), or PoE++ (90W)
• Network a PoE device up to 100m (328 ft.)
• Integrated power supply
• 2.5GBASE-T compliant
• IEEE 802.3af, 802.3at, and 802.3bt compliant
Specifications: Power Description: Plug/Connector Type: Type M
Expansion Slot Type: SFP+
Number of SFP+ Slots: 1
Total Number of Expansion Slots: 1.0
Media Type Supported: Twisted Pair, Optical Fiber
Fiber Mode Supported: Single-mode, Multi-mode
USB: No
DVI: No
Number of Network (RJ-45) Ports: 1
Network (RJ-45): Yes
Management Port: No
Total Number of Ports: 1
Network Technology: 10GBase-SW, 10GBase-T, 1000Base-TX, 100Base-TX, 10GBase-ER, 10GBase-EW, 10GBase-LR, 10GBase-LW, 10GBase-R, 10GBase-SR
Parts: Manufacturers Limited Warranty: 2 Year / Parts Only
Specifications: Interfaces/Ports: 1 x RJ-45
Data Transfer Rate: 230 Kbps Serial
Management: SNMP
Protocols:
Telnet
Reverse Telnet
PPP
SSH v2
HTTP
DHCP
ARP
RARP
TCP
UDP
Status Indicators: Link / Power
Input Voltage:
100 V AC to 240 V AC
9 V DC to 30 V DC
Input Current:
400 mA 12 V DC
500 mA 9 V DC to30 V DC
Specifications: Interface:
Wi-Fi
Micro USB (Support USB 2.0)
Color: White
Capacities: 32GB
Network Standard: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Operating Frequency: 2.4 GHz / 5 GHz
Ports:
1 x SD Card Reader
1 x Micro USB
Button: Reset Button, Power Button, Channel Switch
LED Indicator:
1 x Power
1 x Wi-Fi
System Requirements:
Windows 10 86x64
Windows 8 86x64
Windows 7 86x64
Mac OS X 10.6 or higher
iOS7 or higher
AndroidTM 4.0 or higher
Kindle Fire HD and HDX
Specifications: Processor: Freescale MPC8314, 400 MHz
Throughput: Up to 230 Kbps
Memory: 256 MB SDRAM / 34 MB Flash
Interfaces:
Serial Ports: 32 RS-232
Serial Connector: Digi 10-pin
Ethernet Physical Layer: Dual 10/100/1000 Mbps auto sensing; Full or half duplex
USB Ports: 2 USB 2.0 connectors; 500 mA max each port
Console Ports: 10-pin RJ-45 serial port for configuration
Power Input: 100-240 VAC, 50-60 Hz, 0.8A
Management: HTTP/HTTPS, CLI or telnet, SNMP read and write
Protocols: TCP/UDP, DHCP, telnet, Reverse telnet/SSHv2/SSL, IPv4/IPv6
Security: Encrypted RealPort, SSHv2, SSL
Dimensions: 8.7" x 17." x 1.8"
Weight: 5.7 lbs.
