PNY NVS 510 VCNVS510DVI-PB 2GB 128-bit DDR3 PCI Express 3.0 x16 Low Profile Graphics Card

NVIDIA NVS 510 for Quad DP Low Profile

The PNY NVS 510 VCNVS510DVI -PB Workstation video card combines the latest in graphics and display technologies, innovative multi-display management capabilities, and highly reliable thermal design in a power-friendly, low-profile form factor. This makes it the ideal graphics solution for professionals who need to efficiently visualize and digest a great deal of information in the financial trading, command and control, and digital-signage markets.

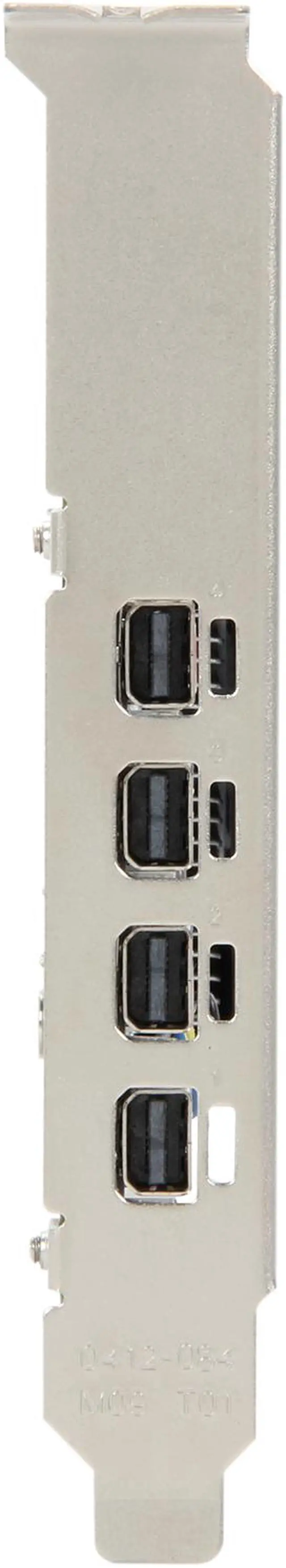

Additionally, four compact mini DisplayPort connectors with a custom built-in retention mechanism let the NVIDIA NVS 510 drive ultra-high resolution displays up to 3,840 × 2,160 at 60Hz. Plus, it supports advanced DisplayPort 1.2 features like Multi-Stream Technology and Stream Cloning, enabling efficient cable management, as well as cost-effective multi-display installations.

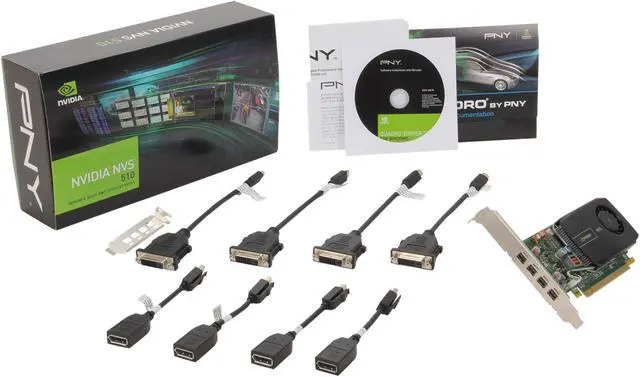

Also included are four locking mini-DisplayPort to DisplayPort adapters, and four locking mini-DisplayPort to DVI-D SL adapters for best compatibility.

Balanced Power & Performance

Intelligent Power Management

NVS 510's Energy Star compliant design reduces overall system energy costs by intelligently adapting the total power utilization of the graphics subsystem based on the applications being run by the end user. This power-optimized design helps reduce Total Cost of Ownership (TCO) and increase reliability.

Power-Efficient Performance

The NVS 510 is the ideal graphics solution to natively drive four displays, providing the optimal balance of performance, form factor & power efficiency when compared to dual Graphics Cards configurations. NVS 510 utilizes the latest NVIDIA Kepler GPU technology to deliver over 3x greater performance and doubles the memory bandwidth for faster throughput over the previous generation NVS solutions without increasing overall power consumption.

NVIDIA CUDA

Parallel-computing architecture that enables dramatic increases in computing performance by harnessing the power of the GPU (graphics processing unit). NVS 510 contains 192 NVIDIA CUDA parallel-computing cores compatible with all GPU-accelerated web, photo, video applications, as well as next-generation Internet technologies.

Display & Video Features

Quad Display Support

All-new NVS 510 display engine drives up to four displays simultaneously and fully supports the next generation Display Port 1.2 standard capable of resolutions such as 3,840 × 2,160 at 60Hz. NVS 510, when used with the NVIEW Desktop Software utility, makes it easy to deploy multiple displays across a desktop or build an expansive digital signage wall.

H.264 Encoder

Dedicated H.264 encode engine that's independent of the 3D or compute pipeline which delivers faster than real-time performance for transcoding, video editing, and other encoding applications.

NVIDIA FXAA and TXAA

Reduces visible aliasing and delivers higher image quality without the performance hit by harnessing the power of the GPU's CUDA cores and new film-style AA techniques.
