Will this work in a HP Pavilion 570 with one PCI-E x16 socket?

It should pci-e- x16 are mechanically and electrically backwards compatible with x4 so you should have no problems.

Can both slots be used simultaneously or do you need to choose one or the other?

Yes, you can use both slots. However, one of them will go to the "NVME PCIe" side, and the other will go to the SATA side, and you will have to have a SATA cable to connect it to the computer.

Does this come with M.2 screws?

No. I wish it did. May I suggest you purchase an assortment of the micro-screws that computers use? It is an investment that you might find useful.

Will add on card work on a motherboard with Gen 2 x16 interface? (computer newbie)

I imagine it would. A PCIe 2.0 x16 is on par with a PCIe 3.0 x8 in terms of speed. If you're using an NVMe SSD, you'll use the full bandwidth of the PCIe 2.0 x16. If you're using a SATA SSD with the M.2 format, you'll max out at half of this port's bandwidth.

Does the Patriot SCORCH M.2 2280 256GB PCI-Express 3.0 x2 with NVMe work with the RIITOP Dual M.2 to PCIe Adapter, M Key M.2 NVME AHCI SSD to PCI-e 3.0 x4 and B / B+M Key M.2 SATA SSD to SATA Controller Expansion Card?

It should. I haven't tried it in that card, but the speed will be dependent on the Pci-e speed of your motherboard bus. The Patriot 3.0x2 uses only 2 lanes, whereas the RIITOP supports 4 lanes. If your motherboard supports Pci-e 3.0x4, I would go with a hard drive that is also 3.0x4.

will this work with a MacPro, specifically the 5,1 models (2009-2012)?

I can't get it to work on my Win 10 gaming PC. BIOS doesn't see it..

Is this adapter backward compatible with a PCIe 2.0 speed motherboard?

Hello, Yes it will work on a PCIe 2.0 slot but keep in mind that due to the slot's lower bandwidth that card may not perform as fast as it would on PCIe 3.0, hope this helps! Newegg Support

UNAVAILABLE FOR ISRAEL Shipping Limitations

This item is currently out of stock and it may or may not be restocked.

UNAVAILABLE

Ships from China.

Most customers receive within 7-17 days.

Add to wish list(Found on 15 wish lists)

Sold by UitTek

Top Rated

4.4 (946 seller ratings)

Shipped by UitTek

Meet Your Seller

UitTek

See Seller Store

Main image of Dual M.2 to PCIe Adapter, RIITOP M.2 NVMe SSD to PCIe Adapter & NGFF (B+M Key) SSD to SATA Controller Expansion Card for 1x NVMe SSD and 1x NGFF (SATA Based) SSD

Alt view image 2 of 7 - Dual M.2 to PCIe Adapter, RIITOP M.2 NVMe SSD to PCIe Adapter & NGFF (B+M Key) SSD to SATA Controller Expansion Card for 1x NVMe SSD and 1x NGFF (SATA Based) SSD

Alt view image 3 of 7 - Dual M.2 to PCIe Adapter, RIITOP M.2 NVMe SSD to PCIe Adapter & NGFF (B+M Key) SSD to SATA Controller Expansion Card for 1x NVMe SSD and 1x NGFF (SATA Based) SSD

Alt view image 4 of 7 - Dual M.2 to PCIe Adapter, RIITOP M.2 NVMe SSD to PCIe Adapter & NGFF (B+M Key) SSD to SATA Controller Expansion Card for 1x NVMe SSD and 1x NGFF (SATA Based) SSD

Alt view image 5 of 7 - Dual M.2 to PCIe Adapter, RIITOP M.2 NVMe SSD to PCIe Adapter & NGFF (B+M Key) SSD to SATA Controller Expansion Card for 1x NVMe SSD and 1x NGFF (SATA Based) SSD

Alt view image 6 of 7 - Dual M.2 to PCIe Adapter, RIITOP M.2 NVMe SSD to PCIe Adapter & NGFF (B+M Key) SSD to SATA Controller Expansion Card for 1x NVMe SSD and 1x NGFF (SATA Based) SSD

Alt view image 7 of 7 - Dual M.2 to PCIe Adapter, RIITOP M.2 NVMe SSD to PCIe Adapter & NGFF (B+M Key) SSD to SATA Controller Expansion Card for 1x NVMe SSD and 1x NGFF (SATA Based) SSD

Shop All RIITOP Products | Visit UitTek Store

Dual M.2 to PCIe Adapter, RIITOP M.2 NVMe SSD to PCIe Adapter & NGFF (B+M Key) SSD to SATA Controller Expansion Card for 1x NVMe SSD and 1x NGFF (SATA Based) SSD

(12) Write a Review

NVMe Adapter
NVMe to PCIe Adapter Card
RIITOP PCI-e 3.0 4x to NVMe M Key & SATA to NGFF (B Key) SATA-Based SSD Dual Port M2 expansion Card allows you add M.2 NVMe SSD & M.2 SATA SSD to motherboard without M.2 slot at the same time

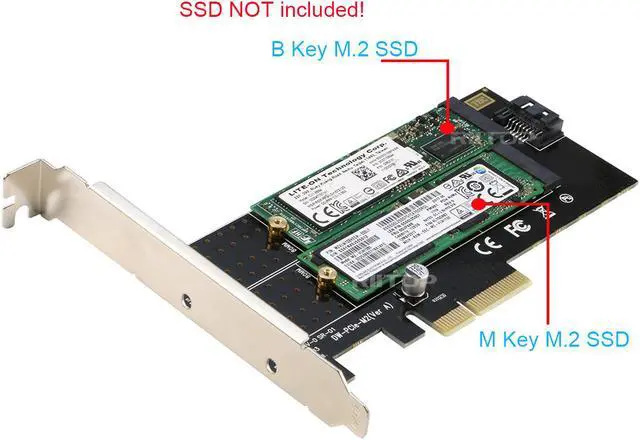

This Dual M.2 Adapter Converts a M.2 (B key) SATA Based SSD into SATA interface, and M.2 NVMe SSD (M Key) to PCI-e 4x
This NVMe PCIe Adapter Designed with LED Indicator, Easy to Know Power and Data Transfer Status. The vented design on immersion gold PCB enhance heat dissipation of SSD. low-profile and full-profile slot brackets included.
Support Windows XP/7/8/10 /Linux, NO driver required. Please install SSD's driver if no disk showing in Disk Manage.

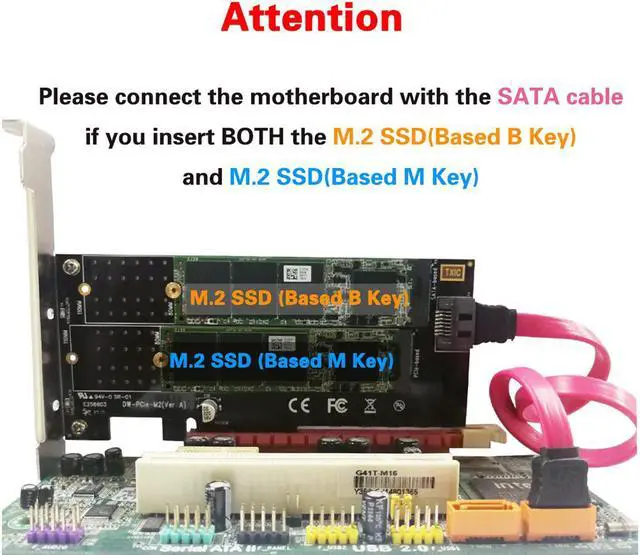

Note: It need connect SATA Cable to Mainboard if installing SATA based B+M key or B Key SSD. When installing M.2 PCI-e NVMe SSD, it does not need.

Overview

Specs

Reviews (12)

NOTE:
1. You are kindly reminded that this adapter ONLY support M. 2 SSD. DO NOT support SATA3 SSD or any SATA devices!
2. 7-pin SATA cable must be connected to motherboard if you want to read the M. 2 SATA SSD (Key B).
3. This adapter compatible for PCIe x4 x8 x16 slot. DO NOT support PCIe X1 slot.
4. If there is a exclamation mark after install the adapter, please ask for SSD supplier to supply the NVME driver for SSD.

RIITOP Dual M. 2 PCIe Adapter, M. 2 NVME SSD (M Key) or M. 2 SATA SSD (B Key) 22110 2280 2260 2242 2230 to PCI-e 3.0 x4 & SATA Host Controller Expansion Card with Low Profile Bracket for PC Desktop

Specifications:
1. Connects one B key & one M key NGFF SSD at the same time to PCI-E 4X motherboard.
2. Compliant with PCI Express M. 2 specification 1.0.
3. Compliant with SATA 3.0 specification for B key.
4. Compliant with PCI-E 4X 3.0 specification for M key.

Supports:
1. Supports data transfer up to 6.0G b/s.
2. Supports SATA-based B key and PCI-E 4X-based M key NGFF SSD.
3. Supports 2230, 2242, 2260, 2280 & 22110 mm size NGFF SSD.

Features:
1. One NGFF B Key and one NGFF M key sockets available.

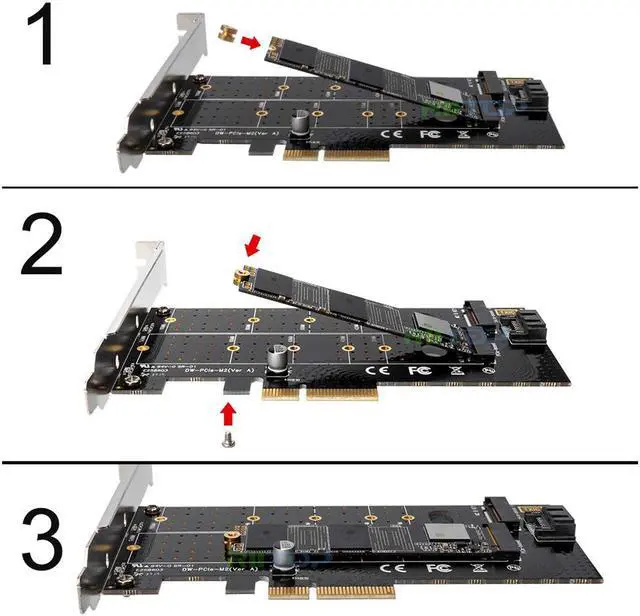

2. 8 screw holes 2230/2242/2260/2280/22110 available to fix NGFF SSD cards.
3. Easy installation & no driver required.
4. No additional power required.

Package Contents:
1x Dual M. 2 PCIe & SATA Adapter Card (SSD in Pictures NOT Including).
1x Low Profile Bracket.
1x Screwdriver. Screws.

Kindly Note:

1. You are kindly reminded that this adapter ONLY support M. 2 SSD. DO NOT support SATA3 SSD or any SATA devices!
2. 7-pin SATA cable must be connected to motherboard if you want to read the M. 2 SATA SSD (Key B).
3. This adapter compatible for PCIe x4 x8 x16 slot. DO NOT support PCIe X1 slot.
4. If there is a exclamation mark after install the adapter, please ask for SSD supplier to supply the NVME driver for SSD.

RIITOP M.2 NVMe SSD to PCIe Adapter & NGFF (B+M Key) SSD to SATA Controller Expansion Card

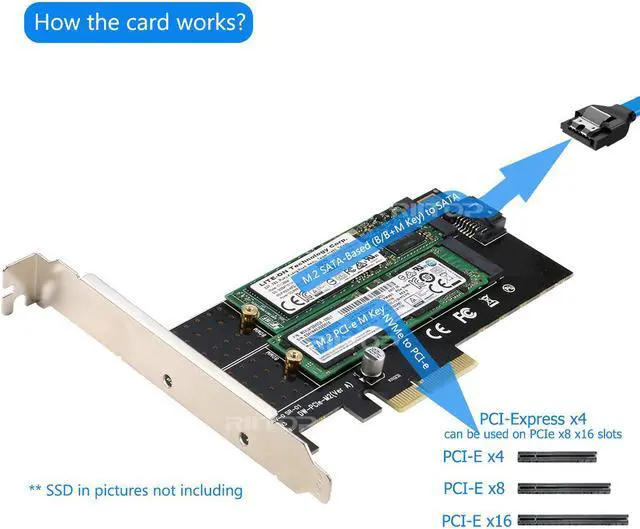

This Dual M.2 Adapter Converts a M.2 (B key) SATA Based SSD into SATA interface, and M.2 NVMe SSD (M Key) to Mainboard PCI-e 4x.
Compliant with SATA 3.0 specification for B key.
Compliant with PCI-E 4X 3.0 specification for M key.
Supports data transfer up to 6.0G b/s.

Features:

1. One M.2 B Key and one M.2 M key sockets available.
2. 10 screw holes 2230/2242/2260/2280/22110 available to fix NGFF SSD cards.
3. Easy installation & no driver required.
4. No additional power required.

Mainboard Compatible:

Only compatible PCI-e 4x (or above) slot, NOT support PCI-e 1x.

Package Contents:

1x Dual M. 2 SSD Adapter Card (B Key to SATA and M Key to PCI-e).
1x Low Profile Bracket.
1x Screwdriver.

Screws.

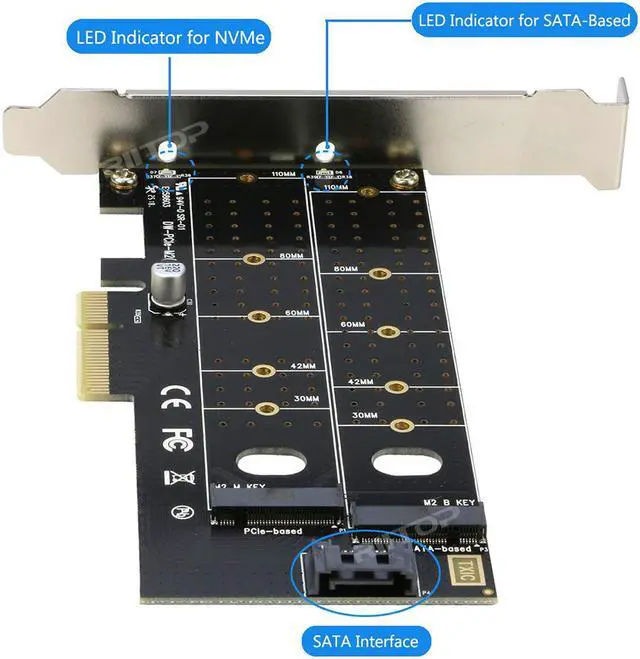

With LED Incicator

Easy to know the working status of the SSDs by LED indicators on board.

Model
Brand	RIITOP
Model	DUL-M2TPCE4X (RIITOP Dual M.2 PCIe Adapter, M.2 NVME SSD (M Key) or M.2 SATA SSD (B Key) 22110 2280 2260 2242 2230 to PCI-e 3.0 x4 & SATA Host Controller Expansion Card with Low Profile Bracket for PC Desktop)

Details
Type	PCI Express Controller Card
External USB Ports	No
Compatibility	M Key PCIe M.2 NMVe, B Key SATA M.2 NGFF SSD (2230/2242/2260/2280/22110mm)
Specifications	1.Connects one B key & one M key NGFF SSD at the same time to PCI-E 4X motherboard. 2.Compliant with PCI Express M.2 specification 1.0. 3.Compliant with SATA 3.0 specification for B key. 4.Compliant with PCI-E 4X 3.0 specification for M key.

Features
Features	1. One NGFF B Key and one NGFF M key sockets available. 2. 8 screw holes 2230/2242/2260/2280/22110 available to fix NGFF SSD cards. 3.Easy installation & no driver required. 4.No additional power required.

Dimensions & Weight
Dimensions	5.52x4.73x0.79 inch.
Weight	90g / 0.2 lb.

Packaging
Package Contents	1x Dual M.2 PCIe & SATA Adapter Card. 1x Low Profile Bracket. 1x Screwdriver. Screws.

Group
Model	2 Ports

Additional Information
First Listed on Newegg	January 08, 2019
