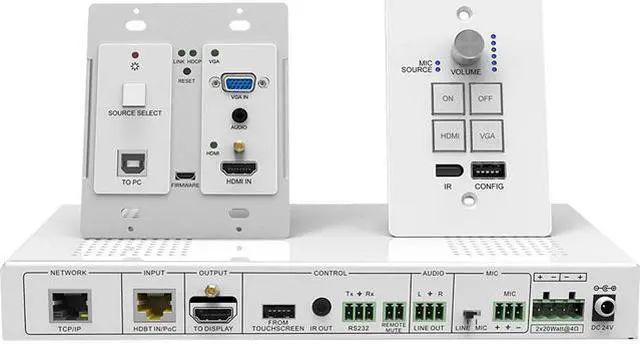

SIIG CE-H23Z11-S1 Wallplate HDMI/VGA HDBaseT Kit
+
+
Specs
Reviews
Learn more about the SIIG, Inc CE-H23Z11-S1
| Brand | SIIG |
|---|---|
| Model | CE-H23Z11-S1 |
| Color | Silver |
|---|---|
| Specifications | Supports HDMI 1.4 and HDCP 1.4 Output resolution: 1024x768, 1280x720, 1280x800, 1360x768, 1600x1200, 1920x1080, or 1920x1200 Bandwidth: 10.2Gbps Switch freely between HDMI and VGA signal input Supports MIC input Amplifier output: 2x20Watt @ 4ohms Customizable control panel supports IR learning for convenient device control Supports UPNP Product: Transmitting unit (TX): Connectors: - 1 x 19-pin HDMI, Type A, Female, Input - 1 x 15-pin VGA, D-Sub, Female, Input - 1 x 3.5mm, Stereo Audio, Input - 1 x 8-pin, RJ45, HDBaseT/PoC output - 1 x 8-pin, RJ45, Connect to Control Panel Power/RS-232 - 1 x Blue-Backlight button, Source select - 1 x 4-pin USB Type-B, Female, Connect to PC - 1 x 5-pin Micro USB, Firmware update - 1 x Reset button Receiving unit (RX): Connectors: - 1 x 19-pin HDMI, Type A, Female, Output - 1 x 8-pin, RJ45, HDBaseT/PoC input - 1 x 8-pin, RJ45, TCP/IP Network - 1 x 4-pin USB, Touchscreen - 1 x 3.5mm jack, IR Out - 1 x 3-pin, RS-232, Phoenix connector - 1 x 2-pin, Remote Mute, Phoenix connector - 1 x 3-pin, Audio Line out, Phoenix connector - 1 x 3-pin, MIC input, Phoenix connector - 1 x 4-pin, 2x20Watt @ 4ohms, Power connector - 1 x Power jack, DC 24V input Control Panel: Connectors: - 1 x 4-pin USB Type-A, U-disk configuration data - 1 x 8-pin, RJ45, Connect to Transmitter Power/RS-232 - 1 x Volume Knob, volume control - 4 x Blue-backlight button, ON / HDMI / VGA / OFF control - 1 x IR sensor, receive IR signal via IR remote - 1 x 3-Pin, RS-232, Phoenix connector - 1 x 5-pin, Micro USB, Firmware update |
| Features | HDBaseT extender with wall plate designed Transmitter and Control Panel and wall mounting Receiver box Allows you to switch freely between your HDMI and VGA input device via push button IR receiver on the Control Panel controls a projector or other display device at the remote location Output resolutions: 1024x768, 1280x720, 1280x800, 1360x768, 1600x1200, 1920x1080, or 1920x1200 Supports transmission distance up to 98ft (30m) at 1920x1200 @60Hz over CAT cabling Supports PoC to power the Transmitter, Control Panel and Receiver via a single power adapter connected to the Receiver Easy-to-use Control Panel for convenient device control in showrooms, classrooms, and boardrooms Supports IR learning of the display device's (projector, TV, etc.) IR remote for easy device control at the Control Panel |
|---|
| Dimensions | Transmitting unit (TX): 4.14" (W) x 3.50" (H) x 1.74" (D) Receiving unit (RX): 9.84" (W) x 1.22" (H) x 5.12" (D) Control Panel: 4.49" (W) x 2.76" (H) x 1.34" (D) |
|---|---|
| Weight | Transmitting unit (TX): 0.53 lb. Receiving unit (RX): 3.31 lbs. Control Panel: 0.31 lb. |
| First Listed on Newegg | September 16, 2025 |
|---|
