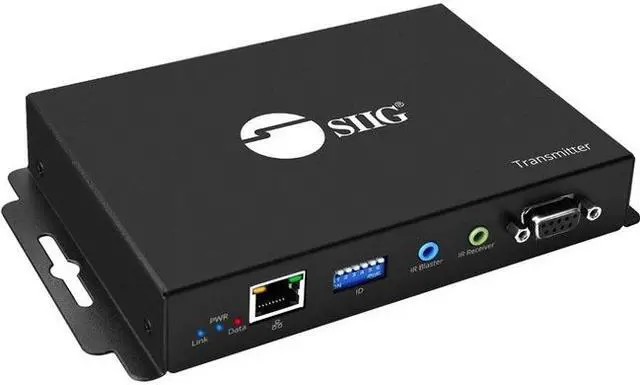

HDMI 2.0 OVER IP MATRIX AND
- 1 Input Device
- 1 Output Device
- 394 ft. (120091.20 mm) Range

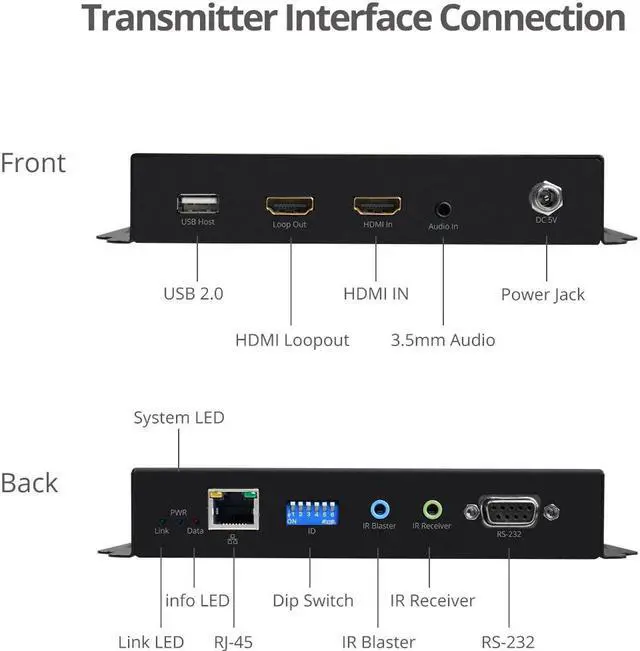

- 1 x Network (RJ-45)
- 1 x USB

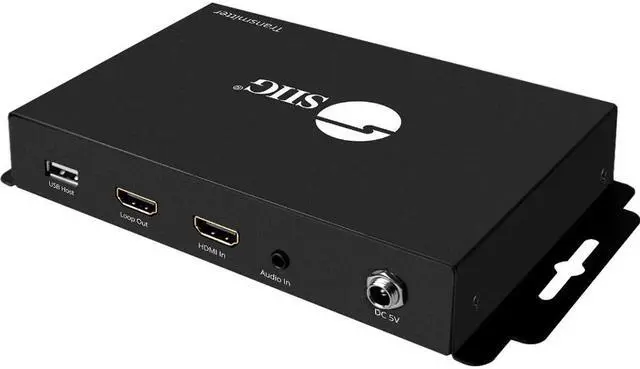

- 1 x HDMI In
- 1 x HDMI Out
- 4K
- Twisted Pair
- Category 5e
- TAA Compliant
+
+
Overview
Specs
Reviews

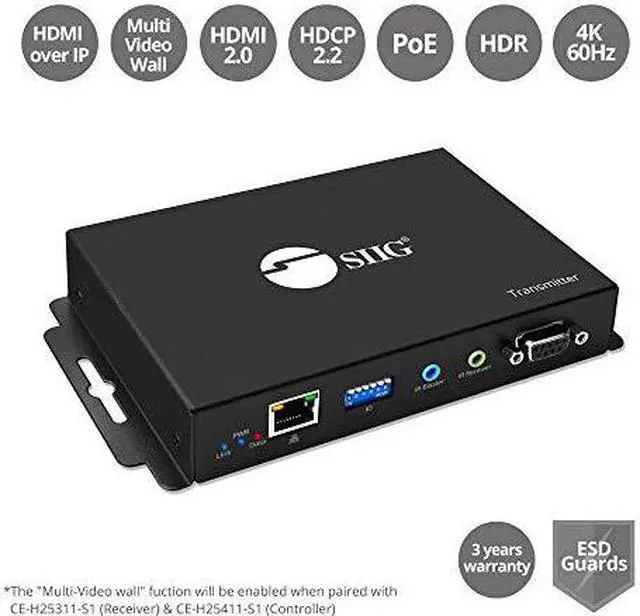

Extends HDMI audio/video signals through IP networks up to 394ft (120m), matrix and video wall configurable on the fly HDMI 2.0 a and HDCP 2.2 compliant Supports HDMI input up to 4Kx2K@60Hz

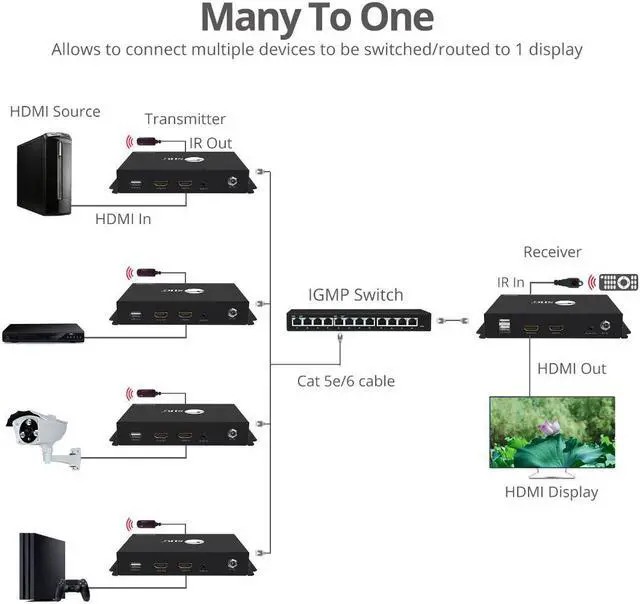

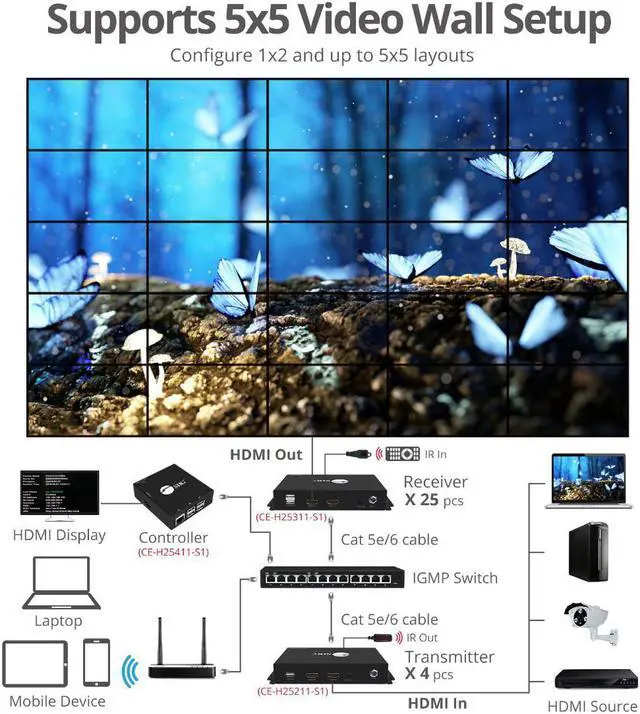

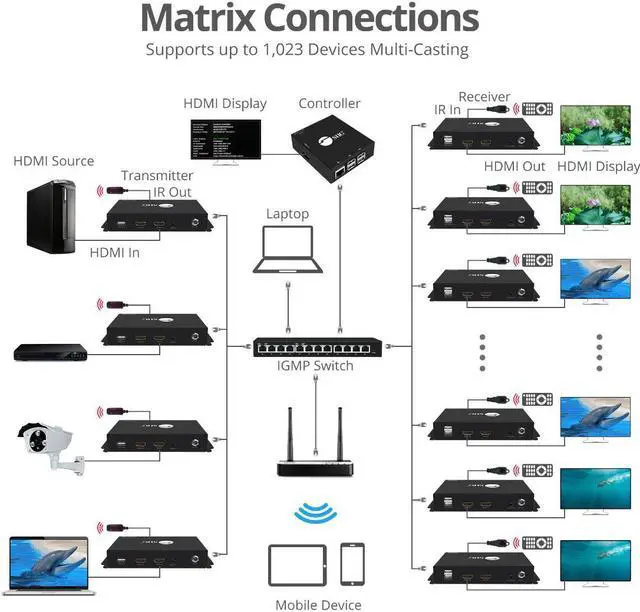

YUV 4:4: 4 8bit, HDMI output up to 4Kx2K@30Hz Flexible and scalable video broadcasting by IGMP Gigabit Ethernet Router/Switch Supports 4K signals including High Dynamic Range (HDR), PoE, Bi-directional IR path, and Video Wall. Due to the video compression, some distortion may occur in HDR mode Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture Easy DIP switch matching for multi-casting group configuration Supports full frequency IR signal from 20KHz to 60KHz Full Duplex RS-232 control up to 115, 200 bps Supports 180° and 270° clockwise image rotation Designed to work with HDMI 2.0 Video Wall Over IP Multicast System - Receiver, part # CE-H25311-S1 sold separately, and HDMI 2.0 Video Wall Over IP Multicast System - Controller, part # CE-H25411-S1 sold separately

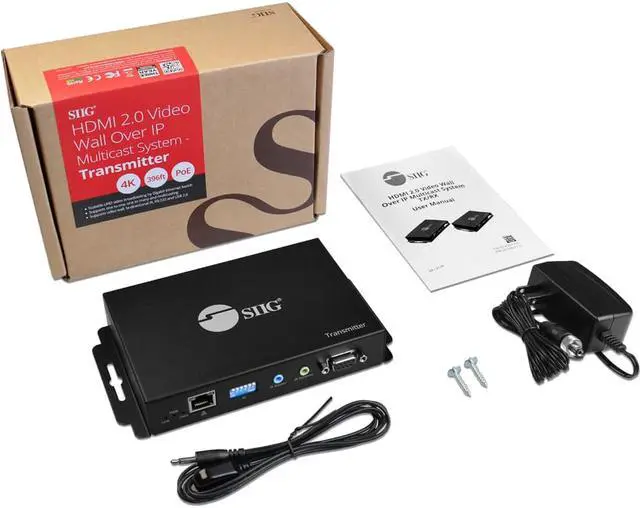

Package Contents: HDMI 2.0 Over IP Matrix and Video Wall - Transmitter Power Adapter 5V/2A 1 x IR Blaster Cable 2 x Screw Kit Insert Card User
Manual Product Type: Video Extender Transmitter
Product Type: Video Extender Transmitter
Manufacturer Part Number: CE-H25211-S1
Limited Warranty: 3 Year
Connectivity Technology: Wired
Connectivity Technology: Wired
Manufacturer: SIIG, Inc
Product Name: HDMI 2.0 Over IP Matrix and Video Wall - Transmitter
Brand Name: SIIG
Brand Name: SIIG
Country of Origin: Taiwan
Maximum Operating Distance: 394 ft Number of
Network (RJ-45) Ports: 1 Number of
USB Ports: 1 Number of
HDMI Inputs: 1
Media Type Supported: Twisted Pair Number of
Output Devices Supported: 1 Number of
Input Devices Supported: 1
TAA Compliant: Yes
Graphics Modes: 4K
Environmentally Friendly: Yes
Environmental Certification: RoHS Twisted Pair
Cable Standard: Category 5e
Maximum Operating Distance: 394 ft
USB: Yes Number of
Network (RJ-45) Ports: 1
Network (RJ-45): Yes Number of
USB Ports: 1 Number of
HDMI Inputs: 1 Number of
HDMI Outputs: 1
HDMI In: Yes
HDMI Out: Yes
Media Type Supported: Twisted Pair Number of
Output Devices Supported: 1 Number of
Input Devices Supported: 1

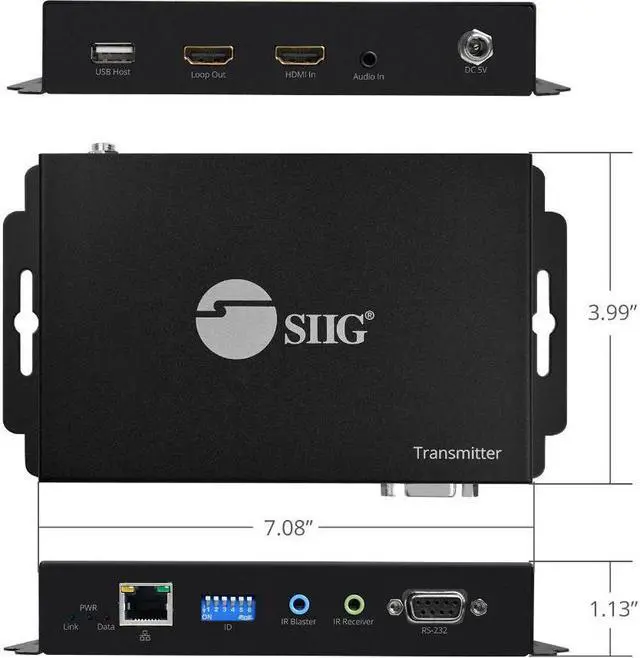

Transmitter Height: 1.13
Transmitter Width: 4
Transmitter Depth: 7.09 Transmitter
Weight (Approximate): 1.08 lb
TAA Compliant: Yes
Product Color: Black
YUV 4:4: 4 8bit, HDMI output up to 4Kx2K@30Hz Flexible and scalable video broadcasting by IGMP Gigabit Ethernet Router/Switch Supports 4K signals including High Dynamic Range (HDR), PoE, Bi-directional IR path, and Video Wall. Due to the video compression, some distortion may occur in HDR mode Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture Easy DIP switch matching for multi-casting group configuration Supports full frequency IR signal from 20KHz to 60KHz Full Duplex RS-232 control up to 115, 200 bps Supports 180° and 270° clockwise image rotation Designed to work with HDMI 2.0 Video Wall Over IP Multicast System - Receiver, part # CE-H25311-S1 sold separately, and HDMI 2.0 Video Wall Over IP Multicast System - Controller, part # CE-H25411-S1 sold separately
Package Contents: HDMI 2.0 Over IP Matrix and Video Wall - Transmitter Power Adapter 5V/2A 1 x IR Blaster Cable 2 x Screw Kit Insert Card User
Manual Product Type: Video Extender Transmitter
Product Type: Video Extender Transmitter
Manufacturer Part Number: CE-H25211-S1
Limited Warranty: 3 Year
Connectivity Technology: Wired
Connectivity Technology: Wired
Manufacturer: SIIG, Inc
Product Name: HDMI 2.0 Over IP Matrix and Video Wall - Transmitter
Brand Name: SIIG
Brand Name: SIIG
Country of Origin: Taiwan
Maximum Operating Distance: 394 ft Number of
Network (RJ-45) Ports: 1 Number of
USB Ports: 1 Number of
HDMI Inputs: 1
Media Type Supported: Twisted Pair Number of
Output Devices Supported: 1 Number of
Input Devices Supported: 1
TAA Compliant: Yes
Graphics Modes: 4K
Environmentally Friendly: Yes
Environmental Certification: RoHS Twisted Pair
Cable Standard: Category 5e
Maximum Operating Distance: 394 ft
USB: Yes Number of
Network (RJ-45) Ports: 1
Network (RJ-45): Yes Number of
USB Ports: 1 Number of
HDMI Inputs: 1 Number of
HDMI Outputs: 1
HDMI In: Yes
HDMI Out: Yes
Media Type Supported: Twisted Pair Number of
Output Devices Supported: 1 Number of
Input Devices Supported: 1
Transmitter Height: 1.13
Transmitter Width: 4
Transmitter Depth: 7.09 Transmitter
Weight (Approximate): 1.08 lb
TAA Compliant: Yes
Product Color: Black
