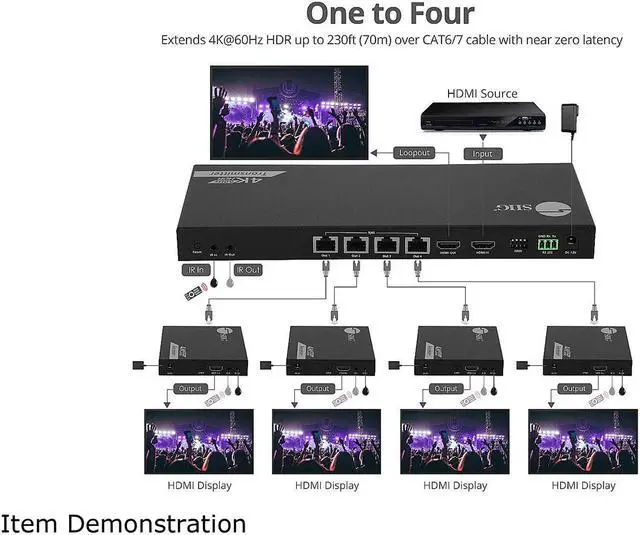

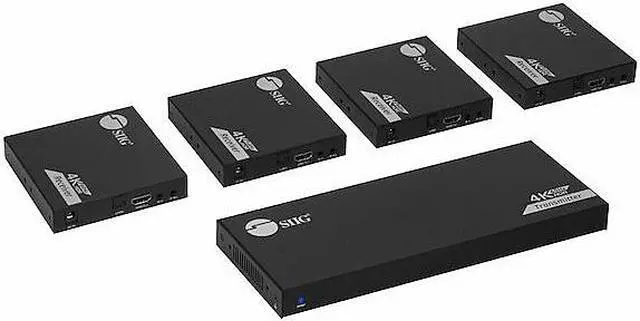

SIIG 1x4 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 CE-H27A11-S1
- HDMI
- Transmitting unit (TX):
- 1x 19-pin HDMI, Type A, Female, Input
- 1x 19-pin HDMI, Female, Loopout
- Receiving unit (RX):
- 1x 19-pin HDMI, Type A, Female, Output
+
+
Specs
Reviews
Learn more about the SIIG, Inc CE-H27A11-S1
| Brand | SIIG |
|---|---|
| Model | CE-H27A11-S1 |
| Splitter Type | HDMI |
|---|---|
| Color | Black |
| Specification | Compliant with HDCP 2.2 Transmission Distance: 4K@60Hz: Up to 70m via Cat6/7 cable 4K@60Hz: Up to 40m via Cat5 cable Full frequency IR signal from 20KHz to 60KHz RS-232: 3-pin: GND-RxD-TxD, follow RS-232 Levels, Support up to 115200 baud rates Network cable: UTP/STP CAT5e/6/6a/7 |
| Resolution Support | Up to 3840x2160 @60Hz, 2160p / 1080p / 1080i / 720p / 480p |
|---|---|
| Audio | HDMI: PCM2/5.1/7.1, Dolby & DTS 5.1 Toslink: PCM2, Dolby & DTS 5.1 |

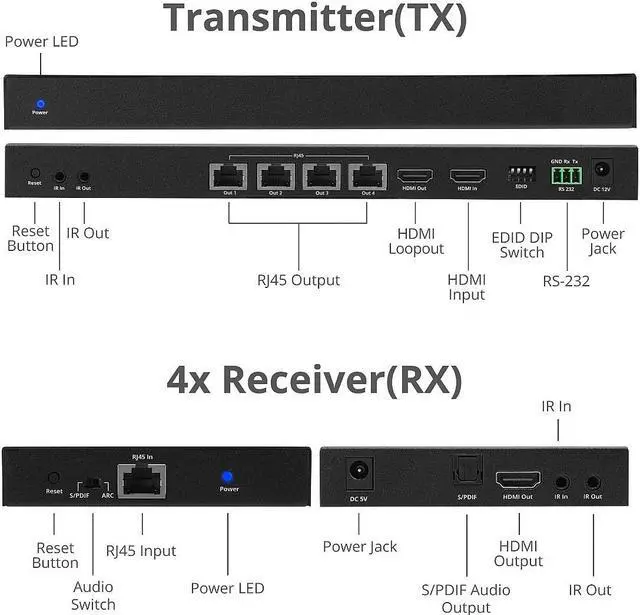

| HDMI | Transmitting unit (TX): 1x 19-pin HDMI, Type A, Female, Input 1x 19-pin HDMI, Female, Loopout Receiving unit (RX): 1x 19-pin HDMI, Type A, Female, Output |
|---|---|
| Network Interface | Transmitting unit (TX): 4x 8-pin, RJ45, video output Receiving unit (RX): 1x 8-pin, RJ45, video input |

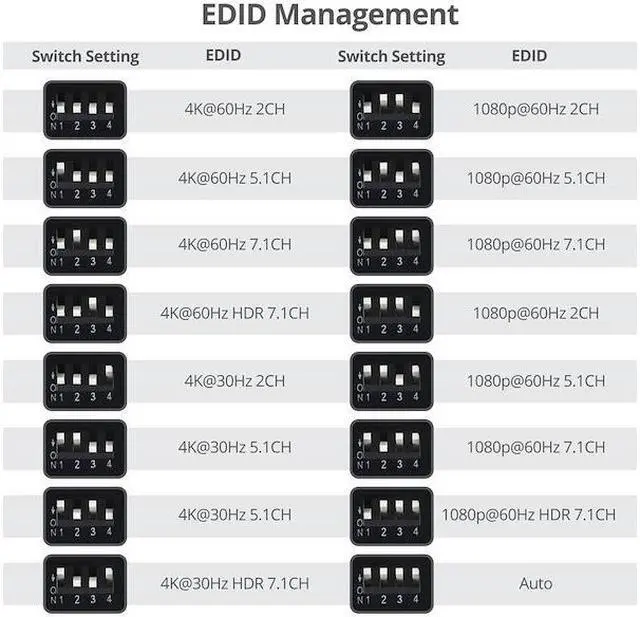

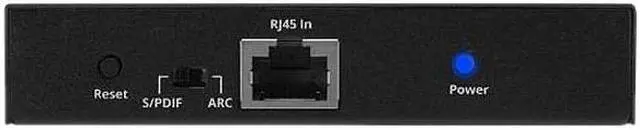

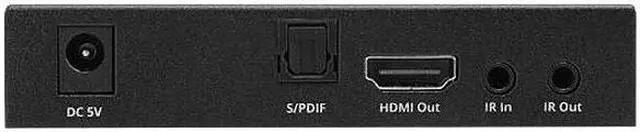

| Other Connector | Transmitting unit (TX): 1x 3.5mm jack, IR Blaster 1x 3.5mm jack, IR Receiver 1x 3-pin Terminal Block, RS-232 for control 1x 4-pin DIP Switch for EDID management 1x Power jack 1x Reset button Receiving unit (RX): 1x 3.5mm jack, IR Blaster 1x 3.5mm jack, IR Receiver 1x S/PDIF Toslink, Audio & ARC 1x Slide switch, (S/PDIF & ARC) 1x Power jack 1x Reset button |
| Power Supply | Input: 100-240V / 50-60Hz TX: DC 12V/2A RX: DC 5V/2A |
|---|

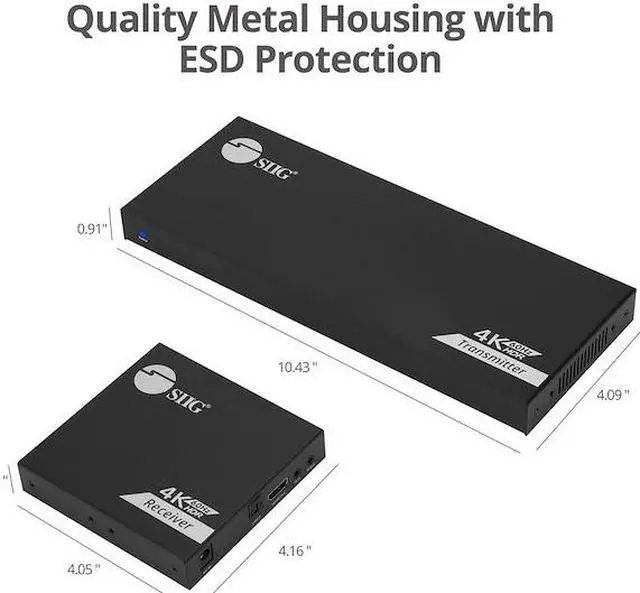

| Dimensions | Transmitting unit (TX): 0.91" x 10.43" x 4.09" Receiving unit (RX): 0.79" x 4.15" x 4.04" |
|---|---|
| Weight | Transmitting unit (TX): 1.46 lbs. Receiving unit (RX): 0.54 lb. |

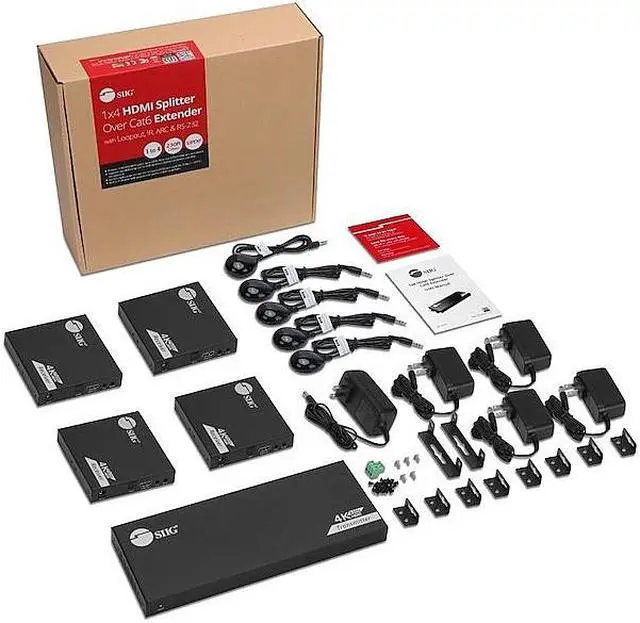

| Package Content | 1x4 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 Power adapter (x5) IR Blaster extension cable (x1) IR Receiver extension cable (x4) Terminal block Mounting kit User Manual |
|---|
| Date First Available | August 04, 2022 |
|---|
