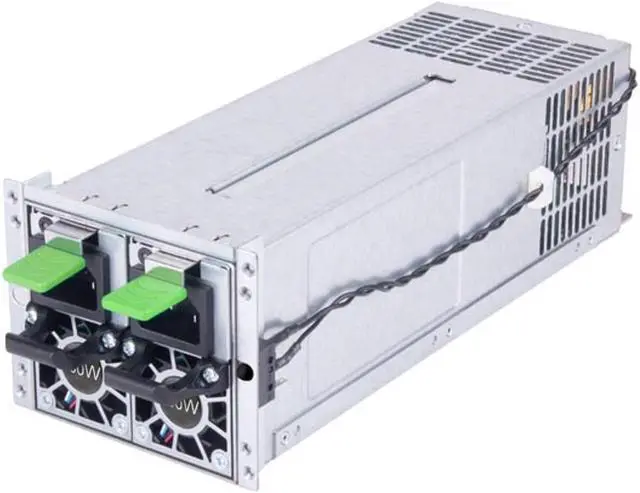

SilverStone GM800C-PF 20+4Pin 800W Redundant Server Power Supply

Name: SilverStone GM800C-PF Server Power Supply
Brand: Silverstone
SKU: N82E16817256227
Price: 3645.71 ILS
Availability: InStock

Specs

Reviews

Learn more about the Silverstone GM800C-PF

Model
Brand	SilverStone
Model	GM800C-PF

Details
Type	Redundant Power Supply
Single/Redundant	Redundant
Form Factor	2U CRPS Redundant
Maximum Power	800W
Fans	40mm DC fans
Main Connector	20+4Pin
Output Current	25A@+3.3V, 25A@+5V, 65A@+12V, 3.5A@+5VSB, 0.8A@-12V
Input Voltage	90 - 264 V
Input Frequency Range	47 - 63 Hz
+12V Rails	Single
PFC	Active PFC (PF>0.9 at full load)
MTBF	100,000 hours
Energy-Efficient	80 PLUS PLATINUM Certified
Efficiency	>=89% & <91% overall efficiency
PSU Noise Level	61.5 dBA
Protection	Over Current Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection
Connectors	1 x 24 / 20-Pin motherboard connector 2 x 8-Pin EPS / ATX 12V connectors 2 x 8 / 6-Pin PCIe connectors 6 x SATA connectors 6 x 4-Pin Peripheral connectors 1 x 5-Pin PMBus connector

Dimensions & Weight
Dimensions	82 x 102 x 259 mm (Housing with bracket, without handle) 82 x 102 x 245 mm (Housing without bracket) 73.5 x 39 x 185mm (Module only without handle)
Weight	6.7 lbs.

Environmental
Temperature	Operating temperature 0°C ~ 45°C

Additional Information
