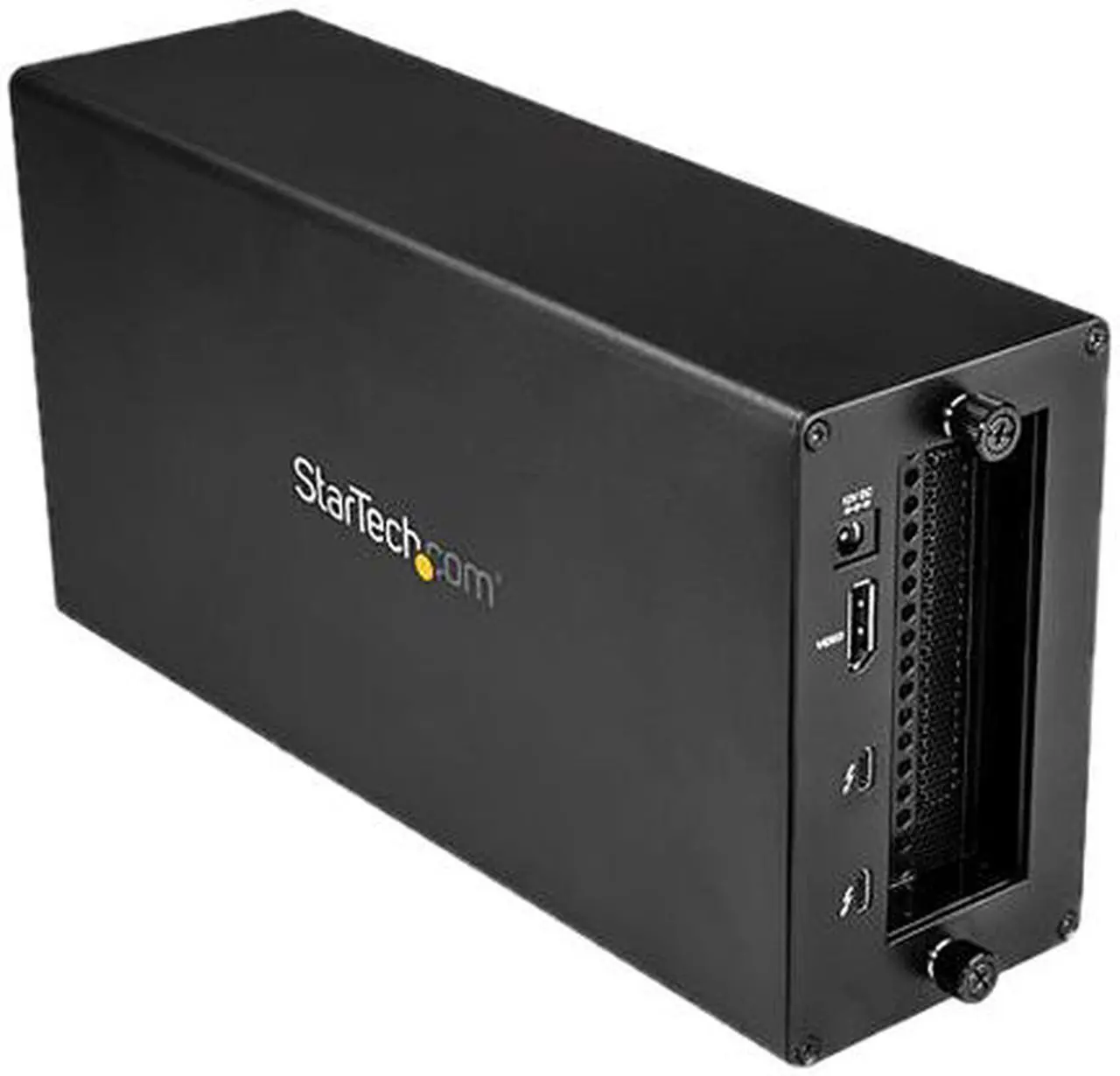

StarTech BNDTB4M2E1 Thunderbolt 3 to M.2 PCIe Adapter - External PCIe Enclosure / Chassis plus Card - with DisplayPort Monitor Port - PCIe SSD

Add a PCIe M.2 SSD to your TB3 computer via the TB3 chassis
Swap the PCIe card

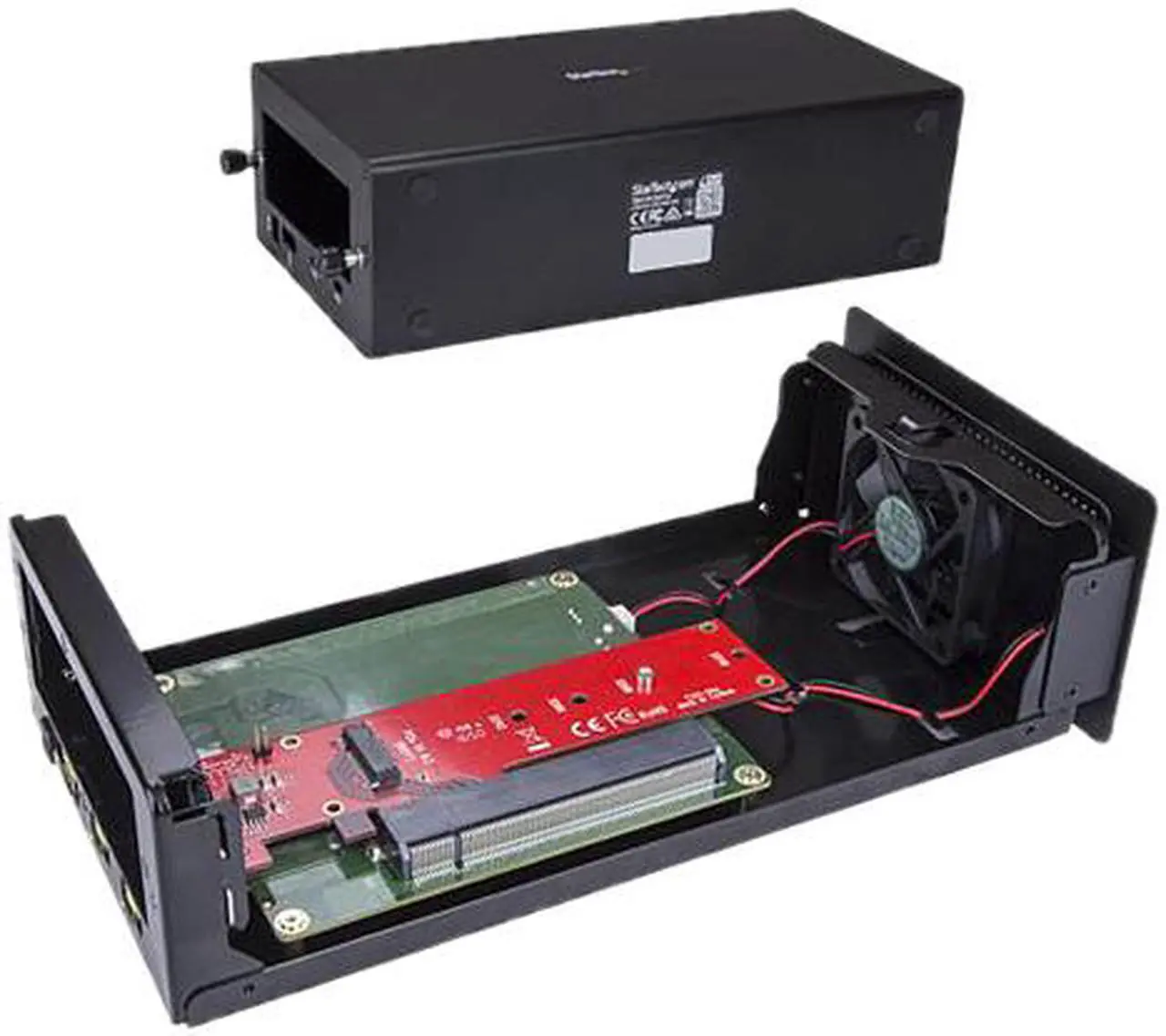

Assemble with a screwdriver
Thunderbolt 3 to PCIe / Thunderbolt 3 to PCIe x16 adapter / Thunderbolt 3 to ssd / Thunderbolt 3 to m.2 adapter / External PCI express enclosure / External PCI express slot / External PCI slot / External PCIe enclosure / PCIe expansion slot / PCIe slot / Thunderbolt 3 expansion chassis / Thunderbolt 3 PCIe card / Thunderbolt 3 PCIe expansion chassis / Thunderbolt 3 PCIe SSD

Overview

Specs

Reviews

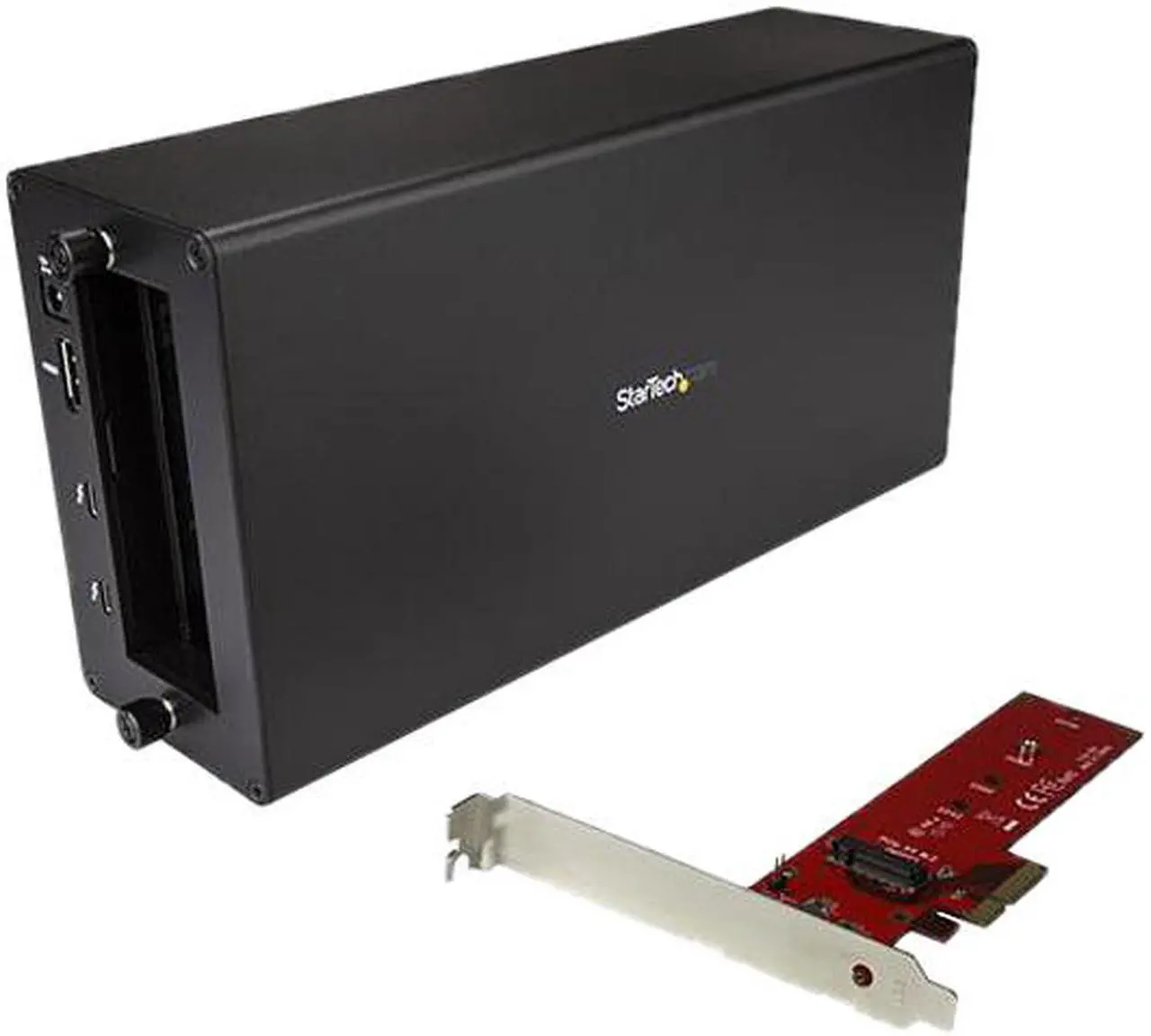

Thunderbolt 3 to PCIe M.2 adapter - Chassis + Card

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Return for refund within: 30 days

Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.

This item is covered by Newegg.com's International Order Return Policy. Read full return policy for details.
*Subject to applicable law

Color	Black
Type	Enclosure
AC Adapter	Yes
Material	Aluminum / Steel
Thunderbolt 3	Yes
Internal Interface	1 x PCI Express x4 Male 1 x PCI Express x16 Female

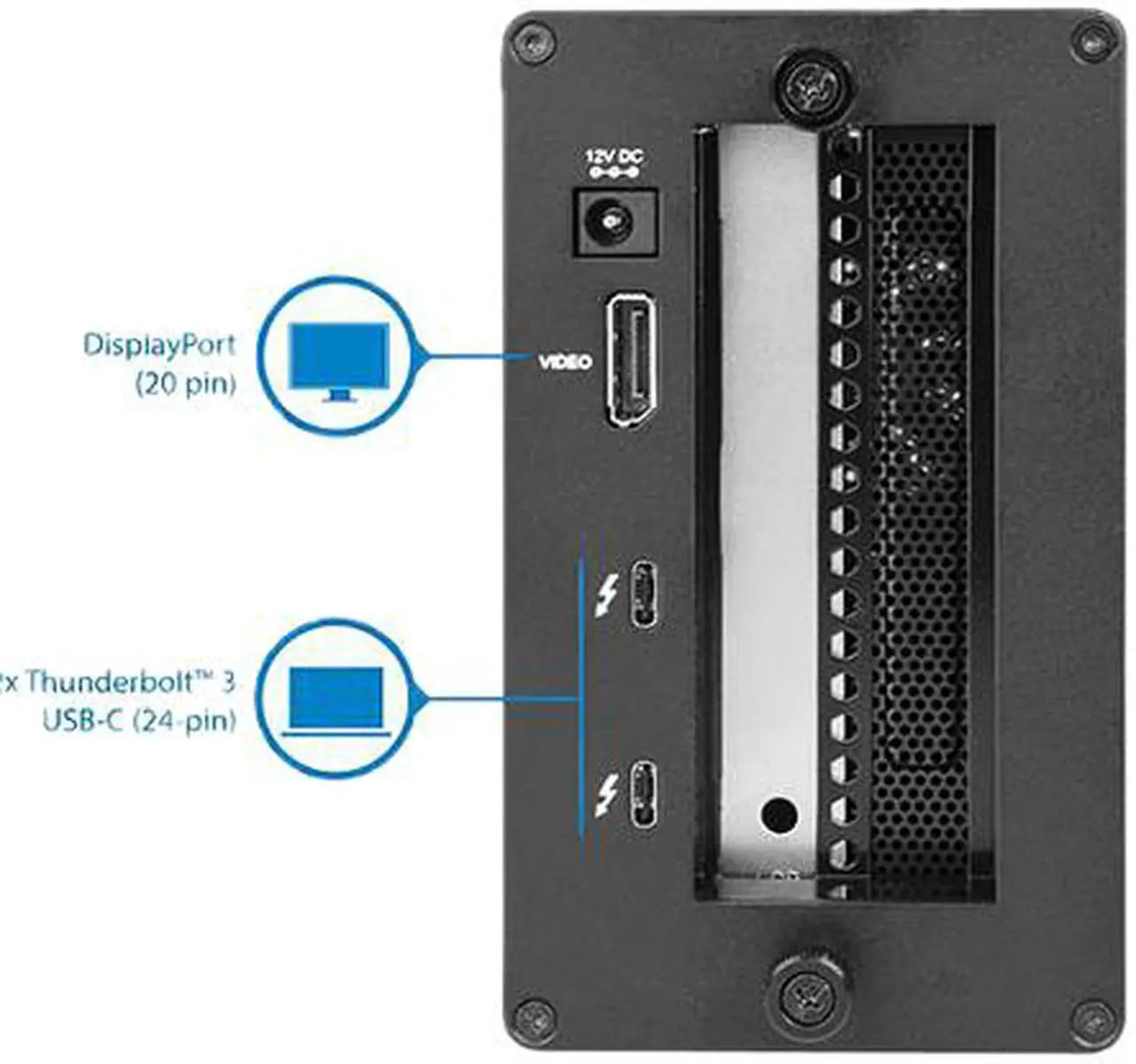

External Interface	1 x M.2 (NGFF, M-Key, PCIe x4) 2 x Thunderbolt 3 USB-C Female 1 x DisplayPort Female
Fan	1 x 92mm Sleeve Bearing Fan
Power	Center Tip Polarity: Positive Input Current : 2A Input Voltage : 100 ~ 240 AC Output Current: 5.417A Output Voltage: 12 DC Plug Type: N Power Consumption (In Watts): 65W Power Source: AC Adapter Included

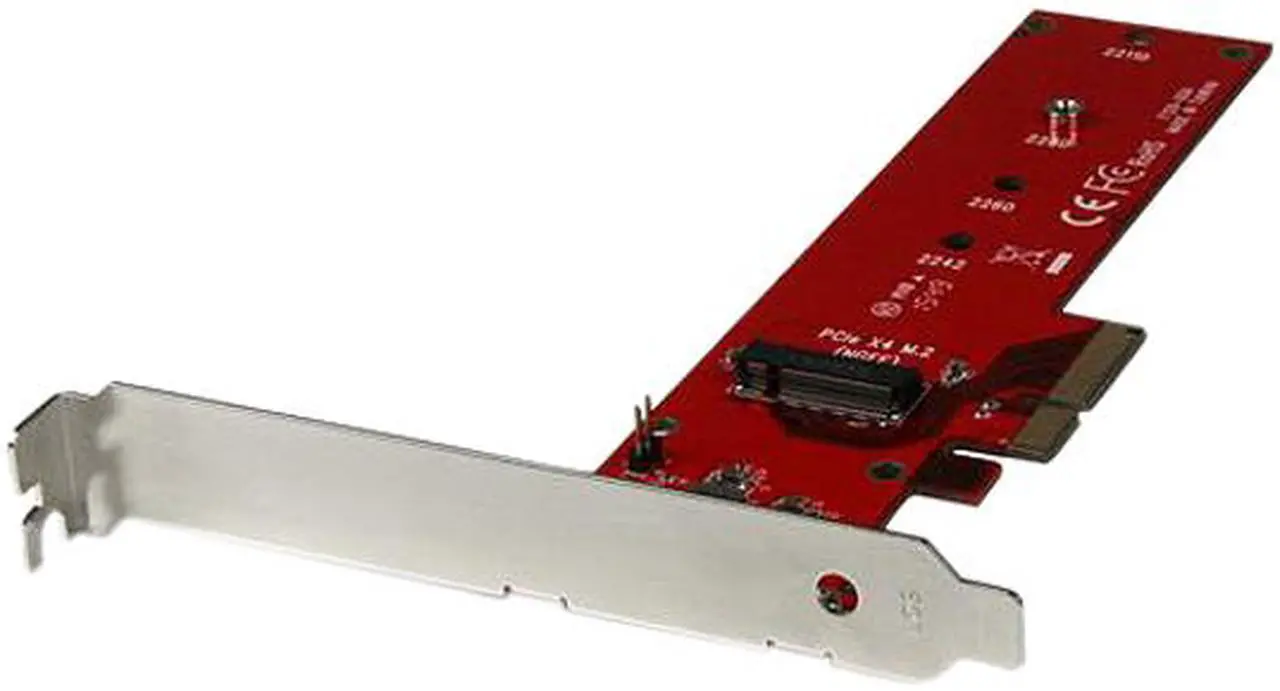

Specifications	Maximum Data Transfer Rate : 40 Gbps (Thunderbolt 3) Type and Rate: Thunderbolt 3 - 40 Gbit/s This Thunderbolt 3 to PCIe M.2 adapter lets you take advantage of the speed of PCIe solid-state drives, connected externally to your Thunderbolt 3 desktop or laptop computer. The adapter combines the StarTech.com Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and the M.2 PCIe SSD adapter card ( PEX4M2E1), giving you a DisplayPort output and an additional Thunderbolt 3 port. Boost your system speed and performance Get ultra-fast data access by adding this PCIe M.2 SSD adapter externally to your existing Thunderbolt 3 computer, using the Thunderbolt 3 chassis - improving your storage performance and expanding overall capacity. The adapter supports PCIe M.2 SSDs (NVMe and AHCI): 2242, 2260, 2280, and 22110 drives. Extend your workstation Connect additional displays through the chassis’ dedicated DisplayPort output and second Thunderbolt 3 (USB-C) port (USB-C video adapter may be required). With two extended displays, you can multitask effortlessly, avoiding the hassle of repositioning open windows or programs repeatedly throughout your workday. Install with ease You can assemble and connect the adapter in minutes. Put it together using only a screwdriver then plug and play with no software or drivers required.

Dimensions	11.00" x 5.60" x 3.20"
Weight	3.60 lbs.
