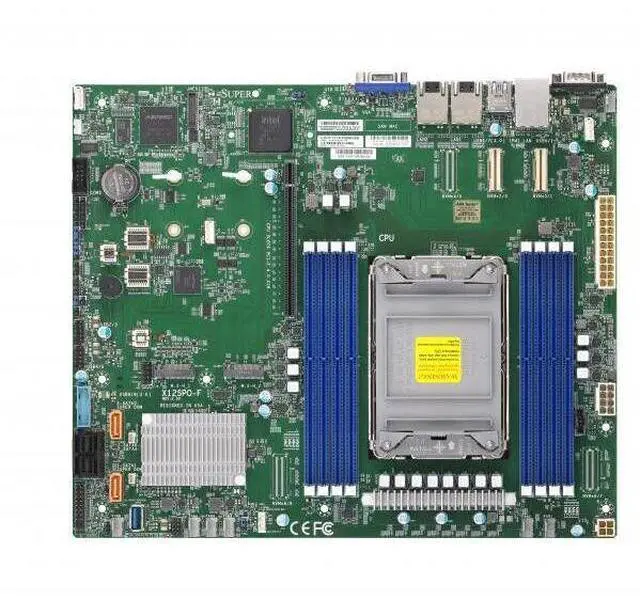

SUPERMICRO MBD-X12SPO-F ATX Server Motherboard

Be the first to review this product...
  • Supports 3rd Gen Intel Xeon Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  • Intel C621A
  • Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
  • Up to 2TB Intel Optane Persistent Memory, in 8 DIMM slots
  • Dual LAN with Intel i350 Gigabit Ethernet Controller
  • Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Supports 4x NVMe drives via SlimSAS connectors
+
+
Specs
Reviews

Learn more about the Supermicro MBD-X12SPO-F

Model
Brand SUPERMICRO
Model MBD-X12SPO-F
Supported CPU
CPU Socket Type Single Socket LGA-4189 (Socket P+) supported
CPU Type Supports 3rd Gen Intel Xeon Scalable processors
Chipsets
North Bridge Intel C621A
Memory
Number of DDR4 Slots 8 x 288-pin
DDR4 Standard DDR4 3200
Maximum Memory Supported Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel Optane Persistent Memory, in 8 DIMM slots
ECC Supported Yes
Expansion Slots
PCI Express 4.0 x16 1
Storage Devices
SATA Intel C621A controller for 10 SATA3 (6 Gbps) ports
SATA RAID 0/1/5/10
M.2 M.2 Interface: 2 SATA/PCI-E 3.0 x4
Form Factor: 2280, 22110
Key: M-Key
Onboard Video
Onboard Video Chipset ASPEED AST2600 BMC
Onboard LAN
LAN Chipset Intel I350
LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
Back I/O Ports 2 x RJ45 Ethernet LAN ports
3 x USB 3.2 Gen1 ports
2 x USB 2.0
1 x COM Port
1 x VGA port
Onboard Ports
Onboard USB 2 x USB 3.0 + 4 x USB 2.0
Other Connectors 1 x COM Port
TPM Header
Features
Features BIOS Type: AMI UEFI
BIOS Features:
ACPI 6.2
SMBIOS 3.0 or later
UEFI 2.7
Software : Intel Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Power Configurations:
ACPI Power Management
CPU thermal trip support for processor protection
Power-on mode for AC power recovery
Voltage: +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, System temperature, VBAT
Temperature: PECI, CPU thermal trip support
LED: CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED
Other Features: ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, RoHS, RoT, UID, WOL
Dimensions
Form Factor ATX
Dimensions (W x L) 12.00" x 10.00"
Packaging
Package Contents 1 x Motherboard (X12SPO-F Motherboard)
1 x QRG (Motherboard Quick Reference Guide)
2 x I/O Cables (57.5 cm SATA FLAT S-S PBF)
1 x I/O Shield (STD I/O Shield for X12SPO-F with EMI Gasket)
Additional Information
Date First Available March 11, 2025
