TES-137 Luminance Meter / Light Meter/Luminance Meters TES137

Features: •Dual Display, 4-digit LCD reading. •Spectral Sensitivity close to CIE photopic Curve. •Measuring Levels Ranging 0.01 to 1999k cd/m2, 0.001 to 580.0 k fL, Autoranging 7 step. •Accurate and Instant response. •Luminance ratio A/B, deviation %A, different B-A and peak luminance measurements. •User calibration factor and color-correction functions. •Accumulation luminance measurement. •Max/Min/AVG function. •Backlit function. •Comparator function. •Auto power off function. •Data Hold function. •Data memory and read function. •Data logger function. •USB Interface.
Applications: Luminance measurement of LCDs, CRTs, LEDs, etc. Luminance measurement of street lighting, tunnel lighting, etc. Measurement of airport lighting facilities. Transmittance measurement for LCD polarizing plates and various filters. Measurement of medical lighting. Illuminance irregularities of automobile license plates. Luminance measurement of various lighting facilities, etc.
Specifications: Electrical
Specifications:
Display: Dual display 4 digit LCD read out.
Measuring range: 9.999, 99.99, 999.9, 9.999 k, 99.99 k, 999.9 k, 1999k cd/m2 9.999, 99.99, 999.9, 9.999 k, 99.99 k, 580.0 k fL Auto ranging (7 step) (1 fL = 3.426 cd/m2)
Measuring Angle: E2°
Overrange Display: OL is displayed
Resolution: 0.01 cd/m2, 0.001 fL
Accuracy: ±3% rdg ±5dgt (C brated to standard incandescent lamp, 2856°?, at 25? /77? )
CIE Photopic f '1:? 6%
Temperature Characteristics: ± 0.1 %/?
Measuring Rate: Approximately 5 time/sec
Photosensor: Silicon photodiodes Data
Memory Capacity: 200 sets.
(Direct reading from LCD display) Data Logger Capacity: micro
SD CARD 4GB Operating /
Storage Conditions: 0? to 50? <80% RH -10? to 60? <70%RH
Power Source: 6 pcs 1.5V AAA size Battery
Battery Life (typical): 50 hours
Photosensor Lead Length: 90 cm (approx.

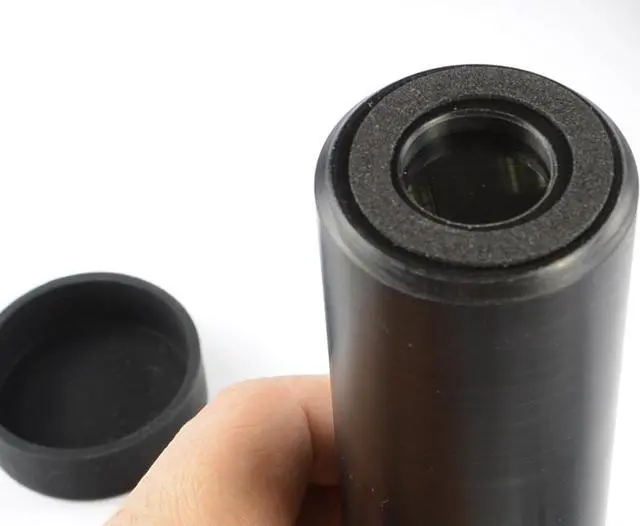

) Photosensor Dimensions: 40×158 (L) mm
Dimension: 150 (L) × 72 (W) × 35 (H) mm
Weight:
Meter: 235g, Photosensor: 210g

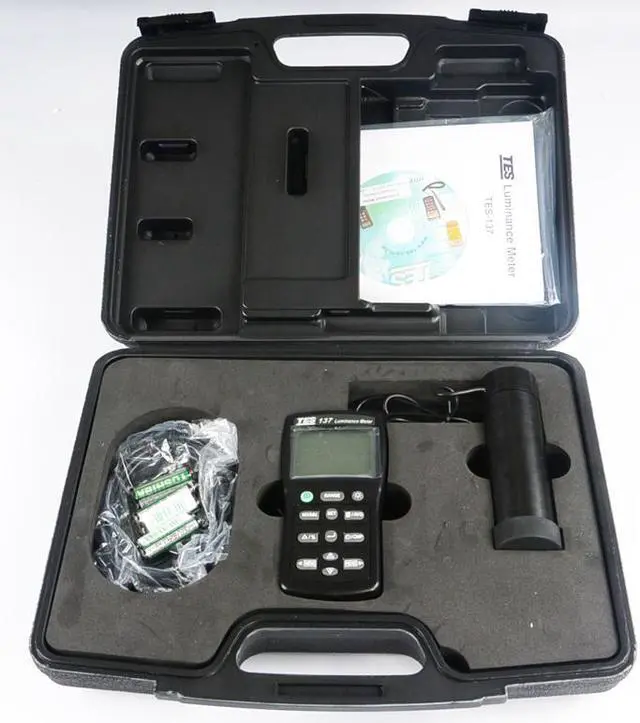

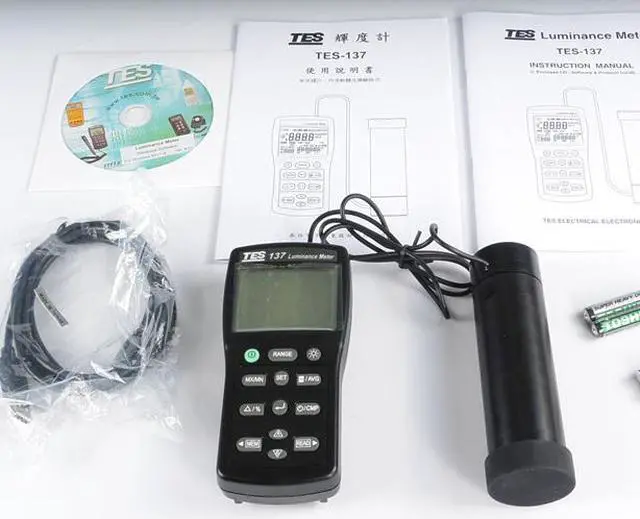

Accessories: Carrying case, Instruction manual, Battery, CD software, USB cable.
