TRIPP LITE B024-H4U08 8-Port 4K HDMI/USB KVM Switch - 4K 60 Hz Video/Audio, USB Peripheral Sharing, 1U Rack-Mount
- Video Resolution Max: HDMI: 4096 x 2160 @ 60Hz
+
+
Specs
Reviews
Learn more about the Tripp Lite B024-H4U08
| Brand | TRIPP LITE |
|---|---|
| Model | B024-H4U08 |

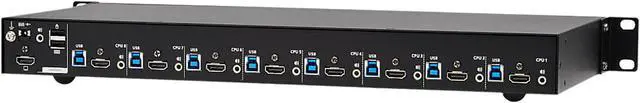

| Console Connectors | Number of Ports: 8 PC/Server Connections: HDMI Side A - Connector 1: HDMI (FEMALE) Side A - Connector 2: (2) USB A (FEMALE) Side A - Connector 3: 3.5MM (FEMALE) Side B - Connector 1: (8) HDMI (FEMALE) Side B - Connector 2: (8) USB B (FEMALE) Side B - Connector 3: (8) 3.5MM (FEMALE) Computer Keyboard and Mouse Interface: USB Computer Monitor Interface: HDMI |
|---|---|
| Video Resolution | Max: HDMI: 4096 x 2160 @ 60Hz |

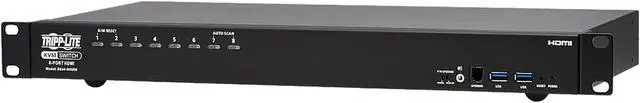

| LED Indicators | Orange x8 (Selected Port); Green x1 (Power); Green x8 (USB Link) |
| Temperature | Operating Temperature Range: 32 to 104 F (0 to 40 C) Storage Temperature Range: -4 to 140 F (-20 to 60 C) |
|---|---|
| Humidity | 0 to 80% RH, Non-Condensing |
| Audio Features | 2.1-channel surround sound audio |
|---|---|
| Power Features | External Power Supply Input Specs (V / Hz / A): 100-240V, 50/60Hz, 1.4A External Power Supply Output Specs (V / A): 12V / 5A External Power Supply Cord Length (ft.): 4 External Power Supply Cord Length (m.): 1.2 DC Barrel Plug: OD: 5.5 x 2.5 x 9.5mm, Positive Pin, Negative Sleeve Power Consumption (Watts): 9.77 External Power Supply Plug(s): BS 1363 UK; IEC-320-C14; NEMA 5-15P North America |
| Features | Connects 8 HDMI-Enabled Devices to a Single 4K Monitor, Keyboard and Mouse This rack-mount KVM switch lets you access, control, boot and reboot up to eight computers or other devices with 4K HDMI ports at the same time. In addition to desktop and notebook computers, the switch also connects up to eight 4K media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other HDMI-enabled devices. All eight computers share one 4K HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace. Connect up to 512 Computers to One Original Console You can also cascade up to three levels of B024-H4U08 KVM switches, allowing centralized access to as many as 512 computers using a single monitor, keyboard and mouse. Switching Between Computers Is Fast and Easy Use the front-panel push buttons, hotkey commands or multi-lingual On-Screen Display (OSD) with text-based interface for quick and easy toggling between computers. Or you can use Auto Scan mode to scan all connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected. Cables Are Included for Fast and Simple Setup Connect your 4K HDMI monitor, keyboard, mouse, and speakers to the switch's console ports. Then, use the included 4K HDMI/USB KVM cable kits to connect your computers to the KVM switch. The plug-and-play B024-H4U08 requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows, Mac, Linux, UNIX and Novell. USB Hub Lets You Share Peripherals between Computers Transmits True 4K Video and Digital Audio Stack Units to Expand Your Workstation and Enhance Your Productivity Designed for Convenient Mounting with Included Hardware TAA-Compliant for GSA Schedule Purchases |
| Dimensions | 17.02" x 8.44" x 1.73" |
|---|---|
| Weight | 6.85 lbs. |
| Package Contents | B024-H4U08 8-Port HDMI/USB KVM Switch, 1U (2) 4K HDMI/USB KVM cable kits, 6 ft. Firmware upgrade cable, 6 ft. External power supply (Input: 100–240V, 50/60 Hz, 1.4A; Output: 12V 5A) (3) International power cords (North America, Europe, U.K.) (4) Rubber feet Rack-mounting hardware Quick Start Guide |
|---|
| First Listed on Newegg | August 21, 2025 |
|---|
