Does this model (ER-X-SFP-US) come with a AC adapter?

Yes, it comes with everything needed to hook up and go. We only use ours for a very small isolated portion of our work network, but it has all the features we needed as well.

Can you disable PPoE?

Not sure what you mean, you only configure PPPoE if you need to use it. Its not generally something that is configured/enabled by default.

able to support 220v?

Mine came with a 120V US AC adapter, but the router itself supports "9 to 26 VDC" on a coaxial DC plug if you want to get your own AC adapter.

does this ACTUALLY throughput gigabit speed consitantly?

From my personal experience I think you're unlikely to get full Gigabit speeds, but when all my components are cooperating I've seen steady transfers at around 750mbit.

Ubiquiti Networks Advanced Gigabit Ethernet Router

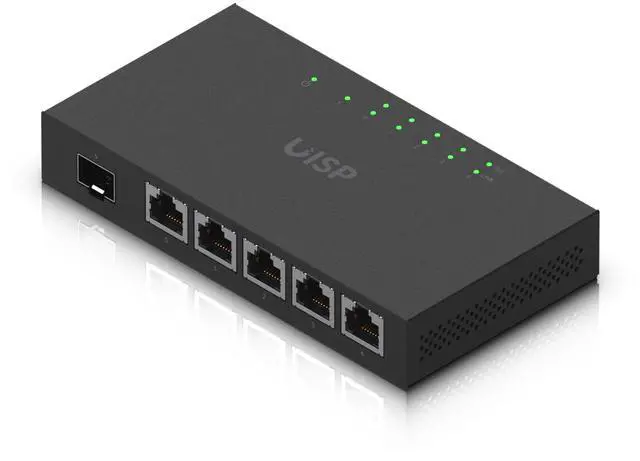

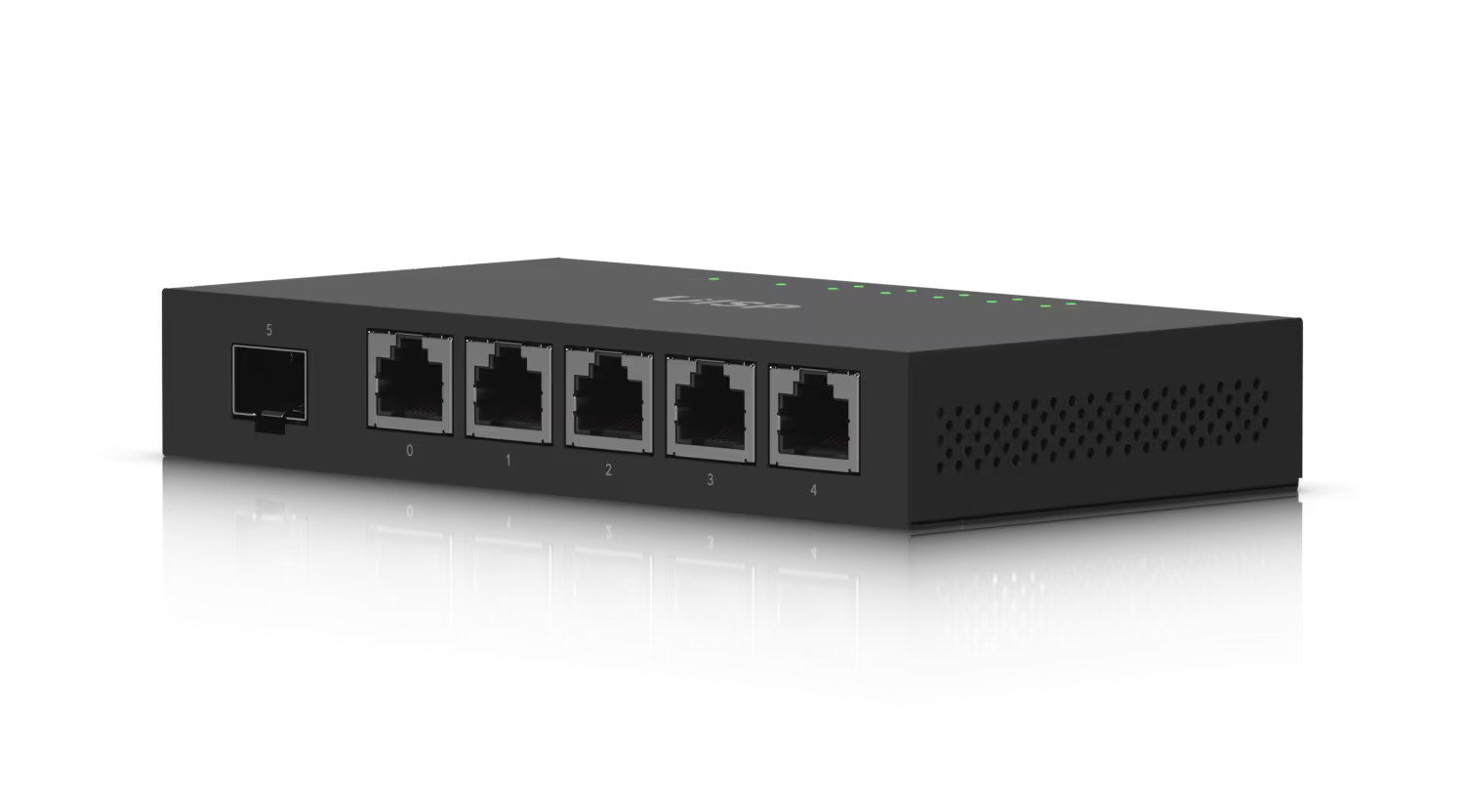

Ubiquiti EdgeRouter X SFP Gigabit Ethernet Router

Advanced Gigabit Router with PoE and SFP

The EdgeRouter™ X SFP combines cost-effective routing performance with the convenience of passive PoE support in a compact form factor.

Model: ER-X-SFP

Versatile PoE Capability

The EdgeRouter™ X SFP supports 24V passive PoE to power up to five airMAX® devices.

World-Leading Price/Performance

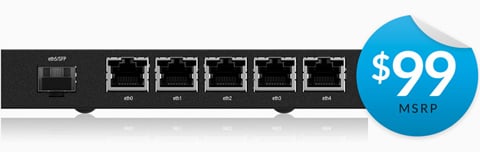

At $99 USD MSRP, the EdgeRouter™ X SFP offers a breakthrough combination of value and performance in routing with passive PoE support.

Gigabit Connectivity

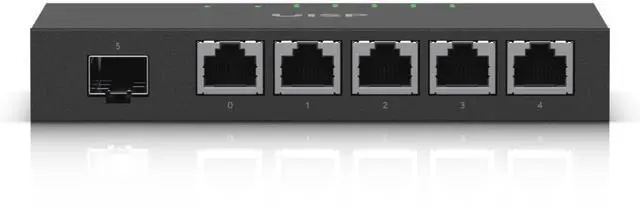

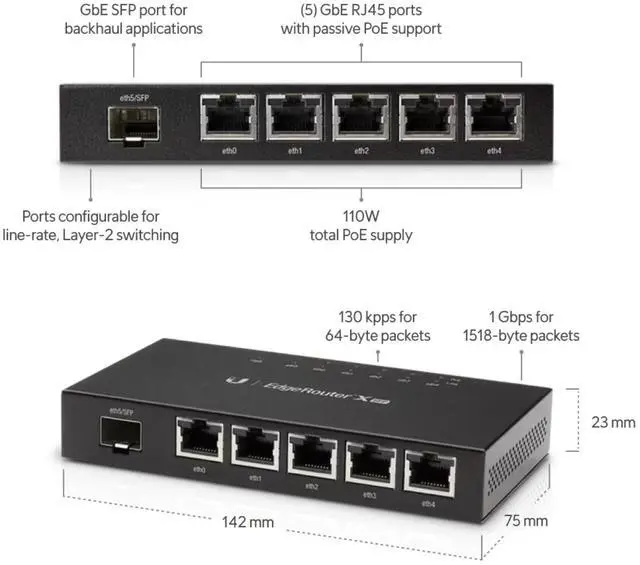

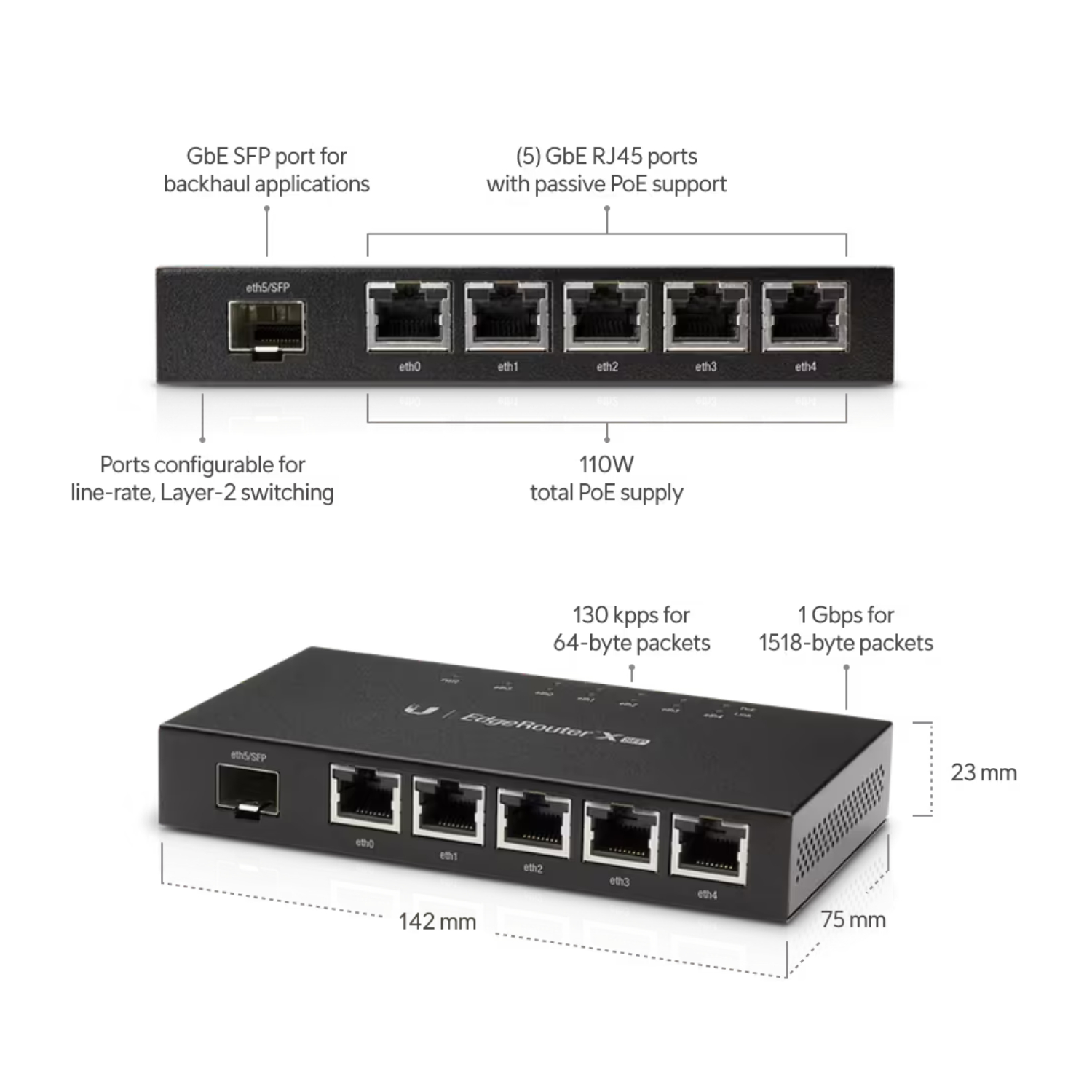

The EdgeRouter™ X SFP features five independent, Gigabit RJ45 ports and one Gigabit SFP port – all six are configurable for switching.

Optical SFP for Backhaul

The Gigabit SFP port provides fiber connectivity to support backhaul applications for carrier-class networks.

World-Leading Price/Performance

At $99 USD MSRP, the EdgeRouter™ X SFP offers a breakthrough combination of value and performance in routing with passive PoE support.

Model Comparison


	ER-X	ER-X-SFP
Gigabit RJ45 Ports	5	5
SFP Ports	N/A	1
PoE Input	24V Passive PoE	N/A
PoE Output	Passive PoE Passthrough	24V Passive PoE

Type	Wired
Form Factor	Wall Mountable
Protocols	TCP/IP
Speed	10/100/1000Mbps
Security	ACL-Based Firewall Zone-Based Firewall NAT
Ports	5 x 1GbE RJ45, 1 x 1G SFP
LAN Ports	(5) 10/100/1000 RJ45 ports (1) 100/1000 SFP port
LEDs	Power, Link / Activity (6), PoE (5)
VPN	IPSec Site-to-Site and Remote Access OpenVPN Site-to-Site and Remote Access PPTP Remote Access L2TP Remote Access PPTP Client
PoE Interface	(5) 24V Passive PoE 2-pair (Pins 4, 5+; 7, 8-)
Button	Reset
Temperature	Operating Temperature: -10 ~ 45 degree Celsius (14 ~ 113 degree Fahrenheit)
Humidity	Operating Humidity: 10 to 90% Noncondensing

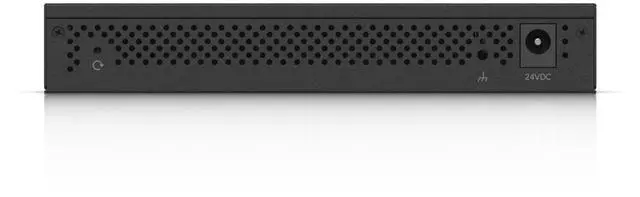

Power Input	24VDC, 2.5A Power Adapter (Included)
Max Power Consumption	5W

Dimensions	2.95" x 5.59" x 0.91"
Weight	0.47 lb.
