New generation LED technology for greater sustainability?
Maintenance free: 30,000-hour light source life and less power consumption?
3,000 ANSI Lumens offering bright images in any environment?
Ease of use: instant power on/off and convenient software update?
Wide color gamut to present the best
+
+
Overview
Specs
Reviews

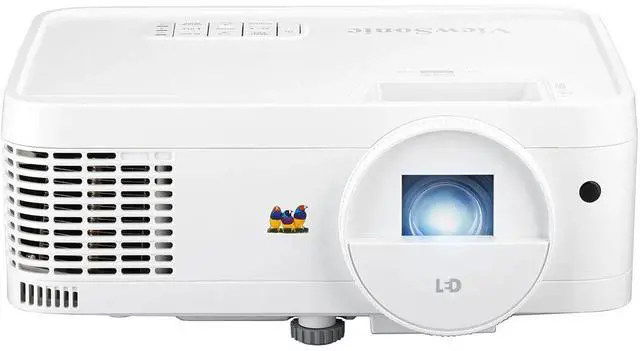

The eco-friendly ViewSonic LS510WH-2 WXGA projector uses the latest LED technology for a brighter, more vivid display. With 3, 000 ANSI lumens and no need for complicated lamp replacements, the LS510WH serves as a cost-effective presentation solution for both education and enterprise organizations. Experience stunning images with breathtaking colors for boardrooms, lecture halls and other public spaces on a long-lasting projection solution equipped with 125% Rec. 709 technology. Enjoy convenient features like instant power on/off, streamlined software updates and flexible setup. Advanced LED Light SourceThis projector uses the latest solid-state LED technology that is both mercury-free and lamp-free, offering a greener, filter-free projector solution.
The LED light source provides over 60, 000 hours of usage while consuming less than half the power of a typical LCD TV, thereby lowering your total cost of ownership. Enhanced SavingsDesigned for up to 30, 000 hours of usage, this long-lasting, energy-efficient projector not only reduces your energy bills but also lowers your total cost of ownership. Breathtaking Brightness in any EnvironmentPacked with 3, 000 lumens of brightness, this projector produces bright images in any environment - with excellent performance in rooms with high ambient light. Large Images in Small SpacesA short throw lens enables large images to be projected from short distances in small rooms.
In addition, any blinding lights in front of the presenter, distracting shadows on the projected image, or glaring hotspots on the screen, are all eliminated because the projector's light source is closer to the projection surface. SuperColorViewSonic SuperColor technology delivers 125% Rec. 709 color accuracy and HDR content support that produce incredibly vivid and lifelike colors for a fuller, more immersive viewing experience. Setup Made SimpleHorizontal and vertical keystone correction and a corner adjustment feature eliminate crooked and distorted images for a perfectly proportioned picture every time. Convenient Auto Power On/OffThis projector can be configured to automatically turn on for quick and easy startup whenever an active video input is detected.
Conversely, when no signal is present, the projector will automatically power off after a user-defined amount of time. 360-Degree OrientationThe projector can be installed in nearly any position, at any angle from floor to ceiling, making any surface a projection surface. Ideal for retail environments, the projector can be pointed straight down at the floor for creative marketing that leads your customers directly to your products. Reliable 24/7 OperationFeaturing a long lifespan, this professional-grade projector is designed for reliable, continuous 24/7 use. Sealed Optical EngineAn IP5X sealed optical engine prevents dust and moisture from entering the projector, ensuring impeccable image quality and a long, maintenance-free lifespan.
Learn more about the ViewSonic LS510WH-2
Model
Brand
ViewSonic
Model
LS510WH-2
Part Number
LS510WH-2
Details
Cabinet Color
White
Type
DLP LED
Display
Brightness
3000 ANSI Lumens
Native Resolution
1280x800
Maximum Resolution
1280 x 800
Aspect Ratio
16:10
Contrast Ratio
3000000:1
Display Size
30"-300"
Horizontal Refresh Rate
15K~102KHz
Vertical Refresh Rate
23-120Hz
Lens
Lens
F=2.56-2.68, f=22-24.1mm
Throw Ratio
1.3-1.56
Display Colors
1.07 Billion Colors
Throw Distance
"1m-10.98m (100""@3.34m)"
Keystone Correction
V:+/-40°
Lamps & Accessories
Lamp
LED
Lamp Life
Lamp Life, Normal (hours) up to 30000
Other Accessories
Kensington Lock Slot 1
Connectivity
Input Audio Signals
Frequency Horizontal 15K~102KHz Frequency Vertical 23-120Hz
Input Video Connectors
1(HDMI 1.4/ HDCP 1.4)
Input Audio Connectors
3.5mm Audio In 1
Output Audio Connectors
3.5mm Audio Out 1
Network Connectors
Ethernet Lan (RJ45) 1
USB
USB 2.0 NA USB 2.0 Type A 1 (output, share with USB A service) USB 2.0 Type B NA USB-C NA
Convenience
Users Controls
Physical Controls Keypad, Power key
Built-in Speakers
Internal Speaker 2W
Regulatory Approvals
cTUVus
Compatibility
PC Resolution (Max) VGA(640 x 480) to FullHD(1920 x 1080) MAC® Resolution (Max) 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Power
Power Supply
Voltage 100-240V+/- 10%, 50/60Hz (AC in)
Power Consumption
Consumption (typical) 240W
Environmental
Temperature Range
0~40?
Humidity Range
NA
Dimensions & Weight
Dimensions (H x W x D)
DIMENSIONS (imperial) (WxHxD) Packaging (in.) 11.5x8.7x4.5in Physical (in.) 15.2x11.8x7.4in w/o Stand (in.) NA DIMENSIONS (metric) (WxHxD) Packaging (mm) 293x221x115mm Physical (mm) 365x300x188mm w/o Stand (mm) NA
Weight
WEIGHT (imperial) Net (lbs) 5.8lbs Gross (lbs) 8.3lbs
WEIGHT (metric) Net (kg) 2.65kg w/o Stand (kg) NA Gross (kg) 3.75kg
Package Contents
Package Contents
Projector, power cable, remote control, Quick Start Guide,
