Front I/O:
2x USB 3.0 / Headphone / Mic / Rest
1X SSD Brackets included
2X 3.5" HDD / Removable HDD Bracket
Offset radiator brackets
No conflicts between radiator and memory
Reservoir mount
3.5"HDD / SSD Upgrade ( PH-SDBKT _01 / PH-SDBKT _02 / PH-HDDKT _01)
Pump Bracket Upgrade (PH- PUMBKT_01)
PWM HUB Upgrade (PH-PWHUB_01)
Case Specifications | |||
Dimension | 230 mm x 375 mm x 395 mm (W x H x D) 9.1 in x 14.8 in x15.6 in |
||
Form Factor | Mini ITX Tower Chassis | ||
Material(s) | Steel plates, Plastic, Steel chassis | ||
Motherboard Support | Mini ITX | ||
Front I/O | 2x USB 3.0, Mic, Headphone, Reset | ||

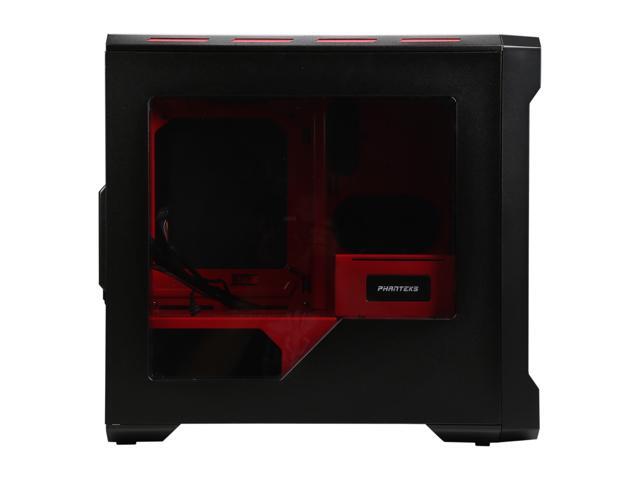

Side Window | Yes | ||
Expansion & Drive Bays | |||
Expansion slots | 2 | ||
Internal 3.5" | 2 (1 slot for upgrade) | ||
Internal 2.5" (dedicated) | 1 (1 slot for upgrade) | ||
Cooling | 120mm fan | 140mm fan | 200mm fan |
Front | 2x | 2x | 1x (included) |
Top | 2x | 2x | - |
Rear | 1x | 1x | - |
Liquid Cooling | 120mm radiator | 140mm radiator | |
Front | Up to 240 | - | |
Top | Up to 240 | Up to 280 | |
Rear | 120 | 140 | |
Clearance | |||
Graphic card | 330 mm (13 in) | ||
CPU cooler | 200 mm (7.9 in) | ||
Cable management | 28 mm (1.1 in) | ||
Radiator (Top) | 120mm formfactor: 74 mm (2.9 in) 140mm formfactor: 54 mm (2.1 in) |
||
Packaging Information | PH-ES215P | ||
Package Dimension | 310 mm x 480 mm x 460 mm (WxHxD) 12.2 in x 18,9 in x 18.1 in |
||
Net Weight | 5,4 kg (12 lbs) | ||
Gross Weight | 8 kg (17.7 lbs) | ||
Warranty | |||
Length | 5 Years Limited |
Pros: ITX Tower. Quality materials used in the case. Includes a 200mm fan. Supports full ATX Power supplies. Supports full length Gpu's. Supports full loop custom water cooling Plenty of cable management space. Supports large CPU air coolers. Has two SSD mounting slots. Has two Hard Drive trays. Has a vary large window.
Cons: Only Comes with only one SSD tray. It's a little big to support full loop water cooling. That being said, this case will not work with long power supplies; unless you remove the Hard drive trays.
