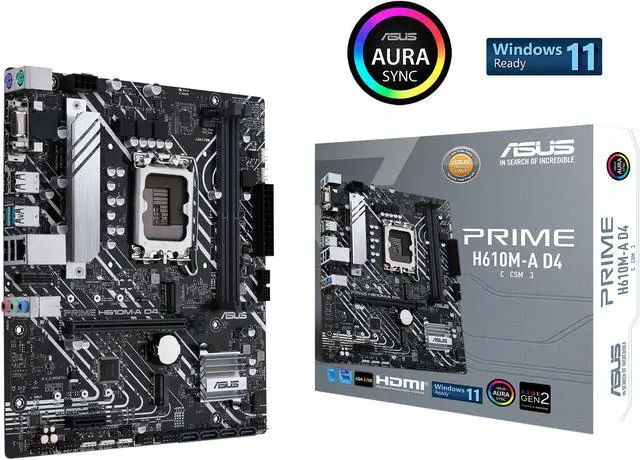

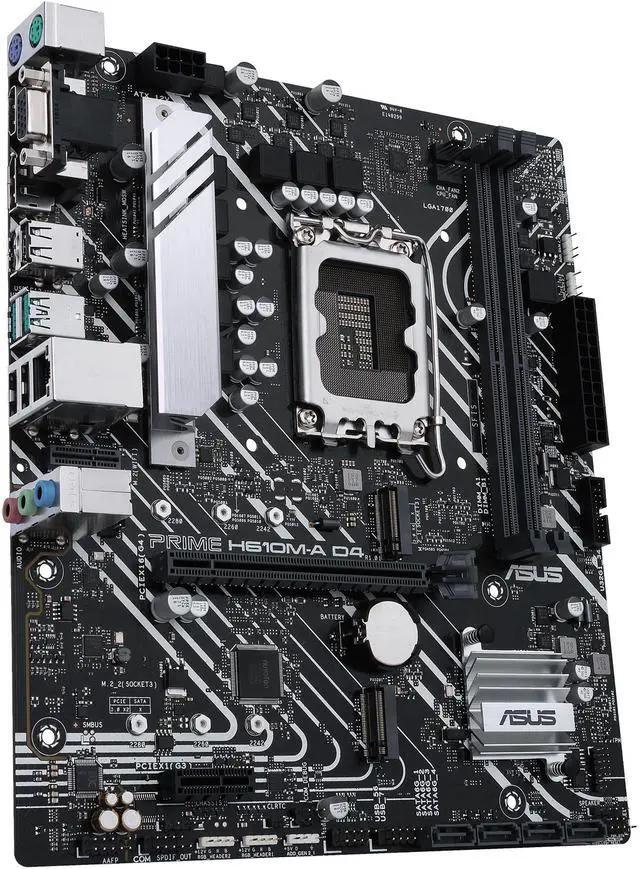

ASUS PRIME H610M-A D4-CSM LGA 1700 (Intel 12th & 13th Gen) Micro-ATX Commercial Motherboard (PCIe 4.0, DDR4, 2xM.2 slots, 1Gb LAN, rear USB 3.2 Gen 2 ports, DP/HDMI/D-Sub, SPI-TPM header, ACCE)
- Intel LGA 1700 socket: Ready for 12th & 13th Gen Intel Core processors and Windows 11. BIOS update may be required to boot the 13th gen Intel Core desktop processors
- Ultrafast connectivity: PCIe 4.0, Intel 1 Gb Ethernet, rear USB 3.2 Gen 2 Type-A and front USB 3.2 Gen 1 header
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- ASUS CSM motherboard: ASUS Corporate Stable Model, with up to 36-month Supply, EOL notice & ECN control
- ASUS Control Center Express(ACCE) to make IT endpoint management
- ASUS Event log for capturing and managing detailed system information
- Dedicated LPC header and debug card with LCD display for faster troubleshooting
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
+
+
Specs
Reviews (10)
Learn more about the ASUS PRIME H610M-A D4-CSM
| Brand | ASUS |
|---|---|
| Model | PRIME H610M-A D4-CSM |
| CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* *May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ * Refer to www.asus.com for CPU support list. |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel H610 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 * * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 * Actual support may vary by CPU. |
|---|---|
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC* * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel 1Gb Ethernet |
|---|---|
| Max LAN Speed | 1Gbps |

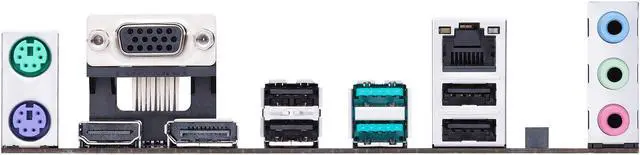

| Back I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x D-Sub port 1 x V-M.2 slot (Key E) 1 x Intel 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports |
|---|---|
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Windows 11 | Supported |
|---|
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |

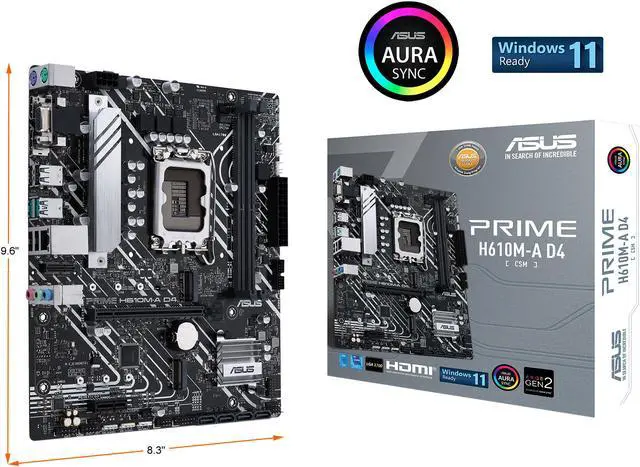

| Dimensions (W x L) | 9.6" x 8.3" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Features | Special Features: ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 headers Software Features: ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS: 128 Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 11 64-bit, Windows 10 64-bit |
|---|

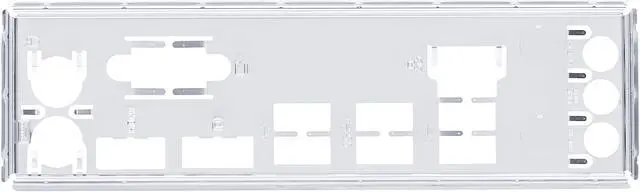

| Package Contents | Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User guide |
|---|
| Date First Available | January 14, 2022 |
|---|
