Is this motherboard directed solely for the OE marked or is it practical for the end customer?

This motherboard is practical for both the OE market and the end customer. It features various business-focused and IT management features, such as ASUS Control Center Express for easier IT endpoint management, as well as innovative moisture-resistant coating, ASUS Boot Defender for automatic protection, and ASUS-exclusive self-recovering BIOS technology.

¥35,553

Consumption Sales Tax-Inclusive Price

¥8,908 Shipping

Limit 99999 per customer.

Ships from United States.

Most customers receive within 9-17 days.

Add to wish list

Sold by BeachAudio

Top Rated

4.4 (8,540 seller ratings)

Shipped by BeachAudio

Best Sellers

BTE Outlet

3.5 (1,429 total ratings)

¥52,237
+ FREE SHIPPING

Meet Your Seller

BeachAudio

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

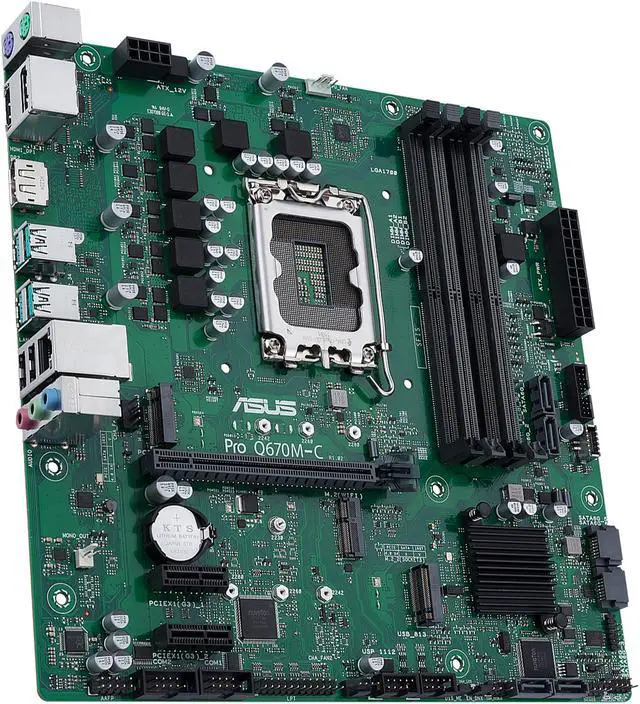

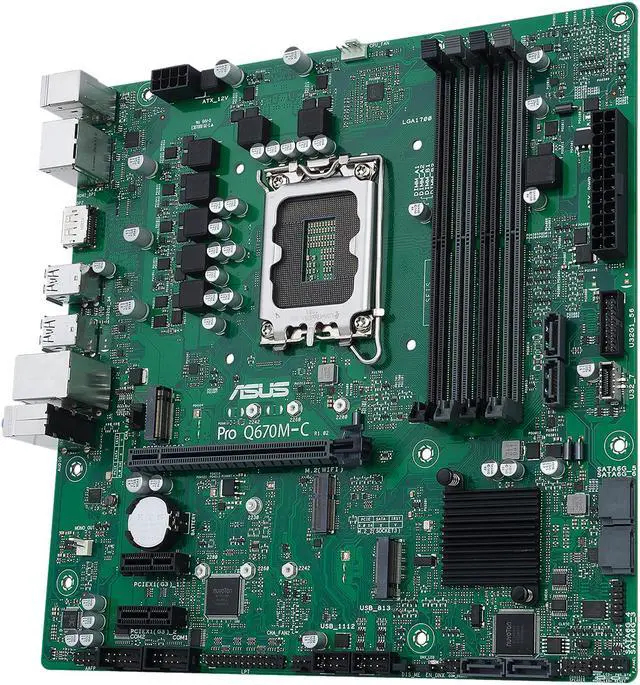

Main image of ASUS Pro Q670M-C-CSM LGA 1700 (Intel 12th & 13th Gen & Intel vPro) mATX Commercial Motherboard (PCIe 4.0, DDR5 4800, 2xNVMe SSD M.2 slots, 4xUSB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C)

Alt view image 2 of 7 - ASUS Pro Q670M-C-CSM LGA 1700 (Intel 12th & 13th Gen & Intel vPro) mATX Commercial Motherboard (PCIe 4.0, DDR5 4800, 2xNVMe SSD M.2 slots, 4xUSB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C)

Alt view image 3 of 7 - ASUS Pro Q670M-C-CSM LGA 1700 (Intel 12th & 13th Gen & Intel vPro) mATX Commercial Motherboard (PCIe 4.0, DDR5 4800, 2xNVMe SSD M.2 slots, 4xUSB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C)

Alt view image 4 of 7 - ASUS Pro Q670M-C-CSM LGA 1700 (Intel 12th & 13th Gen & Intel vPro) mATX Commercial Motherboard (PCIe 4.0, DDR5 4800, 2xNVMe SSD M.2 slots, 4xUSB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C)

Alt view image 5 of 7 - ASUS Pro Q670M-C-CSM LGA 1700 (Intel 12th & 13th Gen & Intel vPro) mATX Commercial Motherboard (PCIe 4.0, DDR5 4800, 2xNVMe SSD M.2 slots, 4xUSB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C)

Alt view image 6 of 7 - ASUS Pro Q670M-C-CSM LGA 1700 (Intel 12th & 13th Gen & Intel vPro) mATX Commercial Motherboard (PCIe 4.0, DDR5 4800, 2xNVMe SSD M.2 slots, 4xUSB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C)

Alt view image 7 of 7 - ASUS Pro Q670M-C-CSM LGA 1700 (Intel 12th & 13th Gen & Intel vPro) mATX Commercial Motherboard (PCIe 4.0, DDR5 4800, 2xNVMe SSD M.2 slots, 4xUSB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C)

Shop All ASUS Products | Visit BeachAudio Store

ASUS Pro Q670M-C-CSM LGA 1700 (Intel 12th & 13th Gen & Intel vPro) mATX Commercial Motherboard (PCIe 4.0, DDR5 4800, 2xNVMe SSD M.2 slots, 4xUSB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C)

(1) Write a Review

Intel LGA 1700 socket: Ready for 12th & 13th Gen Intel Core processors and Windows 11. BIOS update may be required to boot the 13th gen Intel Core desktop processors
ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
ASUS COM debug header for more efficient troubleshooting
Event log for capturing and managing detailed system information
Innovative moisture-resistant coating to protect the motherboard from harsh environments
Commercial BIOS kit for faster and more efficient customization
ASUS Control Center Express (ACCE) for easier IT endpoint management
Ultrafast connectivity: PCIe 4.0, DDR5, USB 3.2 Gen 2 Type-A, front USB 3.2 Gen 1 Type-C and Intel 1Gb Ethernet
ASUS Boot Defender: Designed to automatically protect, detect and recover the boot environment against any intrusions and attacks
Q-LED Core display designed for troubleshooting potential issue during the Power-On Self-Test (POST)

Overview

Specs

Reviews (1)

ASUS PRO Q670M-C-CSM LGA 1700 INTEL 12TH GEN PCIE 4.0 DDR5 4800

Model
Brand	ASUS
Model	PRO Q670M-C-CSM
Part Number	90MB19E0-MVAAYC

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel Q670

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 4800
Maximum Memory Supported	256GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express 4.0 x16 * Actual support may vary by CPU. * Please check PCIe bifurcation table in support site.
PCI Express x1	2 x PCIe 3.0 x1

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel Q670 Chipset: M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC* * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel I219-LM
Max LAN Speed	1Gbps

Rear Panel Ports

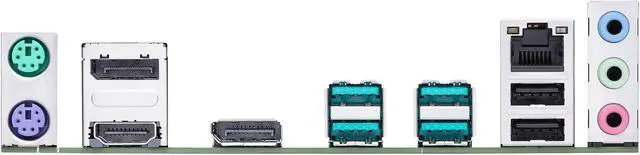

Back I/O Ports	4 x USB 3.2 Gen 2 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 2 x DisplayPort 1 x HDMI port 3 x Audio jacks 1 x Intel 1Gb Ethernet 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x DIS ME jumper 1 x LPT header 1 x Mono-out header (with Amp IC) 1 x M.2 slot (Key E) 1 x Speaker header 1 x 10-1 System Panel header

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	Micro ATX
LED Lighting	None RGB

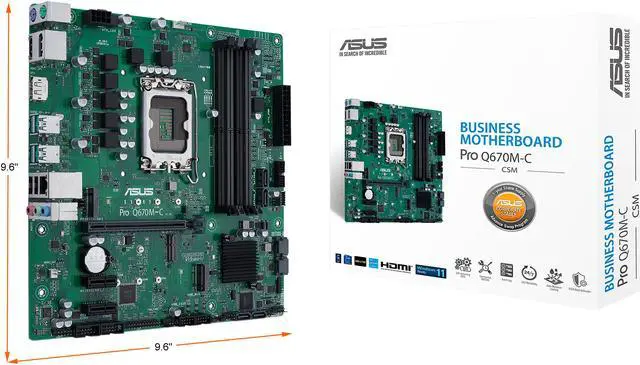

Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector

Features
Features	Special Features: ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Boot Defender - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection: TPM IC onboard Software Features: ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE): BIOS: 256 Mb Flash ROM Manageability: WOL by PME, PXE Operating System: Windows 11 64-bit, Windows 10 - 64 bit

Packaging

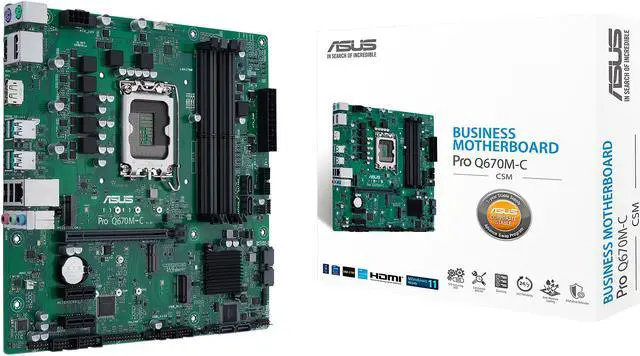

Package Contents	Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User guide

Additional Information
First Listed on Newegg	August 31, 2023
