Please disregard my previous question asking if this motherboard accepts laptop memory cards. Does this motherboard have 4 memory slots compatible with 4GB 2x 2GB DDR2 800MHz PC2-6400 DESKTOP Memory RAM Non ECC 800 Low Density uDimm?

No, this motherboard does not support DDR2 memory. It has 4 memory slots that support DDR5 memory.

¥45,636

Consumption Sales Tax-Inclusive Price

Limit 99999 per customer.

Ships from Hong Kong.

Most customers receive within 10-17 days.

Add to wish list(Found on 1 wish list)

Sold by Corn Electronics

Top Rated

4.2 (14,607 seller ratings)

Shipped by Corn Electronics

Meet Your Seller

Corn Electronics

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

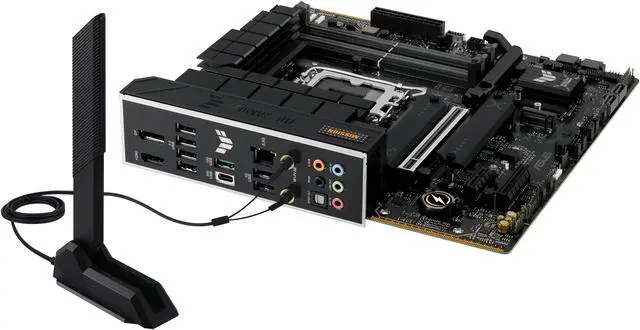

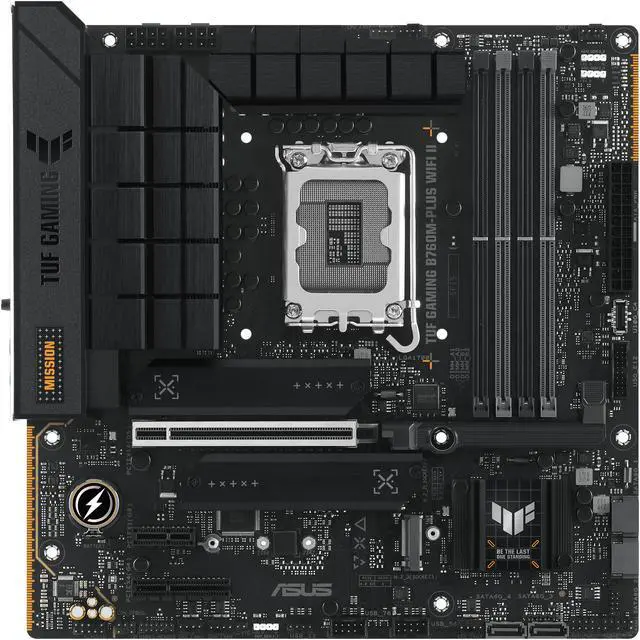

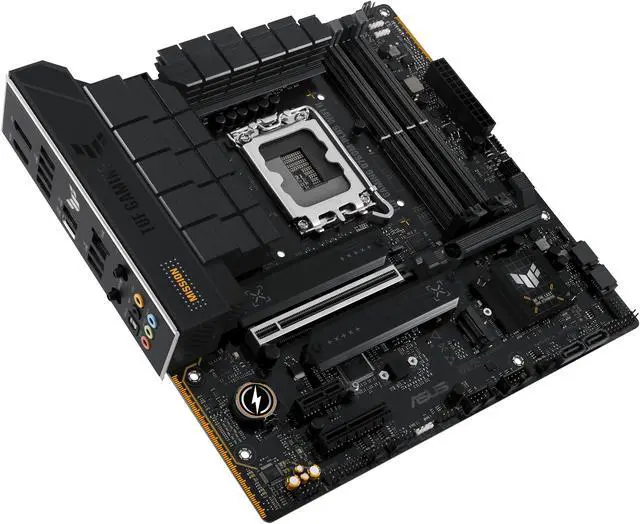

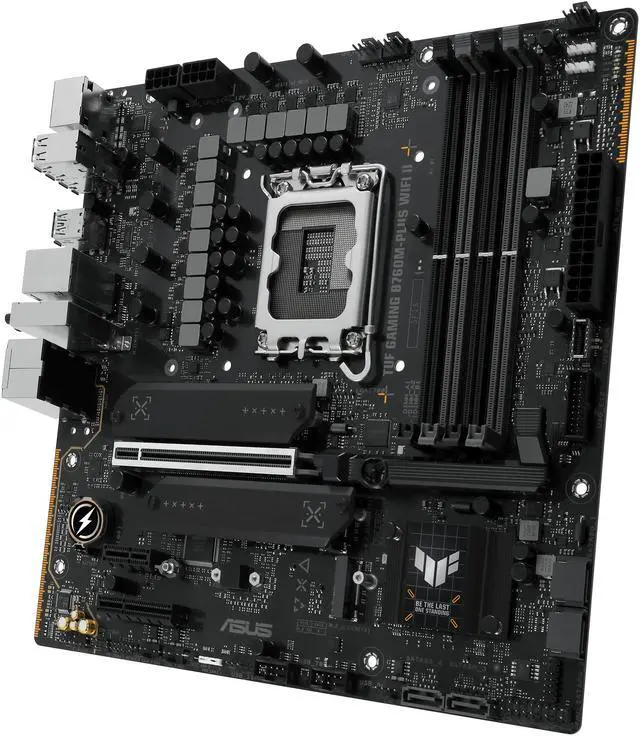

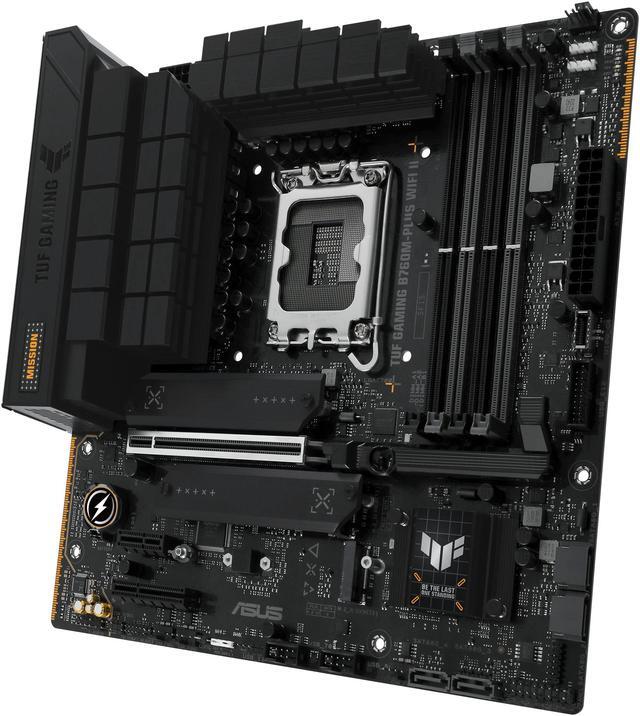

Main image of TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, USB 20Gbps Type-C, front USB 10Gbps Type-C

Alt view image 2 of 9 - TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, USB 20Gbps Type-C, front USB 10Gbps Type-C

Alt view image 3 of 9 - TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, USB 20Gbps Type-C, front USB 10Gbps Type-C

Alt view image 4 of 9 - TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, USB 20Gbps Type-C, front USB 10Gbps Type-C

Alt view image 5 of 9 - TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, USB 20Gbps Type-C, front USB 10Gbps Type-C

Alt view image 6 of 9 - TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, USB 20Gbps Type-C, front USB 10Gbps Type-C

Alt view image 7 of 9 - TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, USB 20Gbps Type-C, front USB 10Gbps Type-C

Alt view image 8 of 9 - TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, USB 20Gbps Type-C, front USB 10Gbps Type-C

Alt view image 9 of 9 - TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, USB 20Gbps Type-C, front USB 10Gbps Type-C

Shop All ASUS Products | Visit Corn Electronics Store

TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, USB 20Gbps Type-C, front USB 10Gbps Type-C

(2) Write a Review

Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel processors
Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+8 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Latest connectivity: PCIe 5.0 slot, three PCIe 4.0 M.2 slots, rear USB 20Gbps Type-C, front panel header for USB 10Gbps Type-C and Thunderbolt (USB4) header support
Made for online gaming: WiFi 6E, Realtek 2.5Gb Ethernet, TUF LANGuard
Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Overview

Specs

Reviews (2)

TUF GAMING B760M-PLUS WIFI II Motherboard

Takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability.

Better, Faster & More

12+1 DRMOS POWER STAGES (RATED UP TO 50A) WITH ENLARGED VRM HEATSINKS

PCIE® 5.0 FOR GRAPHICS CARDS

7800+ MT/S, AEMP II

USB 20Gbps (USB Type-C®) and front USB 10Gbps (USB Type-C®) connector

PCIE Q-RELEASE

With Q-Antenna

Extreme Power & Performance

12+1 DrMOS Power Stages, 4 x DIMM 192GB DDR5, 3 x M.2 NVMe SSD and 1 x PCIe 5.0 x16 Slot

Comprehensive Cooling

Massive VRM & M.2 Heatsinks, Multiple Fan Headers

Full Gaming Connectivity

2.5Gb Ethernet, Bluetooth v5.3 USB 20Gbps and Front Panel USB 10Gbps

What's in the Box

Exclusive TUF GAMING B760M-PLUS WIFI II Bundle

Model
Brand	ASUS
Model	TUF GAMING B760M-PLUS WIFI II

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold

Chipsets
Chipset	Intel B760

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR5 5600
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
Memory Feature	DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Supports Intel Extreme Memory Profile (XMP) ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express x4	1 x PCI Express 4.0 x4
PCI Express x1	1 x PCI Express 3.0 x1

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
SATA RAID	0/1/5/10

Onboard Audio
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	2.5Gbps
Wireless LAN	2x2 Wi-Fi 6E (802.11ax)
Bluetooth	Bluetooth 5.3

Rear Panel Ports

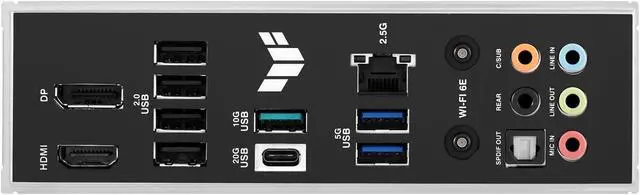

Back I/O Ports	1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port

Internal I/O Connectors
Onboard USB	1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front panel audio header (F_AUDIO) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors

Features
Features	Special Features: ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - Addressable Gen 2 headers Software Features: ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 DIGI+ VRM - PC Cleaner MyASUS TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Packaging
Package Contents	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 Rubber Package 1 x TUF Gaming sticker B148 2 x Screw packages for M.2 SSD Documentation 1 x TUF Certification card 1 x Quick start guide

Additional Information
First Listed on Newegg	July 05, 2024
