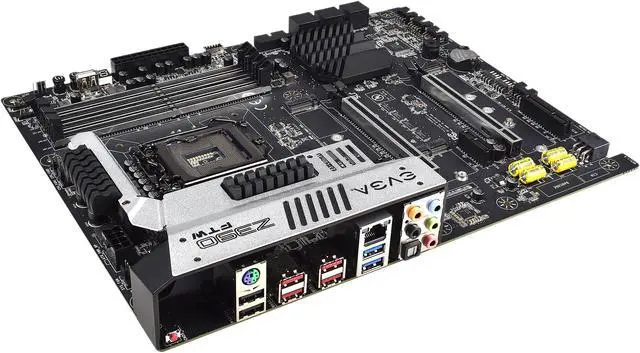

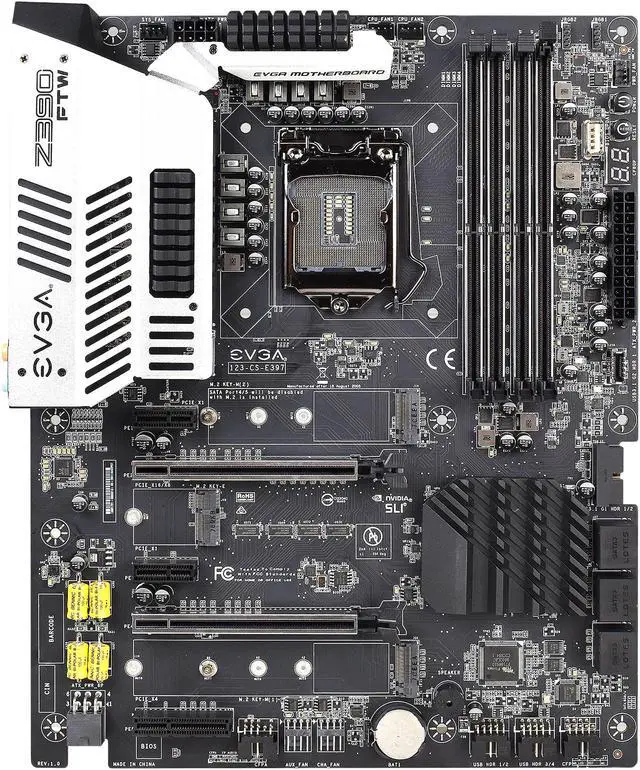

EVGA 123-CS-E397-KR LGA 1151 (300 Series) Intel Z390 ATX Intel Motherboard

(2) Write a Review
  • Intel Z390
  • Supports 8th/9th Generation Intel Processsor Family for LGA1151 socket
  • * Not backward compatible with older generation of LGA 1151 CPUs
  • DDR4 4133 +
Specs
Reviews (2)

Learn more about the EVGA 123-CS-E397-KR

Model
Brand EVGA
Model 123-CS-E397-KR
Supported CPU
CPU Socket Type LGA 1151 (300 Series)
CPU Type Supports 8th/9th Generation Intel Processsor Family for LGA1151 socket
* Not backward compatible with older generation of LGA 1151 CPUs
Chipsets
Chipset Intel Z390
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 4133 +
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 2 x PCI Express x16
PCI Express x4 1 x PCI Express x4
PCI Express x1 2 x PCI Express x1
Other Slots 1 x M.2 (Key E)
Storage Devices
Serial ATA (SATA) 6 x SATA 6Gb/s
M.2 2 x M.2 (Key M)
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC1220
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 1Gbps
Rear Panel Ports
Audio Ports 6 Ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

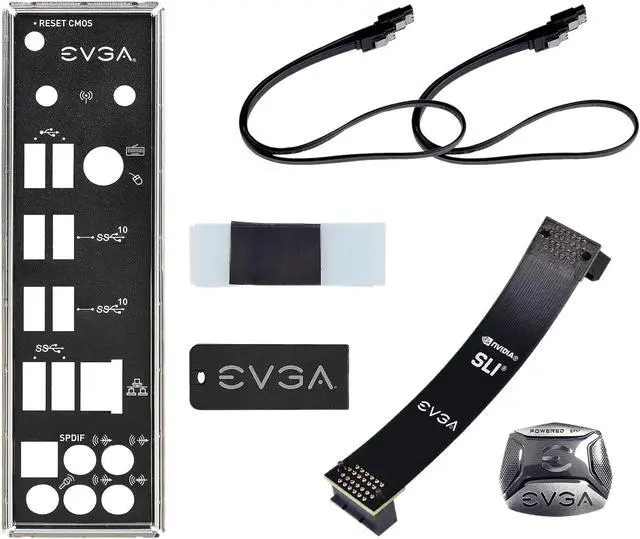

Package Contents ACCESSORIES:

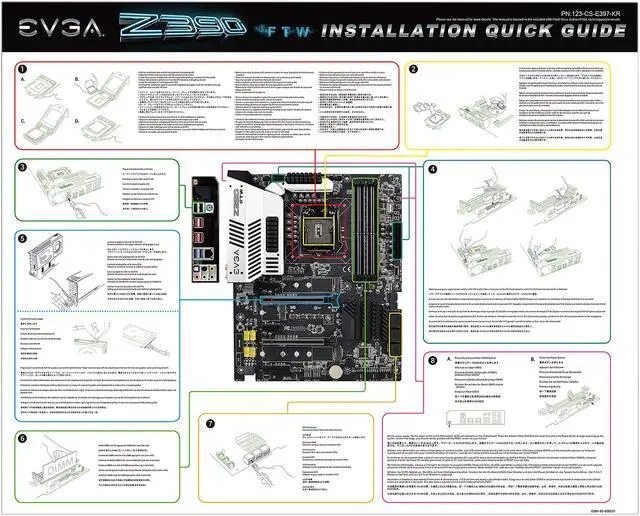

EVGA Quick Installation Guide
Real Case I/O Panel
2 Sata 6G Data Cables
M.2 Thermal Pad
2-Way SLI Bridge
Case Badge
USB Flash Drive (contains manual and drivers)
Additional Information
First Listed on Newegg October 31, 2018
