  6. Item#: 0ED-000K-000W8

  • ¥507,134
  • Consumption Sales Tax-Inclusive Price
  • ¥15,860 Shipping
Limit 99999 per customer.
Ships from United States.
Add to wish list
Sold by Newegg

Shipped by Newegg

Shop it at NeweggBusiness.
Get Educated

Make informed decisions with expert advice. Learn More

Shop All Extreme Networks Products

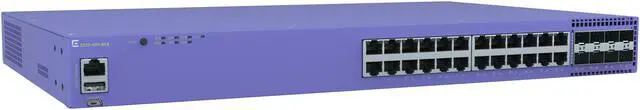

Extreme 5320-24P-8XE - High-Performance 24-Port Gigabit Ethernet PoE Switch with 8 SFP+ Uplink Ports, Managed via ExtremeCloud IQ, IEEE 802.3af/at PoE Standards, Fabric Engine 8.6 Support

Be the first to review this product...
  • 5320-16P-4XE
  • 5320-24P-8XE
  • 5320-48P-8XE
  • 30W PoE (Power over Ethernet) support for powering connected devices
  • 90W PoE (Power over Ethernet) support on multi-GbE ports for Fanless model
  • 4 x 10Gb SFP+ uplink ports on 16-port models / 8 x 10Gb SFP+ uplink ports on 24- and 48-port models
  • 2 x 10Gb SFP+ uplink ports and 2 x 10Gb (Power over Ethernet) ports that can be used as uplinks on multi-GbE for Fanless model
  • Silent operation at up to 35°C (95°F) on 16-port models and up to 45°C (113°F) for Fanless model
  • Extended temperature range switch models (0°C–60°C)
  • Choice of AC or DC power option on 16-port models, except Fanless model** which only has the AC option
  • 40Gb per unit stacking of up to eight switches
  • Secure link encryption with MACsec across both access and uplink ports
  • Non-blocking wire speed design
+
+
Overview
Specs
Reviews
Connect wired devices such as computers, laptops, routers, servers and printers to a local area network (LAN) with this Extreme Networks Ethernet Switch. This switch consists of 24 ports for ease of use.
Extreme Networks 5320 Series Universal Edge Switches

5320 Series – Universal Edge Switches

Extreme Networks 5320 Series Universal Edge Switches

MANAGED SWITCHES

Comes with a dual-persona capability, allowing you to choose your Operating System (ÓS). Either the Switch Engine (EXOS) or Fabric Engine (VOSS) OS can be selected at switch start-up or changed at a later stage.

INSTANT ONBOARDING

5320 Series onboarding to the cloud is a hands-off operation using zero touch provisioning. Simply connect the switch to the network, and it automatically connects to the cloud, ready to be provisioned.

NETWORK FABRIC

Supports Extreme's network fabric natively for network virtualization, automation, and network security. Included with the purchase of the 5320, no additional licenses or controllers are required.

Performance and Scale

Switch Model Max Active 10/100/1000Mb Ports Max Active 1Gb/2.5Gb/5Gb/10Gb ports Max Active 1Gb/10GbSFP/SFP+ ports* Max Active 10Gb Stacking ports** Aggregated Switch Bandwidth Max Frame Forwarding Rate
5320-16P-2MXT-2X 16 2 2 2** 112Gbps 83.3Mpps
5320-16P-4XE 16 0 4 2 112Gbps 83.3Mpps
5320-16P-4XE-DC 16 0 4 2 112Gbps 83.3Mpps
5320-24T-8XE 24 0 8 2 208Gbps 154.8Mpps
5320-24P-8XE 24 0 8 2 208Gbps 154.8Mpps
5320-48T-8XE 48 0 8 2 256Gbps 190.5Mpps
5320-48P-8XE 48 0 8 2 256Gbps 190.5Mpps
5320-24T-4X-XT 24 0 4 2 128Gbps 95.2Mpps
5320-24T-24S-4XE-XT 24 0 24x100Mb/1Gb SFP
4x1Gb/10Gb SFP+		 2 176Gbps 131Mpps

* As of versions 32.6 of Switch Engine and 9.0 of Fabric Engine, the capable ports in all 5320 switches will support 10Gb without requiring a port upgrade license.

** Will be supported in the future after the initial hardware release with the support of Switch Engine.

Minimum/Maximum Power Consumption and Heat Dissipation

Switch Model Minimum Power Consumption (W) Minimum Heat Dissipation (BTU/hr) Maximum Power Consumption (W)* Maximum Heat Dissipation (BTU/hr)**
5320-16P-4XE 17 57 246 208
5320-16P-4XE-DC 20 6 260 256
5320-16P-2MXT-2X 12.5 43 218 75
5320-24T-8XE 18 60 50 171
5320-24P-8XE 21 70 480 375
5320-48T-8XE 25 85 64 217
5320-48P-8XE 30 104 924 629
5320-24T-4X-XT 14 35 49 119
5320-24T-24S-4XE-XT 25 96 87 328

* Includes maximum PoE load (W) through the switch

** Does not include PoE load heat dissipated through external electronic load

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

  • Return for refund within: 30 days
  • Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.
  • This item is covered by Newegg.com's International Order Return Policy. Read full return policy for details.
  • *Subject to applicable law

  • Warranty Notice:

    This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.
