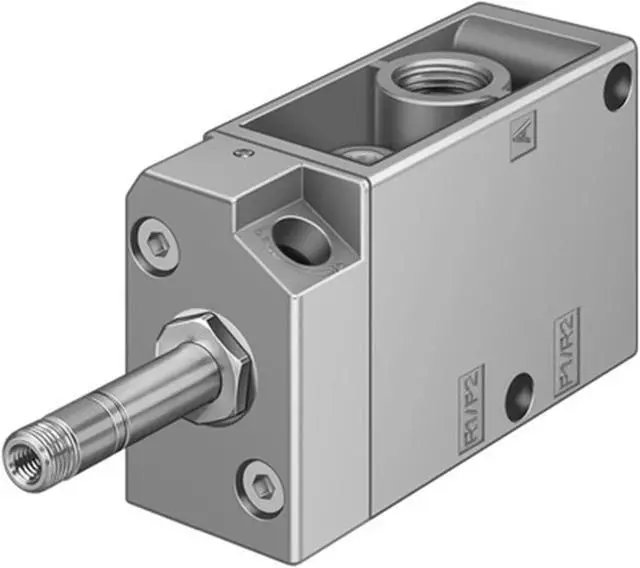

FESTO MFH-3-1/4-S-NPT 10873 Air Solenoid Valve New
- FESTO MFH-3-1/4-S-NPT 10873 Air Solenoid Valve New
+
+
Overview
Specs
Reviews
Valve function
3/2, closed, monostable
Lap
Underlap
Actuation type
Electrical
Width
30.5 mm
Standard nominal flow rate
800 l/min
Pneumatic working port
1/4 NPT
Operating voltage
Via solenoid coil, to be ordered separately
Operating pressure
-0.95 bar ... 10 bar
Design
Plate seat
Reset method
Mechanical spring
Degree of protection
IP65
Certification
c UL us - Recognized (OL)
Nominal width
7 mm
Width dimension
32 mm
Type code
MFH
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Manual override
Detenting
Type of control
Pilot-controlled
Pilot air supply port
External
Flow direction
Reversible
Symbol
00992879
Pilot pressure
1 bar ... 8 bar
Switching time off
29 ms
On switching time
10 ms
Max. positive test pulse with 0 signal
2200 µs
Max. negative test pulse on 1 signal
3700 µs
Corrosion resistance class (CRC)
1 - Low corrosion stress
Storage temperature
-20 °C ... 60 °C
Temperature of medium
-10 °C ... 60 °C
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 40 °C
Product weight
320 g
3/2, closed, monostable
Lap
Underlap
Actuation type
Electrical
Width
30.5 mm
Standard nominal flow rate
800 l/min
Pneumatic working port
1/4 NPT
Operating voltage
Via solenoid coil, to be ordered separately
Operating pressure
-0.95 bar ... 10 bar
Design
Plate seat
Reset method
Mechanical spring
Degree of protection
IP65
Certification
c UL us - Recognized (OL)
Nominal width
7 mm
Width dimension
32 mm
Type code
MFH
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Manual override
Detenting
Type of control
Pilot-controlled
Pilot air supply port
External
Flow direction
Reversible
Symbol
00992879
Pilot pressure
1 bar ... 8 bar
Switching time off
29 ms
On switching time
10 ms
Max. positive test pulse with 0 signal
2200 µs
Max. negative test pulse on 1 signal
3700 µs
Corrosion resistance class (CRC)
1 - Low corrosion stress
Storage temperature
-20 °C ... 60 °C
Temperature of medium
-10 °C ... 60 °C
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 40 °C
Product weight
320 g
