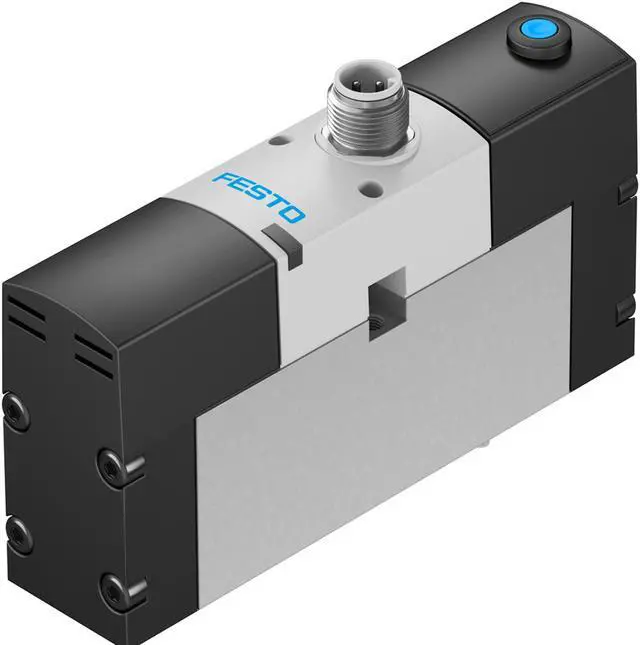

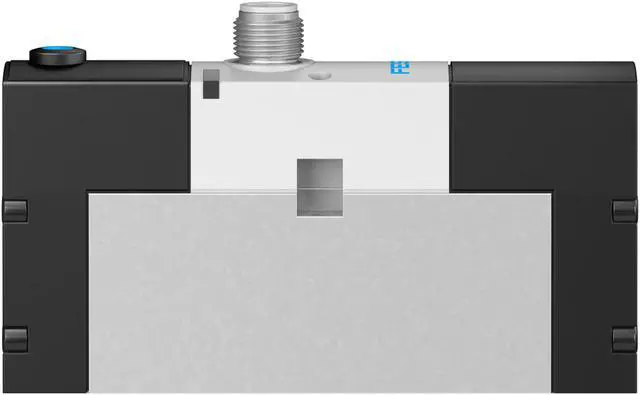

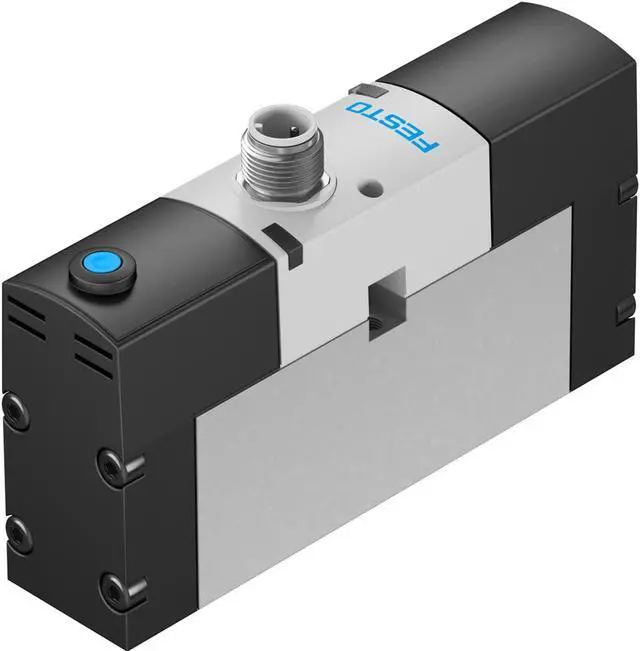

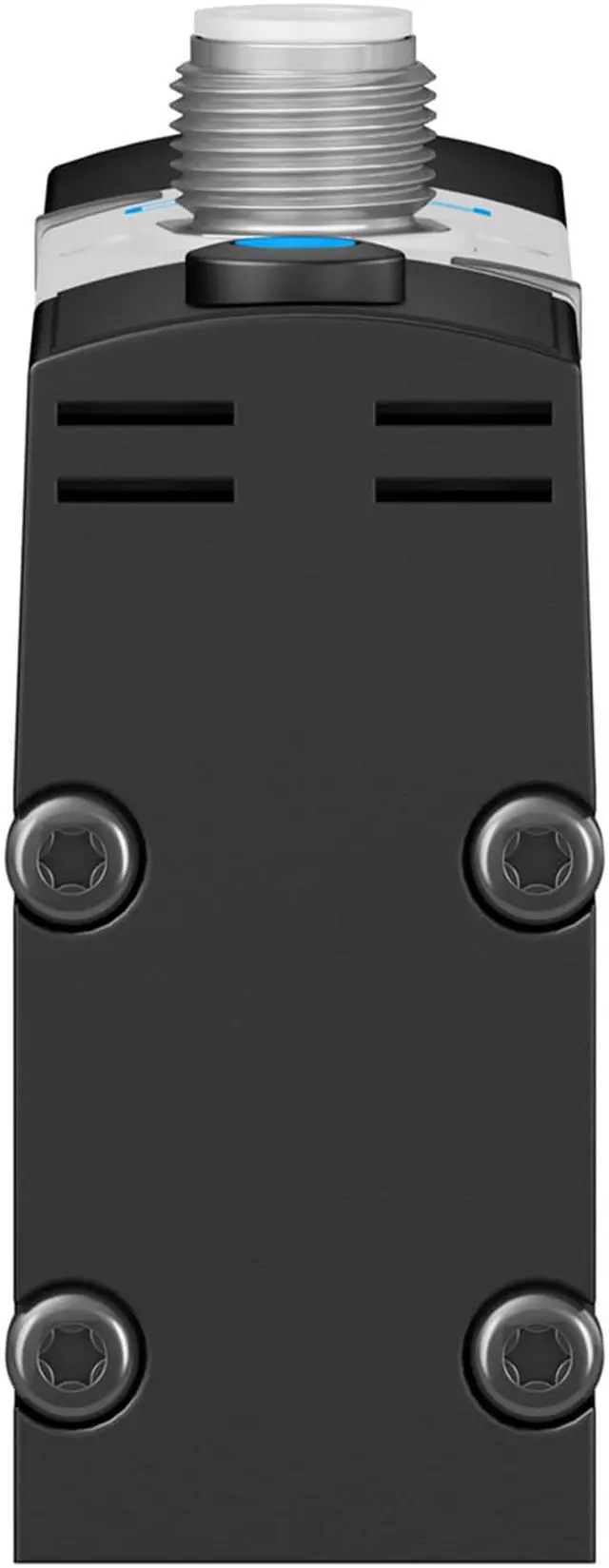

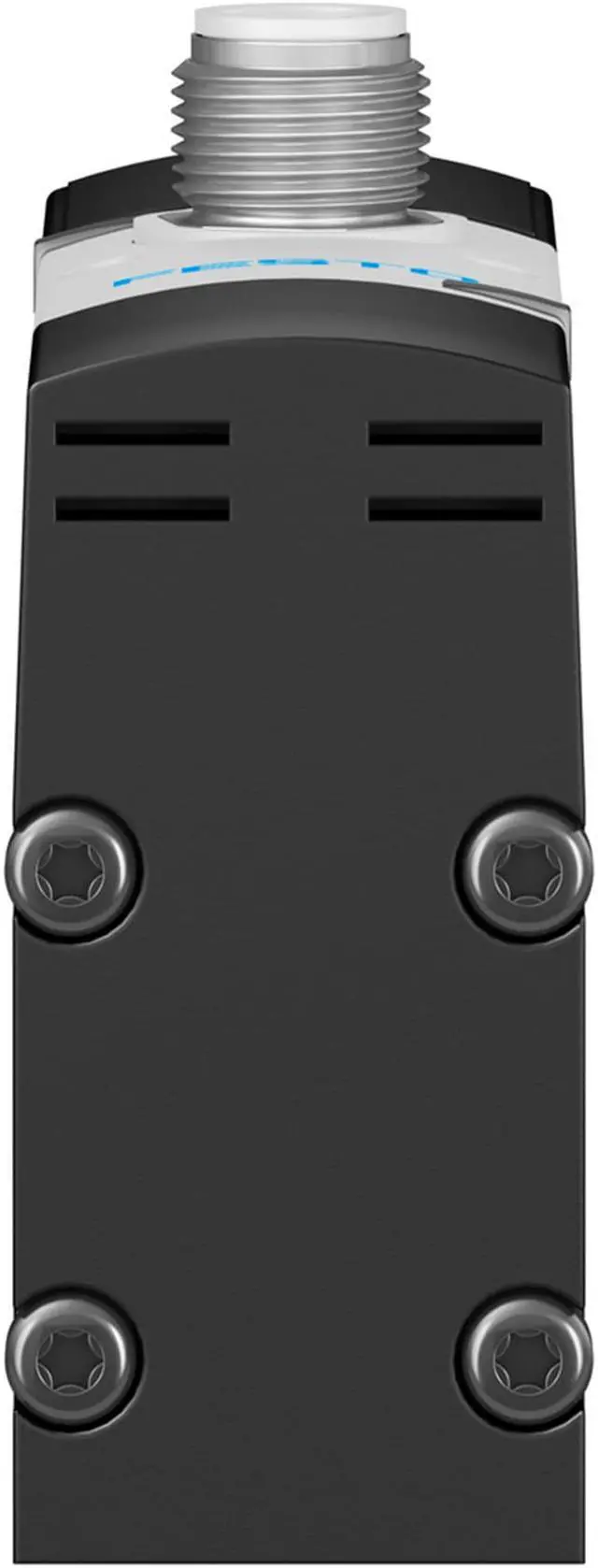

FESTO VSVA-B-M52-MZH-A1-1R2L Air Solenoid Valve 534526 Width 26mm
- FESTO VSVA-B-M52-MZH-A1-1R2L Air Solenoid Valve 534526 Width 26mm
+
+
Overview
Specs
Reviews
Valve function 5/2, monostable
Lap Overlap
Actuation type Electrical
Width 26 mm
Pneumatic working port Sub-base, size 26 mm as per ISO 15407-1
Operating voltage 24V DC
Operating pressure -0.9 bar ... 16 bar
Design Piston gate valve
Reset method Mechanical spring
Degree of protection IP65
Nominal width 9 mm
Width dimension 27 mm
Type code VSVA
Exhaust air function With flow control option
Via individual sub-base Via throttle plate
Sealing principle Soft
Mounting position Any
Conforms to standard ISO 15407-1
Lap Overlap
Actuation type Electrical
Width 26 mm
Pneumatic working port Sub-base, size 26 mm as per ISO 15407-1
Operating voltage 24V DC
Operating pressure -0.9 bar ... 16 bar
Design Piston gate valve
Reset method Mechanical spring
Degree of protection IP65
Nominal width 9 mm
Width dimension 27 mm
Type code VSVA
Exhaust air function With flow control option
Via individual sub-base Via throttle plate
Sealing principle Soft
Mounting position Any
Conforms to standard ISO 15407-1
