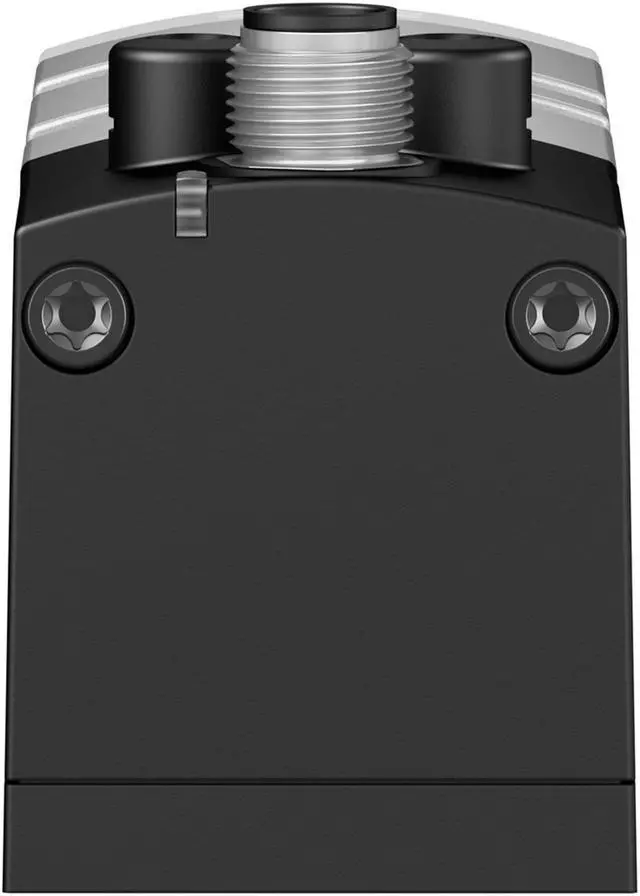

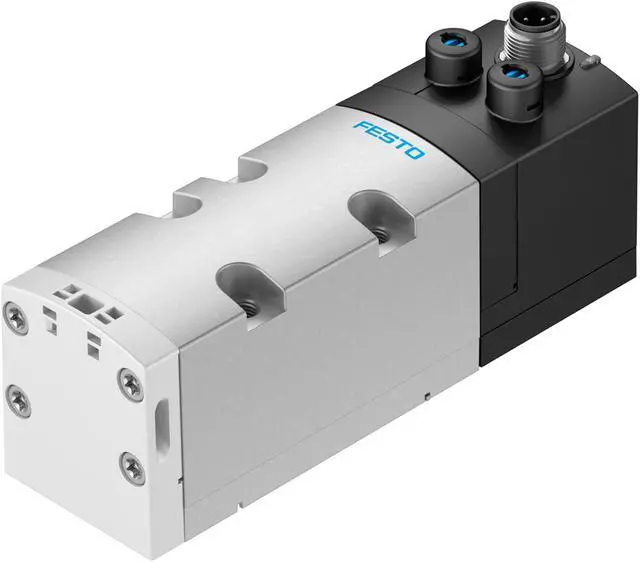

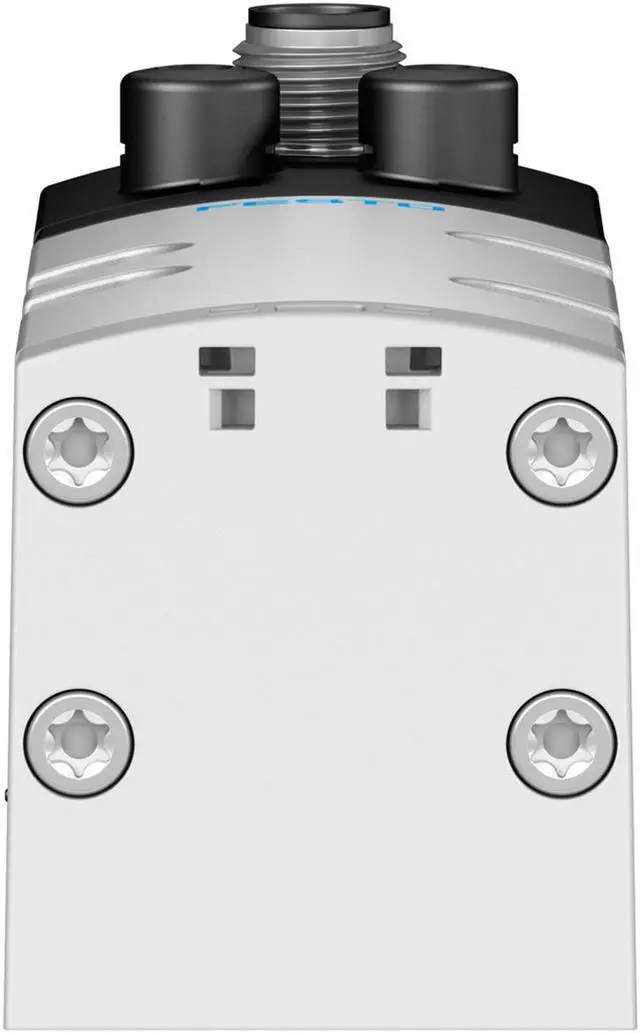

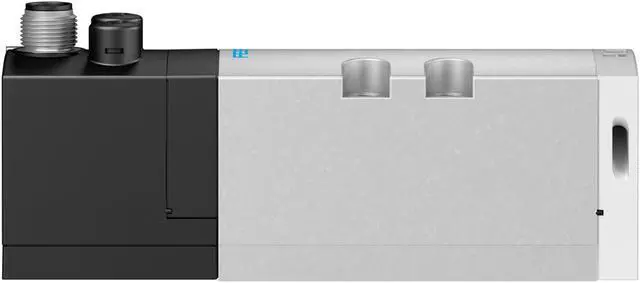

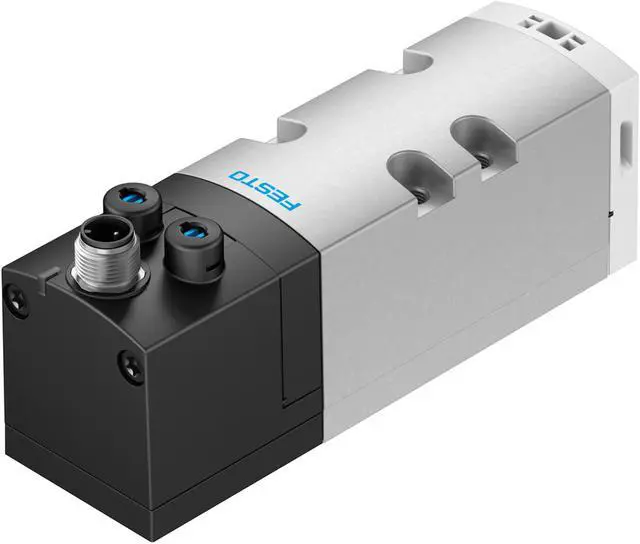

FESTO VSVA-B-P53U-D-D1-1R5L Air Solenoid Valve 561368 Width 42mm
- FESTO VSVA-B-P53U-D-D1-1R5L Air Solenoid Valve 561368 Width 42mm
+
+
Overview
Specs
Reviews
Valve function
5/3, pressurized
Lap
Overlap
Actuation type
Electrical
Width
42 mm
Standard nominal flow rate
1300 l/min
Operating voltage
24V DC
Operating pressure
3 bar ... 10 bar
Design
Piston gate valve
Degree of protection
IP65
Nominal width
11 mm
Width dimension
43 mm
Type code
VSVA
Exhaust air function
Via individual sub-base
With flow control option
Via throttle plate
Sealing principle
Soft
Mounting position
Any
Conforms to standard
ISO 5599-1
Type of control
Pilot-controlled
Pilot air supply port
Internal
Flow direction
Non-reversible
Signal status display
LED
Flow rate of pneumatic valve
1900 l/min
Flow rate of pneumatic valve on individual sub-base
1400 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow
1300 l/min
Switching time off
65 ms
On switching time
22 ms
Duty cycle
100%
Max. positive test pulse with 0 signal
1400 µs
Max. negative test pulse on 1 signal
900 µs
Coil characteristics
24 V DC: 1.6 W
Permissible voltage fluctuations
+/- 10 %
5/3, pressurized
Lap
Overlap
Actuation type
Electrical
Width
42 mm
Standard nominal flow rate
1300 l/min
Operating voltage
24V DC
Operating pressure
3 bar ... 10 bar
Design
Piston gate valve
Degree of protection
IP65
Nominal width
11 mm
Width dimension
43 mm
Type code
VSVA
Exhaust air function
Via individual sub-base
With flow control option
Via throttle plate
Sealing principle
Soft
Mounting position
Any
Conforms to standard
ISO 5599-1
Type of control
Pilot-controlled
Pilot air supply port
Internal
Flow direction
Non-reversible
Signal status display
LED
Flow rate of pneumatic valve
1900 l/min
Flow rate of pneumatic valve on individual sub-base
1400 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow
1300 l/min
Switching time off
65 ms
On switching time
22 ms
Duty cycle
100%
Max. positive test pulse with 0 signal
1400 µs
Max. negative test pulse on 1 signal
900 µs
Coil characteristics
24 V DC: 1.6 W
Permissible voltage fluctuations
+/- 10 %
