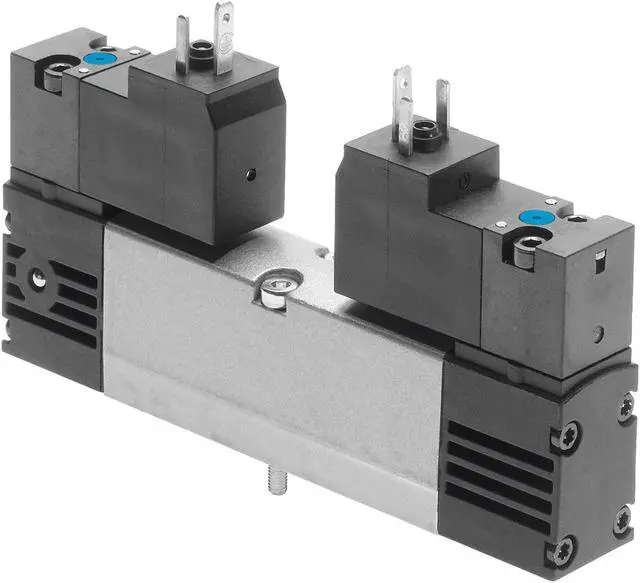

FESTO VSVA-B-T32H-AZH-A2-3AC1 Air solenoid Valve 547233 Valve Size 18mm
- FESTO VSVA-B-T32H-AZH-A2-3AC1 Air solenoid Valve 547233 Valve Size 18mm
+
+
Overview
Specs
Reviews
Valve function
2x3/2, open/closed, monostable
Lap
Overlap
Actuation type
Electrical
Valve size
18 mm
Standard nominal flow rate
400 l/min
Pneumatic working port
G1/8
Sub-base, size 18 mm as per ISO 15407-1
Size 02 sub-base as per VDMA 24563
Operating voltage
230V AC
Operating pressure
2 bar ... 10 bar
Design
Piston gate valve
Reset method
Pneumatic spring
Degree of protection
IP65
NEMA 4
Nominal width
5 mm
Type code
VSVA
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Conforms to standard
VDMA 24563
ISO 15407-1
2x3/2, open/closed, monostable
Lap
Overlap
Actuation type
Electrical
Valve size
18 mm
Standard nominal flow rate
400 l/min
Pneumatic working port
G1/8
Sub-base, size 18 mm as per ISO 15407-1
Size 02 sub-base as per VDMA 24563
Operating voltage
230V AC
Operating pressure
2 bar ... 10 bar
Design
Piston gate valve
Reset method
Pneumatic spring
Degree of protection
IP65
NEMA 4
Nominal width
5 mm
Type code
VSVA
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Conforms to standard
VDMA 24563
ISO 15407-1
