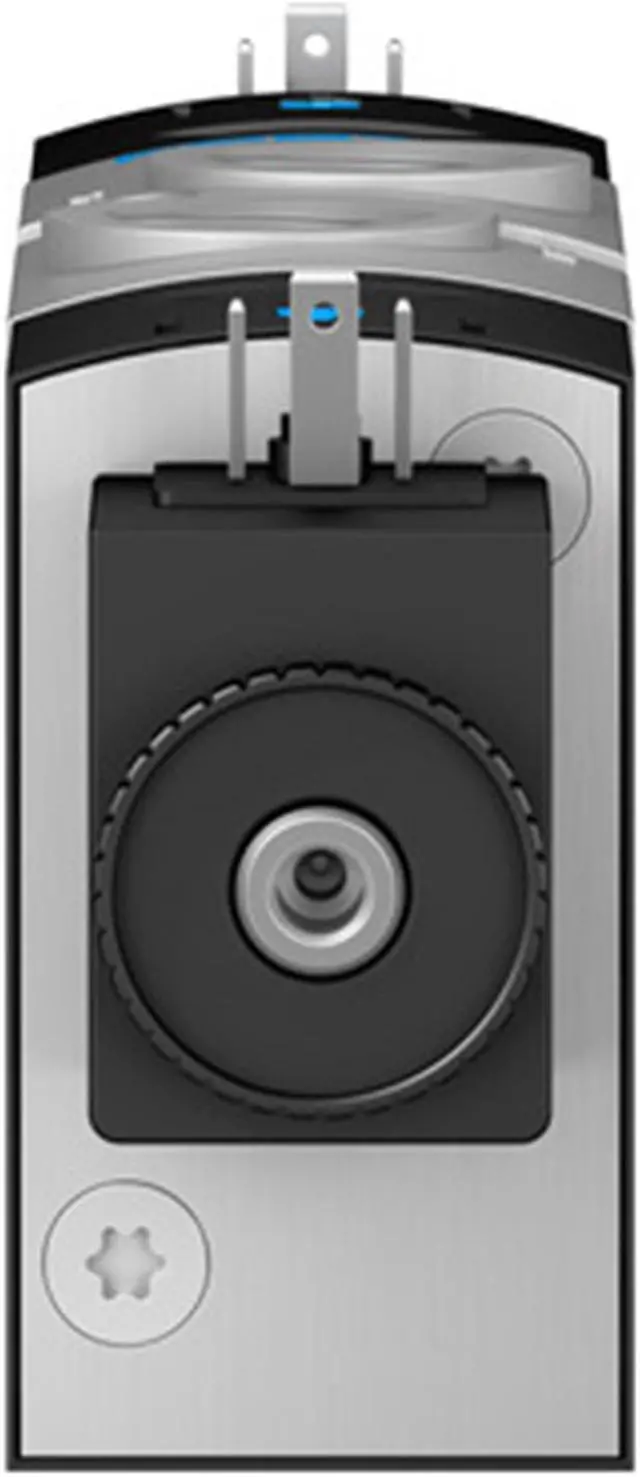

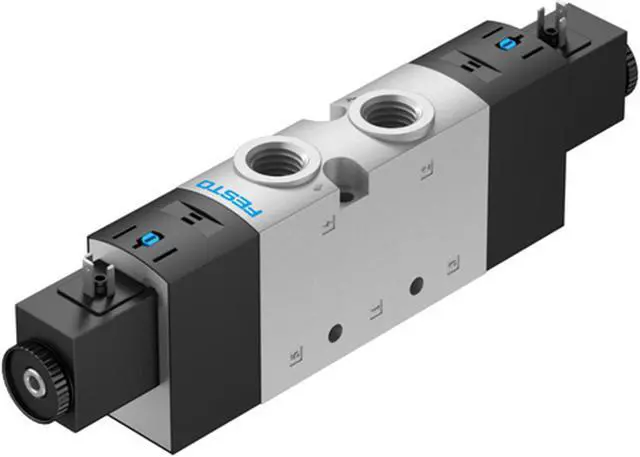

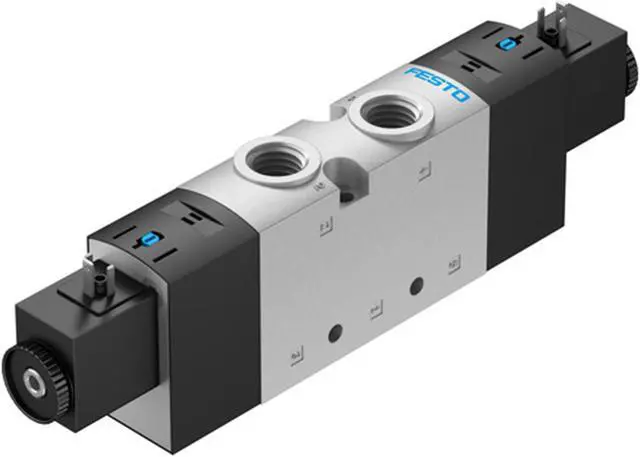

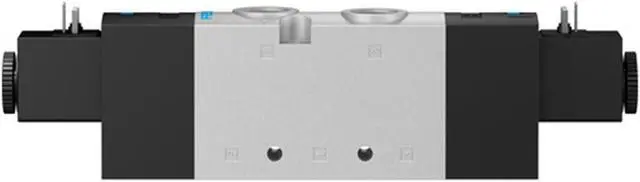

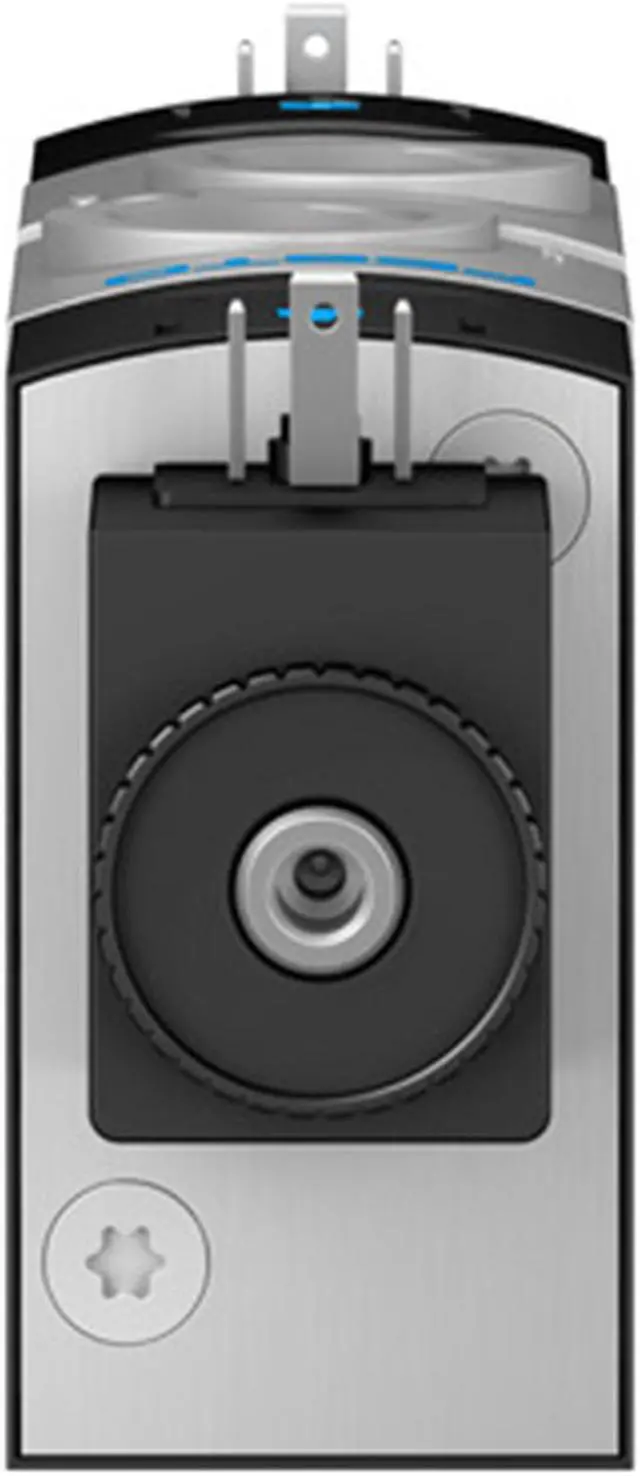

FESTO VUVS-L30-P53C-MD-G38-F8-1C1 Air Solenoid Valve 575618 New
- FESTO VUVS-L30-P53C-MD-G38-F8-1C1 Air Solenoid Valve 575618 New
+
+
Overview
Specs
Reviews
Valve function 5/3, closed
Material of screws Steel, nickel-plated
Lap Overlap
Actuation type Electrical
Valve size 31 mm
Standard nominal flow rate 2000 l/min
Pneumatic working port G3/8
Operating voltage 24V DC
Operating pressure 2.5 bar ... 10 bar
Design Piston gate valve
Reset method Mechanical spring
Degree of protection Nominal width
8.9 mm Type code
VUVS Exhaust air function
With flow control option Sealing principle
Soft Mounting position
Any Manual override
Non-detenting Detenting
Type of control Pilot-controlled
Pilot air supply port Internal
Flow direction Non-reversible
Symbol 00991033
b-value 0.4
C value 8.9 l/sbar
Switching time off 76 ms
On switching time 17 ms
Changeover time 39 ms
Duty cycle 100%
Max. positive test pulse with 0 signal 2000 µs
Max. negative test pulse on 1 signal 3600 µs
Coil characteristics 24 V DC: 3.3 W
Permissible voltage fluctuations +/- 10 %
Material of screws Steel, nickel-plated
Lap Overlap
Actuation type Electrical
Valve size 31 mm
Standard nominal flow rate 2000 l/min
Pneumatic working port G3/8
Operating voltage 24V DC
Operating pressure 2.5 bar ... 10 bar
Design Piston gate valve
Reset method Mechanical spring
Degree of protection Nominal width
8.9 mm Type code
VUVS Exhaust air function
With flow control option Sealing principle
Soft Mounting position
Any Manual override
Non-detenting Detenting
Type of control Pilot-controlled
Pilot air supply port Internal
Flow direction Non-reversible
Symbol 00991033
b-value 0.4
C value 8.9 l/sbar
Switching time off 76 ms
On switching time 17 ms
Changeover time 39 ms
Duty cycle 100%
Max. positive test pulse with 0 signal 2000 µs
Max. negative test pulse on 1 signal 3600 µs
Coil characteristics 24 V DC: 3.3 W
Permissible voltage fluctuations +/- 10 %
