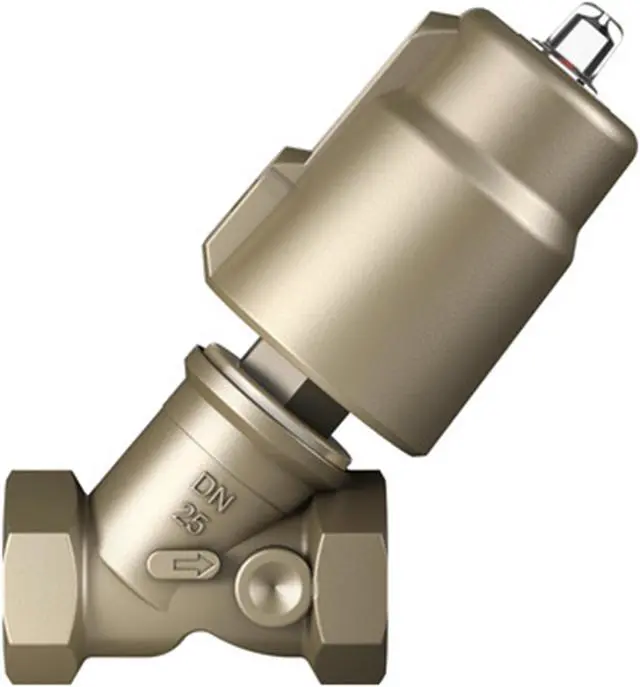

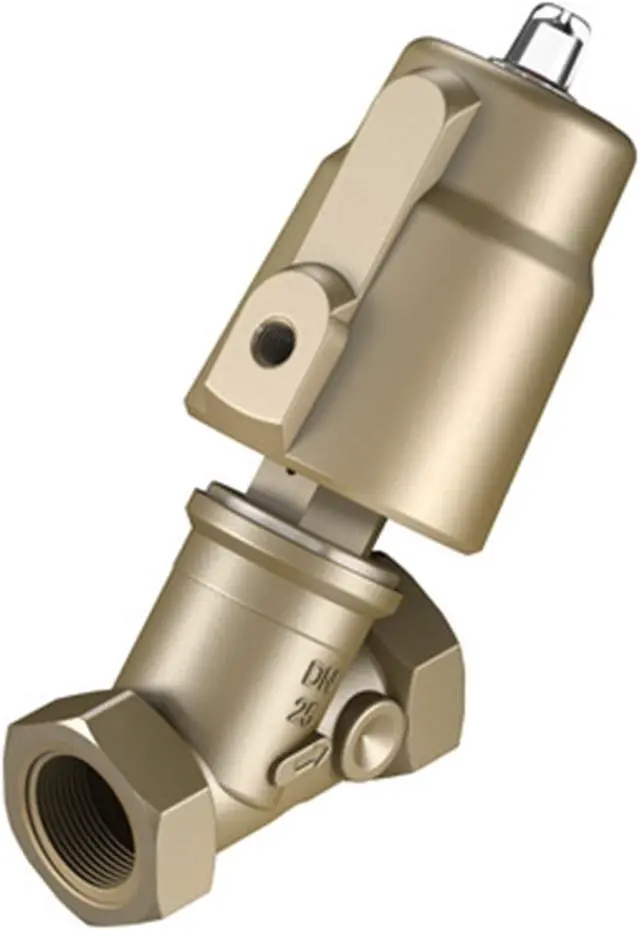

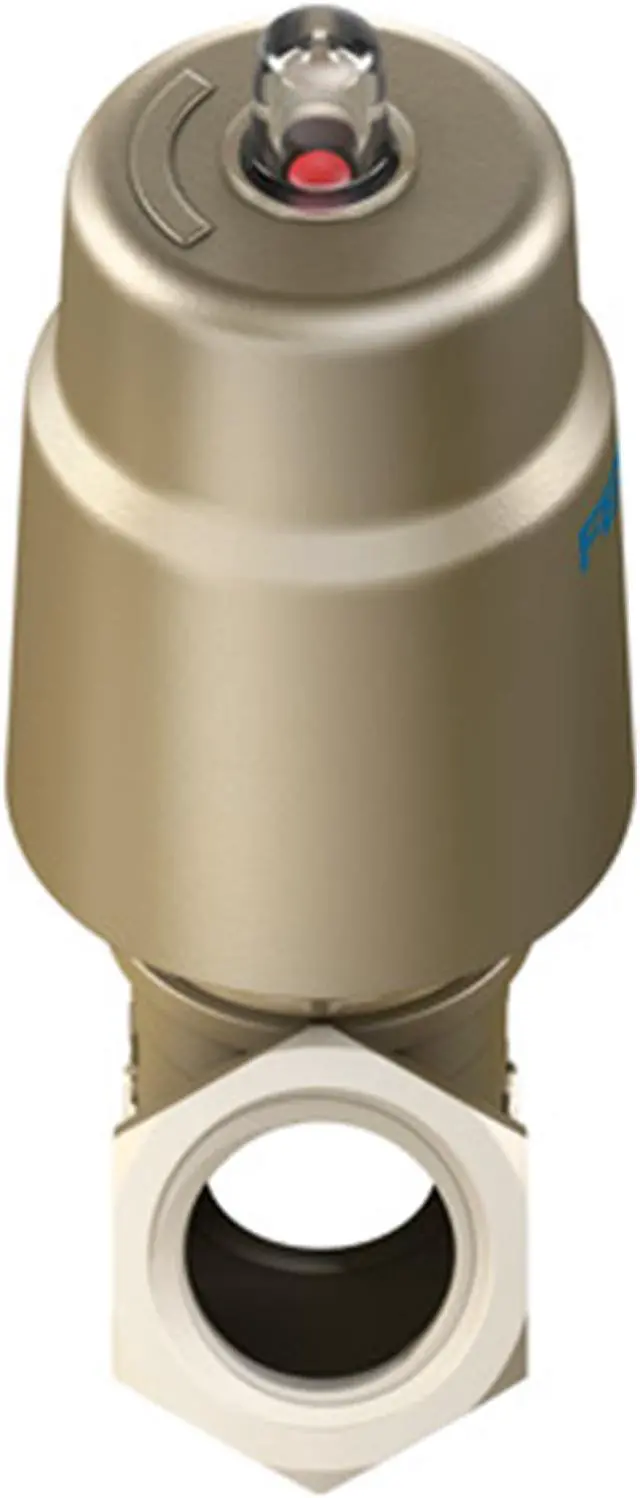

FESTO VZXF-L-M22C-M-B-G1-230-M1-H3B1T-50-10 Angle Seat Valve 3535665 New
- FESTO VZXF-L-M22C-M-B-G1-230-M1-H3B1T-50-10 Angle Seat Valve 3535665 New
+
+
Overview
Specs
Reviews
Type code VZXF
Design Poppet valve with piston actuator
Actuation type Pneumatic
Sealing principle Soft
Mounting position Any
Type of mounting Line installation
Cable connection Threaded sleeve G1 as per DIN ISO 228
Nominal width 23 mm
Valve function 2/2, closed, monostable
Flow direction Non-reversible
Medium pressure 0 bar ... 10 bar
Nominal pressure of fitting PN 16
Exhaust air function Without flow control option
Reset method Mechanical spring
Type of control Externally controlled
Pneumatic connection Internal thread G1/8
Operating pressure 6 bar ... 10 bar
Symbol 00991367
Max. viscosity 600 mm2/s
Temperature of medium -40 °C ... 200 °C
Ambient temperature -10 °C ... 60 °C
Flow rate Kv 9.6 m3/h
Valve housing material Red brass
Material number, fitting housing CC499K
Spindle seal material PTFE
Seat seal material PTFE
Product weight 1500 g
Corrosion resistance class (CRC) 1 - Low corrosion stress
Drive housing material Brass
Design Poppet valve with piston actuator
Actuation type Pneumatic
Sealing principle Soft
Mounting position Any
Type of mounting Line installation
Cable connection Threaded sleeve G1 as per DIN ISO 228
Nominal width 23 mm
Valve function 2/2, closed, monostable
Flow direction Non-reversible
Medium pressure 0 bar ... 10 bar
Nominal pressure of fitting PN 16
Exhaust air function Without flow control option
Reset method Mechanical spring
Type of control Externally controlled
Pneumatic connection Internal thread G1/8
Operating pressure 6 bar ... 10 bar
Symbol 00991367
Max. viscosity 600 mm2/s
Temperature of medium -40 °C ... 200 °C
Ambient temperature -10 °C ... 60 °C
Flow rate Kv 9.6 m3/h
Valve housing material Red brass
Material number, fitting housing CC499K
Spindle seal material PTFE
Seat seal material PTFE
Product weight 1500 g
Corrosion resistance class (CRC) 1 - Low corrosion stress
Drive housing material Brass
