Gigabyte Brix Barebone Mini PC AMD RYZEN R7-4800U CPU HDMI Intel WIFI6 BRR7-4800

  • High Performance Ultra Compact PC (34.7 x 119.5 x 119.5 mm)
  • 1 x M.2 SSD (2280) slot support PCI-e x4 /SATA
  • 2 x SO-DIMM DDR4 slots support 3200Mhz, Max 64GB
  • Intel WIFI6 +BT5.2
  • Realtek 2.5G LAN RTL8125
  • QUAD display : 2x Type C / HDMI / mDP with HDCP @4x4K/60P
  • 5x USB 3.2 Gen1 Type A + 2x USB 3.2 Gen2 Type C (4F,3R)
  • Realtek ALC255 Codec
  • Headphone Jack
  • VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
  • AC-DC adapter : 100-240V input, 19V/135W
  • OS Support : Microsoft Windows 10 64Bit
  • 1x Kensington Lock slot
  • System Environment Operating Temperature: 0°C to +35°C
  • System Storage Temperature: -20°C to +60°C
  • Dimension
  • 34.7 mm x 119.5 mm x 119.5 mm (1.37" x 4.7" x 4.7")
  • Motherboard Size
  • 105 x 110 mm
  • CPU
  • AMD RYZEN R7-4800U 2.0G~4.1G Turbo, 8C/16T Core, 12MB L3 Cache
  • AMD Radeon GPU 1750Mhz , 15W
  • Memory
  • 2 x SO-DIMM DDR4 slots
  • 3200MHz
  • Max. 64GB
  • LAN
  • 2.5G LAN (Realtek 8125)
  • Wifi Card
  • Intel WiFi6 AX200 / BT 5.2
  • Audio
  • Realtek ALC255
  • Video
  • AMD Radeon Graphics
  • HDMI Resolutio
Overview
Specs
Reviews
High Performance Ultra Compact PC ( 34.7 x 119.5 x 119.5 mm)

1 x M. 2 SSD (2280) slot support PCI-e x4 /SATA

2 x SO-DIMM DDR4 slots support 3200Mhz, Max 64GB

Intel WIFI6 +BT 5.2

Realtek 2.5G LAN RTL8125

QUAD display: 2x Type C / HDMI / mDP with HDCP @4x4K/60P

5x USB 3.2 Gen1 Type A + 2x USB 3.2 Gen2 Type C (4F, 3R)

Realtek ALC255 Codec

Headphone Jack

VESA Mounting Bracket (75 x 75mm + 100 x 100mm)

AC-DC adapter: 100-240V input, 19V/135W

OS Support: Microsoft Windows 10 64Bit

1x Kensington Lock slot

System Environment Operating Temperature: 0°C to +35°C

System Storage Temperature: -20°C to +60°C

Dimension

34.7 mm x 119.5 mm x 119.5 mm ( 1.37" x 4.7" x 4.7" )

Motherboard Size

105 x 110 mm

CPU

AMD RYZEN R7-4800U 2.0G ~ 4.1G Turbo, 8C/16T Core, 12MB L3 Cache

AMD Radeon GPU 1750Mhz, 15W

Memory

2 x SO-DIMM DDR4 slots

3200MHz

Max. 64GB

LAN

2.5G LAN (Realtek 8125)

Wifi Card

Intel WiFi6 AX200 / BT 5.2

Audio

Realtek ALC255

Video

AMD Radeon Graphics

HDMI Resolution (Max. )

HDMI 2.0 a ws HDCP 2.2

3840x2160@60Hz

Storage

1 x M. 2 slot (2280_storage)

PCIe Gen3 X4 /SATA

Expansion Slots

1 x PCIe M. 2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

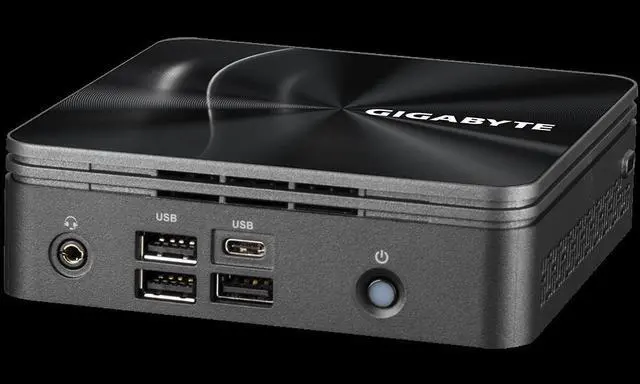

Front I/O

1 x Power Button

1 x USB 3.2 type C (Gen2) w/ DP alt mode

3 x USB type A 3.2 (Gen1)

1 x head phone jack with MIC

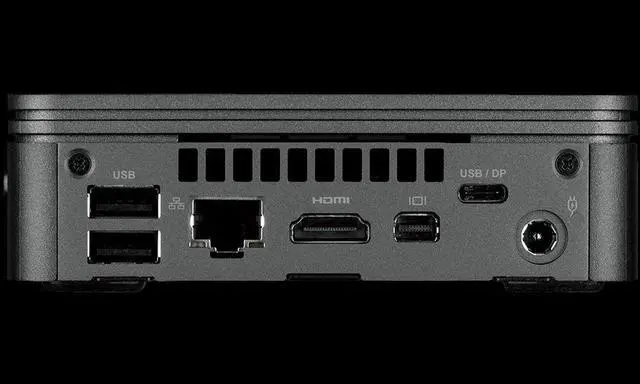

Rear I/O

1 x HDMI( 2.0 a)

1 x mDP

1 x USB 3.2 type C (Gen2) w/ DP alt mode

2 x USB 3.2 type A (Gen 1)

1 x RJ45

1 x DC-In

Side I/O

1 x Kensington lock slot

Power Supply

Input: AC 100-240V

Output: DC 19V/ 4.74A, 90W

Support OS

Win10 64bit

Environment

Operating Temperature 0°C to 35°C

Storage Temperature -20°C to +60°C
