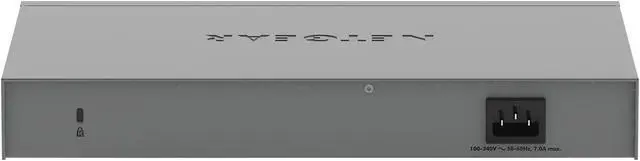

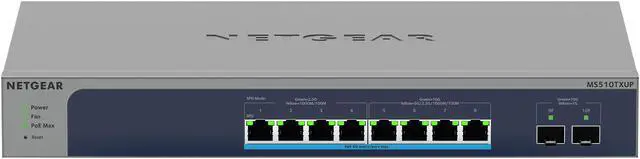

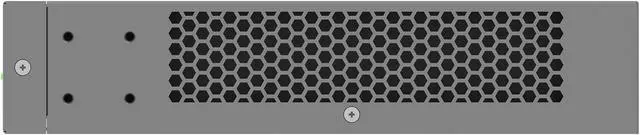

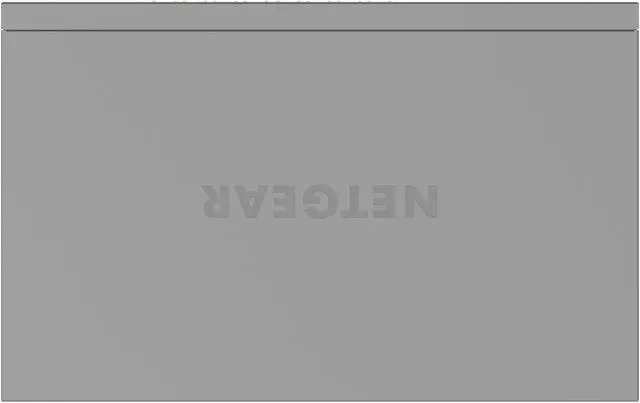

Learn more about the Netgear Inc. MS510TXUP-100NAS
ModelBrand | NETGEAR |
---|
Model | MS510TXUP-100NAS |
---|
Format & StandardsFormat | Rack-mountable Desktop |
---|
Network Media | Media Type Supported: Twisted Pair Optical Fiber
Ethernet Technology: 2.5 Gigabit Ethernet 10 Gigabit Ethernet
Network Technology: 1000Base-T 1000Base-X |
---|
Network Management Type | Smart |
---|
Ports & InterfaceUplink Ports | Interface/Ports Total Number of Network Ports: 8
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details: 4 x 2.5 Gigabit Ethernet PoE++ 4 x 10 Gigabit Ethernet PoE++ 2 x 10 Gigabit Ethernet Expansion Slot
I/O Expansions: Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP+
Number of SFP+ Slots: 2 |
---|
Primary Ports | 8 x RJ45 + 2 x SFP |
---|
Primary Port Speed | 10 Gbps |
---|
Primary Port Type | 4 x 1G/2.5G 1000BASE-T RJ-45 Copper Ports 4 x 1G/2.5G/5G/10G 1000BASE-T RJ-45 Copper Ports 2 x 10G SFP+ Uplink |
---|
Data TransmissionMAC Address Table | 32K |
---|
VLAN Support | 256 VLANs |
---|
Buffer Memory | 2MB |
---|
DetailsPoE | 8 Ports (60W/port), Total 295W |
---|
SNMP | Yes |
---|
QoS | Yes |
---|
LACP | Yes |
---|
Layer | 3 |
---|
Port Mirroring | Yes |
---|
LEDs | PoE (RJ-45) Port: Yes
PoE Budget: 295 W
Power Source: Power Supply
Number of Power Supplies Installed: 1
Power Consumption: 380 W |
---|
EnvironmentalCertification | Environmentally Friendly: Yes
Environmental Certification: China Environmental United Certification Center (CEC)
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Battery Directive |
---|
Temperature | Operating Temperature 0° to 50°C (32° to 122°F) Storage Temperature –20° to 70°C (– 4° to 158°F) |
---|
PackagingPackage Contents | MS510TXUP Ethernet Switch Power Cord Mounting Kit Rubber Footpads For Tabletop Installation Quick Installation Guide |
---|
Additional InformationFirst Listed on Newegg | February 01, 2021 |
---|
