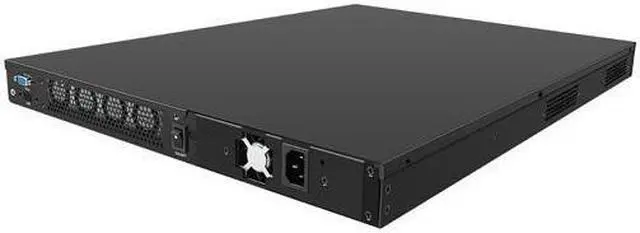

HUNSN 1U Firewall Appliance XEON Server with IPMI, PFSense, 2 x E5 2699 V3, RJ66, Mikrotik, OPNsense, VPN, C612, 2 x I210 I211 LAN, 4 x X710 SFP+, 6 x I226-V LAN, 16G RAM, 128G SSD
- HUNSN RJ66 equipped with xeon processor e5-2699 v3, compatible with many freebsd based router systems, linux distros, or win.os supported, easy configuration and management, support aes new instructions
- Compatibility, firewalls for pfsense, opnsense and other popular open-source software solutions
- Standard 1u, atx power, with power cord, all use a big brand memory and ssd with quality assurance, ready to run straight out of the box

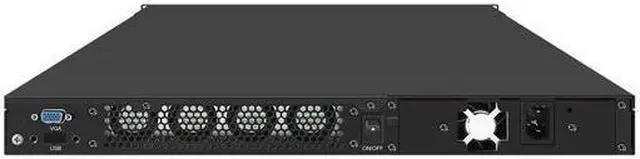

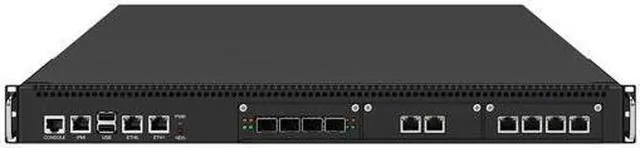

- Designed with console, ipmi, 2 x usb2.0, 2 x i210 / i211 lan, 4 x x710 sfp+, 6 x i226-v lan, vga, power switch, ac socket, size at 440 x 600 x 45mm
- Original industry network motherboard, low power consumption, low heat, use dedicated turbo silent cooling fan to ensure long-term operation
+
+
Overview
Specs
Reviews
Model Number: HUNSN RJ66
CPU: 2 x Intel Xeon E5-2699 v3 45M Cache, 2.30 GHz
AES-NI Supported: Yes
Chipeset: C612
Memory: 8 x ECC/ECC-REG DIMM DDR4 1600/1866/2133 MAX 256G, each slot supports up to 32G,
a single CPU supports up to 128G, dual CPUs support up to 256G memory
Storage: 1 x mSATA SSD, 1 x CF, 2 x M.2 NVMe PCle 3.0 x4 2280, 2 x 2.5/3.5 Inch SATA SSD/HDD
I/O Interface: Console, IPMI, 2 x USB2.0, 2 x I210 / I211 LAN, 4 x X710 SFP+, 6 x I226-V LAN, VGA Aspeed AST2400,
Power Switch, AC Socket
Expansion: 3 x PCI-E x8 / 1 x PCI-E x16, 1 x Mini PCIE slot for WiFi
Chassis: 1U 19 inch cabinet, rackable, with mounting bracket ears, wall hanging, foot pad
Network Card: 1 x RTL-8211 E IPMI, 2 x Intel I211/I210 LAN, 4 x SFP+ model is 10GbE X710, 6 x 2.5GbE 226-V
WAN-LAN Throughput: Throughput through 1 gigabit nic from lan to wan forwarding speed is 1Gbps
Throughput through 2.5 gigabit nic from lan to wan forwarding speed is 2.5Gbps
Throughput through 10 gigabit optical from lan to wan forwarding speed is around 5Gbps or more
Cooling System: The processor uses the ball silent cooling fan to ensure the long time work and stable cooling
Power: 800W 100-240V 50Hz/60Hz
Size: 440 x 600 x 45mm
Weight: 8.7kgs
Packing List: HUNSN RJ66 firewall appliance, rackable ears, power cord, warranty card
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported. UEFI support only
Compatibility:firewalls for pfsense, opnsense and other popular open-source software solutions
4-12 LAN/WAN Ports, Different CPU, 1U/2U Rackable, 9-15 inch rackable, are available in our shop,
Bookmark HUNSN store, for customization needs and other needs, we shall be glad to supply,contact us to get a timely reply
CPU: 2 x Intel Xeon E5-2699 v3 45M Cache, 2.30 GHz
AES-NI Supported: Yes
Chipeset: C612
Memory: 8 x ECC/ECC-REG DIMM DDR4 1600/1866/2133 MAX 256G, each slot supports up to 32G,
a single CPU supports up to 128G, dual CPUs support up to 256G memory
Storage: 1 x mSATA SSD, 1 x CF, 2 x M.2 NVMe PCle 3.0 x4 2280, 2 x 2.5/3.5 Inch SATA SSD/HDD
I/O Interface: Console, IPMI, 2 x USB2.0, 2 x I210 / I211 LAN, 4 x X710 SFP+, 6 x I226-V LAN, VGA Aspeed AST2400,
Power Switch, AC Socket
Expansion: 3 x PCI-E x8 / 1 x PCI-E x16, 1 x Mini PCIE slot for WiFi
Chassis: 1U 19 inch cabinet, rackable, with mounting bracket ears, wall hanging, foot pad
Network Card: 1 x RTL-8211 E IPMI, 2 x Intel I211/I210 LAN, 4 x SFP+ model is 10GbE X710, 6 x 2.5GbE 226-V
WAN-LAN Throughput: Throughput through 1 gigabit nic from lan to wan forwarding speed is 1Gbps
Throughput through 2.5 gigabit nic from lan to wan forwarding speed is 2.5Gbps
Throughput through 10 gigabit optical from lan to wan forwarding speed is around 5Gbps or more
Cooling System: The processor uses the ball silent cooling fan to ensure the long time work and stable cooling
Power: 800W 100-240V 50Hz/60Hz
Size: 440 x 600 x 45mm
Weight: 8.7kgs
Packing List: HUNSN RJ66 firewall appliance, rackable ears, power cord, warranty card
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported. UEFI support only
Compatibility:firewalls for pfsense, opnsense and other popular open-source software solutions
4-12 LAN/WAN Ports, Different CPU, 1U/2U Rackable, 9-15 inch rackable, are available in our shop,
Bookmark HUNSN store, for customization needs and other needs, we shall be glad to supply,contact us to get a timely reply
