Audio Digital to Analog Converter DAC with 3.5mm Jack, Optical SPDIF Toslink Coaxial to Analog Stereo L/ R Converter Adapter with Optical Cable and Power Adapter for PS3 PS4 XBox DVD Roku

Note: 1. Do Not Use Other Plugs, It Can Only Use 5V/1A Plug. 2. Please don't forget to set the audio output to PCM or LPCM as it is not compatible with 5.1 Channel Signal, such as Dolby Digital or DTS 5.1, Dolby-AC3. 3. This DAC may have some compatibility problem with Youtube or Netflix. 4. If you are using TV as the audio resource, please do not forget to set your TV audio output to
PCM/LPCM(Steps: Device homepage--system setting--image and sound---voice setting--digital audio output--PCM/LPCM). 5. If you are using Panasonic TV as audio resource, please set TV audio output to SPDIF output. 6. If you are using Samsung TV as speakers, please turn on its external speakers(Steps: menu - sound - speaker settings - external speakers - on).

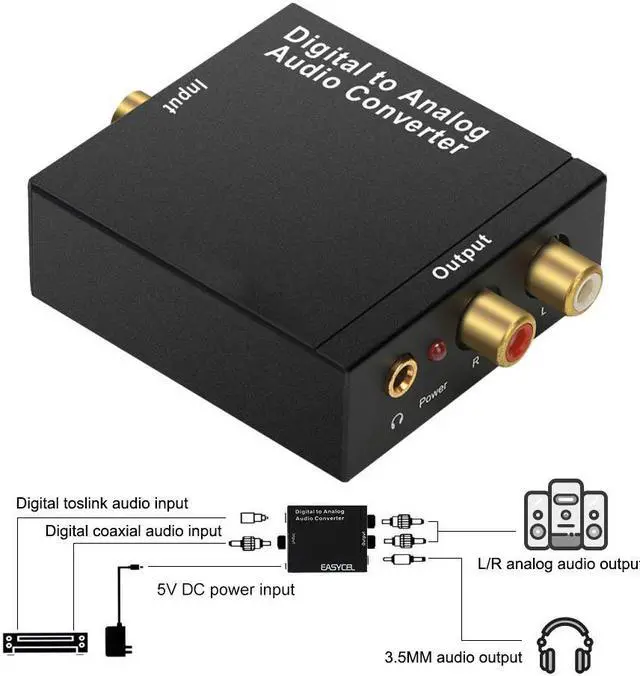

Product description: Digital to Analog Audio Converter converts coaxial or toslink digital PCM audio signals to analog L/R RCA and 3.5 mm Jack audio.

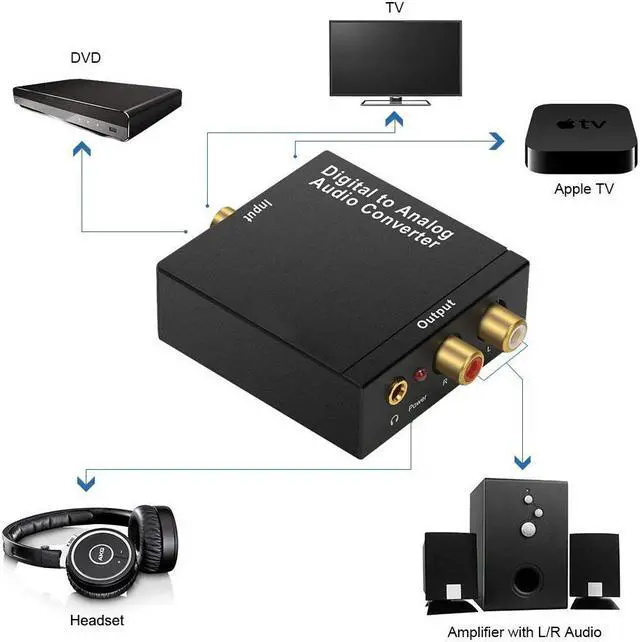

Features: 1. Available for connection to an external device such as an amplifier via standard RCA jacks or a headphone via 3.5 mm jack cable. 2. Supports uncompressed 2-channel LPCM digital audio signal input. 3. Supports sampling rate at 32KHz, 44.1KH z, 48KHz and 96KHz (Do Not support 192kHz). 4.24 -bitS/ PDIF incoming bit stream on left and right channels. 5. Provides electromagnetic-noise-free transmission.
Specifications: 1.
Housing: Full Metal 2.
Weight: 90g 3.

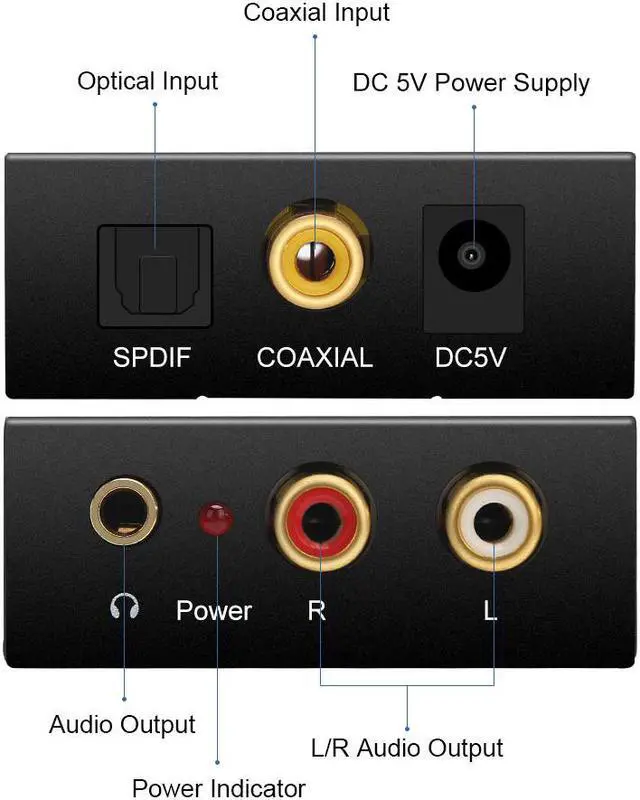

Input audio connector: 1 x Toslink, 1 x Coaxial 4.
Output audio connector: 2 x RCA(R/L), 1 x 3.5 mm Jack 5. Powered by 5V/1A power adapter 6.
Consumption: 0.5W (max) 7.
Dimension: 75 x 55 x 22mm

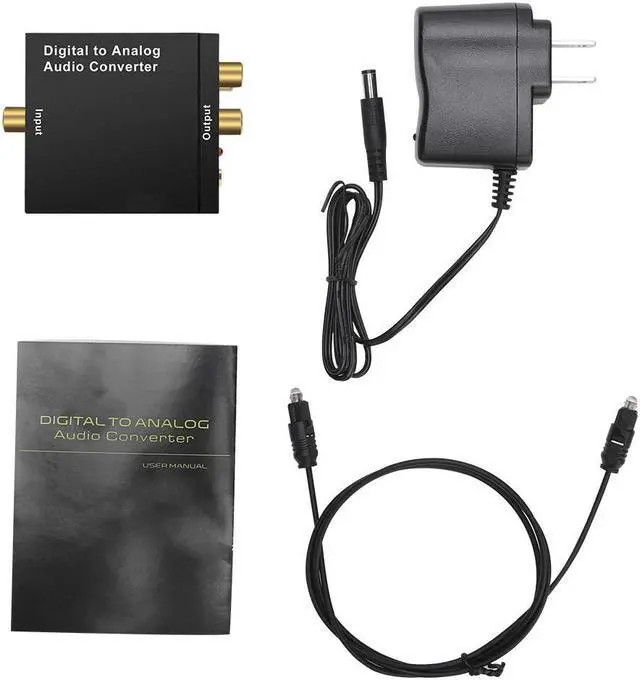

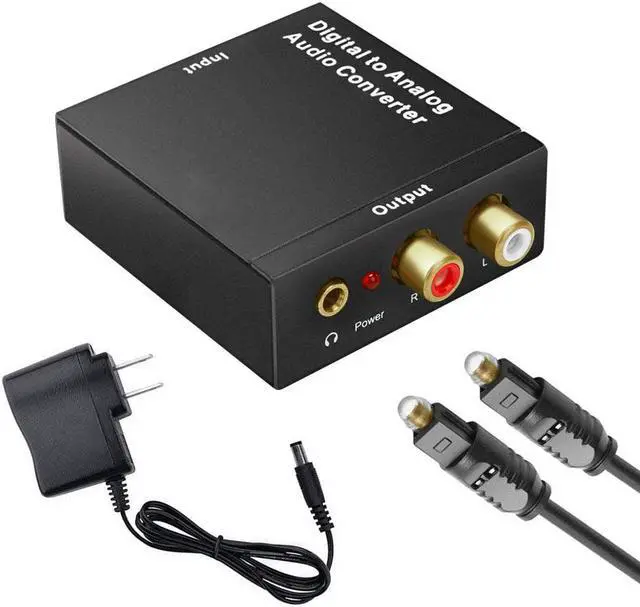

Package List: 1* digital to analog audio converter 1* Toslink cable (Optical cable) 1* 5V/1A power adapter 1* User manual
