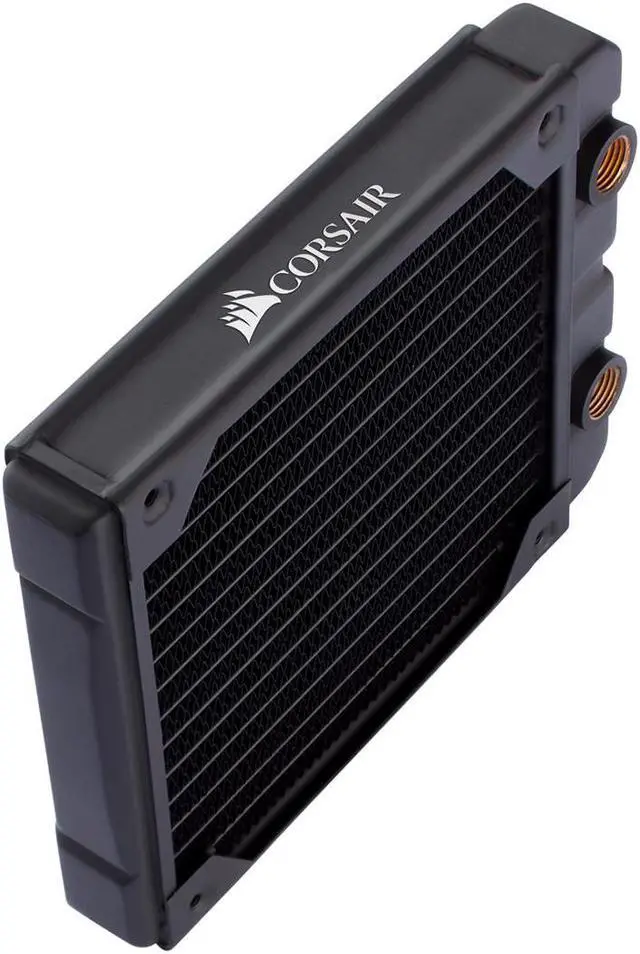

Corsair Hydro X Series XR5 140mm Water Cooling Radiator

The CORSAIR Hydro X Series XR5 140mm Water Cooling Radiator delivers extreme custom liquid cooling performance, with 30mm radiator thickness and 25 micron thin cooling fins maximizing heat dissipation surface area. A premium copper radiator core core is optimized for use alongside copper CPU and GPU water blocks, further increasing the thermal transfer rate. Intuitive extras such as Integrated Fan Screw Guides and built-in Screw Protection Plates make it easy to install fans, without worrying about damaging the radiator. Equipped with standard G1/4" threads for universal compatibility and the surface area to tame even the highest-end hardware, the XR5 140mm radiator stands ready to cool even the most ambitious custom cooling loops and defeat the heat.

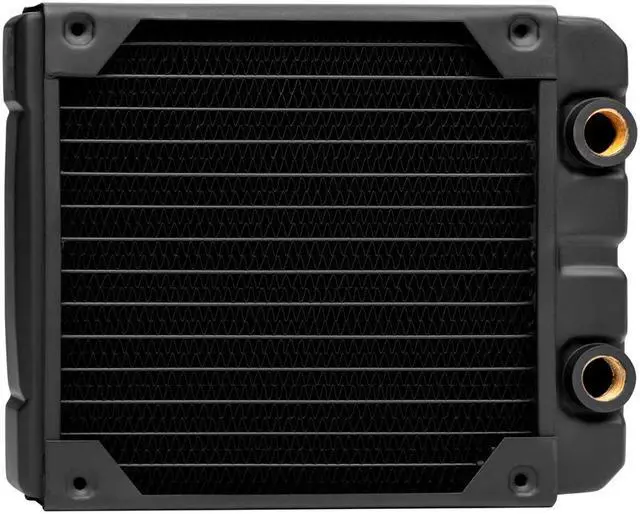

Single 140mm fan mounts on either side of the radiator are ready for your most ambitious custom liquid cooling build

30mm radiator thickness delivers extreme cooling performance with high-airflow and low-noise fans.

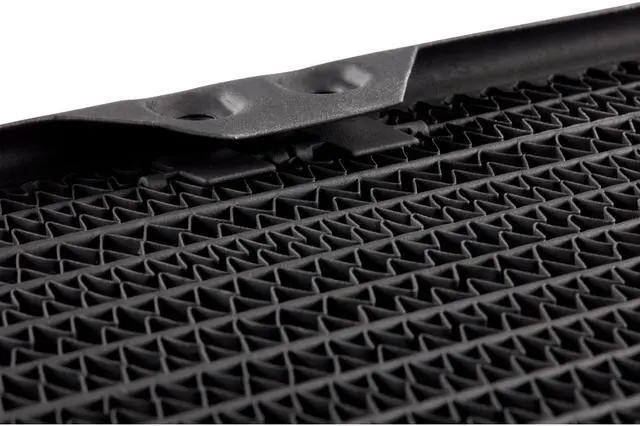

A premium copper radiator core and 25 micron thick cooling fins provide a high thermal transfer rate optimized for CORSAIR’s performance copper water blocks.

High-quality matte black polyurethane coating delivers a flawless finish to match your system.

Integrated Fan Screw Guides make it easy to install fans even when the radiator is fitted into a case.

Screw Protection Plates prevent too long or over-tightened screws from damaging the radiator core.

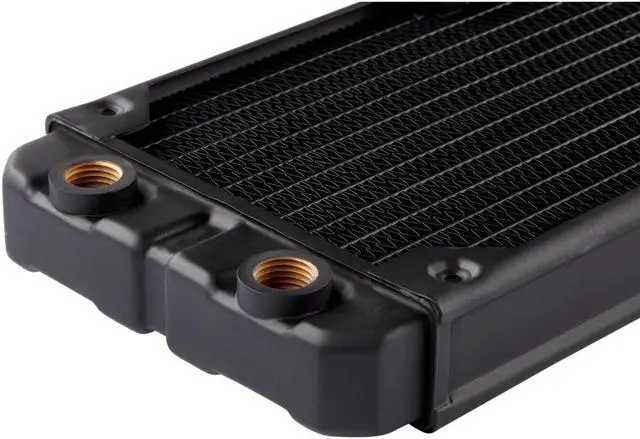

Standard G1/4” threads for all inlet/outlet ports provide universal fitting compatibility.

Radiator Dimensions: 170mm x 140mm x 30mm

Screw Thread Size:KEY_TAB M4xP0.7

Materials:KEY_TAB Copper / Brass

Compatible Materials:KEY_TAB Only mix with other copper / brass products

Model: CX-9031001-WW
