Color | White |
---|
Type | ATX |
---|
Maximum Power | 1000 W |
---|

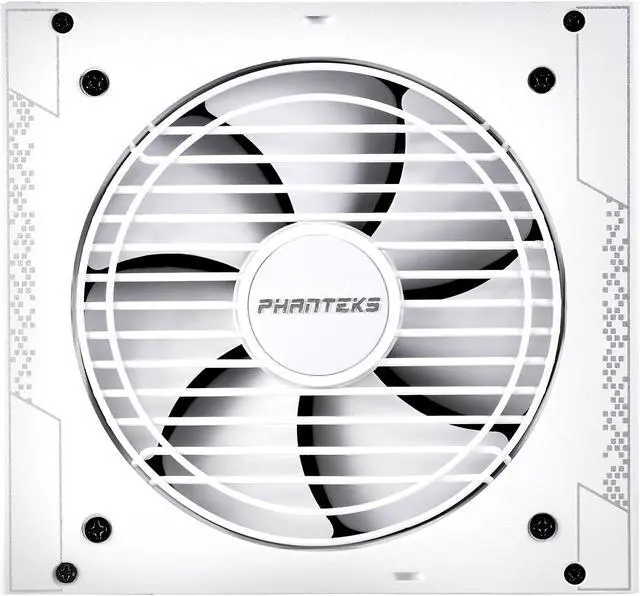

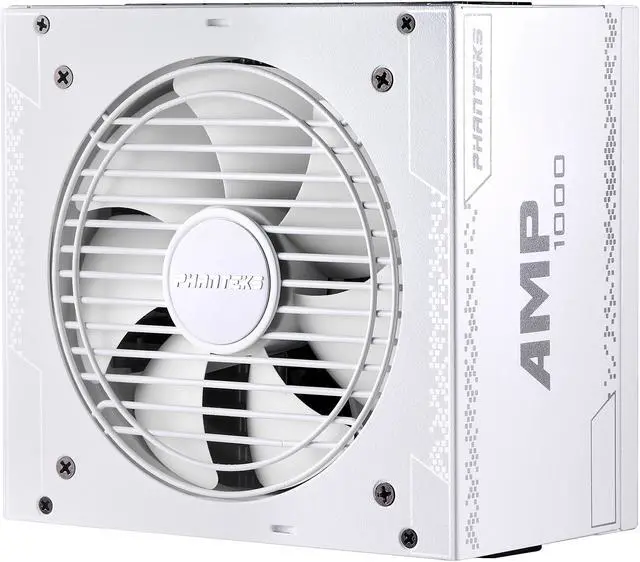

Fans | 1 x 120 mm FDB fan |
---|
Main Connector | 24Pin |
---|
+12V Rails | Single |
---|
PCI-Express Connector | 6 x 6+2-Pin |
---|
SATA Power Connector | 10 |
---|

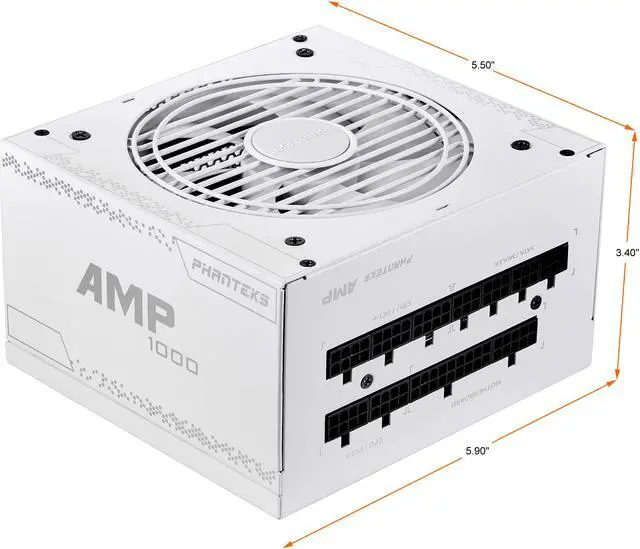

Max PSU Length | 140 mm |
---|
Modular | Full Modular |
---|
Energy-Efficient | 80 PLUS GOLD Certified |
---|
Protection | OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) OCP (Over Current Protection) OTP (Over Temperature Protection) No-Load protection Reset Protection |
---|

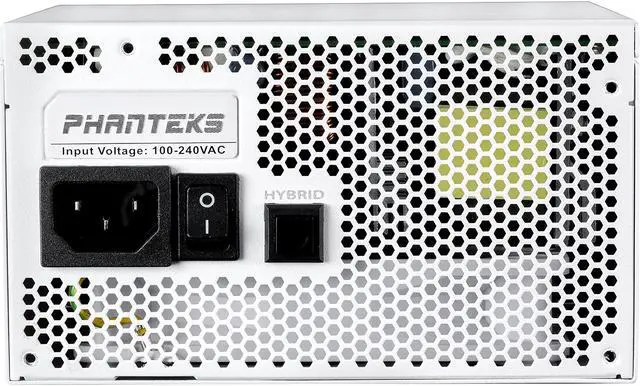

Input Voltage | 100 - 240 V |
---|
Input Frequency Range | 50/60 Hz |
---|
Input Current | 13-6.5A |
---|
Output | +3.3V@25A, +5V@25A, +12V@83A, -12V@0.3A, +5VSB@3A |
---|
MTBF | >100,000 Hours |
---|

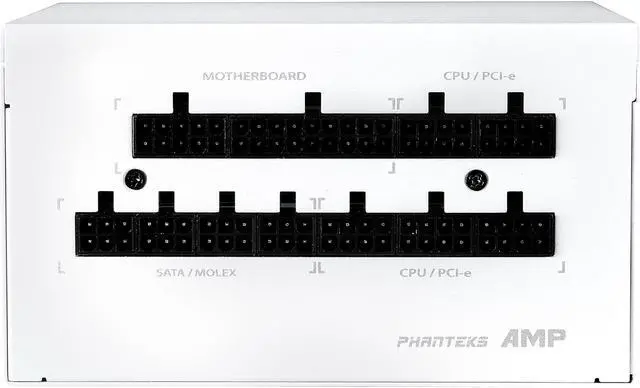

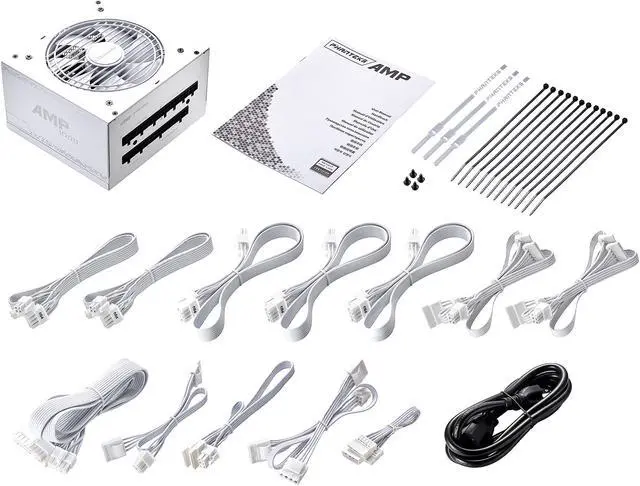

Connectors | 1 x 24 pin ATX 2 x 8 pin (4+4) EPS (CPU) 6 x 8 pin (6+2) PCIe 10 x SATA 5 x 4 pin Peripheral Molex to SATA |
---|
Cable Spec | 24Pin MB: One cable (610mm) 4+4Pin CPU: Two cables (650mm) 2 x PCI-E 6+2Pin: Three cables (750mm) 4 x SATA: Two cables (860mm) 2 x SATA: One cable (450mm) 3 x Molex: One cable (690mm) 2 x Molex: One cable (470mm) Molex to SATA: One cable (300mm) |
---|
