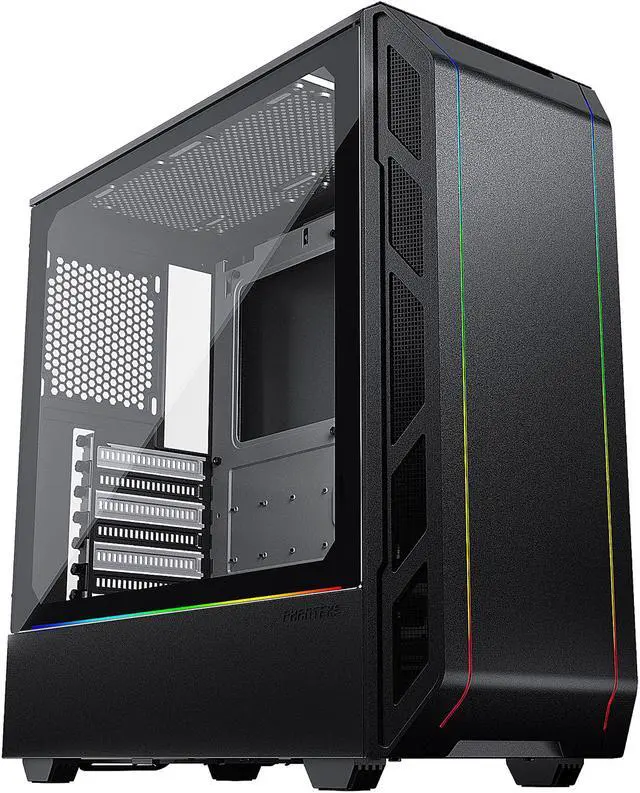

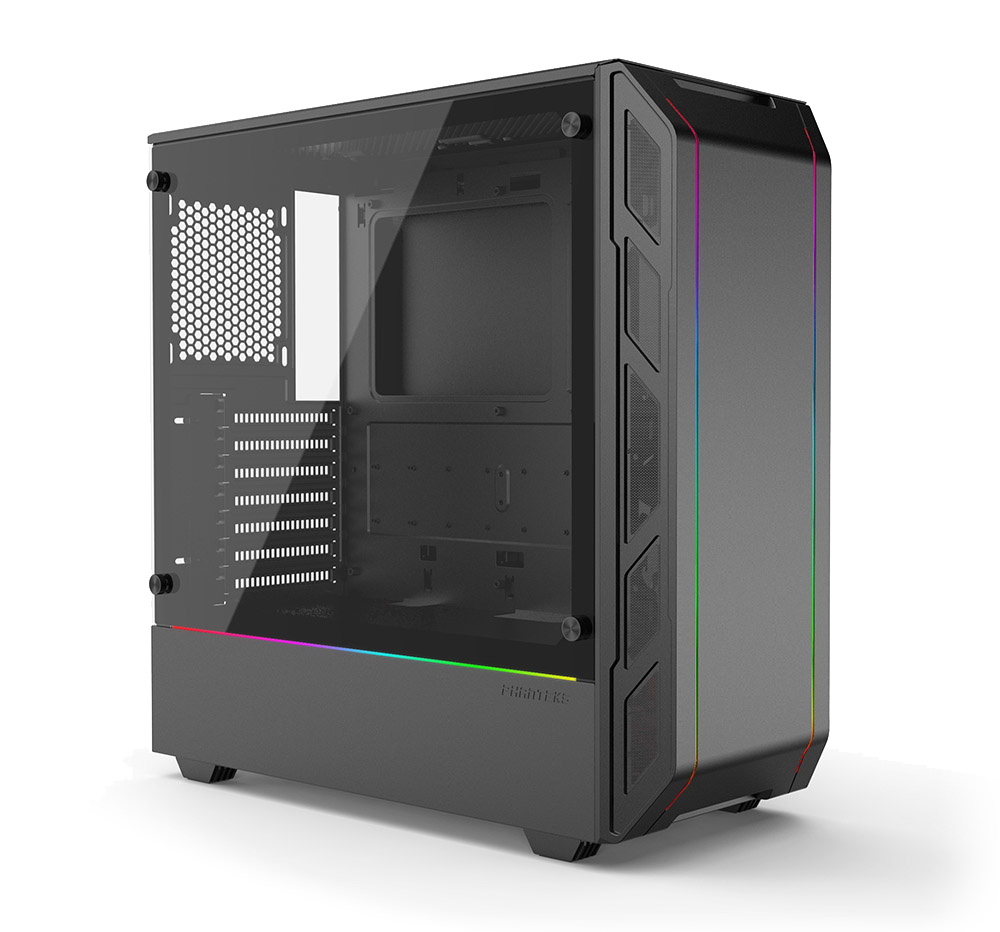

Eclipse P350X Series
Phanteks first chassis with intergrate Digital RGB LEDs, the P350X is a case for every system.
The new Eclipse P350X is a compact case designed with high performance in mind. Offering high airflow capability, E-ATX motherboard clearance, liquid cooling support, the P350X is ready for high-end configurations.

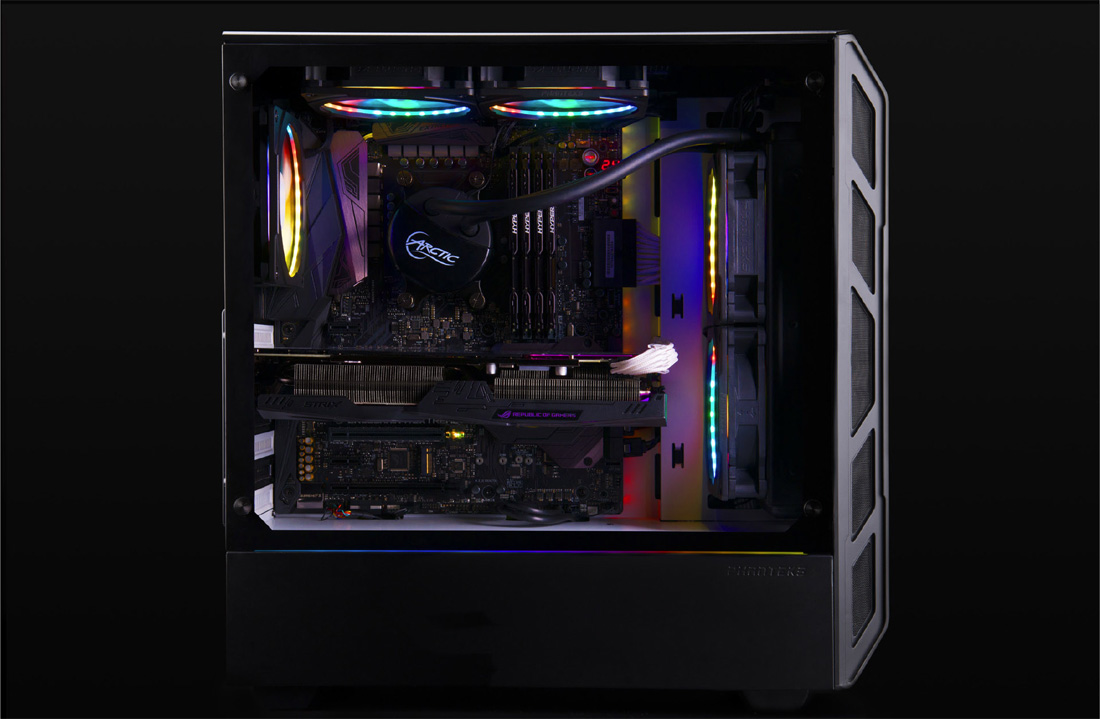

With the integrated Digital RGB lighting profiles, you can personalize your build with style. The Eclipse P350X comes with all this at an amazingly affordabe price.

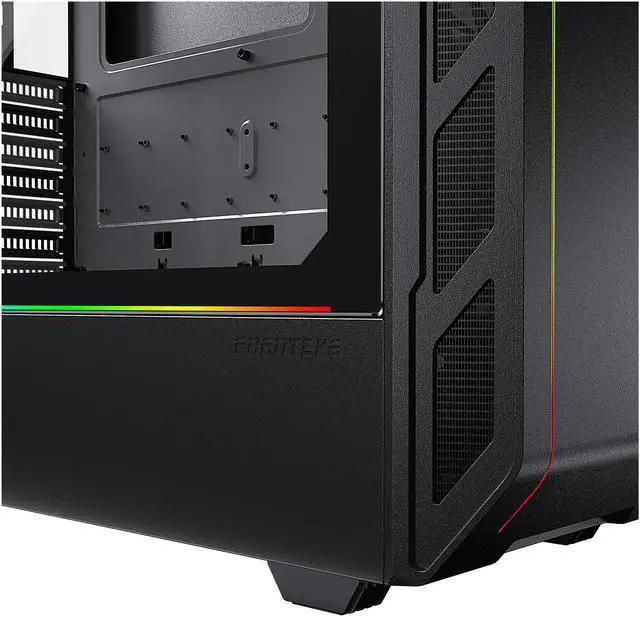

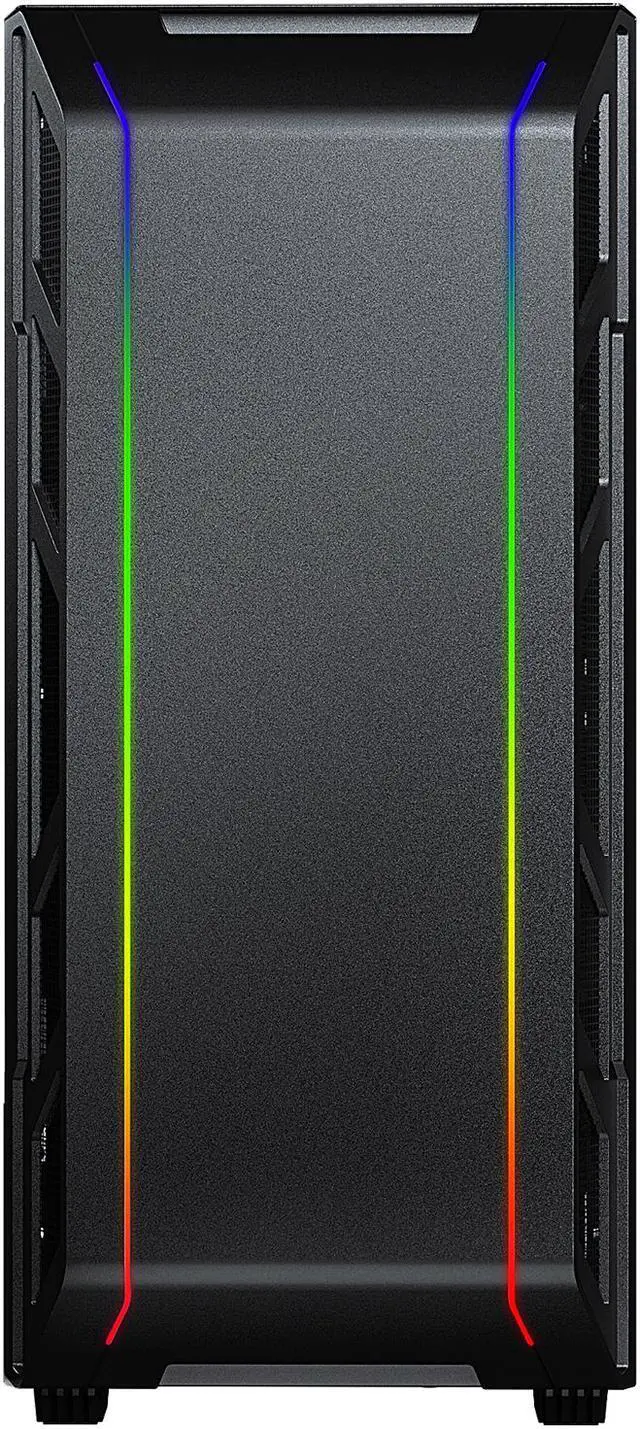

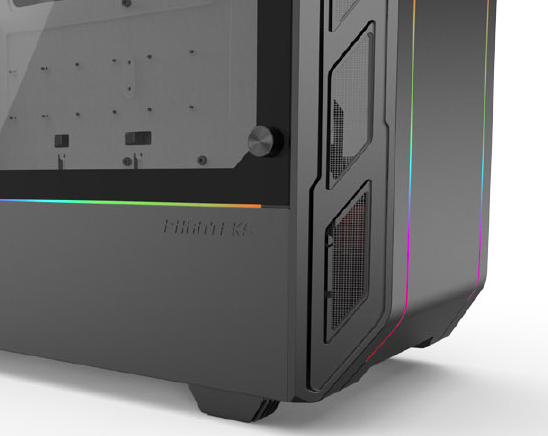

DIGITAL - RGB CONTROL
Preprogrammed with the best selection of color modes and patterns and requires no setup or software. For (optional) software control you can choose to sync* with your (addressable) motherboard using the integrated D-RGB adapter.
*check with your motherboard for a compatible addressable RGB header

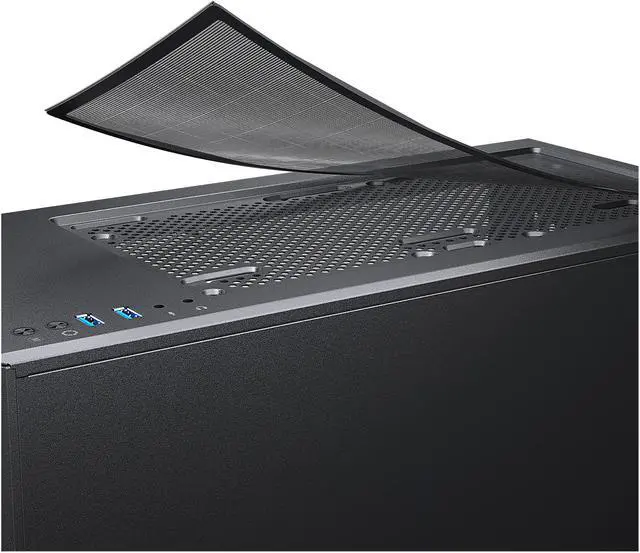

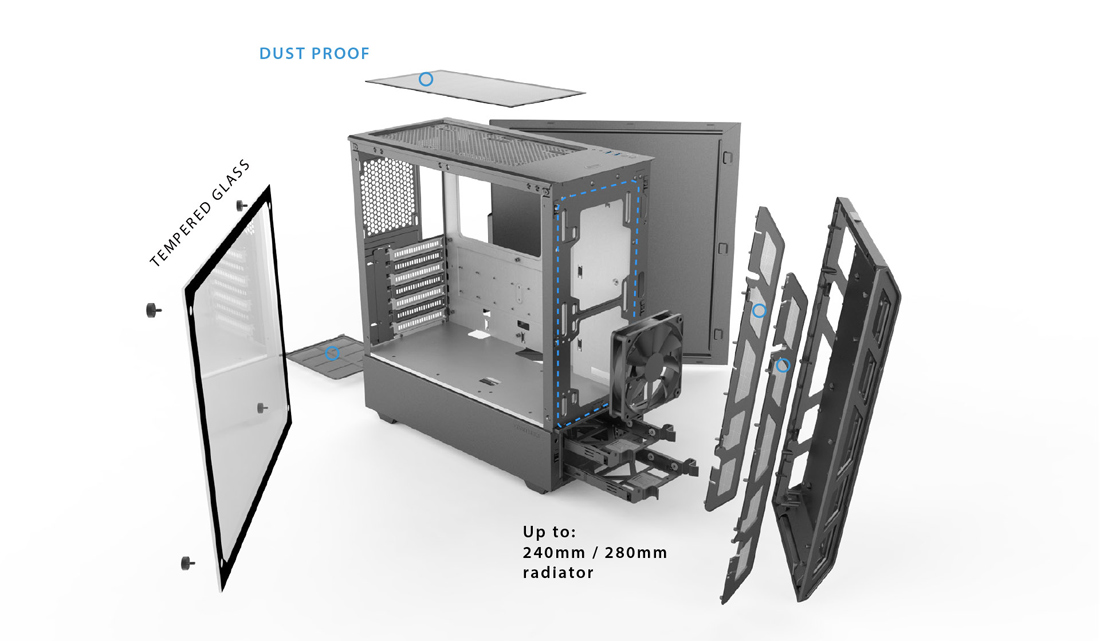

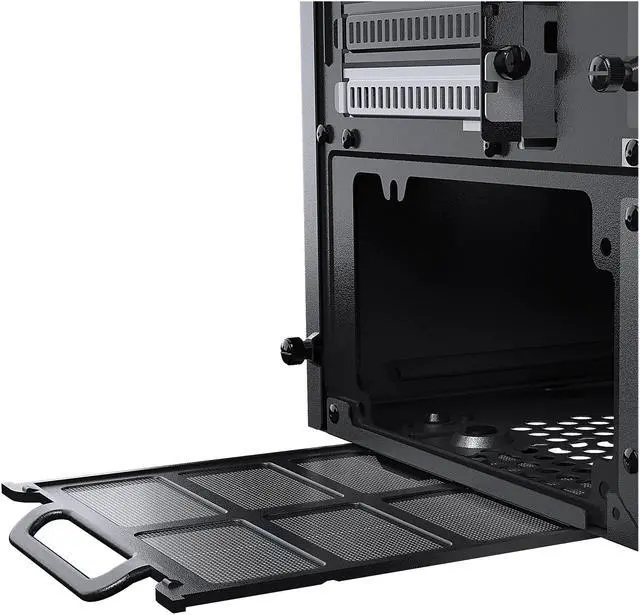

OPTIMAL AIR INTAKE DESIGN

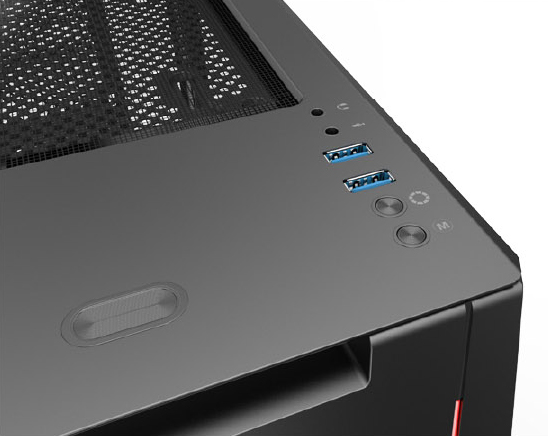

FRONT I/O: Power SW / DRGB LED SW / 2x USB 3.0 / Headphone / Mic

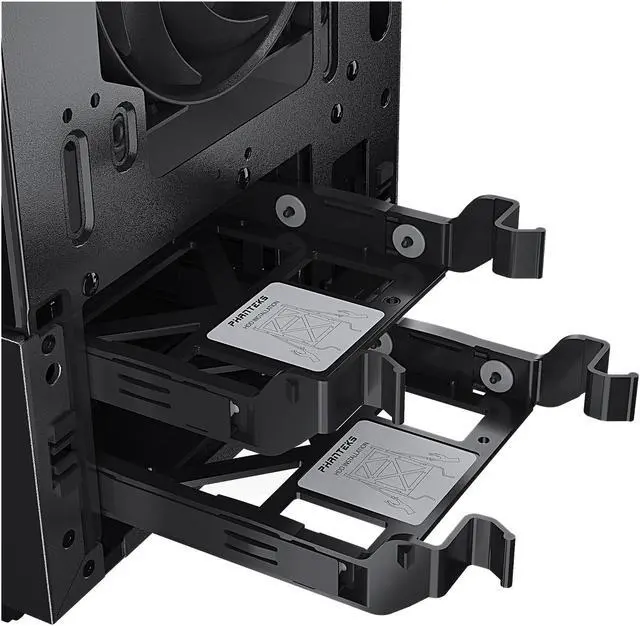

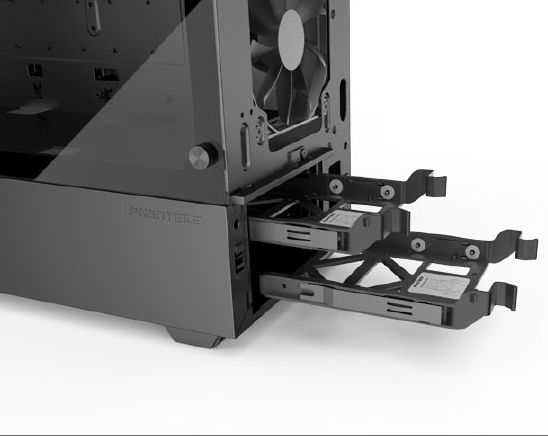

2X FRONT LOADED 3.5" HDD's
| Case Specifications | |||

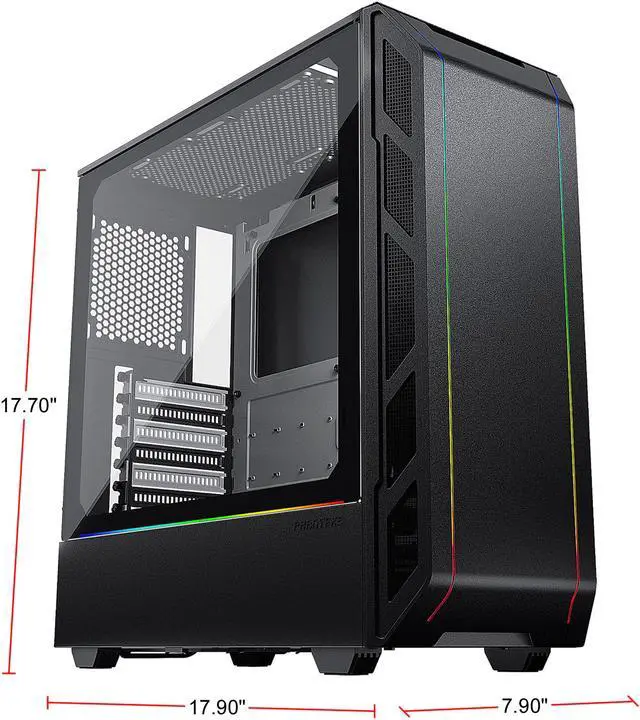

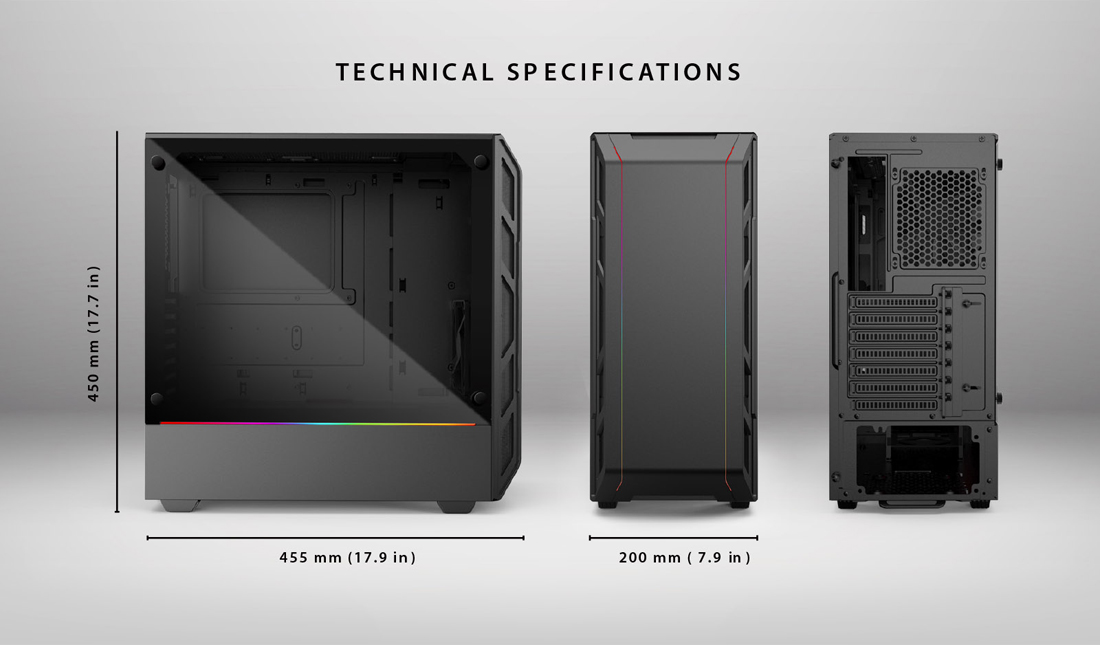

| Dimension | 200 mm x 450 mm x 455 mm (W x H x D) 7.9 in x 17.7 in x 17.9 in |
||
| Form Factor | Mid Tower | ||
| Material(s) | ABS, Steel chassis, Tempered Glass | ||

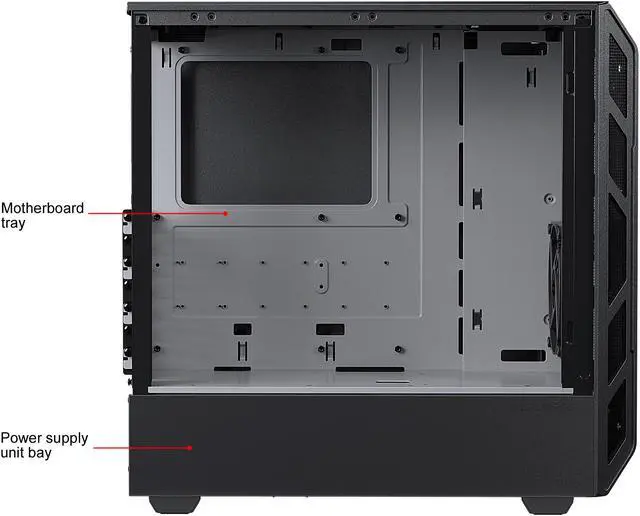

| Motherboard Support | *E-ATX, ATX, Micro-Atx, Mini ITX (*E-ATX up to 280 mm width) | ||
| Front I/O | 2x USB 3.0, Microphone, Headphone, D-RGB LED control | ||

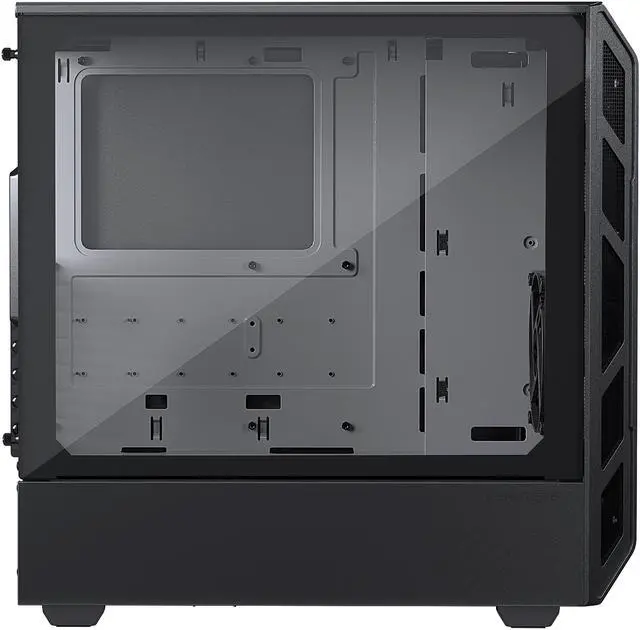

| Side Window | Yes, Tempered glass | ||
| PCI Slots & Drive Bays | |||

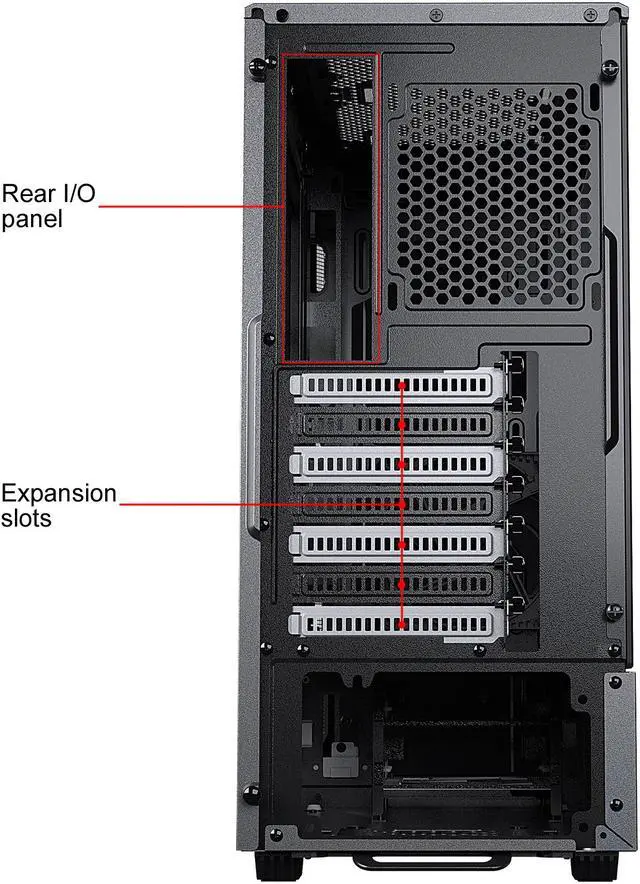

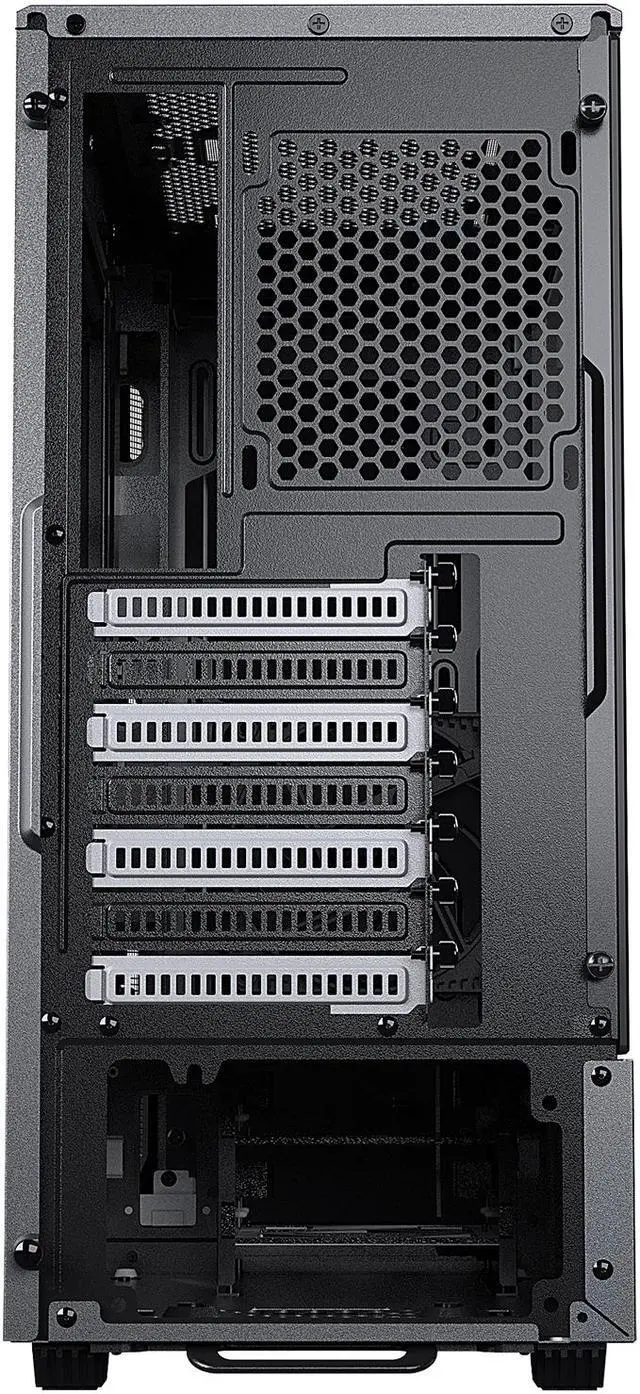

| PCI slots | 7 | ||
| Internal 3.5" | 2x (2 included) | ||

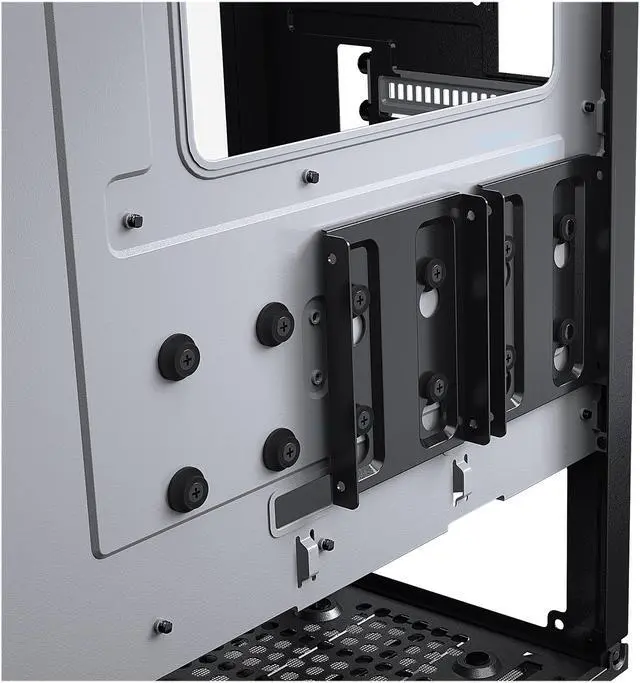

| Internal 2.5" | 3x (2 included) | ||
| COOLING | 120mm fan | 140mm fan | |
| Front | 2x (1 included) | 2x | |
| Top | 2x | 2x | |
| Rear | 1x | ||
| LIQUID COOLING | 120mm radiator | 140mm radiator | |
| Front | Up to 240 | Up to 280 | |
| Rear | 120 | - | |
| Included Accessories | |||
| Premium fan 120mm | 1x | ||
| 3.5" modular HDD bracket | 2x | ||
| 2.5" SSD bracket | 2x | ||
| CLEARANCE | |||
| CPU Cooler | 160 mm (6.3 in) | ||
| Cable Management | 36 mm (1.4 in) | ||
| Graphic card | 400 mm (15.7 in) | ||
| Power supply (incl. cables) | 250 mm (9.8 in) | ||
| Packaging Information | |||
| Model | PH-EC350PTG_DBK PH-EC350PTG_DBW |
||
| Net Weigth | 6.4 KG (14.1 bls) | ||
| Gross Weigth | 7.6 KG (16.8 lbs) | ||
| Package Dimension | 510 mm x 285 mm x 535 mm (W x H x D) 20 in x 11.1 in x 20.9in |
||
| Warranty | |||
| Length | 5 Years Limited | ||
UPGRADABLE ACCESSORIES

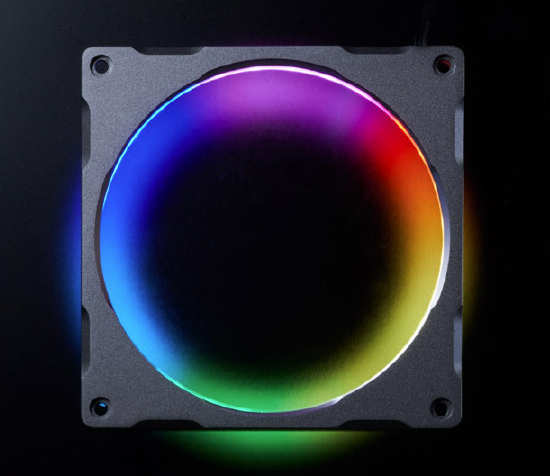

HALOS D-RGB FAN FRAMES
( PH-FF120DRGBP / PH-FF140DRGBP /
PH-FF120DRGBA /PH-FF140DRGBA)

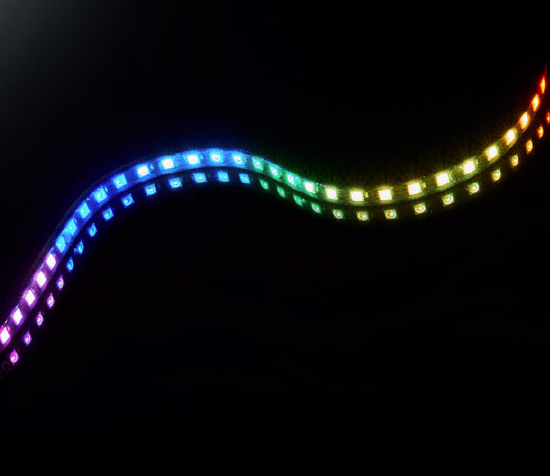

D-RGB LED STRIP
(PH-DRGBLED_CMBO)

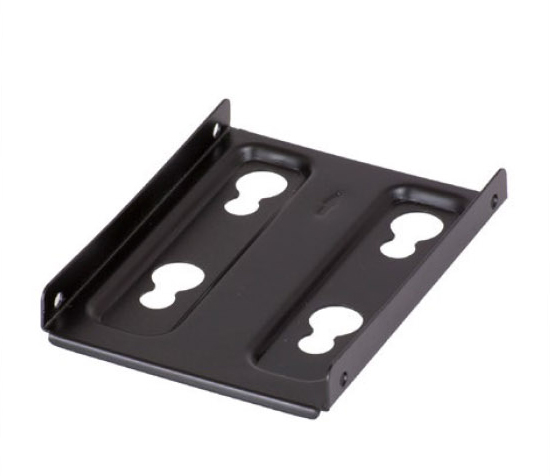

SSD UPGRADE
(PH-SDBKT_01)
