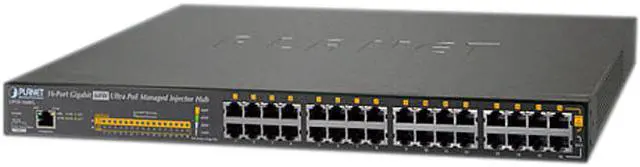

PLANET UPOE-1600G 16-Port Gigabit 60W Ultra PoE Managed Injector Hub (600 watts)
- UPOE-1600G
- PoE Injector
+
+
Specs
Reviews
Learn more about the PLANET UPOE-1600G
| Brand | PLANET |
|---|---|
| Model | UPOE-1600G |
| Type | PoE Injector |
|---|---|
| Specifications | Interface: "Data" Input Ports: 16 x RJ45 "Data + Power" Output Ports: 16 x RJ45 Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX Data Rate: 10/100/1000Mbps LED System: SYS PWR x 1 (Green), PoE Failure x 1 (Red), Fan Failure x 2 (Red) Management port x 2: 1000 (Green), 10/100(Orange) Per PoE Port: Ultra 60W PoE-in-use x 1 (Green), 802.3at/af PoE-in-use x1 (Orange), PoE Power Usage LED x4 (Green) Power Requirements: 100 - 240V AC, 50/60 Hz, 8A Power Consumption: 800 watts (max.) / 2729BTU Ventilation: Fan x 3 Enclosure: Metal PoE Standard: IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus 4-pair Ultra PoE PoE Power Supply Type: End-span / Mid-span / UPoE (Ultra PoE) Power Pin Assignment: Pair 1 end-span: 1/2(-), 3/6(+) Pair 2 mid-span: 4/5(+), 7/8(-) UPoE: 1/2(-), 3/6(+),4/5(+), 7/8(-) PoE Power Output: DC 52V/60-watt PoE via 4-pair DC 52V/30-watt PoE via 2-pair PoE Power Budget: 600 watts / 2047BTU Number of 60W PDs can be powered: 10 Number of 802.3af PDs (Class 0, 1, 2, 3) can be powered: 16 Number of 802.3at PDs (Class 1, 2, 3) can be powered: 16 Number of 802.3at PDs (Class 0, 4) can be powered: 16 Regulatory Compliance: FCC Part 15 Class A, CE |
| Features | Interface Complies with the IEEE 802.3, IEEE 802.3u and IEEE 802.3ab Ethernet standards 32-port RJ45: 16-port 10/100/1000Mbps "Data input" 16-port 10/100/1000Mbps "Data + Power output" 1 10/100/1000BASE-T management port Power over Ethernet: Ultra Power over Ethernet end-span/mid-span PSE Up to 60 watts of power on 4-pair UTP Backward compatible with IEEE 802.3at/af PD device 52V DC, 60-watt PoE power output at maximum on each port 600-watt PoE budget Auto-detection of IEEE 802.3at/af PoE equipment and device to avoid possible damage by incorrect installation Circuit protection prevents power interference between ports Remote power feeding up to 100m PoE Management: Per port PoE power schedule PoE function enable/disable Per port PoE function enable/disable PoE port power feeding priority PD classification detection Over temperature protection PD alive check PoE schedule Management: Web interface for remote management Supports Network Time Protocol (NTP) Firmware upgrade through Web interface PLANET Smart Discovery utility automatically finds PLANET devices on the network SNMP trap for alarm notification of events System log/remote syslog Hardware: 19-inch rack mountable; 1U height Reset button for resetting to default setting and system reboot LED indicators for PoE ready and PoE activity LED indicators for power alert and fan alert LED indicators for PoE power usage status (watts) FCC Part 15 Class A, CE |
|---|
| First Listed on Newegg | January 28, 2019 |
|---|
