- CHIPSET: Features the Intel 945GV chipset, delivering reliable and stable performance for everyday computing tasks.
- CPU SOCKET: Equipped with an LGA775 socket, compatible with a wide range of Intel Pentium processors.
- ISA PCI SLOT: Includes 2 ISA slots and 5 PCI slots, making it ideal for systems that require compatibility with older expansion cards.
- FORM FACTOR: ATX form factor design fits standard ATX cases and supports multiple expansion slots for added versatility.
- ISA PCI Mainboard ATX Motherboard,Compatible devices: Server,Computer desktop PC

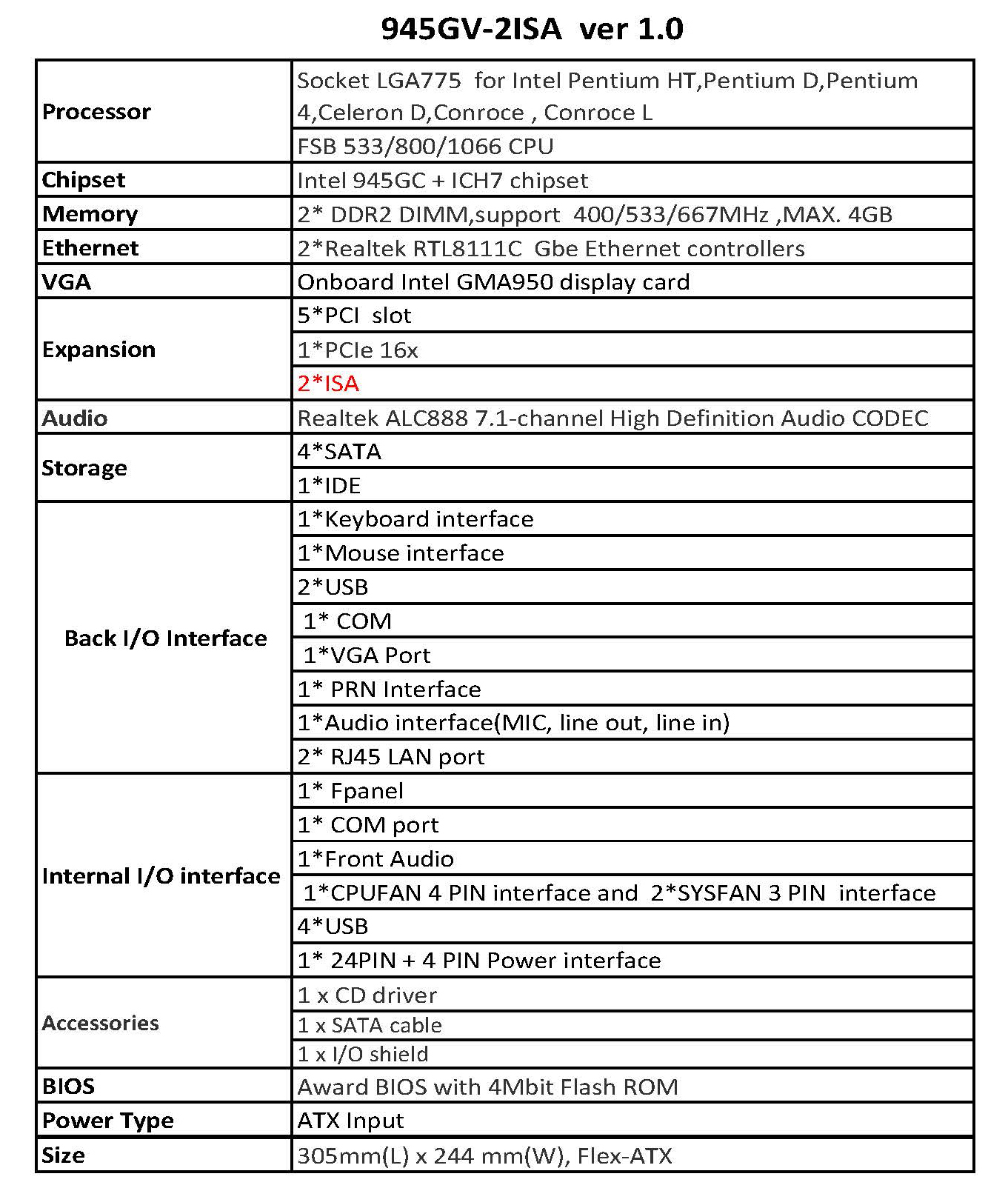

- Processor CPU
Socket LGA775 for Pentium HT, Pentium D, Pentium 4, Celeron D, Conroce L FSB 533/800/1066 CPU
- Chipset
945GC + ICH7 chipset
- Memory
2* DDR2 DIMM, support 400/533/667MHz, MAX. 4GB
- Ethernet
2*Realtek RTL8111C Gbe Ethernet controllers
Expansion
5 * PCI slots ,
1 * PCIe 16x slot ,
2 * ISA slots
Audio
Realtek ALC888 7.1 channel High Definition Audio CODEC
Storage
4 * SATA ports,
1 * IDE port

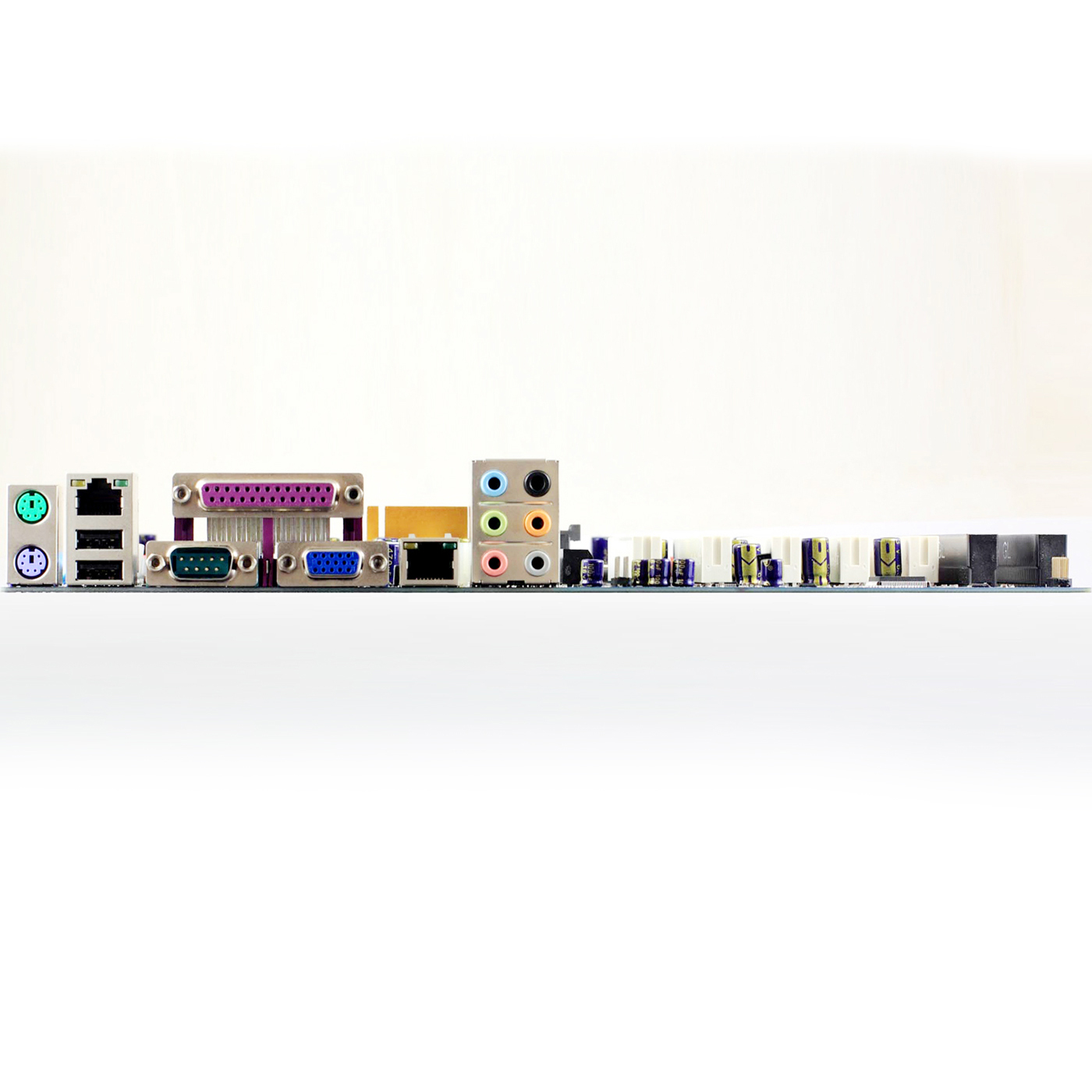

Back I/O Interface
1 * Keyboard interface
1 * Mouse interface
2 * USB ports
1 * COM port
1 * VGA Port
1 * PRN Interface
1 * Audio interface(MIC, line out, line in)
2 * RJ45 LAN ports
BIOS Award BIOS with 4Mbit Flash ROM
Power Type ATX Input
Size
305mm (L) x 244 mm (W),
FlexATX

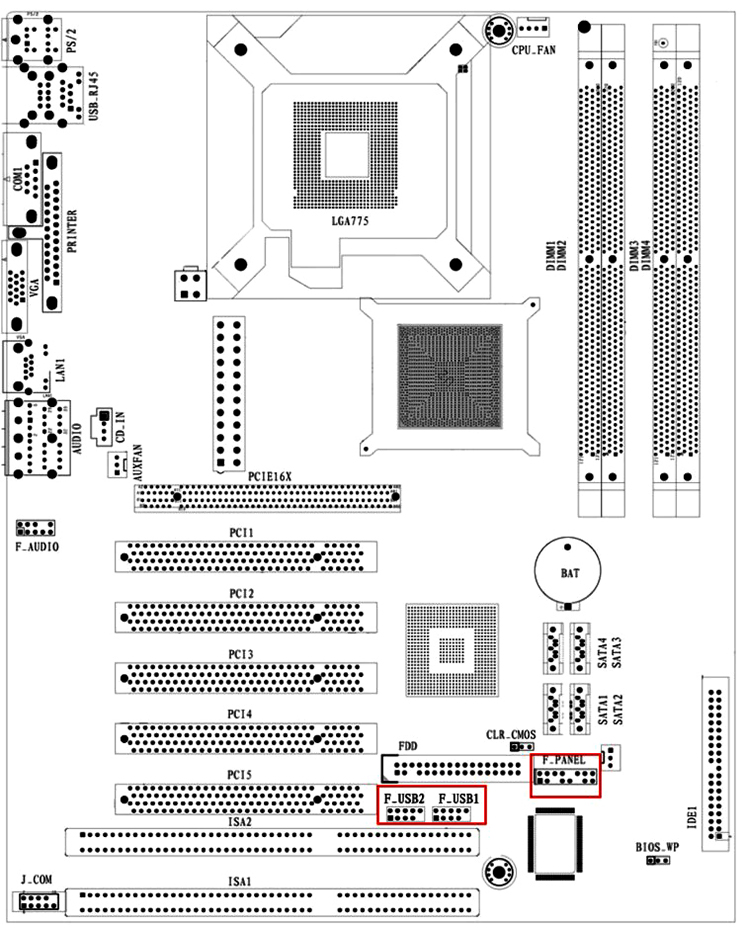

Internal I/O interface
1 * Fpanel
1 * COM port
1 * Front Audio
1 * CPUFAN 4 PIN interface and 2*SYSFAN 3 PIN interface
4 * USB ports
1 * 24PIN + 4 PIN Power interface

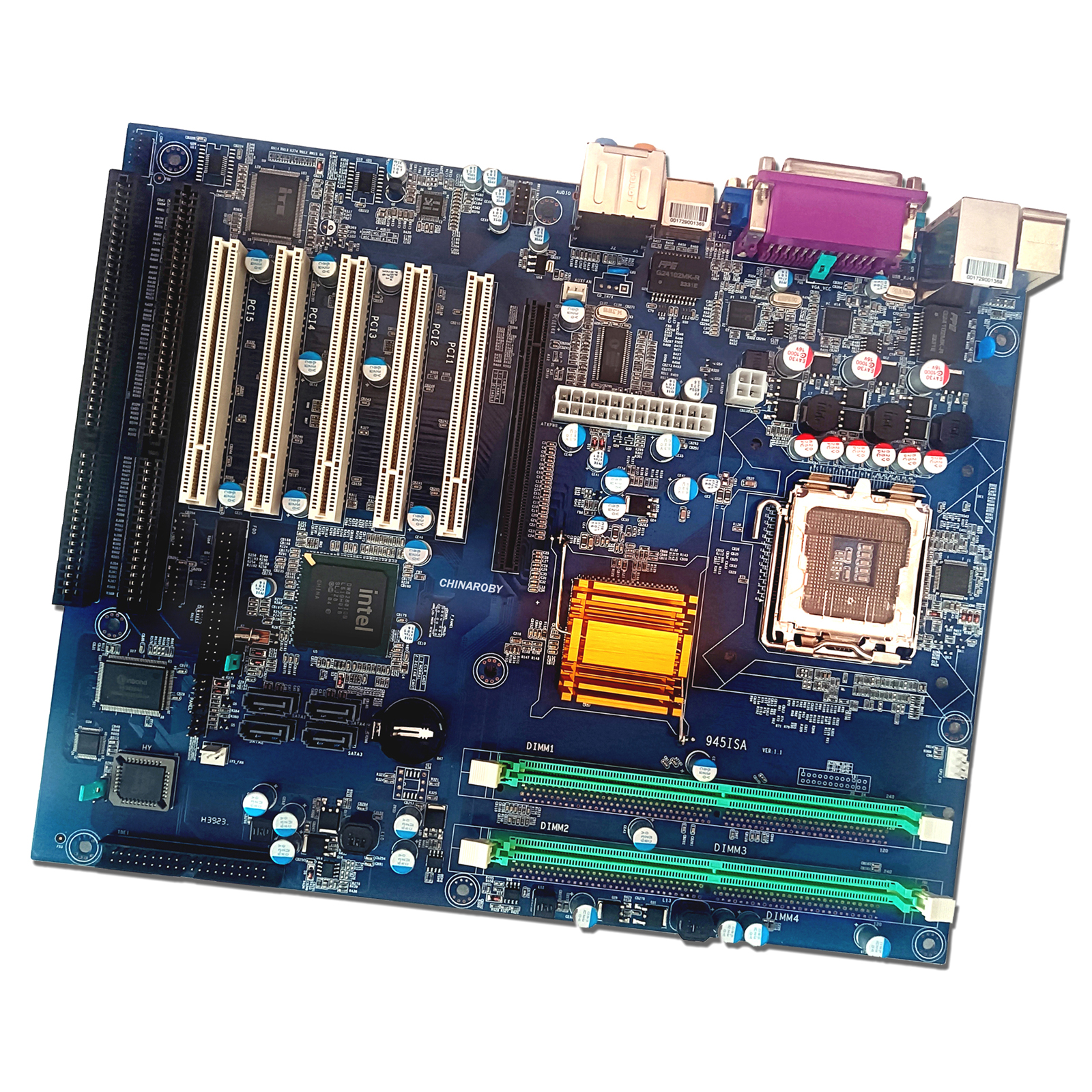

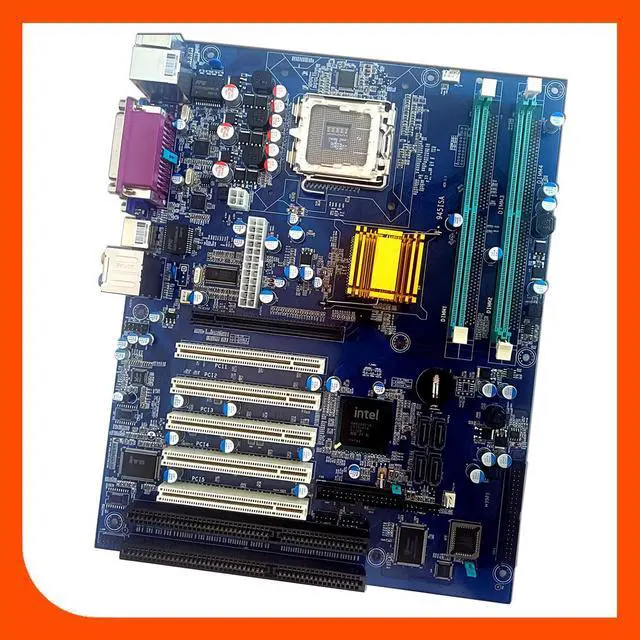

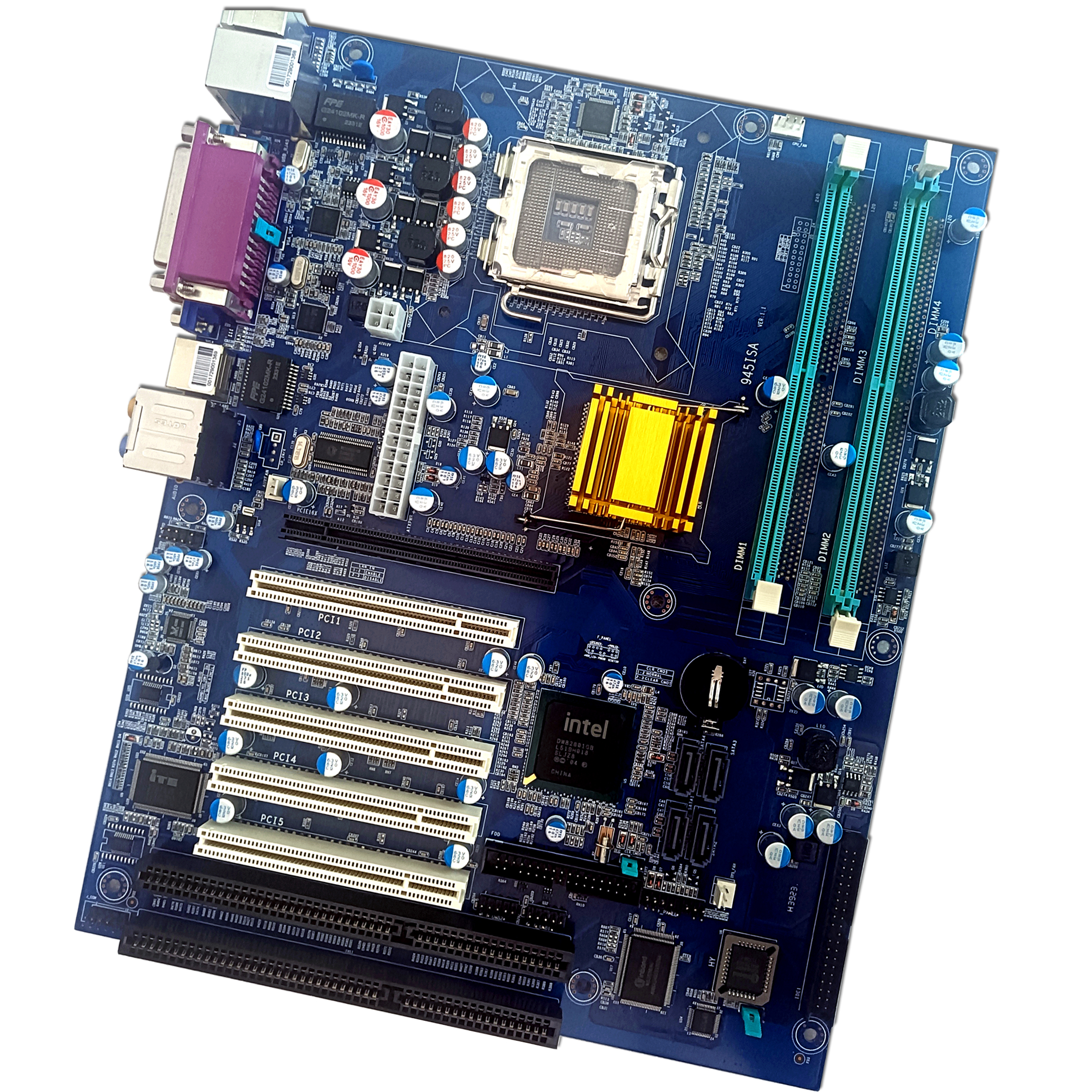

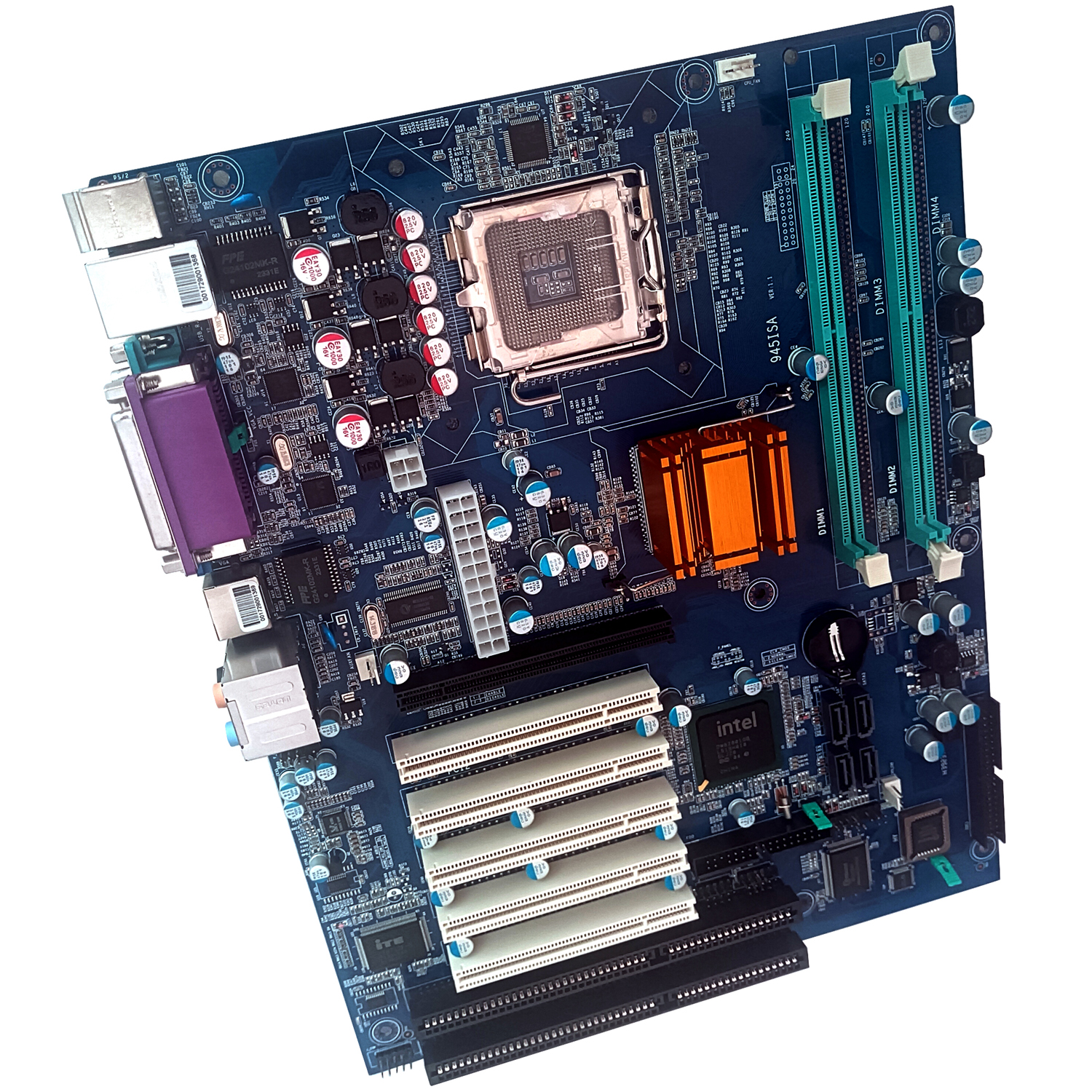

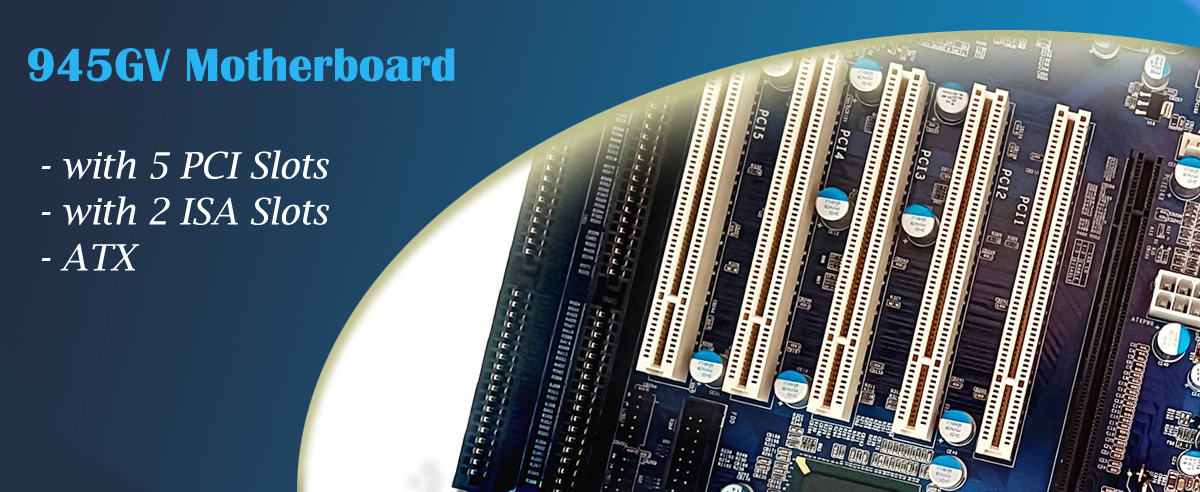

- The 945GV ATX Motherboard is a reliable and feature-packed solution for building or upgrading a desktop PC.
- Powered by the Intel 945GV chipset and featuring an LGA775 socket, this motherboard supports a wide range of Intel processors, making it a versatile choice for everyday computing needs.
- One of its standout features is the inclusion of 2 ISA slots and 5 PCI slots, making it ideal for users who need to run older expansion cards alongside modern hardware.
- The board offers 4 SATA connectors for fast storage connectivity.
- With a full ATX form factor, it fits standard mid-tower and full-tower cases with ease.
- The rear I/O panel includes essential ports to connect your peripherals right out of the box. Whether you are building a budget workstation, a legacy-compatible system, or a reliable office PC, this motherboard delivers solid performance and broad compatibility.
- Please verify socket and chipset compatibility with your chosen components before purchasing.
