Learn more about the Sapphire Tech 11305-01-20G
ModelBrand | SAPPHIRE |
---|
Series | NITRO+ |
---|
Model | 11305-01-20G |
---|
InterfaceInterface | PCI Express 4.0 |
---|
ChipsetChipset Manufacturer | AMD |
---|
GPU Series | AMD Radeon RX 6000 Series |
---|
GPU | Radeon RX 6800 |
---|
Stream Processors | 3840 Stream Processors |
---|
MemoryMemory Size | 16GB |
---|
Memory Interface | 256-Bit |
---|
Memory Type | GDDR6 |
---|
PortsMulti-Monitor Support | 4 |
---|

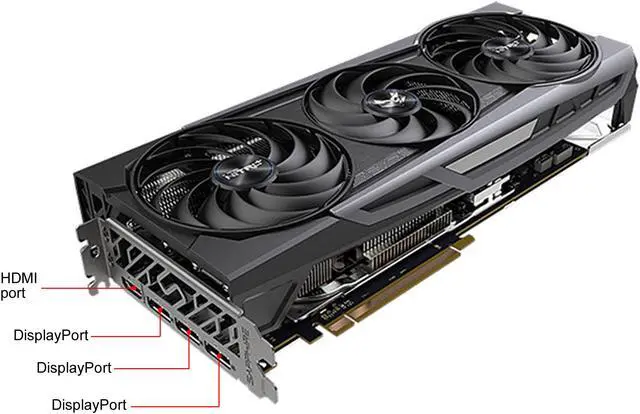

HDMI | 1 x HDMI 2.1 |
---|
DisplayPort | 3 x DisplayPort 1.4 |
---|
DetailsMax Resolution | 7680 x 4320 |
---|
Virtual Reality Ready | Yes |
---|
Cooler | Triple Fans |
---|
Operating Systems Supported | Linux, Windows 7*, Windows 10, and Windows 8.1. 64-bit operating system required * Does not support all features including but not limited to Hardware Raytracing |
---|
System Requirements | Minimum 750-Watt Power Supply. 2 x 8-pin Power Connector. PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
---|
Recommended PSU Wattage | 750W |
---|
Power Connector | 2 x 8-Pin |
---|
FeaturesFeatures | AMD RDNA 2 Architecture DirectX 12 Ultimate Hardware Raytracing 7nm GPU GDDR6 Memory PCI Express 4.0 Support AMD FreeSync Technology DisplayPort 1.4 with DSC HDMI 2.1 VRR Video Streaming up to 8K Radeon VR Ready Premium AMD FidelityFX Radeon Image Sharpening Radeon Anti-Lag Radeon Software Game Driver Optimizations |
---|
Form Factor & DimensionsForm Factor | ATX |
---|
Max GPU Length | 310 mm |
---|
Card Dimensions (L x H) | 12.22" x 5.28" |
---|
Slot Width | 2.7 slot |
---|
Additional InformationFirst Listed on Newegg | June 11, 2025 |
---|
