Brand | SilverStone |
---|---|
Series | Essential Series |
Type | ATX |
---|---|
Maximum Power | 550 W |

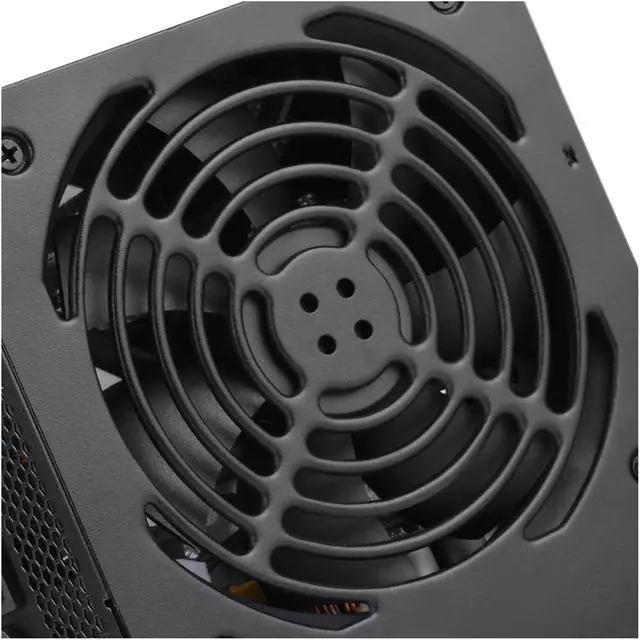

Fans | Single 120mm silent fan |
PFC | Active PFC(PF > 0.90 at full load) |

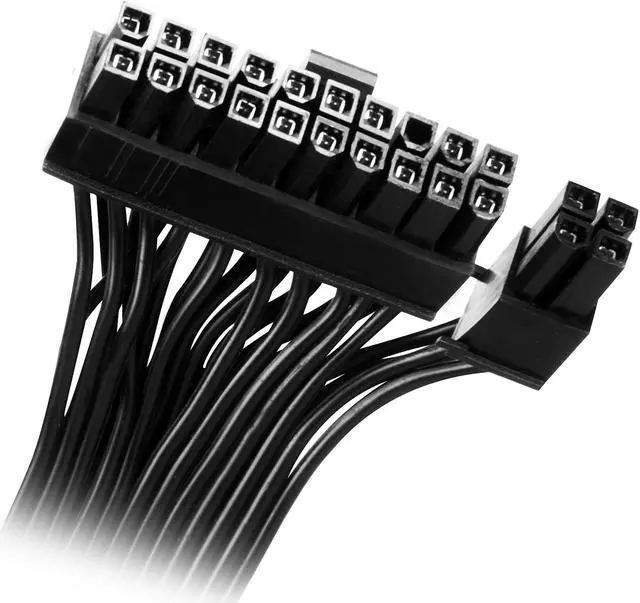

Main Connector | 1 x 24 / 20-Pin motherboard connector (500mm) |
+12V Rails | Single |

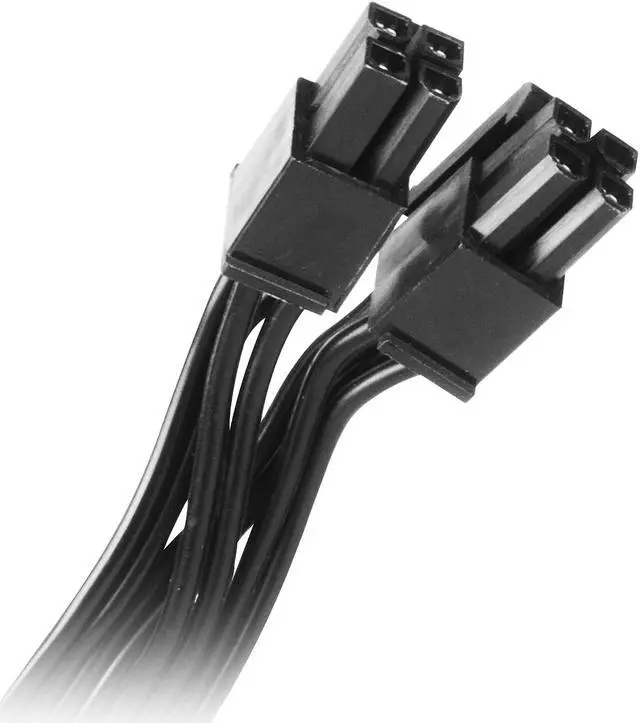

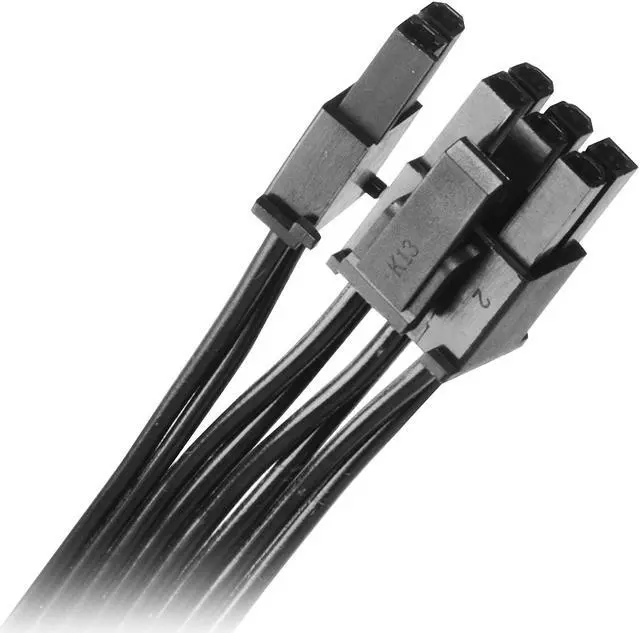

PCI-Express Connector | 2 x 8 / 6-Pin PCIe connector (500mm / 150mm) |

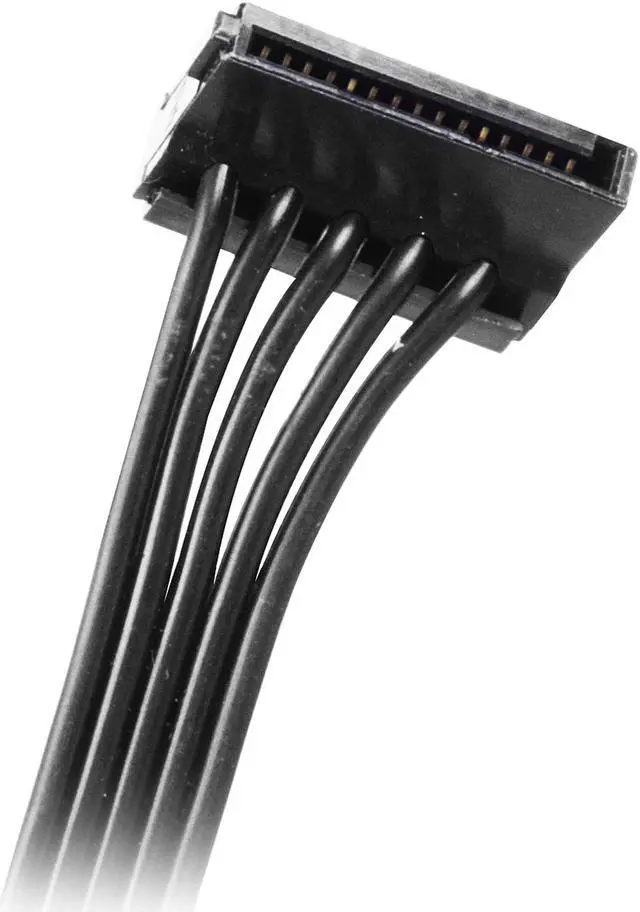

SATA Power Connector | 8 x SATA connector ("500mm / 150mm / 150mm / 150mm" x 2) |
Max PSU Length | 160 mm |
Efficiency | > 85% |
Energy-Efficient | 80 PLUS GOLD Certified |
Over Voltage Protection | Yes |
Input Voltage | 90 - 264 V |
Input Frequency Range | 47 - 63 Hz |
Output | 24 / 7 continuous power output with 40 degrees Celsius operating temperature |
MTBF | >100,000 Hours |

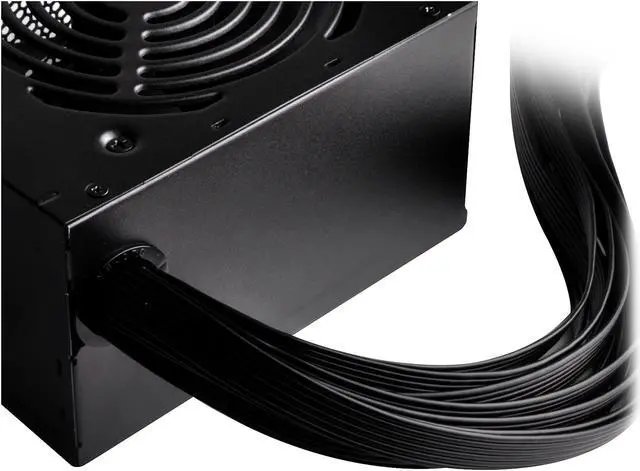

Features | High efficiency with 80 PLUS Gold certification 24 / 7 continuous power output with 40 degrees Celsius operating temperature Class-leading single +12V rail Silent running 120mm fan with 18 dBA PCIe 8pin and PCIe 6pin connectors support All-black flat cables design |
---|
Dimensions | 3.39" x 5.91" x 5.51" |
---|---|
Weight | 3.40 lbs. |
Type | Compatible with ATX12V v2.4 |
---|---|
PFC | Active PFC(PF > 0.90 at full load) |
+12V Rails | Single |
Efficiency | > 87% |
Energy-Efficient | 80 PLUS GOLD Certified |
MTBF | >100,000 Hours |
Input Voltage | 90 - 264 V |
---|---|
Frequency Range | 47 - 63 Hz |

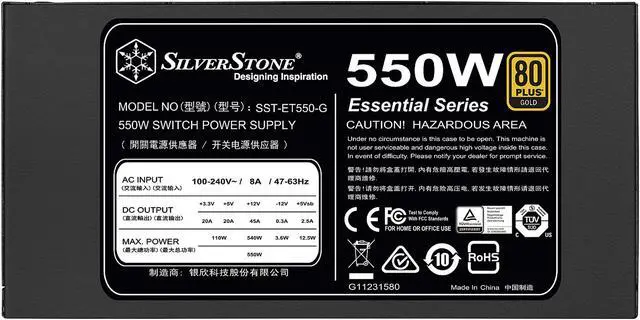

+3.3V Max. Current | 20A |
---|---|
+5V Max. Current | 20A |
+12V1 Max. Current | 45A |
-12V Max. Current | 0.3A |
+5VSB Max. Current | 2.5A |
Main Connector | 20+4 Pin |
---|---|
12V Power Connector | 1 x 4+4 Pin ATX/EPS 12V |
SATA Power Connector | 8 x SATA connector ("500mm / 150mm / 150mm / 150mm" x 2) |
Fans Total Quantity | 1 |
---|---|
Top Fans Size | 120mm |
Top Fans Noise Level | Single 120mm silent fan |
Over Voltage Protection | Yes |
---|---|
Short Circuit Protection | Yes |
Over Current Protection | Yes |
Over Power Protection | Yes |
Over Temperature Protection | Yes |
Dimensions | H x W x D: 3.39" x 5.91" x 5.51" |
---|---|
Weight | 3.40 lbs. |
