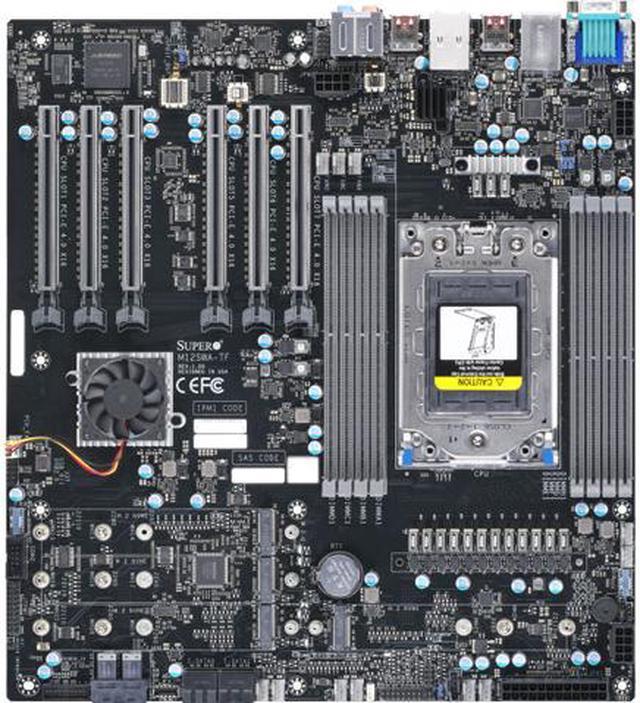

Supermicro MBD-M12SWA-TF-O AMD Ryzen Threadripper PRO Workstation 5000WX/3000WX Series EATX Motherboard, Up To 64-Core, Socket sWRX8/SP3, WRX80 Chipset, with 8 DDR4 DIMM Slots

(4)(4) Write a Review
  • 1.AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to
  • 64 Cores
  • 2.Up to 2TB (RDIMM) / 256GB (UDIMM), ECC/Non-ECC, Unbuffered, U-DIMM,
  • R-DIMM, LRDIMM, and 3DS R-DIMM; 3200Mhz in 8 DIMM slots
  • 3.6 PCI-E 4.0 x16 slots
  • M.2 Interface: 4 PCI-E 4.0 x4 (Software RAID 0,1,5,10)
  • M.2 Form Factor: 2280, 22110
  • M.2 Key: M-key
  • U.2 Interface: 2 U.2 sockets (Software RAID 0,1)
  • 4.4 SATA 3.0 6Gbps (Software Raid 0,1,5 & 10)
  • 5.1x 10GBase-T LAN port,
  • 1 GbE LAN port (shared with IPMI)
  • 6.ASPEED AST2600 BMC graphics
  • 7.1 USB 3.2 Gen2x2 port (Type C, 20Gbps),
  • 5 USB 3.2 Gen2 ports
  • (4 type A + 1 front type C header),
  • 5 USB 3.2 Gen1 ports
  • (3 type A + 2 via header),
  • 2 USB 2.0 ports via header
  • 8.1 COM port (rear),
  • TPM 2.0 header,
  • 7.1 Channel HD Audio
  • 9.10 fan header, 4-pin type fan header,
  • 112V-power header for liquid cooling
+
+
Specs
Reviews (4)

Learn more about the Supermicro M12SWA-TF

Model
Brand SUPERMICRO
Model M12SWA-TF
Supported CPU
CPU Socket Type Socket sWRX8
CPU Type Supports AMD Ryzen Threadripper PRO 5000WX/3000WX Series Processor
Chipsets
North Bridge AMD WRX80
Memory
Number of DDR4 Slots 8 x 288-pin
DDR4 Standard DDR4 3200
Maximum Memory Supported Supports up to 256GB Unbuffered non-ECC UDIMM or 2TB Registered ECC DDR 3200MHz SDRAM
Channel Supported Eight Channel
ECC Supported Yes
Registered Yes
Expansion Slots
PCI Express 4.0 x16 6
Other Slots Interface: 2 U.2 Sockets
Software RAID 0,1 support
Storage Devices
SATA 4 x SATA 6.0Gb/s
SATA RAID 0/1/5/10
M.2 Interface: 4 PCI-E 4.0 x4
Form factor: 2280, 22110
Key: M-key
Software RAID 0,1,5,10 support
Onboard Video
Onboard Video Chipset ASPEED AST2600 BMC
Onboard Audio
Audio Chipset ALC4050H + ALC1220
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Marvell AQC113C 10Gb controller
LAN Speed 10Gbps
Second LAN Chipset Intel I210-AT
Second LAN Speed 10Gbps
Max LAN Speed 10Gbps
Rear Panel Ports
COM 1
Video Ports D-Sub
RJ45 1 x RJ45 10GBase-T LAN port
1 x RJ45 GbE LAN port (shared with IPMI)
USB 3.0 3 x USB 3.0
USB 3.1 5 x USB 3.1 (Front Panel 1 Type-C)
USB 3.2 1 x USB 3.2 Type-C
Dimensions
Form Factor Extended ATX
Dimensions (W x L) 12" x 13"
Additional Information
Date First Available March 02, 2021
