Why does the description say "DDR3" when the specs clearly say "DDR4"?

A typo. This board requires DDR4.

¥288,991

Consumption Sales Tax-Inclusive Price

Limit 1 per customer.

Ships from Canada.

Most customers receive within 4-17 days.

Add to wish list

Sold by BTE Outlet

3.5 (1,429 seller ratings)

Shipped by BTE Outlet

Meet Your Seller

BTE Outlet

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

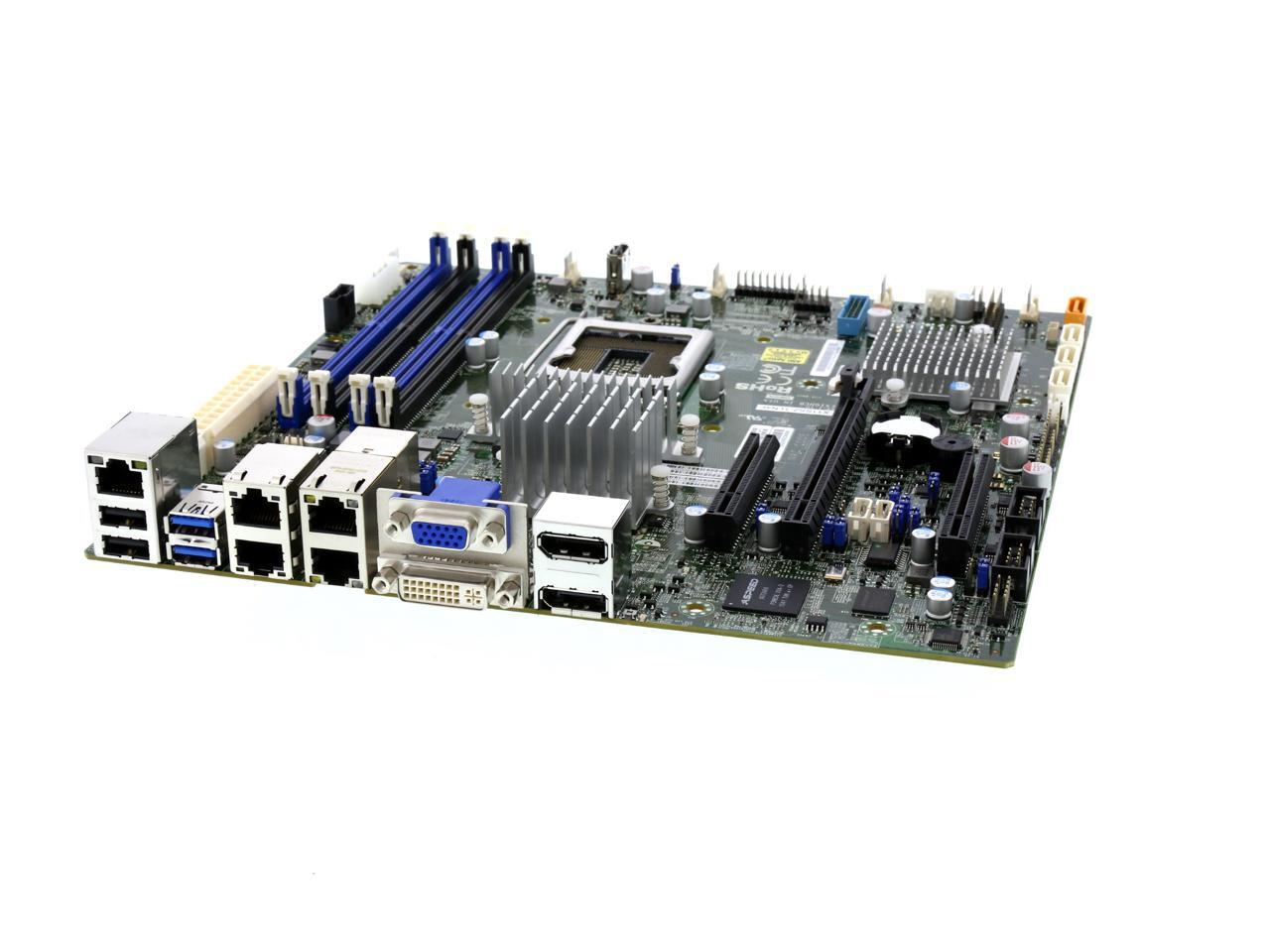

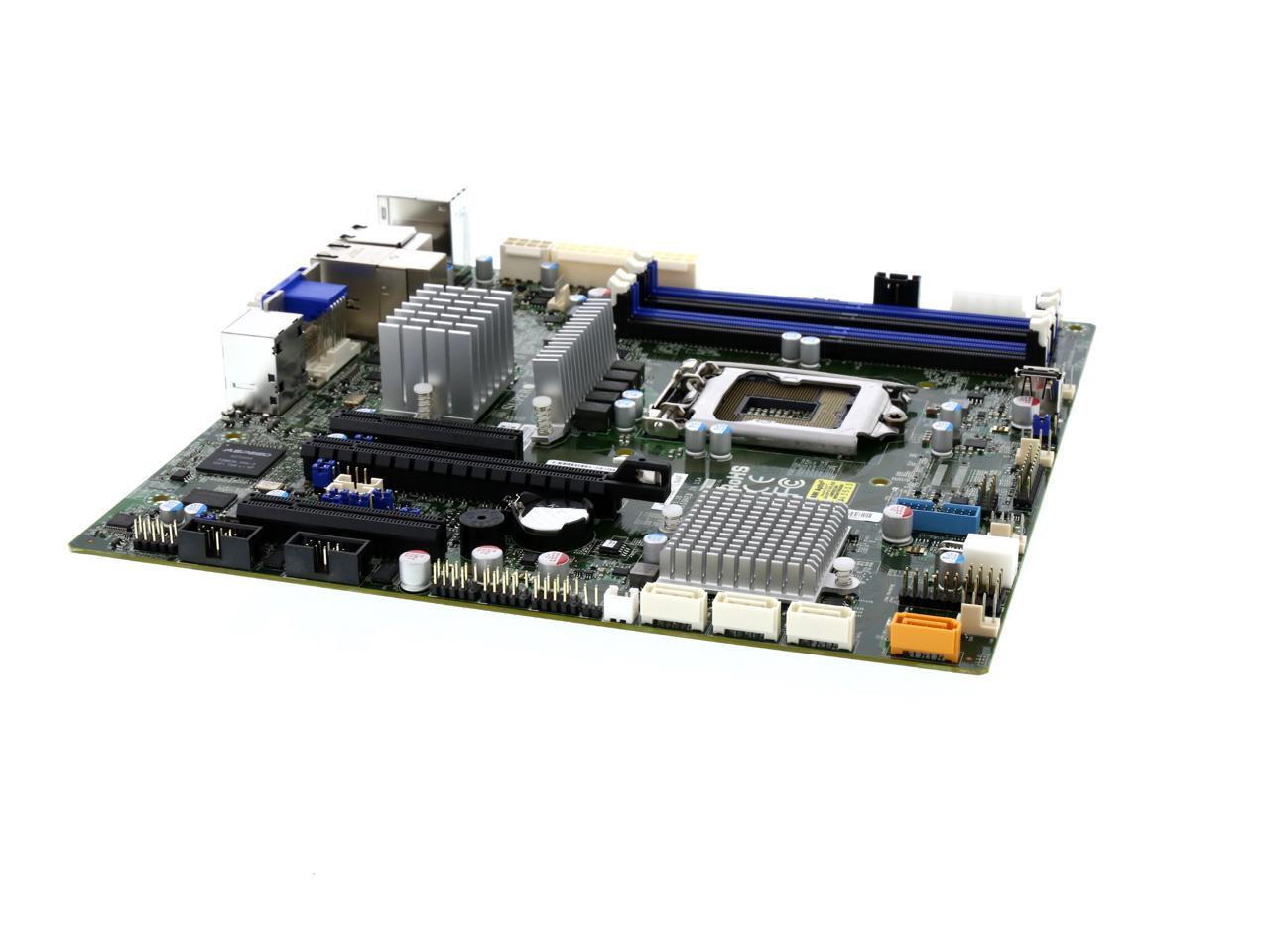

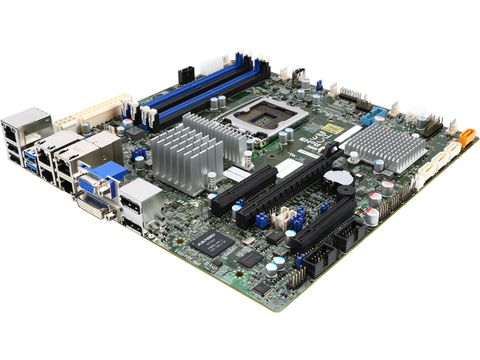

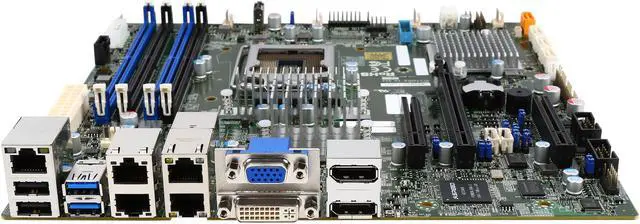

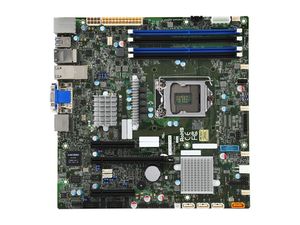

Main image of SUPERMICRO MBD-X11SSZ-TLN4F-O Micro ATX Server Motherboard LGA 1151 Intel C236 DDR3 1600

100%

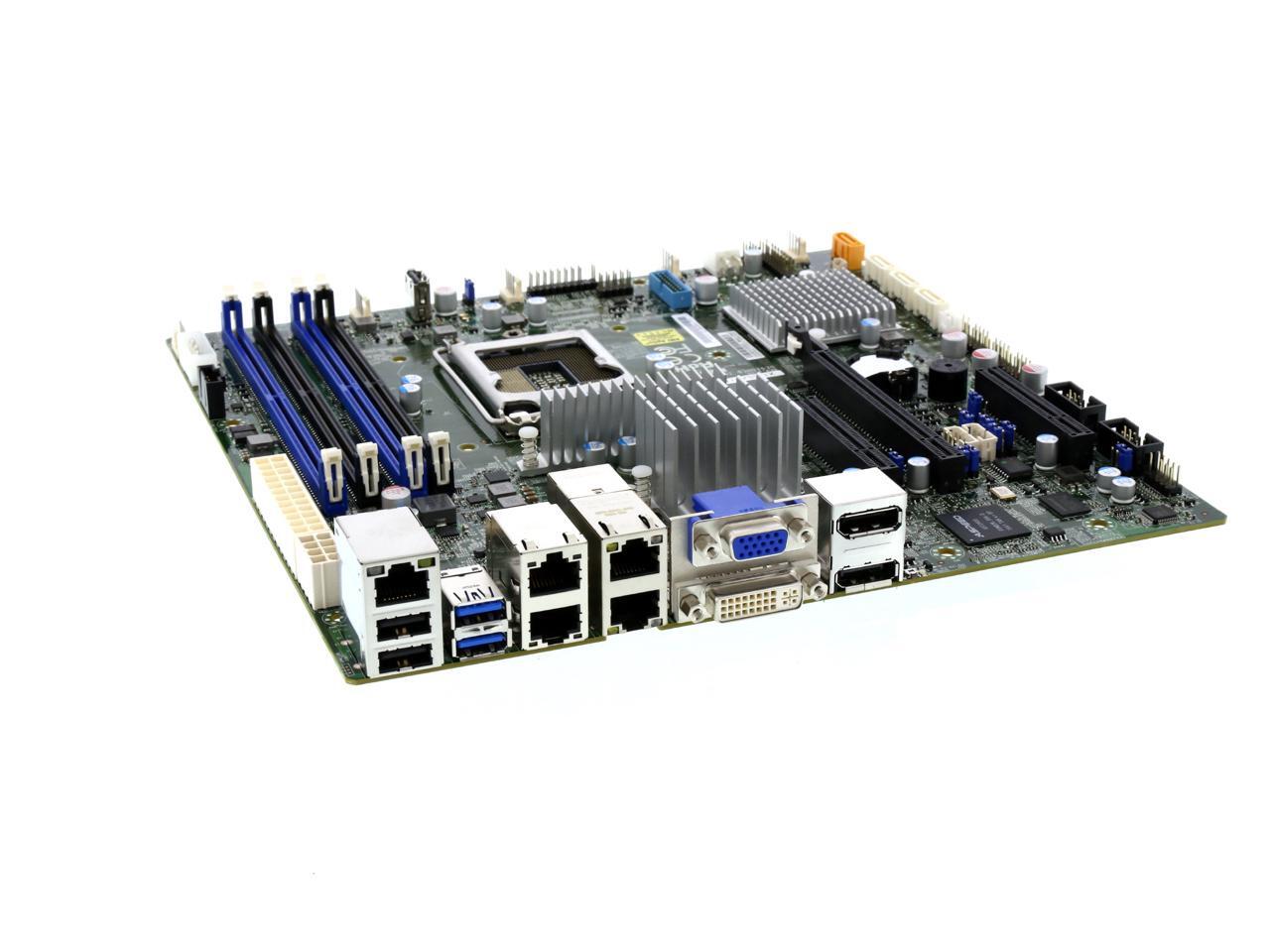

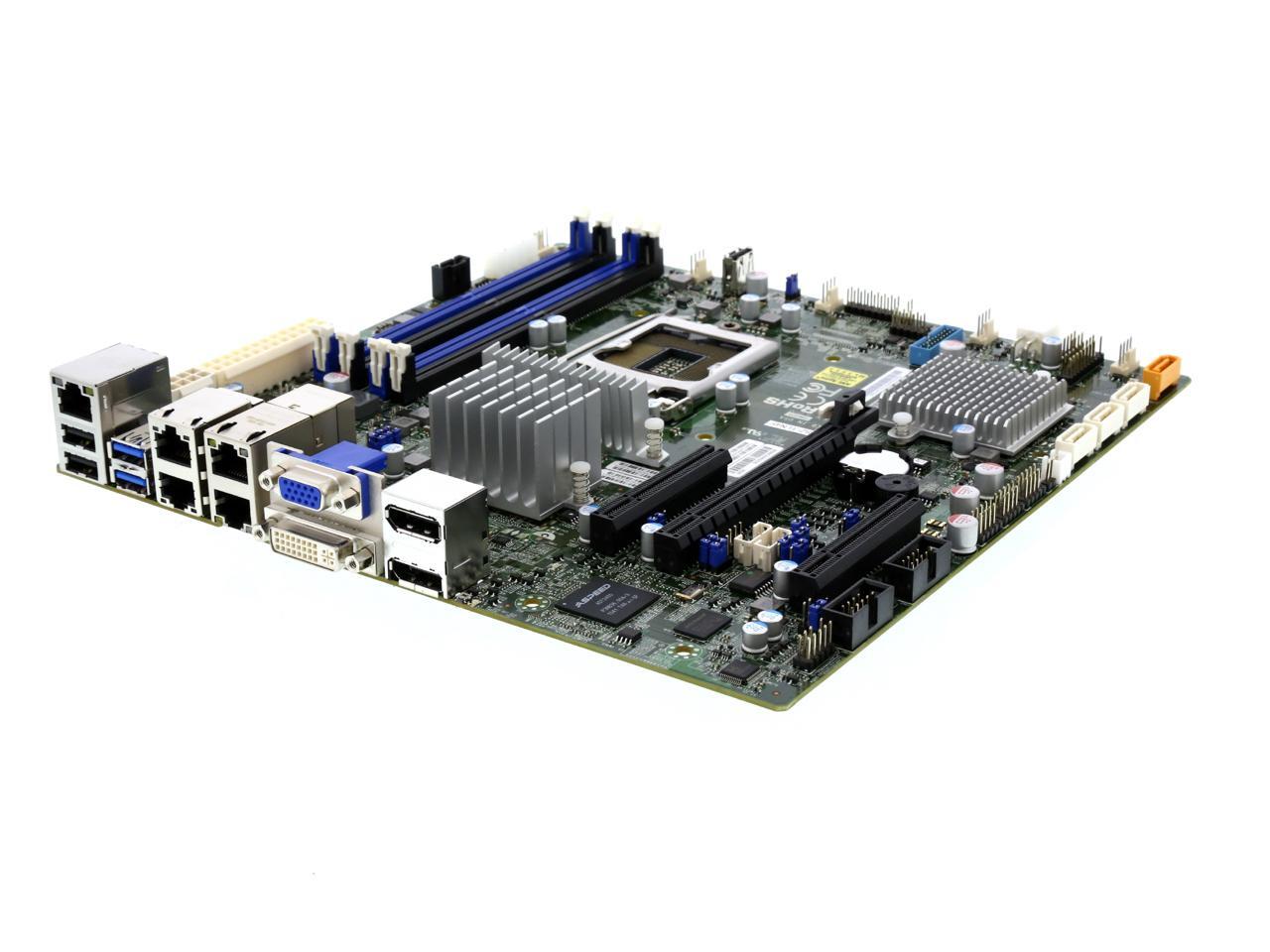

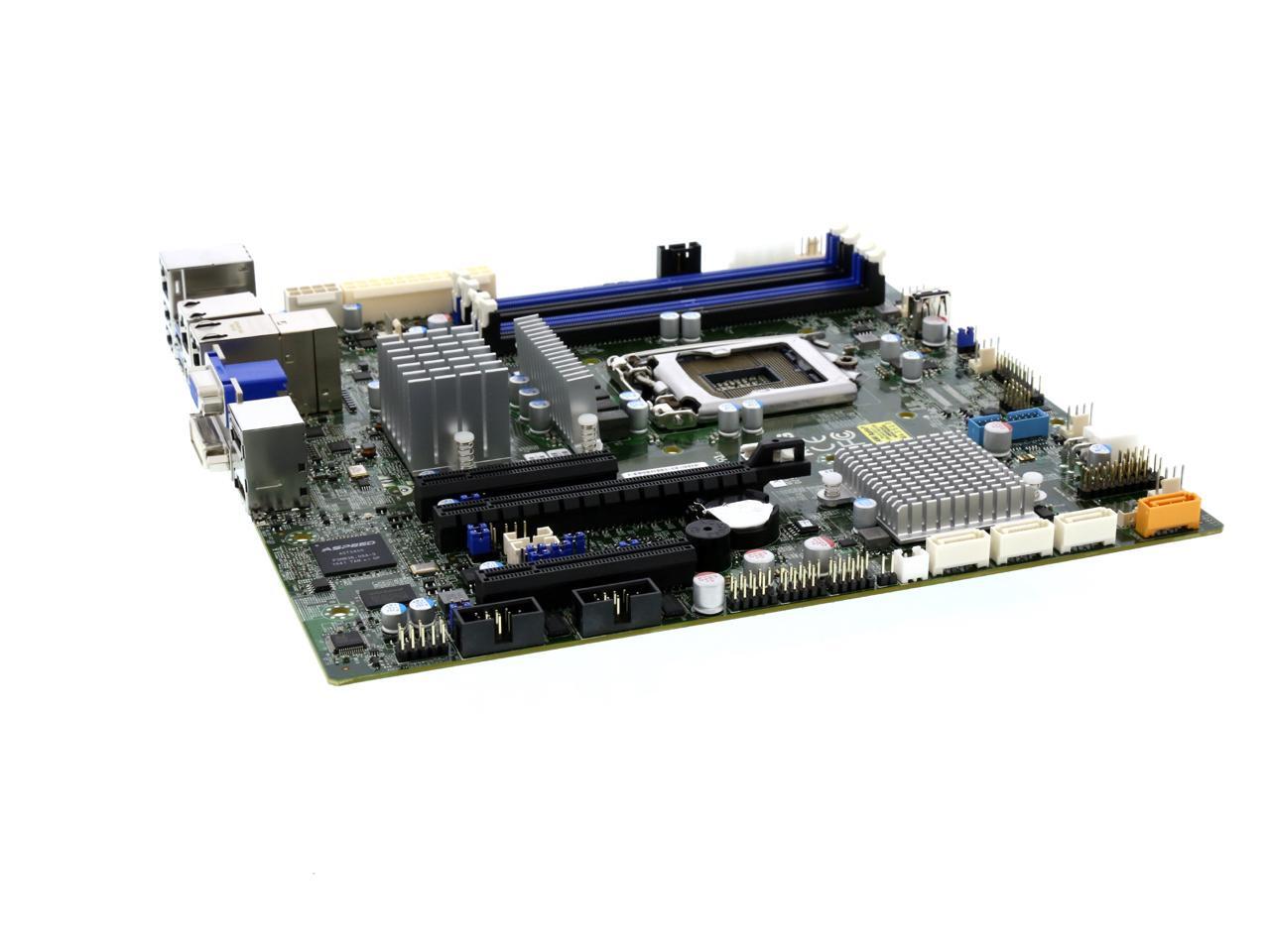

Alt view image 2 of 5 - SUPERMICRO MBD-X11SSZ-TLN4F-O Micro ATX Server Motherboard LGA 1151 Intel C236 DDR3 1600

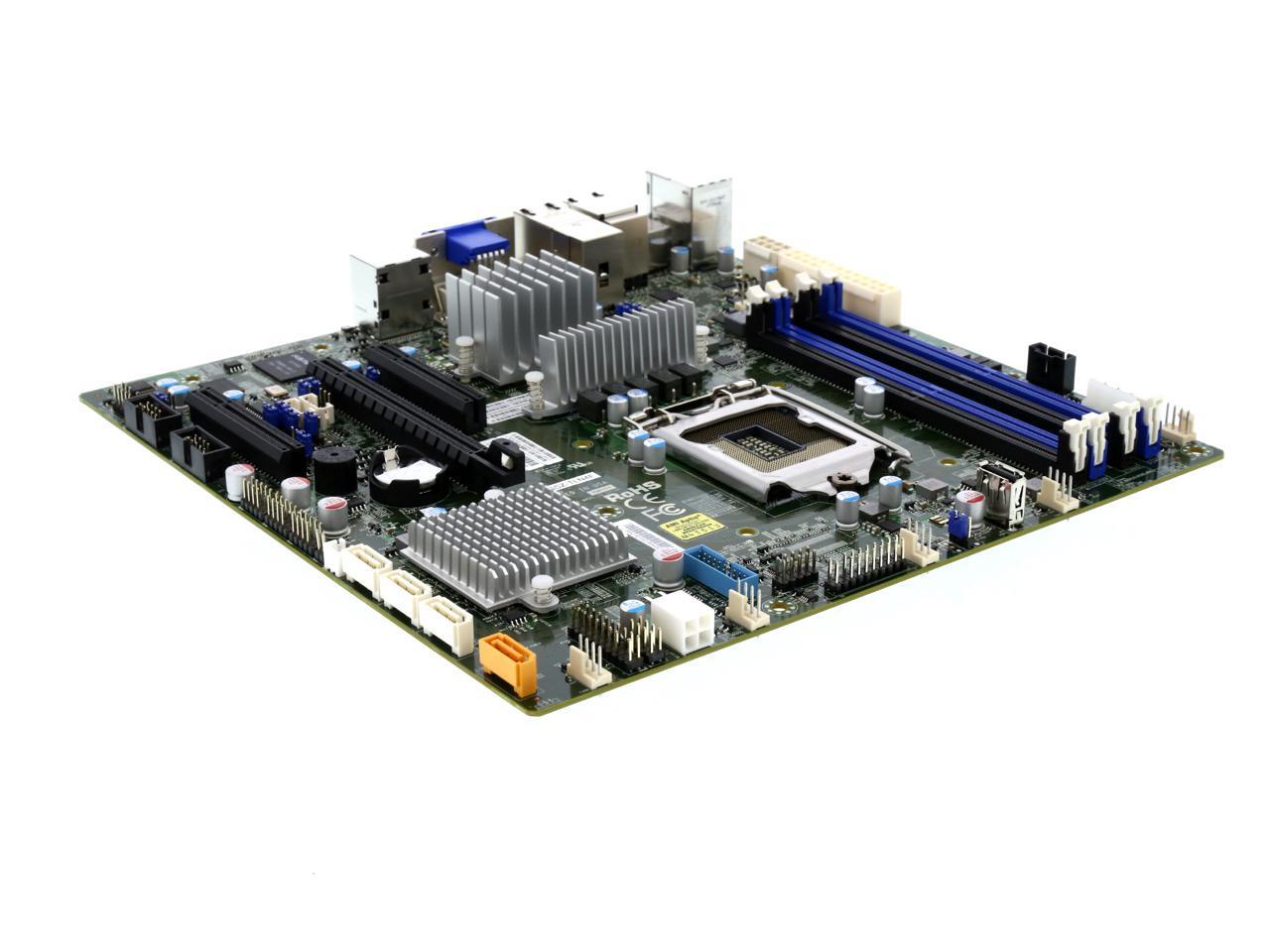

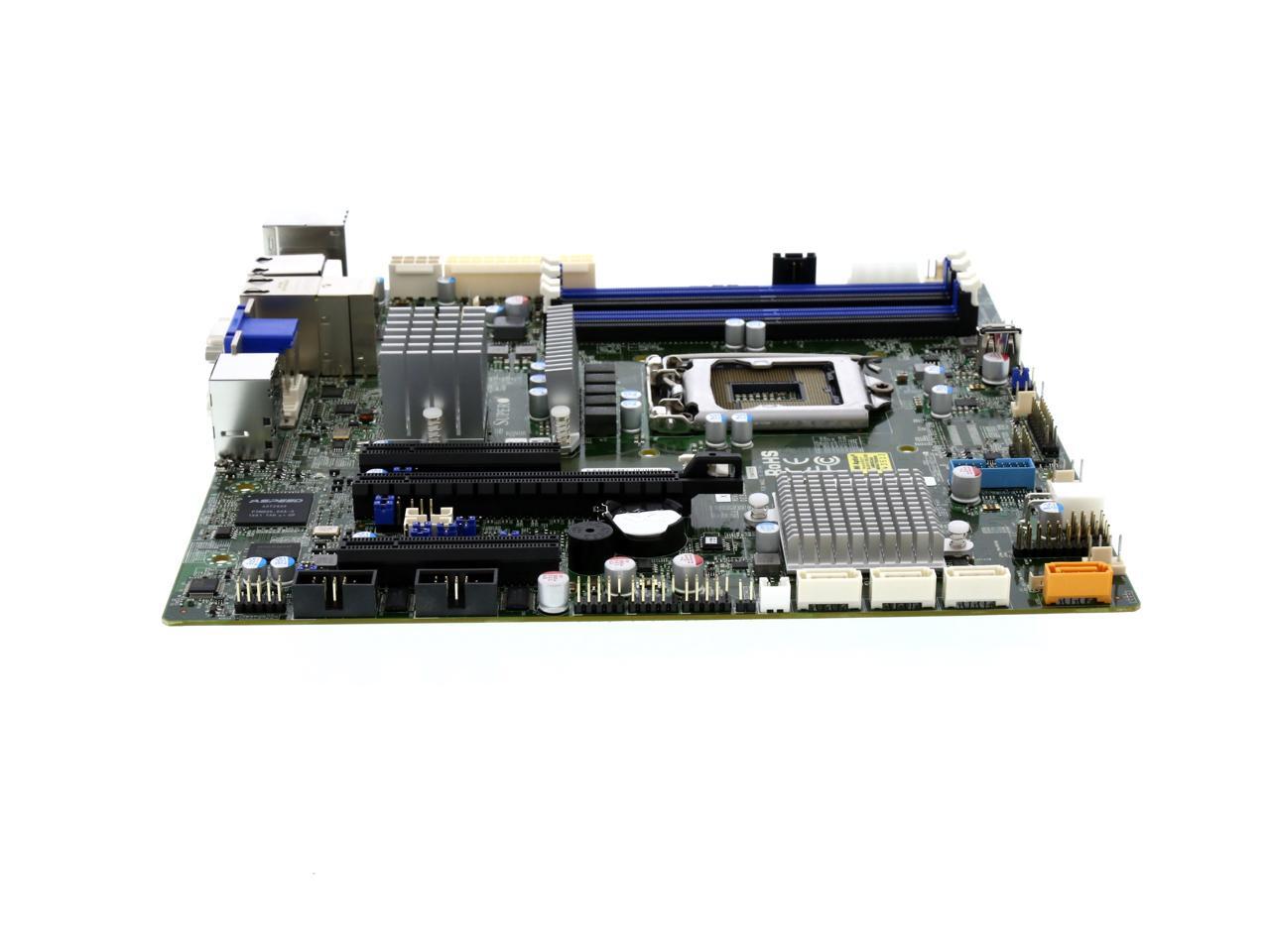

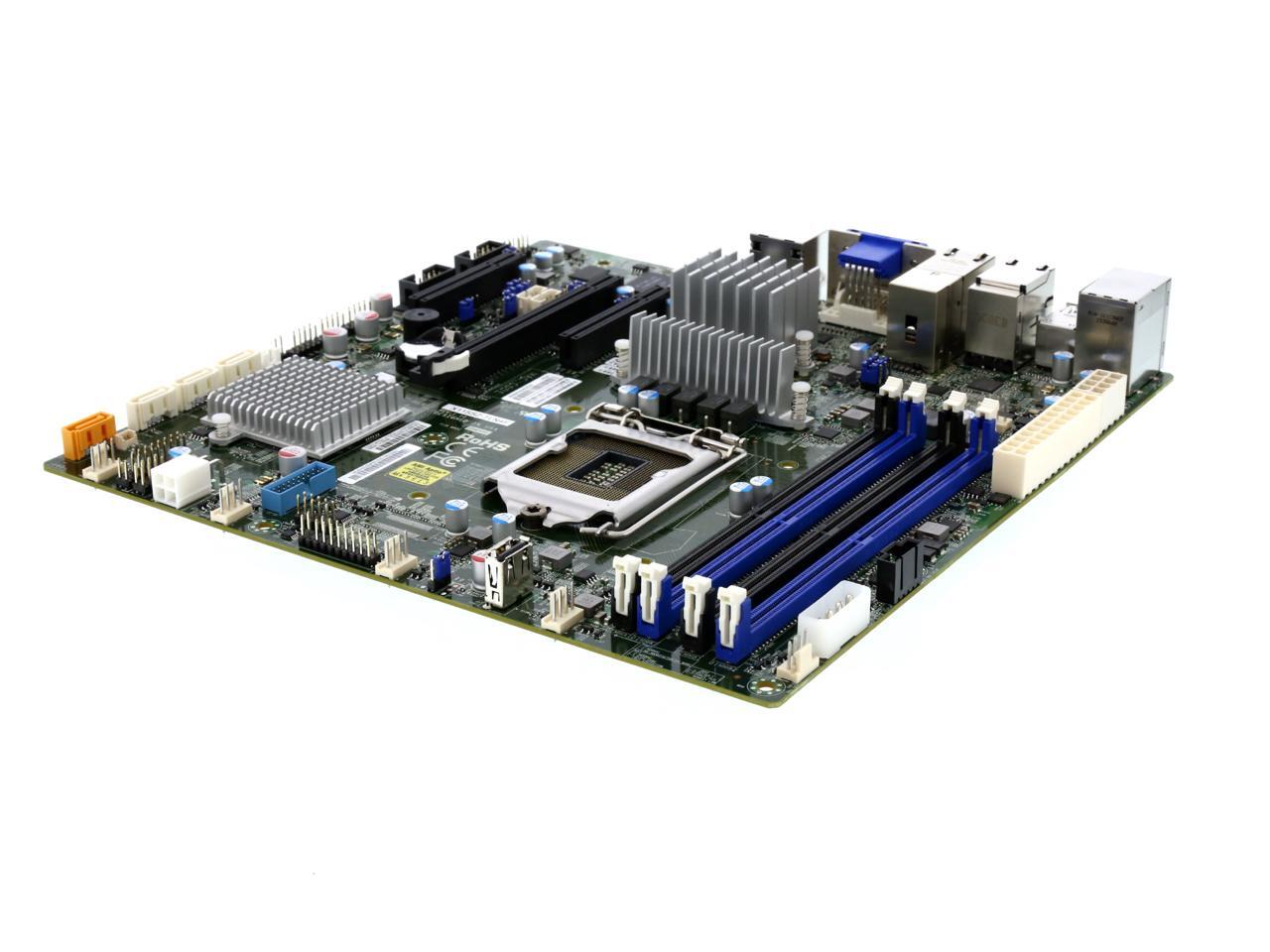

Alt view image 3 of 5 - SUPERMICRO MBD-X11SSZ-TLN4F-O Micro ATX Server Motherboard LGA 1151 Intel C236 DDR3 1600

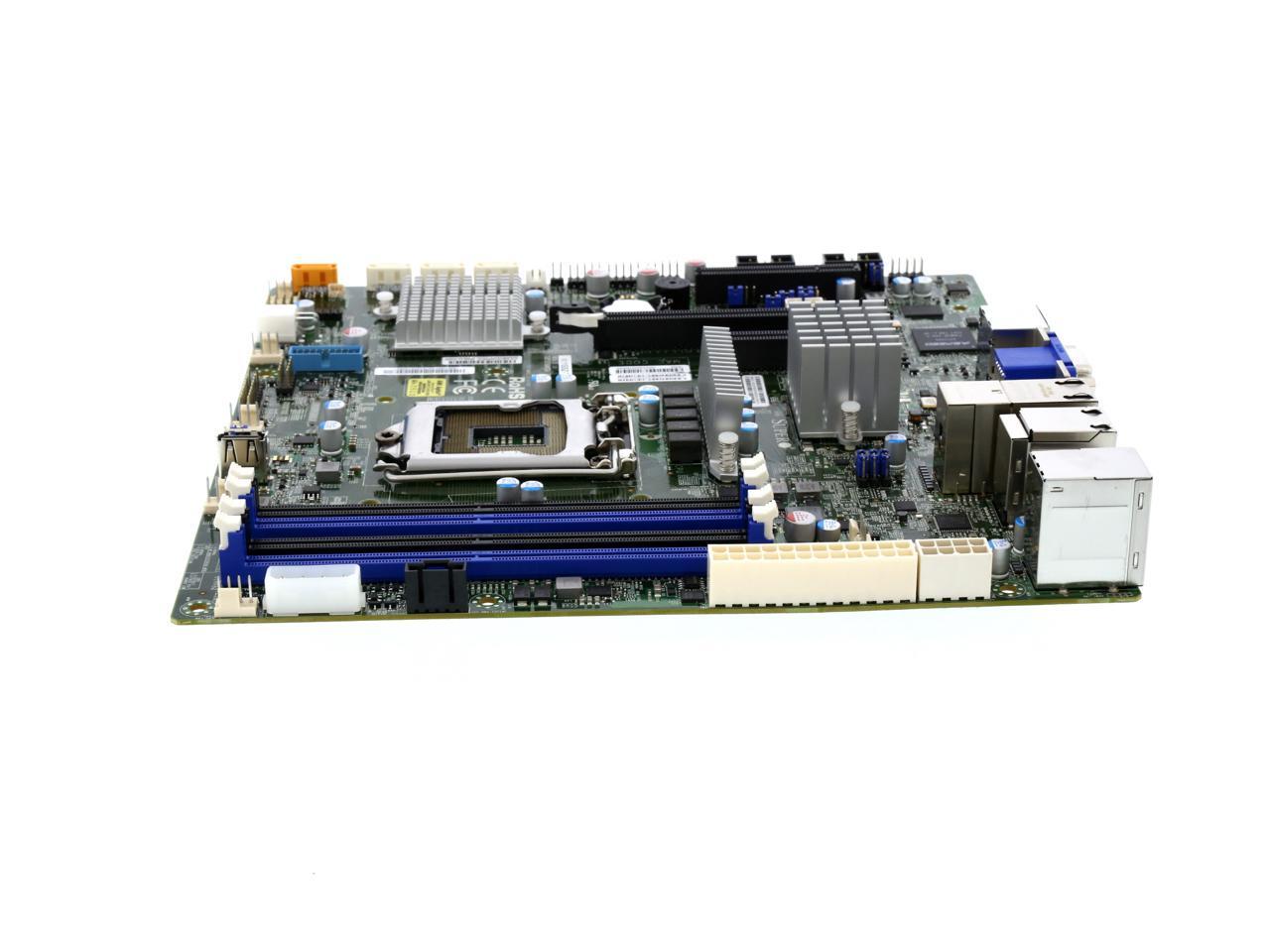

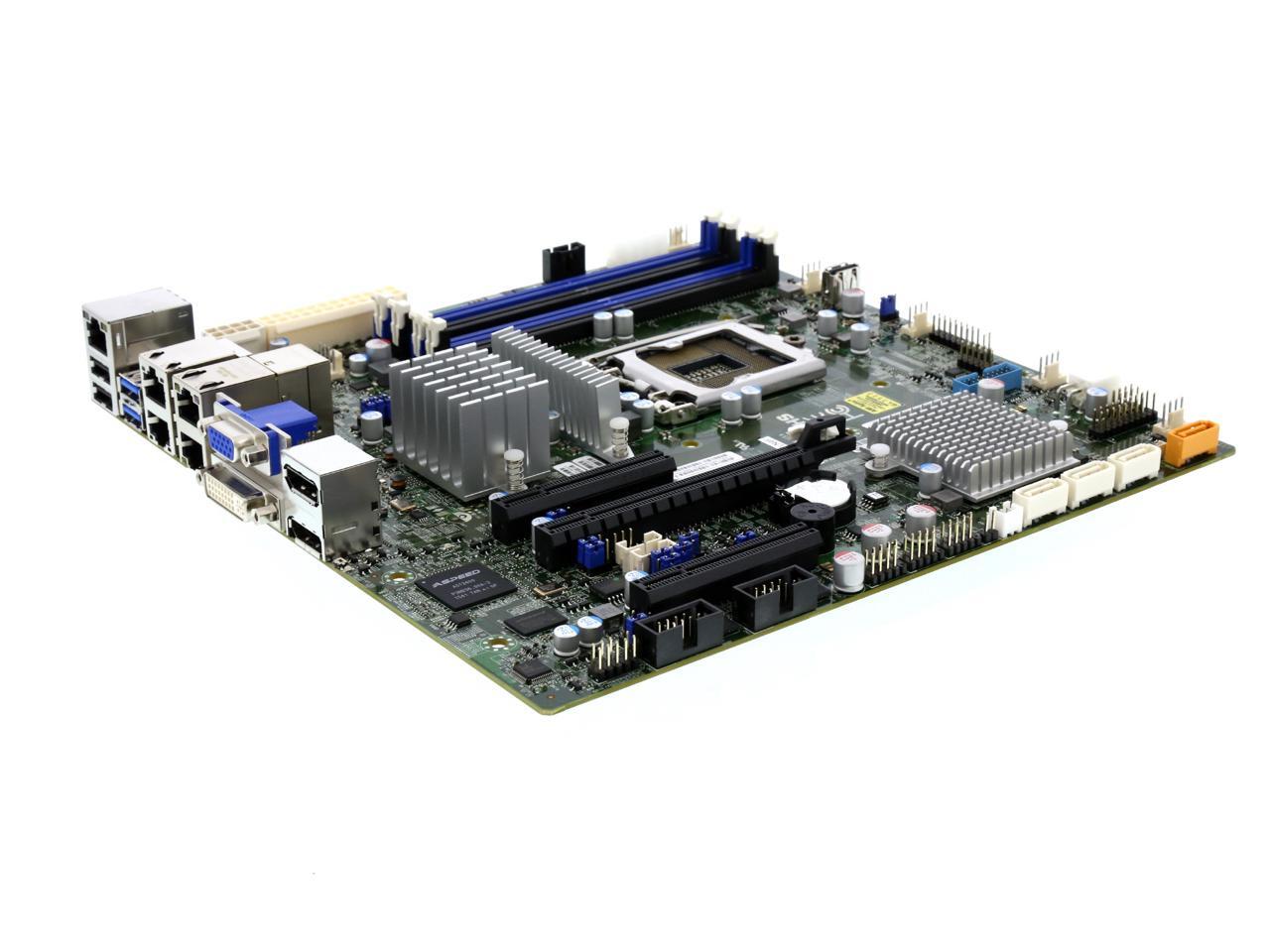

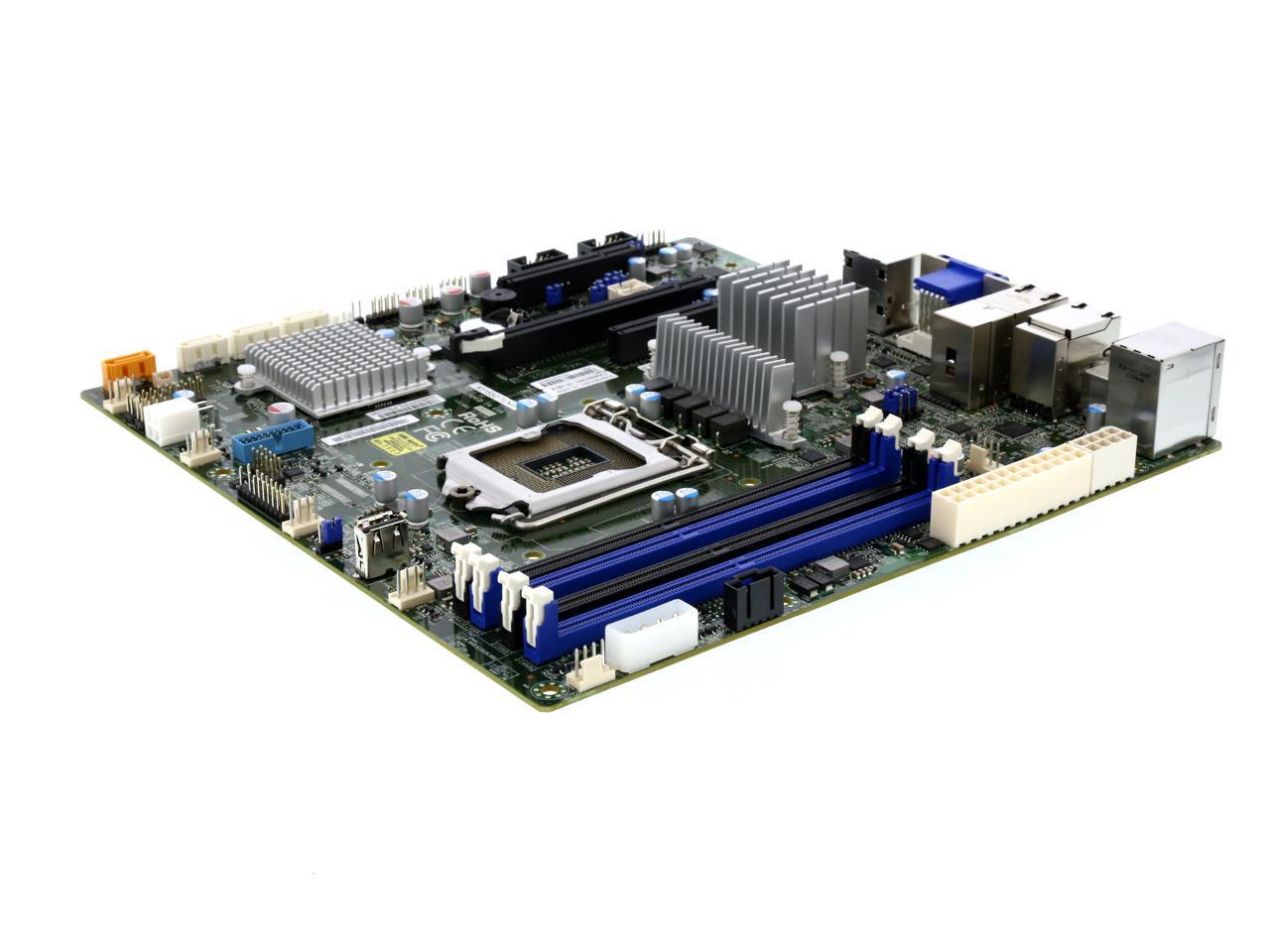

Alt view image 4 of 5 - SUPERMICRO MBD-X11SSZ-TLN4F-O Micro ATX Server Motherboard LGA 1151 Intel C236 DDR3 1600

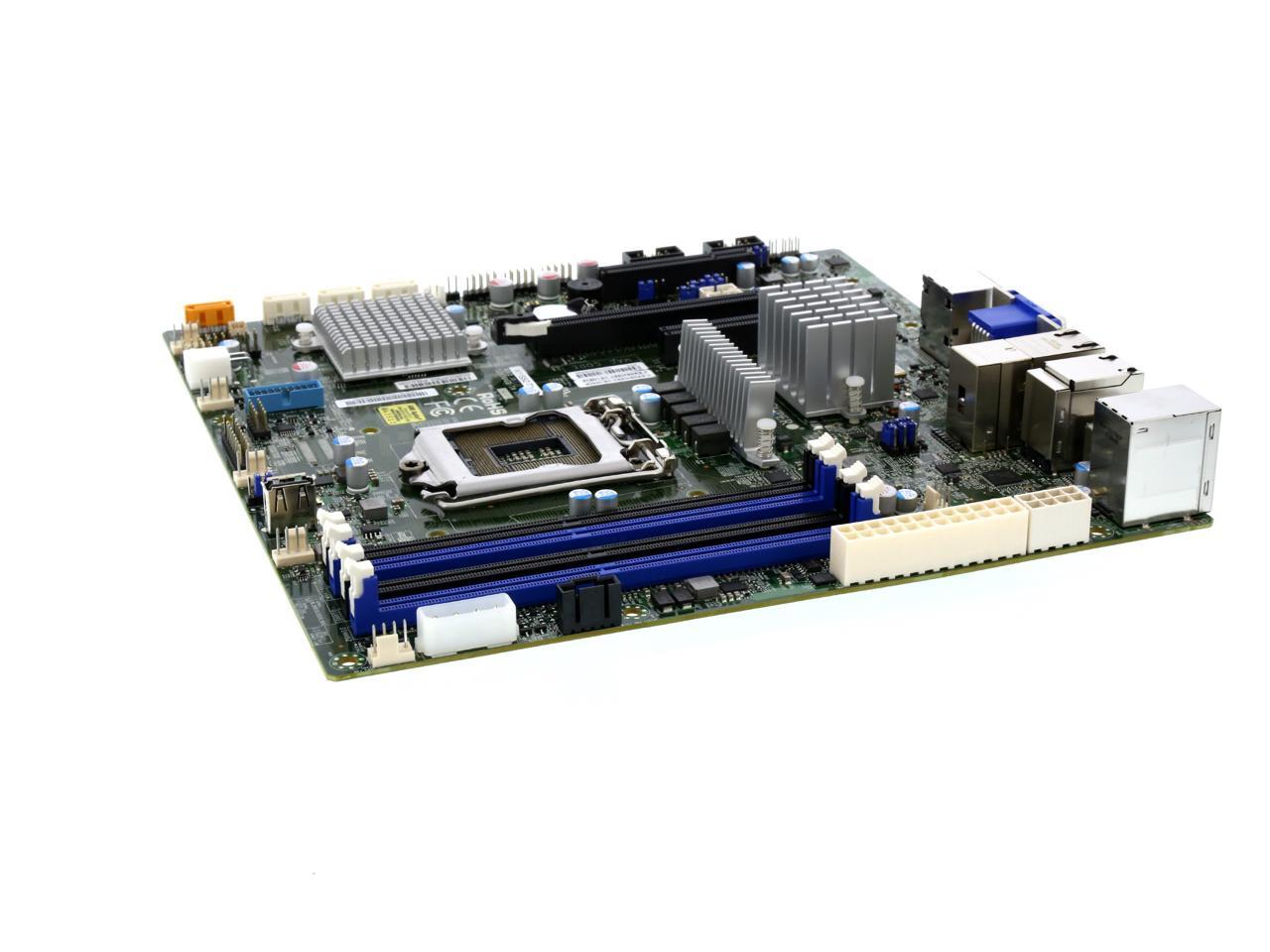

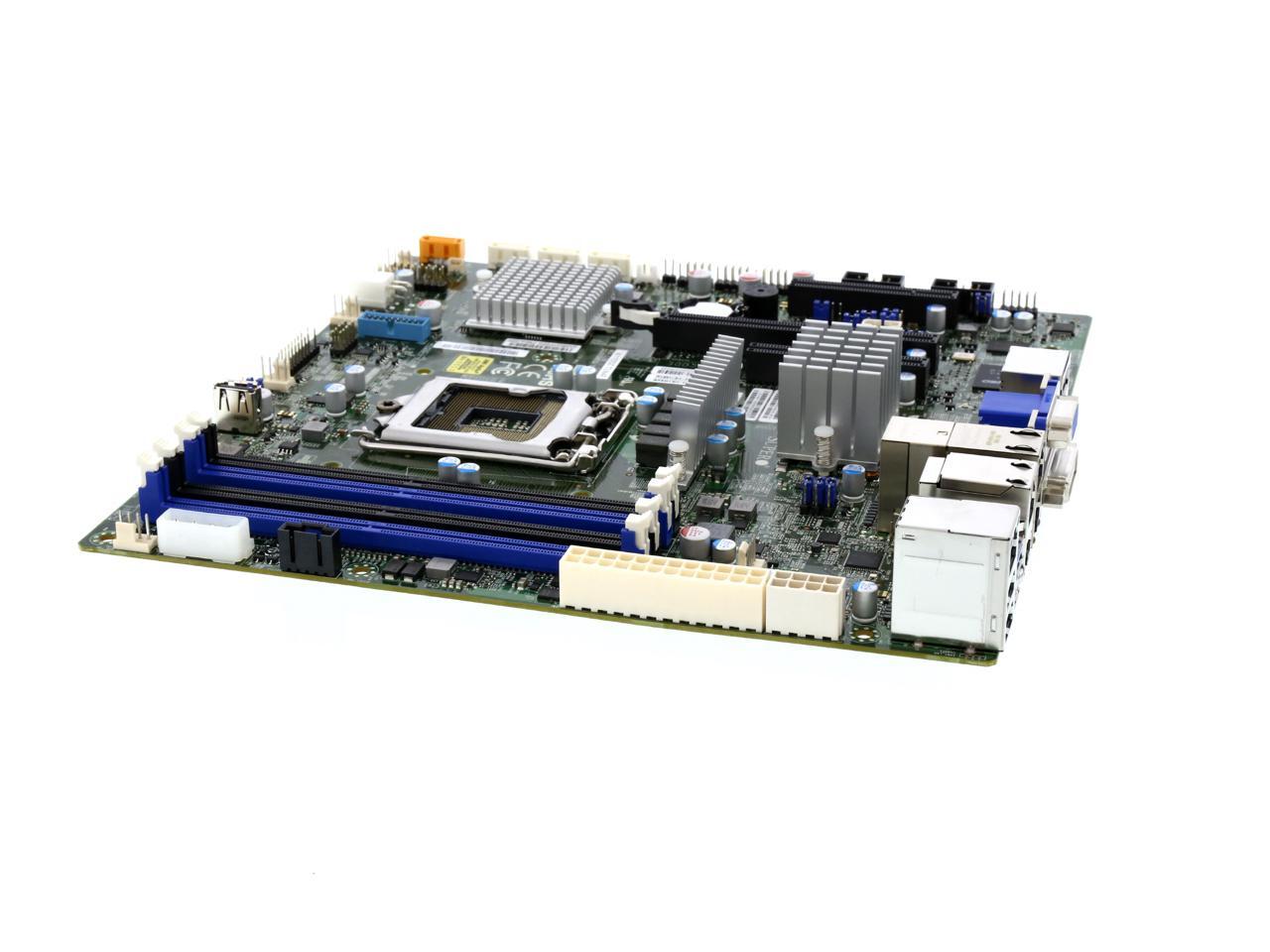

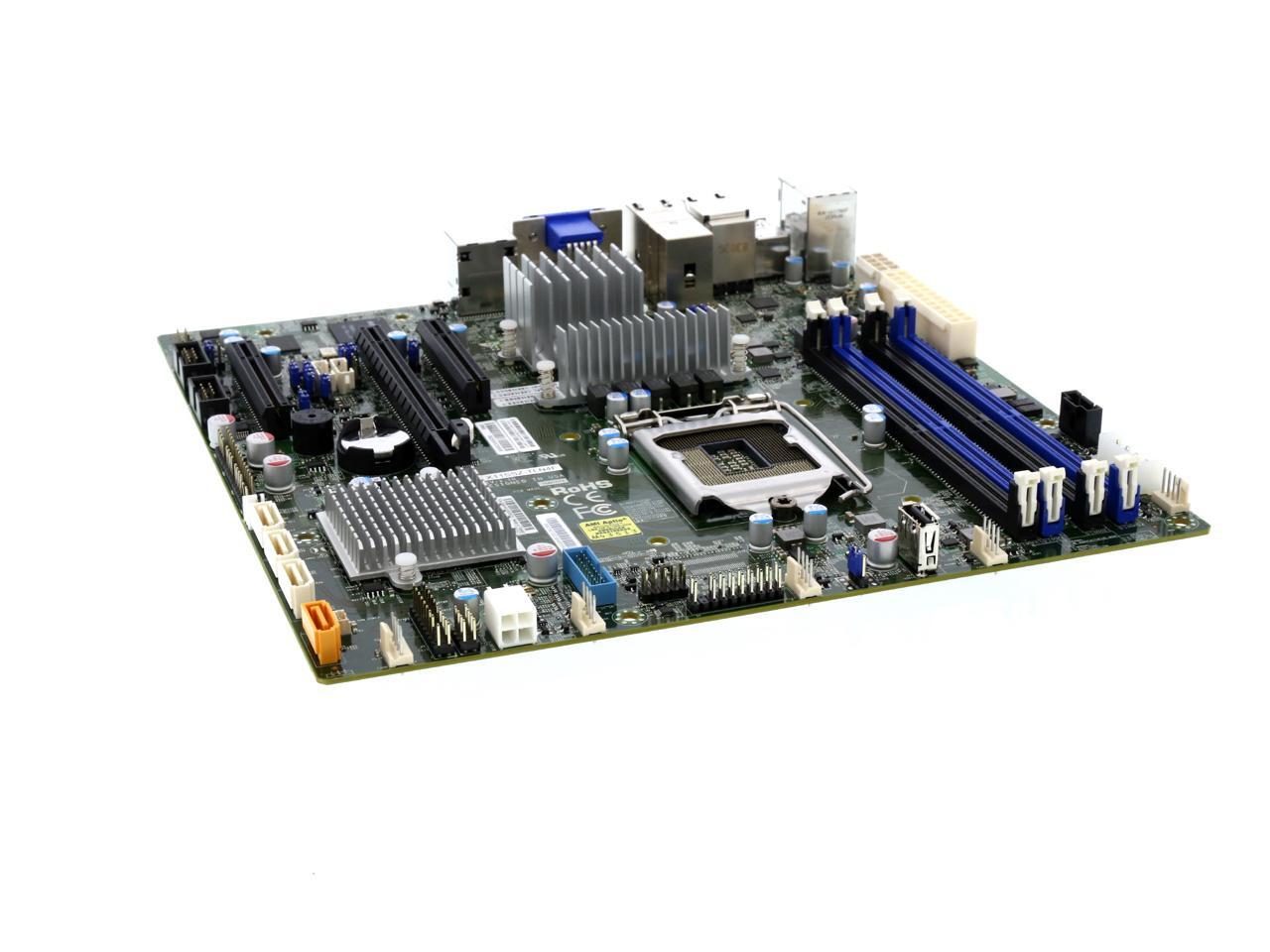

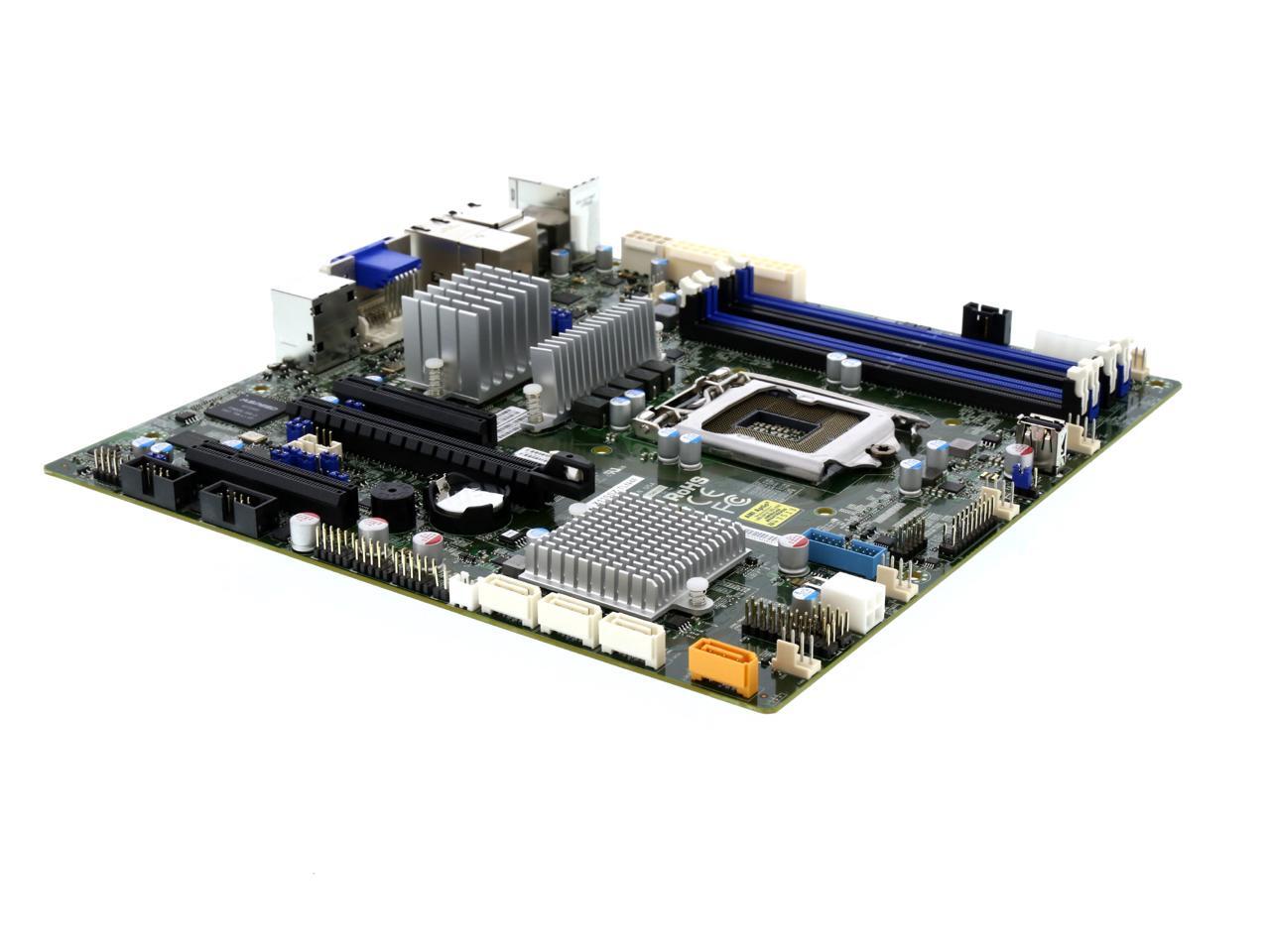

Alt view image 5 of 5 - SUPERMICRO MBD-X11SSZ-TLN4F-O Micro ATX Server Motherboard LGA 1151 Intel C236 DDR3 1600

360^°

Shop All Supermicro Products | Visit BTE Outlet Store

SUPERMICRO MBD-X11SSZ-TLN4F-O Micro ATX Server Motherboard LGA 1151 Intel C236 DDR3 1600

Be the first to review this product...

LGA 1151
Intel C236

Overview

Specs

Reviews

SUPERMICRO MBD-X11SSZ-TLN4F-O Micro ATX Server Motherboard

Features

Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®
Intel® C236 chipset
Up to 64GB DDR4 2133MHz ECC/non- ECC Unbuffered UDIMM; 4x DIMM slots
Expansion slots: 1x PCI-E 3.0 x16 (in x16), 2x PCI-E 3.0 x4 (in x8)
Dual 10GbE and dual GbE LAN ports
4x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
2x DP, 1 DVI-I, 3x independent displays via Intel HD Graphics, VGA port for BMC
I/O: 1x SATA DOM, 2x COM, TPM header, ALC 888S HD Audio
4x USB 3.0 (2 rear + 2 via header) 9x USB 2.0 (2 rear + 6 via headers + 1 Type A)
Support 12V DC power
AMT 11.0

Specifications

Product SKUs
MBD-X11SSZ-TLN4F -B	X11SSZ-TLN4F (Bulk Pack)
Physical Stats
Form Factor	microATX
Dimensions	9.6" x 9.6", (24.4cm x 24.4cm)
Processor/Cache
CPU	Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i7/i5/i3, Intel® Pentium®, Intel® Celeron® processors CPU TDP up to 95W
System Memory
Memory Capacity	4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC/Non-ECC UDIMM
Memory Type	2133/1866/1600MHz ECC DDR4 SDRAM 72/64-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	16GB, 8GB, 4GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C236 chipset
SATA	SATA3 (6Gbps) via C236 controller RAID 0, 1, 5, 10 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Dual 10GbE LAN ports via Intel® X550 Single GbE LAN port via Intel® I210-AT Single GbE LAN port via Intel® PHY I219LM Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	RealTek ALC 888S High Definition Audio
Graphics	ASPEED AST2400 BMC
Input / Output
SATA	4x SATA3 (6Gbps) ports
LAN	2x RJ45 10Gigabit Ethernet LAN ports 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	4x USB 3.0 ports (2 rear + 2 via header) 9x USB 2.0 ports (2 rear + 6 via headers + 1 Type A)
Audio	Front Panel Audio Header
Video/Display	2x DP (Display Ports), 1x DVI-I via Intel® HD Graphics with 3x Independent Displays, 1x VGA port for Aspeed AST 2400 BMC
Serial Port / Header	2x COM ports (2 headers)
SuperDOM	1x SuperDOM (Disk on Module) ports with built-in power
TPM	1x TPM 20-pin Header
Expansion Slots
PCI-Express	1 PCI-E 3.0 x16 (in x16) slot 2 PCI-E 3.0 x4 (in x8) slots
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI 2.3.1 RTC (Real Time Clock) Wakeup
Management
Software	AMT IPMI 2.0 with KVM support NMI SuperDoctor® 5 vPro Watch Dog
Power Configurations	ACPI Power Management Power-on mode for AC power recovery
PC Health Monitoring
Voltage	Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN	Total of 6 fan headers supporting up to 6 fans 6 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED Suspend static indicator LED UID/Remote UID
Other Features	Chassis Intrusion Detection Chassis Intrusion Header RoHS RSTe 8-pin 12V DC Power Support

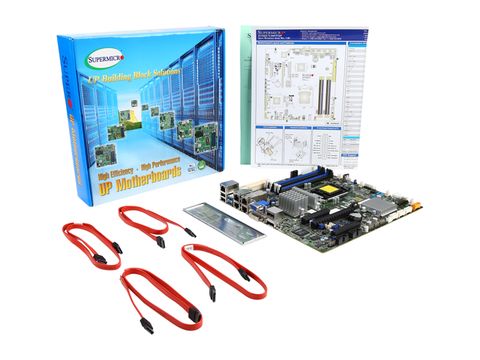

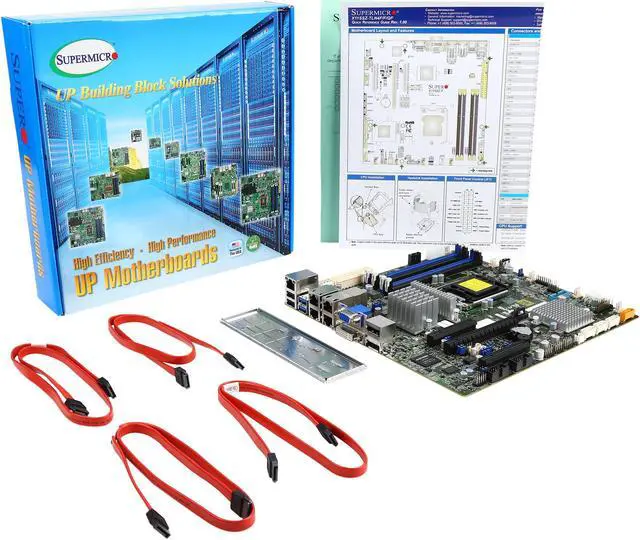

What's in the Box

Model
Brand	SUPERMICRO
Model	MBD-X11SSZ-TLN4F-O

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Intel Xeon processor E3-1200 v5, Intel 6th Gen Core i7 / i5 / i3, Intel Pentium, Intel Celeron processors CPU TDP up to 95W

Chipsets
North Bridge	Intel C236

Memory
DDR3 Standard	DDR3 1600
Number of DDR4 Slots	4 x 288-pin
DDR4 Standard	2133 / 1866 / 1600 MHz ECC DDR4 SDRAM 72 / 64-bit, 288-pin (UDIMM) gold-plated DIMMs
Maximum Memory Supported	64GB

Expansion Slots
Other Slots	1 PCI-E 3.0 x16 (in x16) slot 2 PCI-E 3.0 x4 (in x8) slots

Storage Devices
SATA	4 x SATA 6.0Gb/s
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC 888S HD

Onboard LAN
LAN Chipset	Dual 10 GbE LAN ports via Intel X550 Single GbE LAN port via Intel I210-AT Single GbE LAN port via Intel PHY I219LM
LAN Speed	10/100/1000Mbps

Rear Panel Ports
USB 1.1/2.0	2 x USB 2.0
USB 3.0	2 x USB 3.0

Features
Features	Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i7 / i5 / i3 series, Intel Celeron and Intel Pentium Intel C236 chipset Up to 64GB DDR4 2133 MHz ECC / non-ECC Unbuffered UDIMM; 4 x DIMM slots Expansion slots:1x PCI-E 3.0 x16 (in x16), 2x PCI-E 3.0 x4 (in x8) Dual 10 GbE and dual GbE LAN ports 4 x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 2 x DP, 1 DVI-I, 3 x independent displays via Intel HD Graphics, VGA port for BMC I/O: 1 x SATA DOM, 2 x COM, TPM 1.2 header, ALC 888S HD Audio 4 x USB 3.0 (2 rear + 2 via header) 9 x USB 2.0 (2 rear + 6 via headers + 1 Type A) Support 12V DC power AMT 11.0

Dimensions
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"

Additional Information
