MAIN OVERVIEW FEATURES: Input Receptacles: 2 x IEC 60320 C14Output Receptacles: 10 x IEC 60320 C13Protection Type: Overload ProtectionInput Voltage: 230 V ACInput Voltage Range: 200 V AC - 240 V ACOutput Voltage: 200 V AC,208 V AC,220 V AC,230 V AC,240 V ACPower Rating (Watt): 2400 WInput Current: 10 AMounting Orientation: HorizontalPlacement: RackRack Height: 1U/2UHeight: 1.7"Width: 17.3"Depth: 14.4"Weight (Approximate): 10.32 lbPackage Contents: PDUMH15HVAT 10-Outlet PDU 10 x C14 plug lock inserts 2 x C13 to C14 power cords, 3.6 m (11.8 ft.) 2 x Mounting brackets, horizontal 2 x Mounting brackets, vertical 6 x Screws Owner's manual Environmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: 2 Year

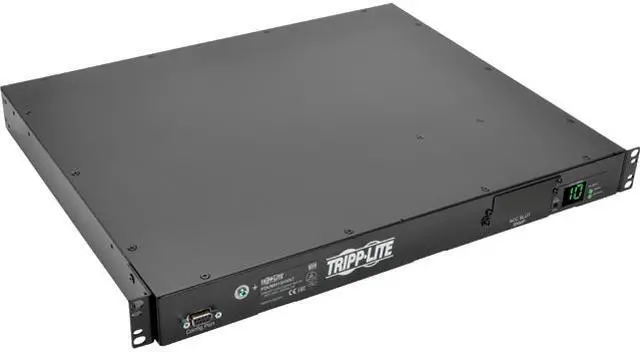

Learn more about the Tripp Lite PDUMH15HVAT
Model
Brand
Tripp Lite
Model
PDUMH15HVAT
Details
Type
Switched, Metered
Rack Size
1U
Style
Horizontal
Front Panel LEDs
8 LEDs display power on-off status for each C13 output receptacle, plus 2 additional LEDs to indicate input power status for primary and secondary inputs
Certifications
Tested to UL 60950-1 (USA, Canada), CE (EU), NOM (Mexico), GOST (Russia), EN55032:2015 and EN62040-2:2006, FCC Class A (Emissions), TAA Compliant
Primary and Secondary Inputs for Power Redundancy ?Enables redundant power for network devices with non-redundant power supply configurations ?Dual 3.6 m input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources 10 x C13 outlets
Automatic Transfer Switching Dynamic solid-state(TRIAC) automatic transfer switching Switches to secondary power source if primary source fails or becomes unstable 2 - 5 ms transfer time ensures uninterrupted operation of connected equipment Built-in processor monitors both sources and prevents switching if secondary source is unavailable or of lower quality than primary source
Digital Load Meter Easy-to-read ammeter displays total current used by connected equipment
LED Indicators Individual LEDs display outlet on/off status and input power status on primary and secondary inputs
Advanced Network Monitoring Options?Built-in card slot accommodates SNMPWEBCARD and WEBCARDLX accessories(sold separately) Optional cards create a switched PDU by allowing remote access for power monitoring, configuration, outlet control and notification via web browser, SSH, telnet or SNMP
Mounts Horizontally in 1U of Rack Space Compatible with EIA-standard 19.00" racks
TAA-Compliant Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
Dimensions & Weight
Dimensions
1.71" x 17.33" x 14.45"
Weight
10.32 lbs.
Details
Package Includes

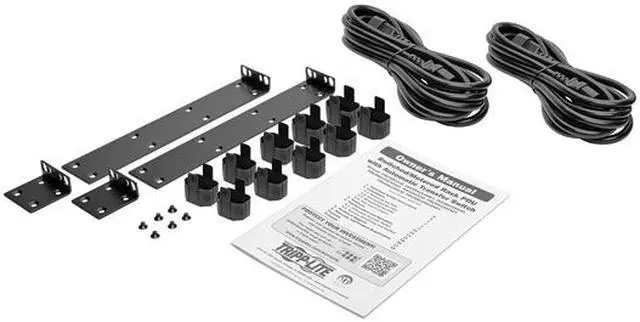

PDUMH15HVAT TAA-Compliant 2–2.4kW Single-Phase ATS / Metered PDU 10 x C14 plug lock inserts 2 x C13 to C14 power cords, 3.6 m (11.8 Feet) 2 x Mounting brackets, horizontal 2 x Mounting brackets, vertical 6 x Screws Owner’s manual
